Packaging Details: | 1. Packed in individual cartons. 2. The carton is wrapped on the pallet with plastic wrap. 3. Special design and customization can be accepted as required. Delivery details: Standard stock: 10 working days; Special production: 15~25 days. | Energy source: | electric blower |
payment terms: | L/C, Western Union, T/T, MoneyGram | Maximum Airflow: | 145 cubic meters / hour |
Warranty: | 24 months | Blower Features: | 100% oil-free |
product name: | fish pond aeration pump | application: | hair dryer |
brand: | Gu Rui | port: | Shenzhen/Guangzhou |
color: | silver or gold | frequency: | 50/60 Hz |
Rated voltage: | 200-240V | Maximum Vacuum: | -150 mbar |
usage: | ventilation | Motor material: | 100% pure copper |
Origin: | Guangdong, China | Material: | aluminum alloy |
model: | GHBH 1D2 12 1R4 | Customization support: | OEM、ODM |
Package preview: | | pressure: | high pressure |
greatest pressure: | 160 mbar | Supply capacity: | 5000 pieces per month |
Product Description
product style | energy savingSingle stage single phase aeration ring blower | | | |
model | GHBH 1D2 12 1R4 | | weight | 15 kg |
degree of protection | IP55 | | insulation level | f |
Certificate | CE certificate, RoHS certificate, ISO certificate, TUV certificate | | | |
frequency | 50 Hz | | 60 Hz | |
rated power | 0.8kW | | 0.9kW | |
Rated voltage | 200-240 (volts) | | 220-275(V) | |
rated current | 5.2(A) | | 5.8(A) | |
airflow | 145 cubic meters / hour | | 175 cubic meters / hour | |
vacuum | -150 mbar | | -160 mbar | |
greatest pressure | 160 mbar | | 140 mbar | |
sound level | 63dB(A) | | 64dB(A) | |
feature
High efficiency motor;IP55 & insulation class H;
Built-in thermal protector (PTC);
High temperature resistant bearings;
Special customized fan and OEM can be provided;
24-month warranty and long-term technical support;
CCC, CE, SGS, TUV, RoHS, ISO9001 certifications are approved.
Electivemachine colorr orAppearance model
silver
Golden
GOORUI side channel blower ismaintenance free:External permanently lubricated bearings Non-contact rotating impeller Fan cooled motorGOORUI side channel blower isuser friendly:Weight-optimized design through aluminum die-casting Can be installed vertically or horizontally Suitable for converter operationGOORUI side channel blower isEnvironmental friendly:· Oil-free operation · Low energy demand · Low noise emissionGOORUI Side Channel BlowerAvailable worldwide:Iso F class motor with 50/60Hz voltage range Protection type IP55 with integrated thermal protection switch (standard) CE, TUV, RoHS, CCC and ISO9001 certifiedouradvantage:·Various sizes available ·Ample accessories ·100% inspection before delivery ·Spare parts in stock ·Service available at our factory or on site ·Fast and reliable delivery
The above data is based on laboratory tests. In actual application, there will be a deviation of ±10% according to factors such as altitude, air density, humidity, and temperature!
GOORUI side channel blowerApplication fieldfor aquaculture
hollowed outFish and molluscs must be gutted and cleaned before any further processing. The bench is equipped with suitable vacuum nozzles to extract the viscera from the fish. A central vacuum system then sends the mixture of liquid and coarse particles to the filter, where they are separated for proper disposal.feed the fish

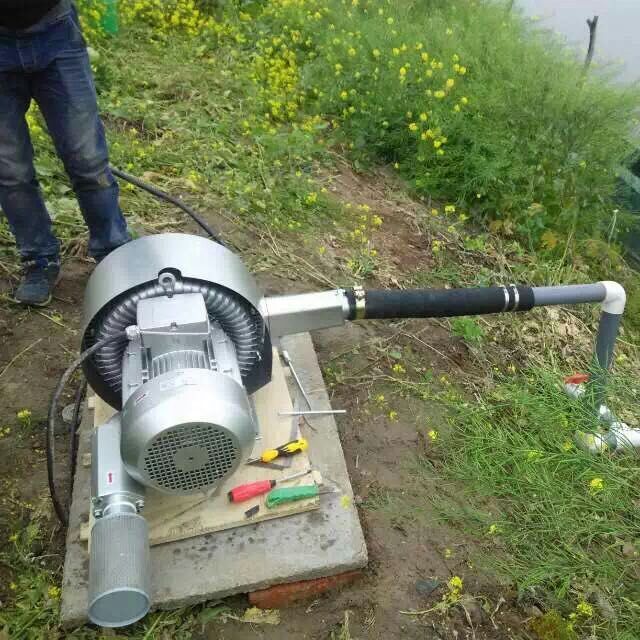

Distribution of fish food is carried out by pressure pneumatic system from barge or vessel to fish in open water (aquaculture cages).fish treatmentVacuum is used to draw live fish mixed with seawater from fishing boats, culture tanks or buffer tanks to processing plants, from cages to graders. Vacuum pumps are also used in pressure mode to transfer live fish from storage containers to the point of slaughter.fish pond oxygenationUsing a rotary blade blower can drastically increase the oxygen content of the water, thereby increasing the number of fish that can be reared in the pond. During this process, air is drawn from the atmosphere and forced through the inlet into the tube diffuser. It then diffuses into the water through tiny openings and rises as tiny air bubbles. Oxygen in the water allows fish to grow and reproduce more rapidly, resulting in significantly higher yields.PackageAir and the oxygen it contains can have a detrimental effect on the quality and shelf life of fresh food. Therefore, many processes need to be evacuated. A classic vacuum application in this field is vacuum packaging. A central vacuum system removes the air from the package before sealing it. Suction groups are used in packaging machines for many industrial purposes.
instruct
1.It should be placed in a relatively stable place, and the surrounding environment should be clean, dry and ventilated.2.The direction of rotation of the impeller must match the direction of the pointed tip marked on the fan guard.3.When working, the working pressure should not be greater than 8kPa, so as not to overheat the air pump and damage the air pump due to overcurrent of the motor.4.It is strictly forbidden for solid, liquid and corrosive gas to enter the pump body.5.The filters and mufflers at both ends of the air inlet and outlet should be cleaned in time according to the situation, so as not to be blocked and affect the use.6.The external connections of the air inlet and outlet must be connected with hoses (rubber tubes, plastic spring tubes).Precautions
1.Flat and spring washers must be used to tighten the screws.2.It is best to use rubber buffer rubber to bear the weight of the air pump, especially for high-power air pumps, which is indispensable.3.For some occasions that require noise, a muffler can be installed to reduce the noise (generally about 5 decibels), and the muffler is installed at the end of the inlet pipe or outlet pipe.4.For some occasions with high noise requirements, a layer of sound-absorbing cotton can be added according to the situation of the machine itself to meet the noise requirements of the site. Please consult our customer service for details.5.When using sound-absorbing cotton to silence the noise, pay attention to the distance between the air pump and the box, the ventilation and heat dissipation of the air pump, and the use of rubber buffers to bear the weight of the air pump. According to the picture, you need to consult customer service.6.The air inlet and outlet of the air pump are connected by pipes, which should be connected by hoses to isolate vibration.
