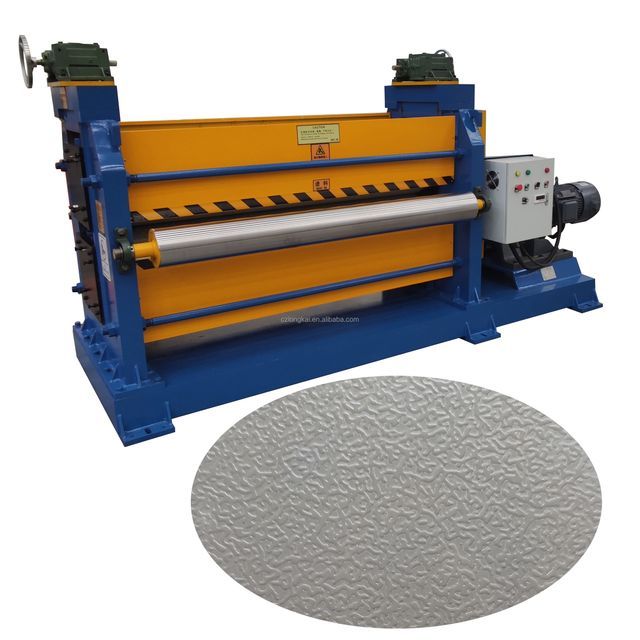

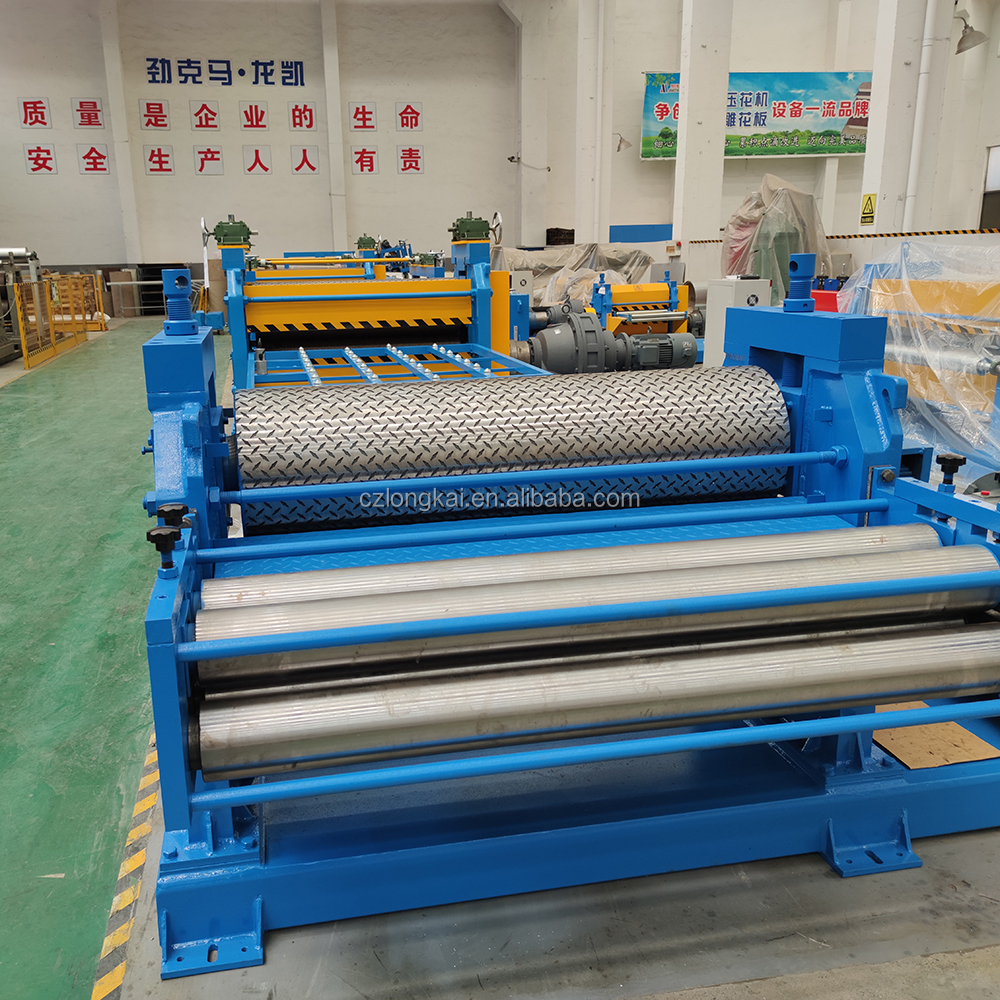

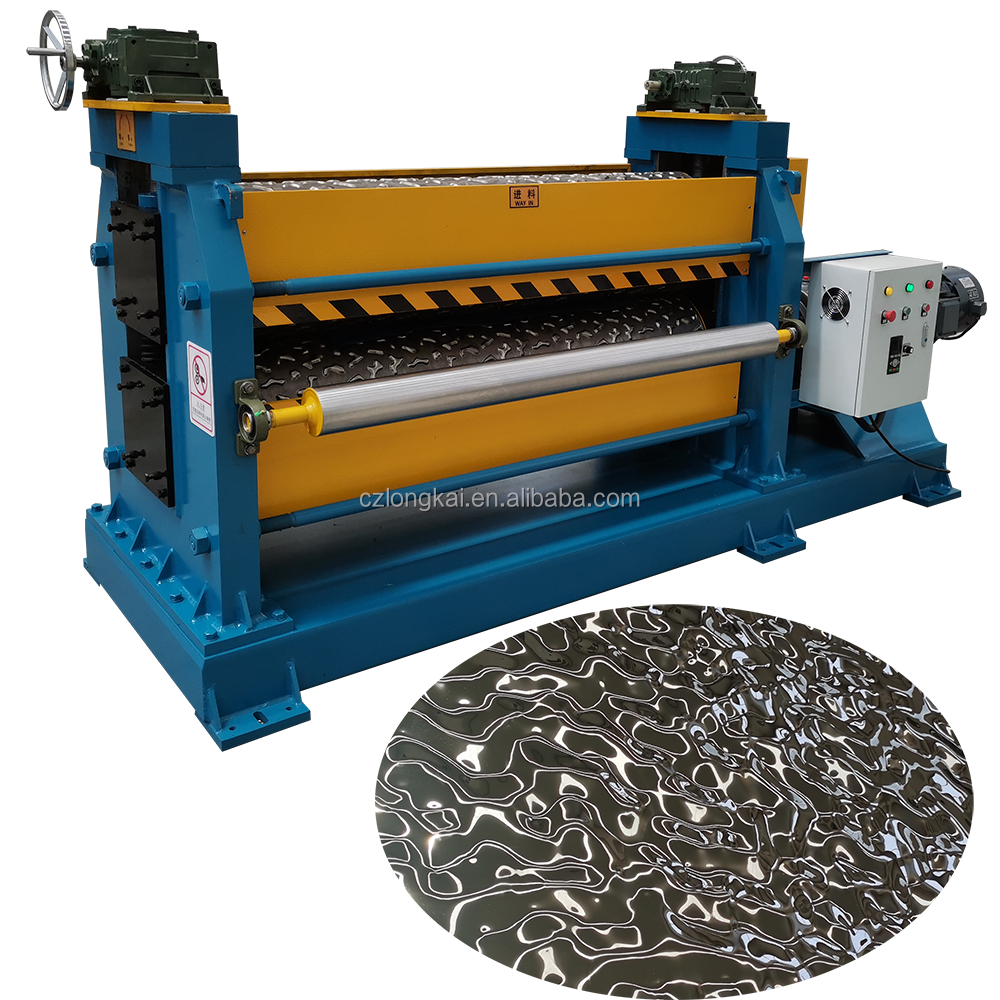

Metal plate embossing machine

This metal embossing machine is suitable for aluminum plates, color steel plates, hot-dip galvanized plates, copper plates, cold-rolled steel plates, stainless steel plates, etc.

Patterns can be designed according to customer requirements.

Specification

1. Roller specifications: Φ400-500×1000-1900mm;

2. Roller material: high-quality alloy steel (Chinese code 42CrMo) forged roller;

3. The roller is medium-frequency quenched, hardness: HRC55-58;

4. Roller pattern: designed according to customer requirements;

5. Embossing method: the male and female rollers squeeze each other up and down;

6. Method of controlling pattern depth: through screw or turbine screw reducer;

7. Transmission mode: gear transmission;

8. Motor: 11-15Kw variable frequency motor, reducer;

9. Embossing speed: 0-25m/min, controlled by frequency converter;

10. Install a safety cover on the machine;

11. Warranty period: one year.

advantage

The roller is forged from high-quality alloy steel to enhance rigidity and toughness.

Increased stiffness and flexibility after heat treatment

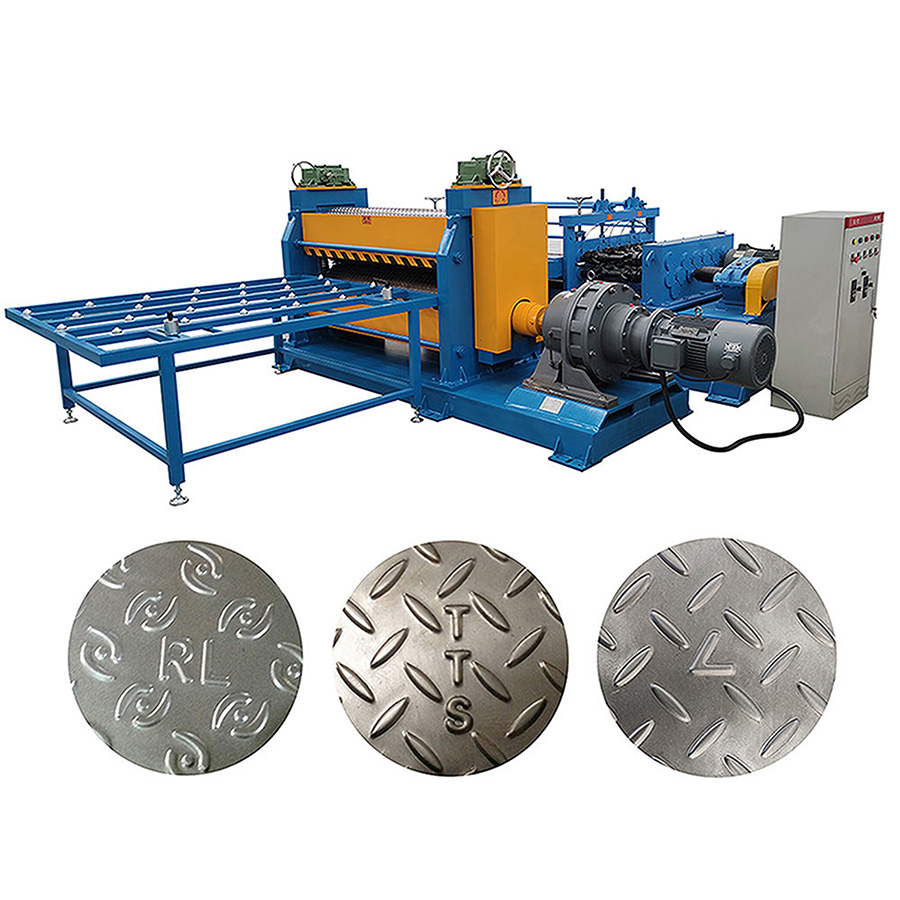

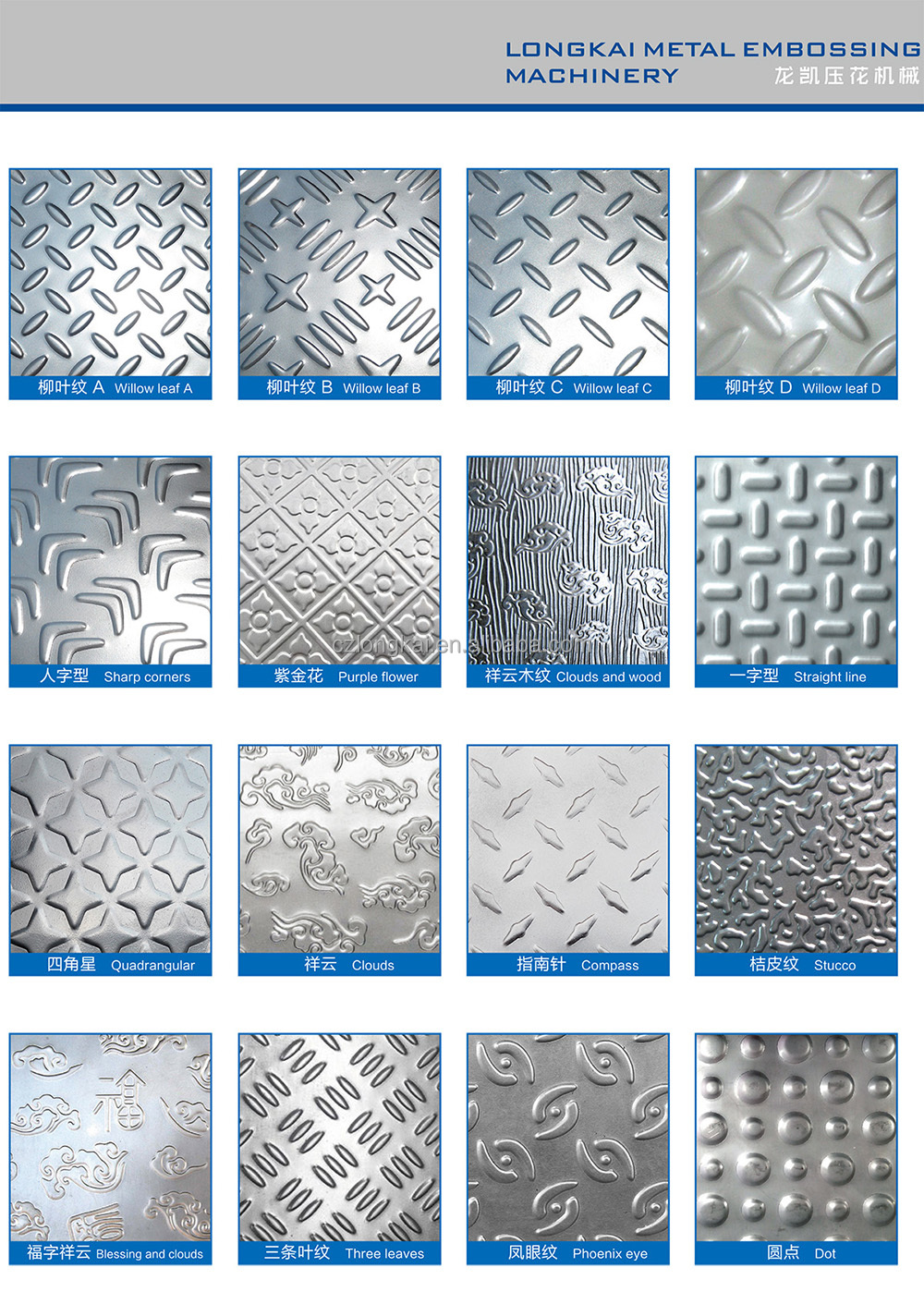

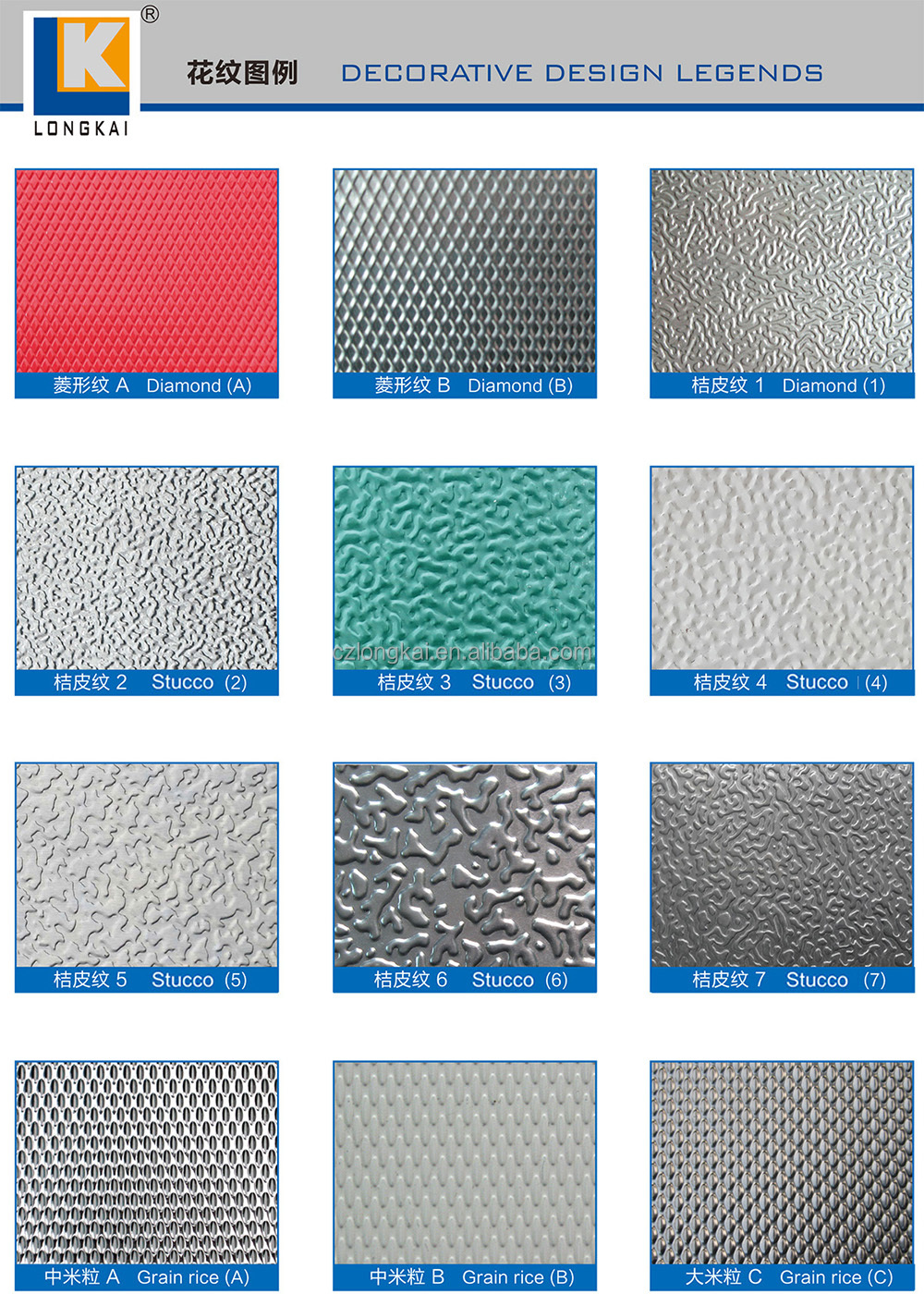

sample

More than 100 patterns are available, and patterns can also be designed according to customer requirements.

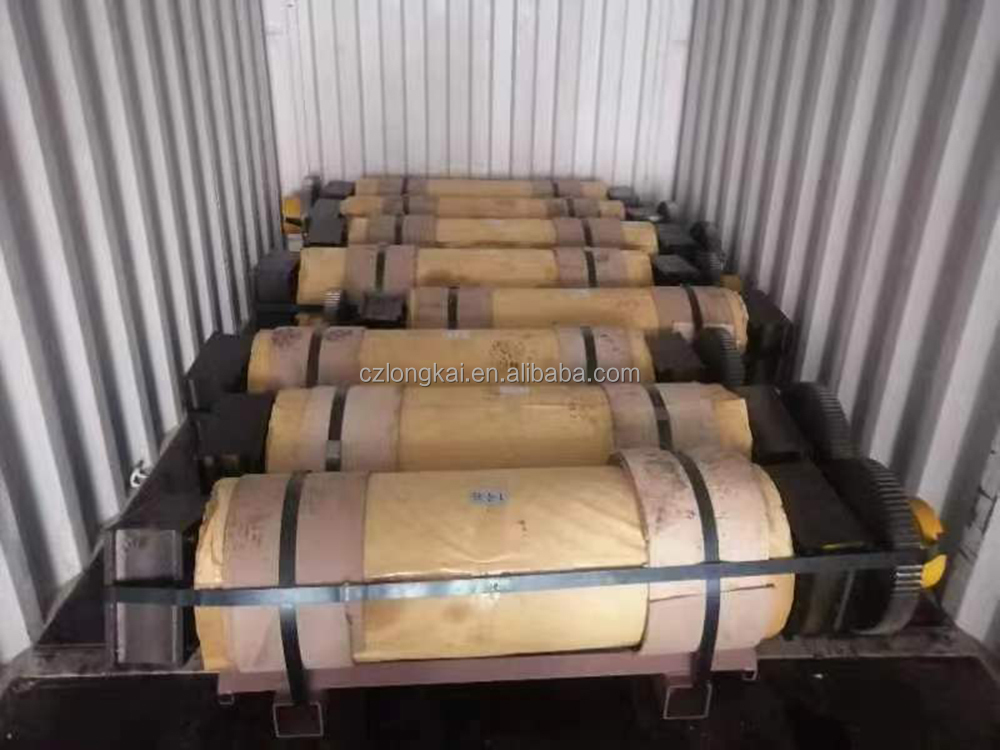

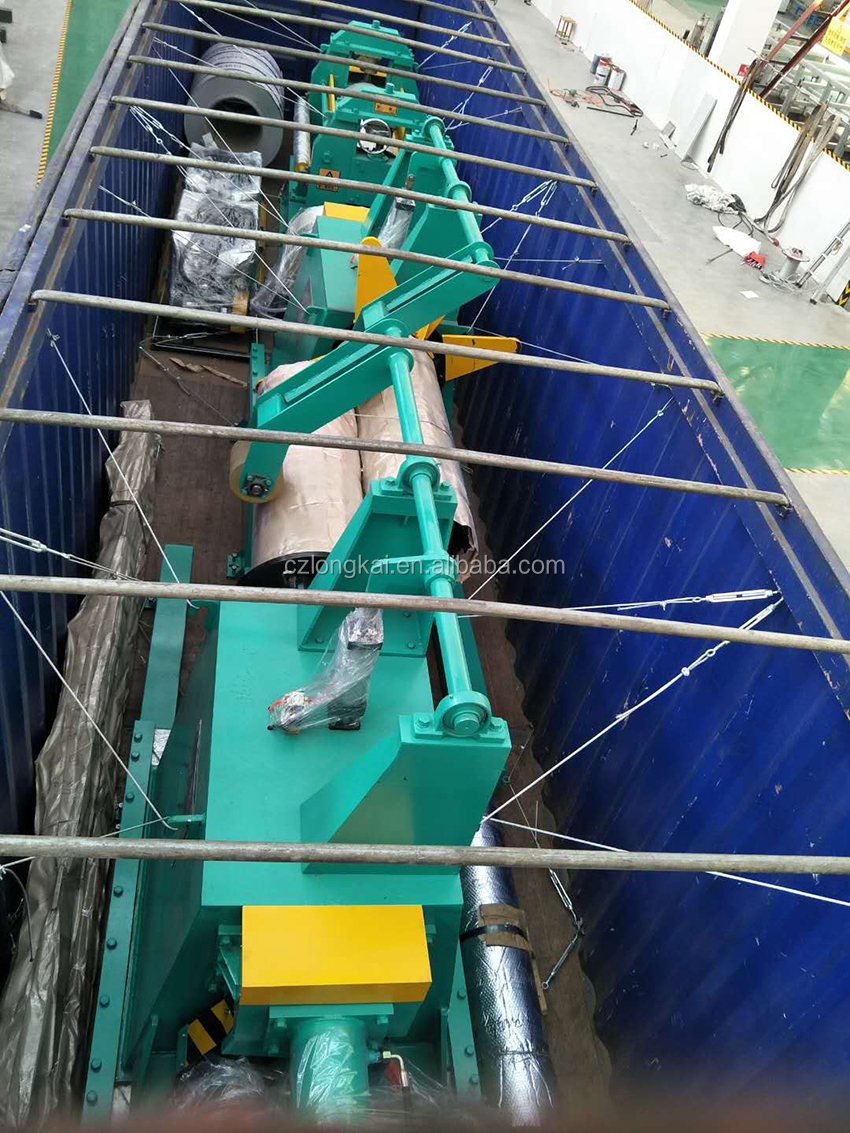

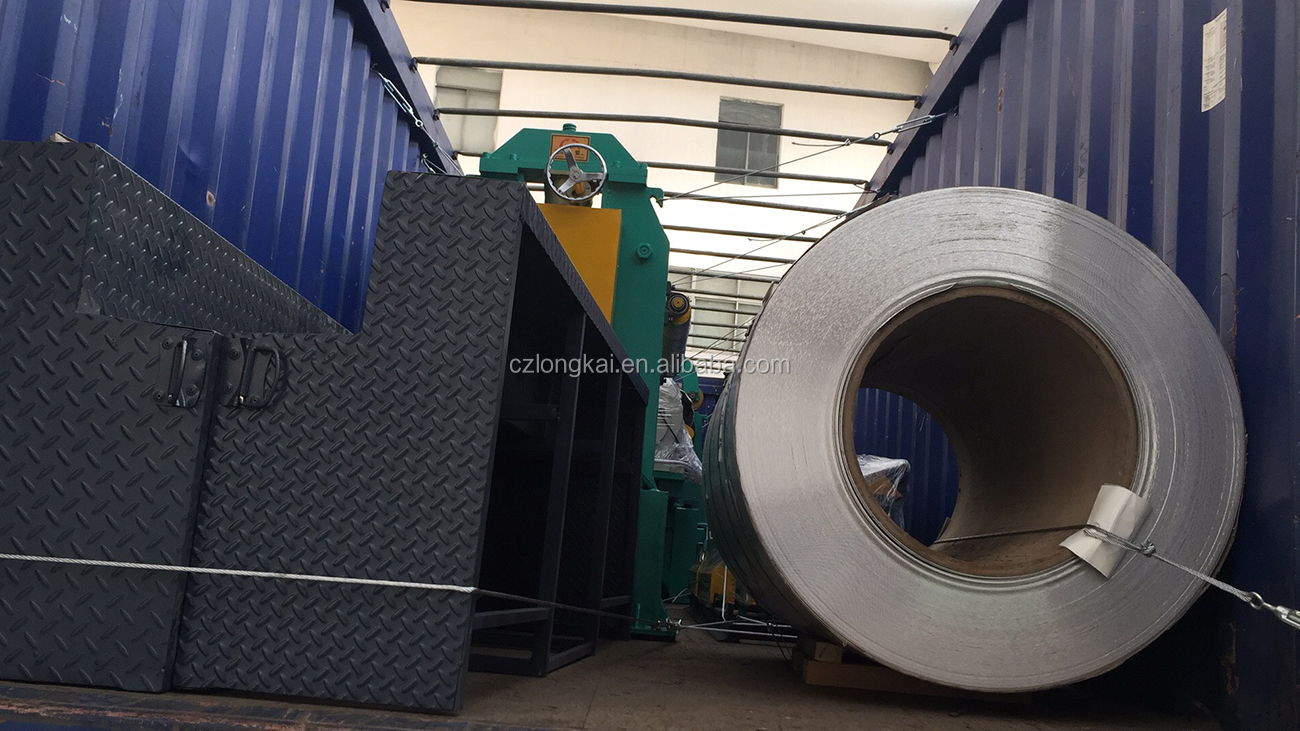

Shipping

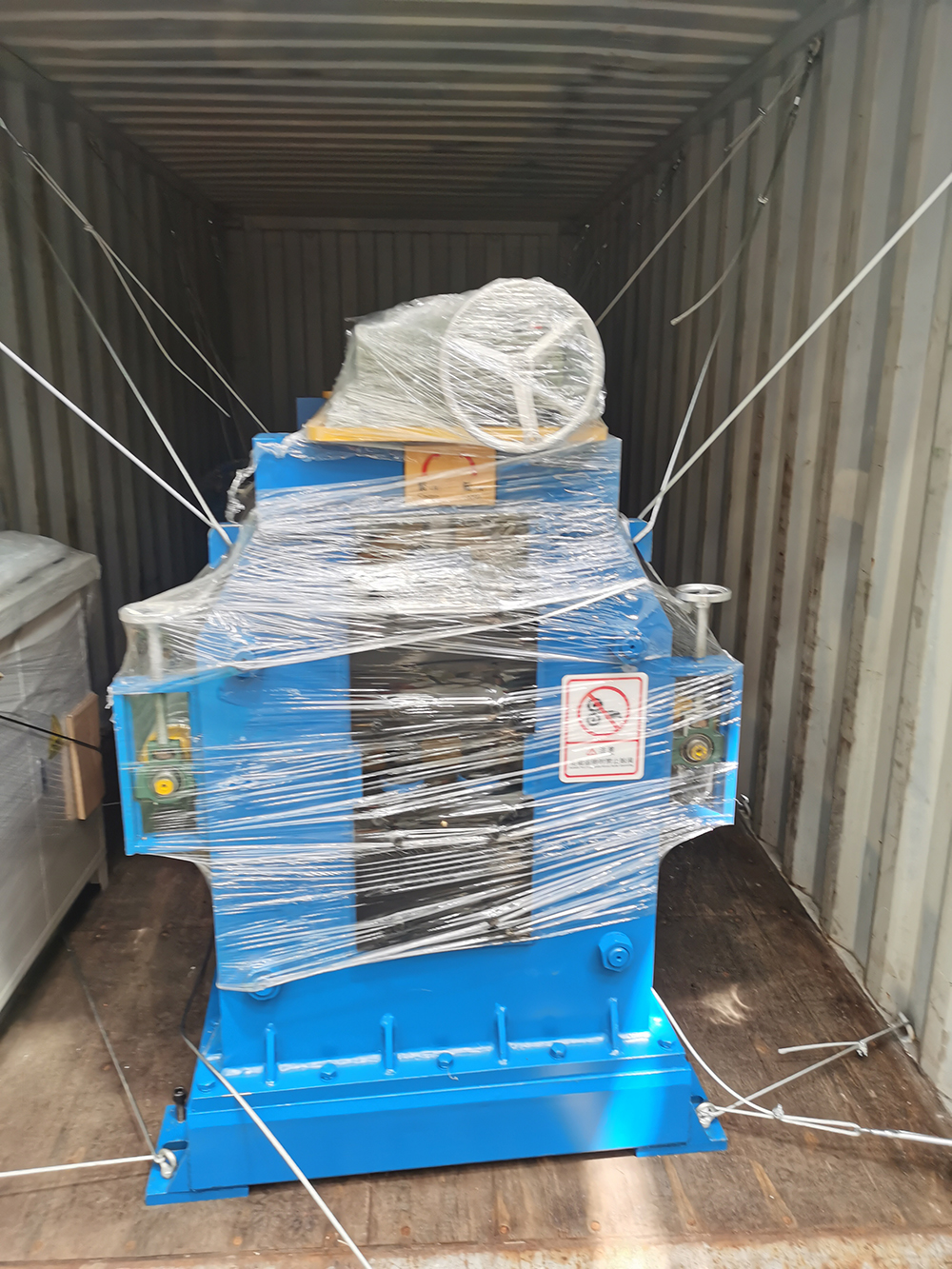

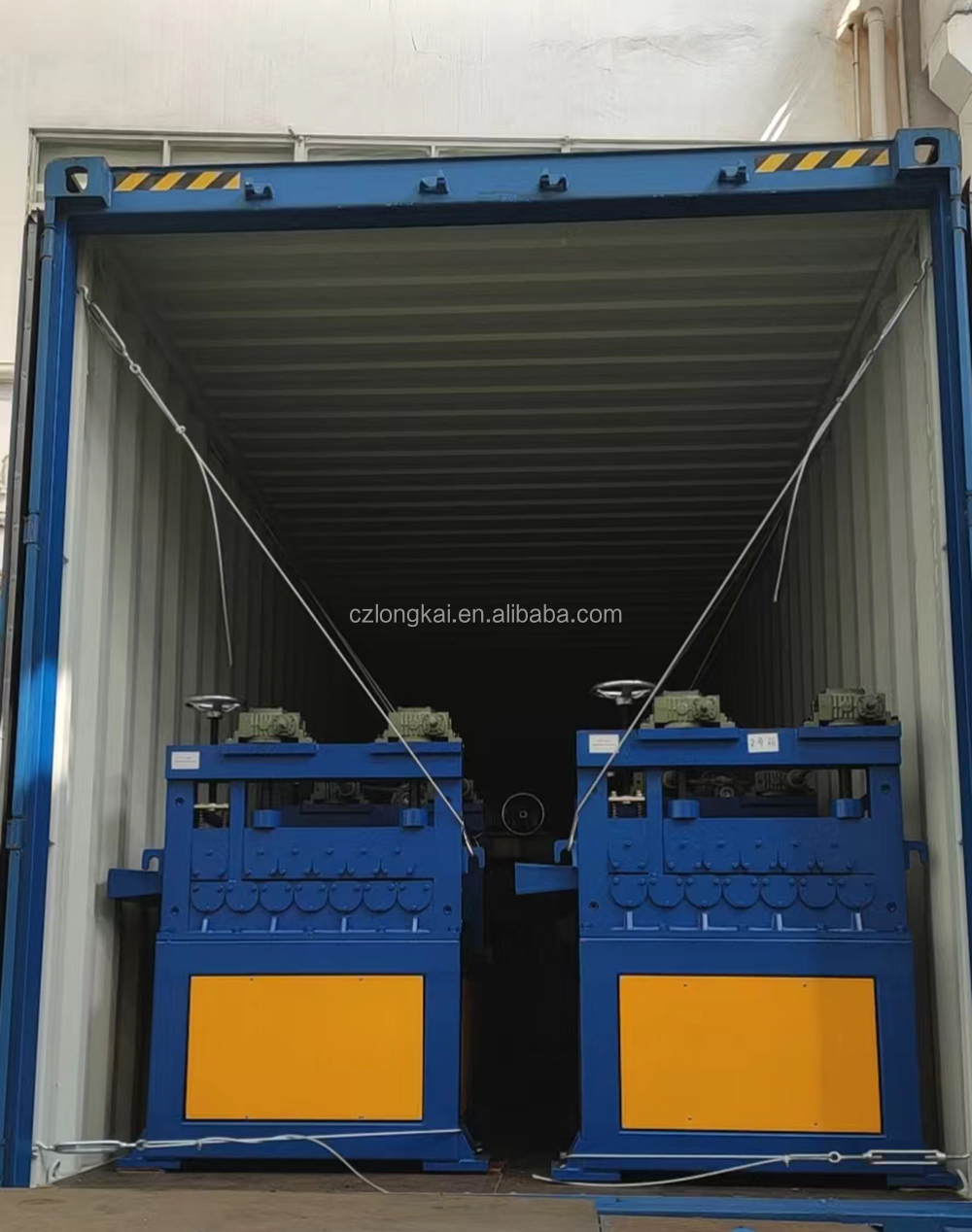

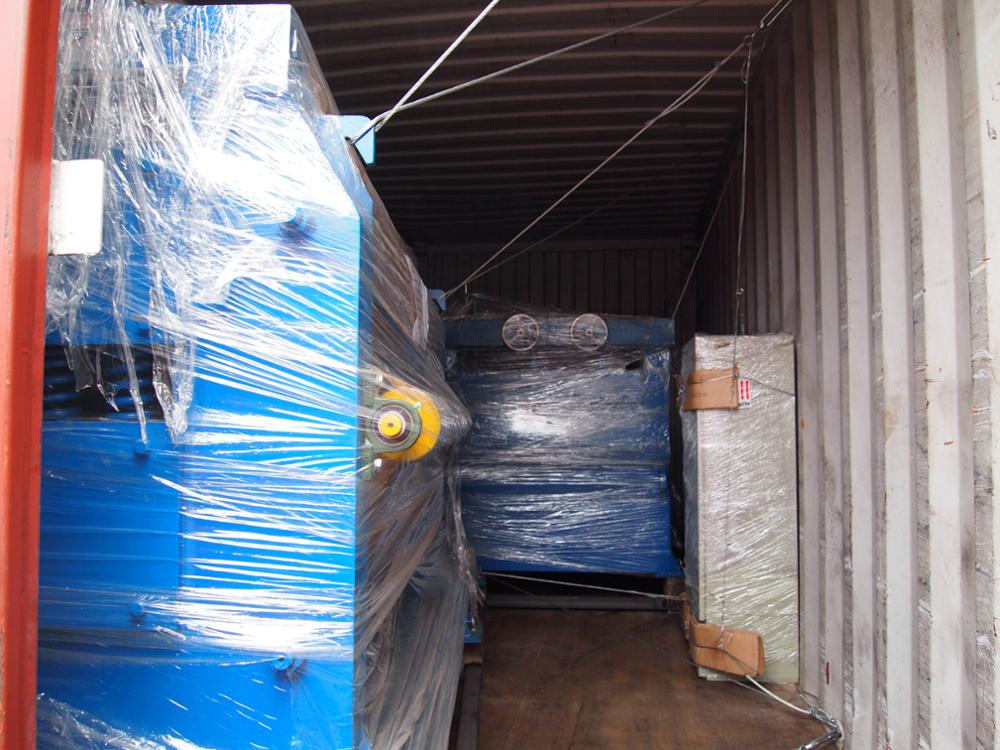

Use steel wire rope to fix the machine to the container, the machine will not be damaged due to collision
