power meter manufacturer AMC96L-E4/KC ac alarm voltmeter with rs485 power monitoring

Supplier: Acrel Electric Co., Ltd.
Region: Shanghai, China
Contact: Ms Connie Wang
Price: $51.80 /piece
Min. Order: 1 piece

Click here to contact

Product details

Sales unit:	Single product	Display type:	LCD Monitor
Gross weight of single piece:	0.400kg	model:	AMC96L-E4/KC

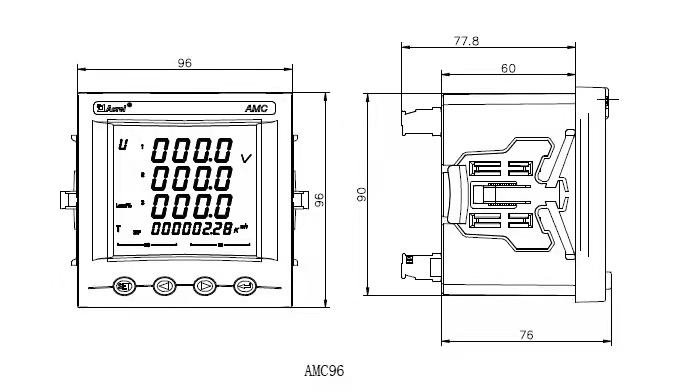

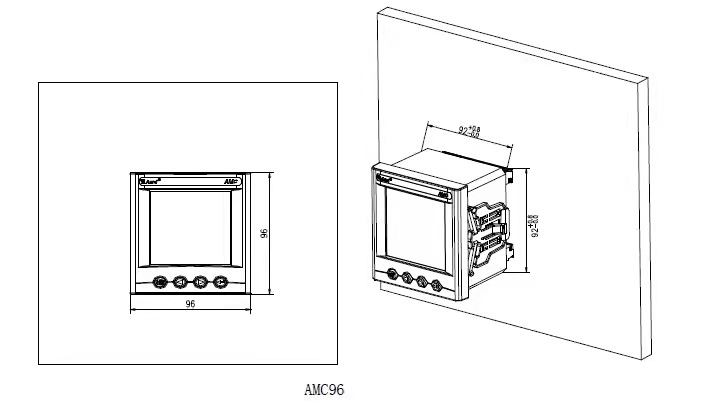

The output voltage:	220V/380V(400V)	aspect:	96*96mm
Measuring energy range:	0-99999	Single piece packaging size:	15X10X13 cm
Package preview:		Operating temperature:	-10~55℃
Packaging details:	carton	stage:	Three phases
Place of origin:	China Shanghai	level of accuracy:	Level 0.5
brand:	Akrel	Current Transformer:	5A via CT

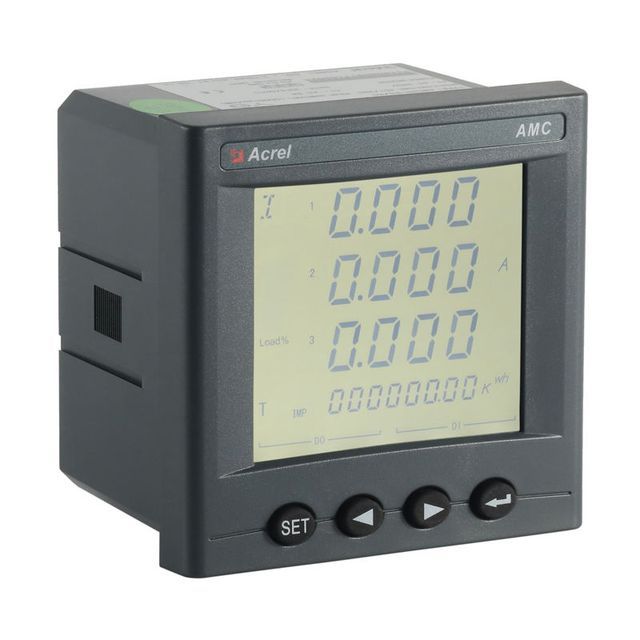

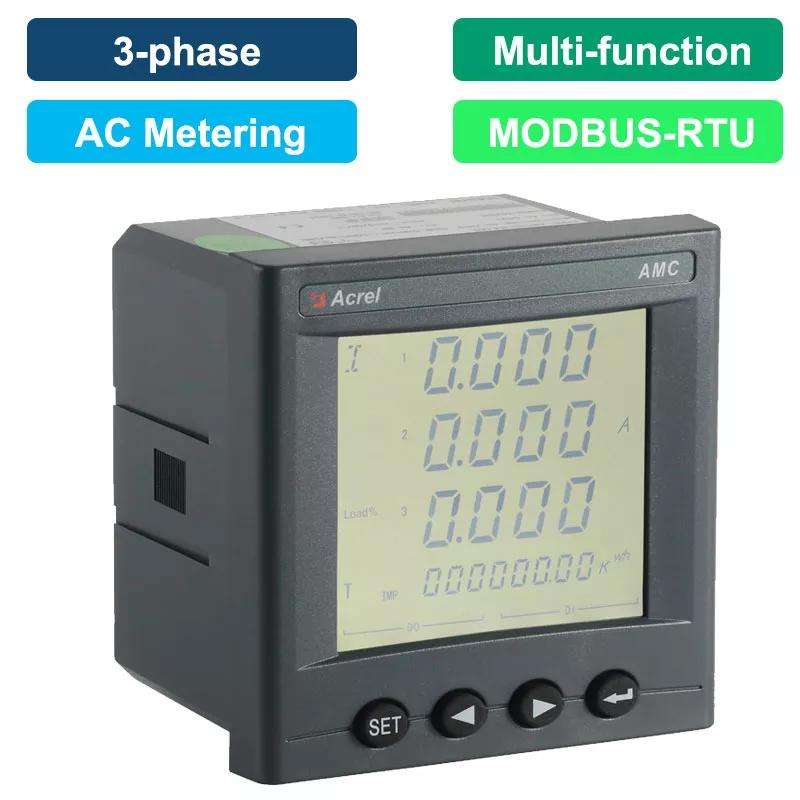

Three-phase AC multi-function panel energy meter AMC96L-E4/KC

● Measurement: three-phase AC kWh, kVarh, I, U, kW, kVar, Hz, cosφ, etc.
● Accuracy: 1% (kWh); 0.5% (active power)

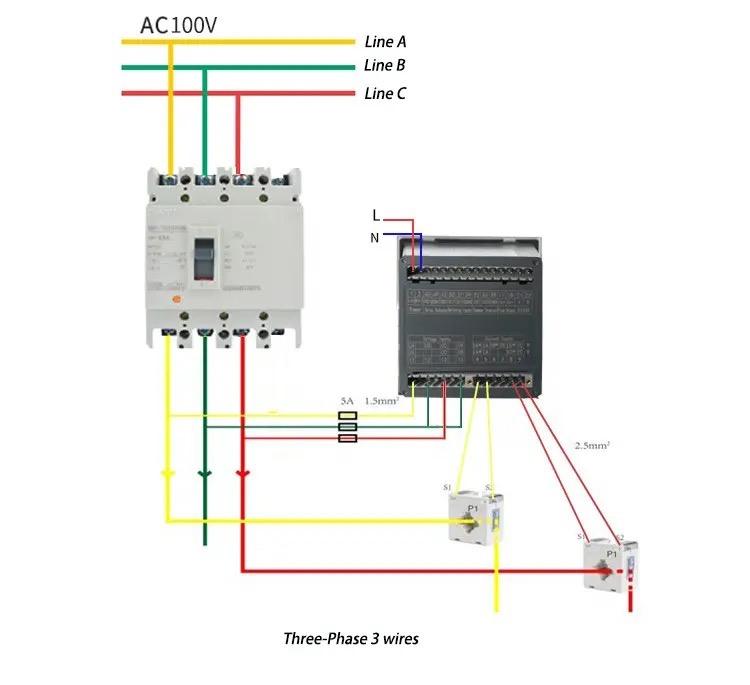

● Rated voltage: 400V or 660V AC LL (direct connection); 100V AC LL (via PT)
● Rated current: 5A AC or 1A AC (via CT)
●Power supply: 85~265V AC/DC; 24V or 48V DC

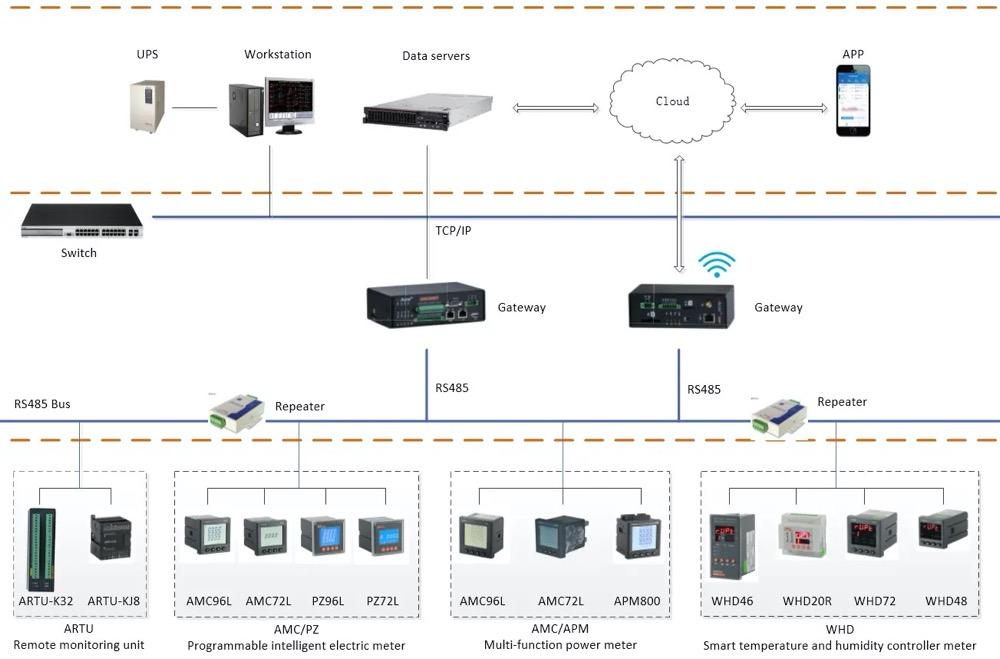

●Communication method: RS485 (MODBUS-RTU)
● SOE function: event & demand & extreme value recording
● Harmonic measurement: 2nd~31st and total harmonics
●Analog output: 4~20mA DC or 1~5V DC
● DI/DO function: 2/4 DI & 2 DO
● Standards & Certificates: CE Certificate
