Non-Contact Voltage Test Pen LED Flashlight AC Detector Power Socket Tester Supplier

Supplier: Shenzhen Chenzhou Technology Co.,ltd.
Region: Guangdong, China
Contact: Ms Zeno Wong
Price: $1.00 / 10 - 99 sets
$0.90 / 100 - 999 sets
$0.86 / 1000 - 4999 sets
$0.82 / >=5000 sets
Min. Order: 10 sets

Click here to contact

Product details

Security Level:	Category III	custom made:	Yes
Warranty:	3 months-1 year	Place of origin:	Guangdong, China
style:	pencil	Certification:	Category III
scope:	AC 90V-AC 1000V	brand:	Copper-zinc alloy

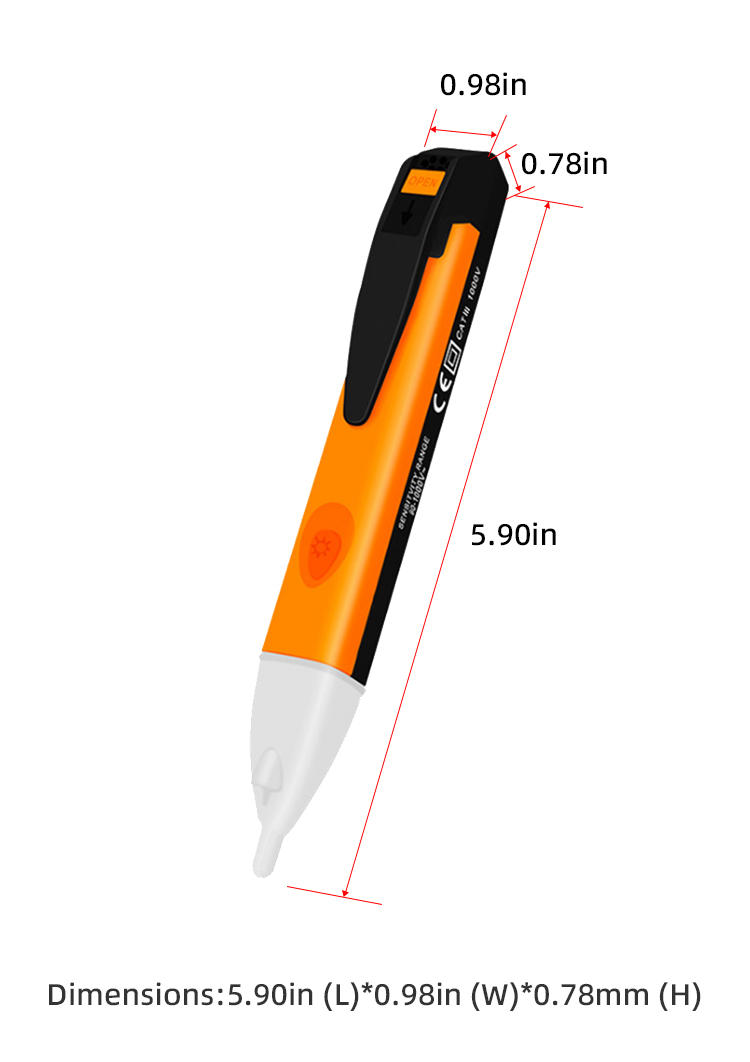

color:	black+orange	aspect:	2215cm
type:	Non-contact test pen	payment terms:	Western Union, Wire Transfer, PayPal
project name:	Contactless	Packaging details:	Blister card
Function:	voltage test	Supply capacity:	5000 pieces per day
Material:	ABS,ABS	product name:	Voltage tester
model:	VD02	port:	Shenzhen
power supply:	2 x 1.5V AAA batteries	Package preview:

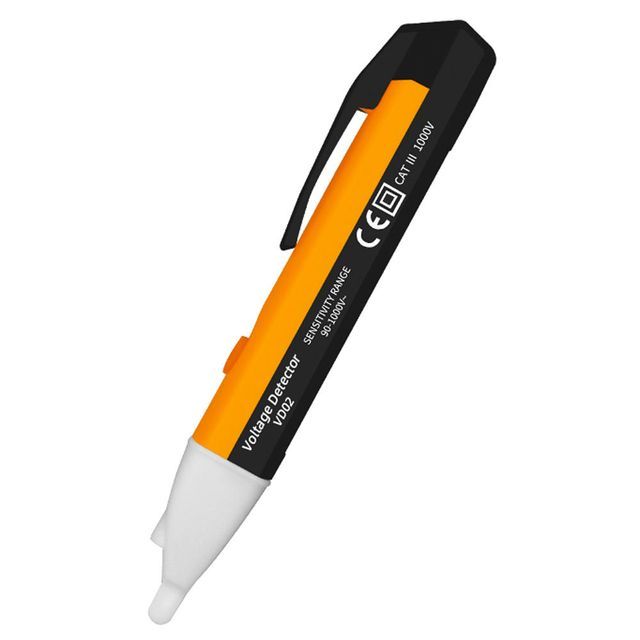

VD02 voltage test pen

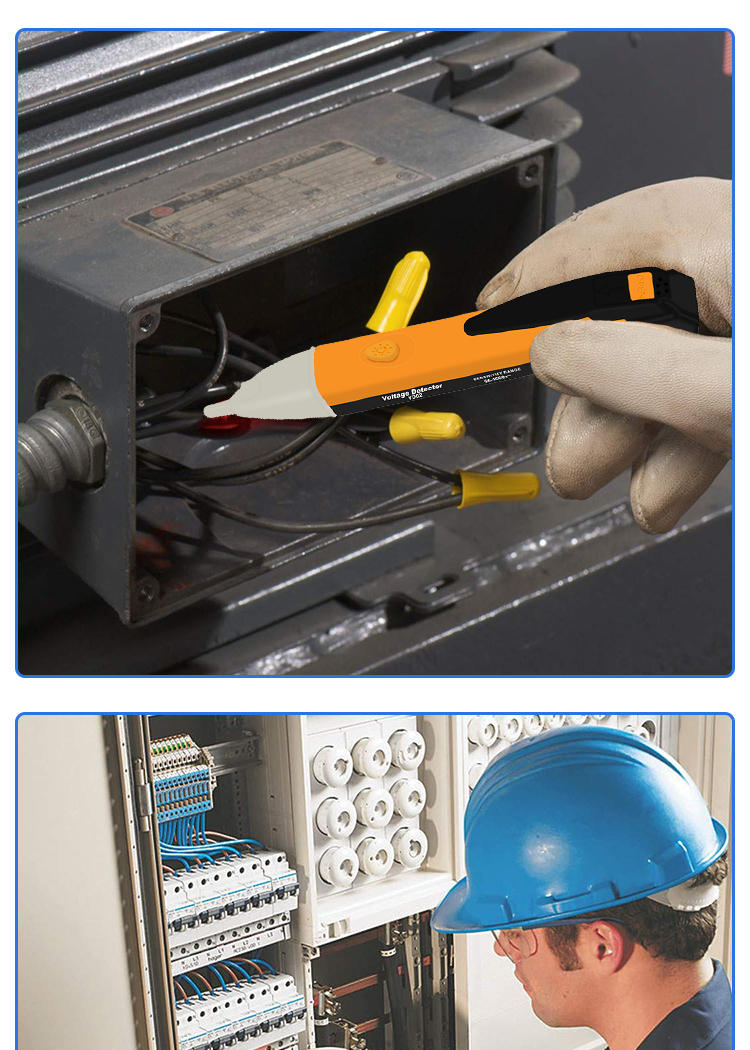

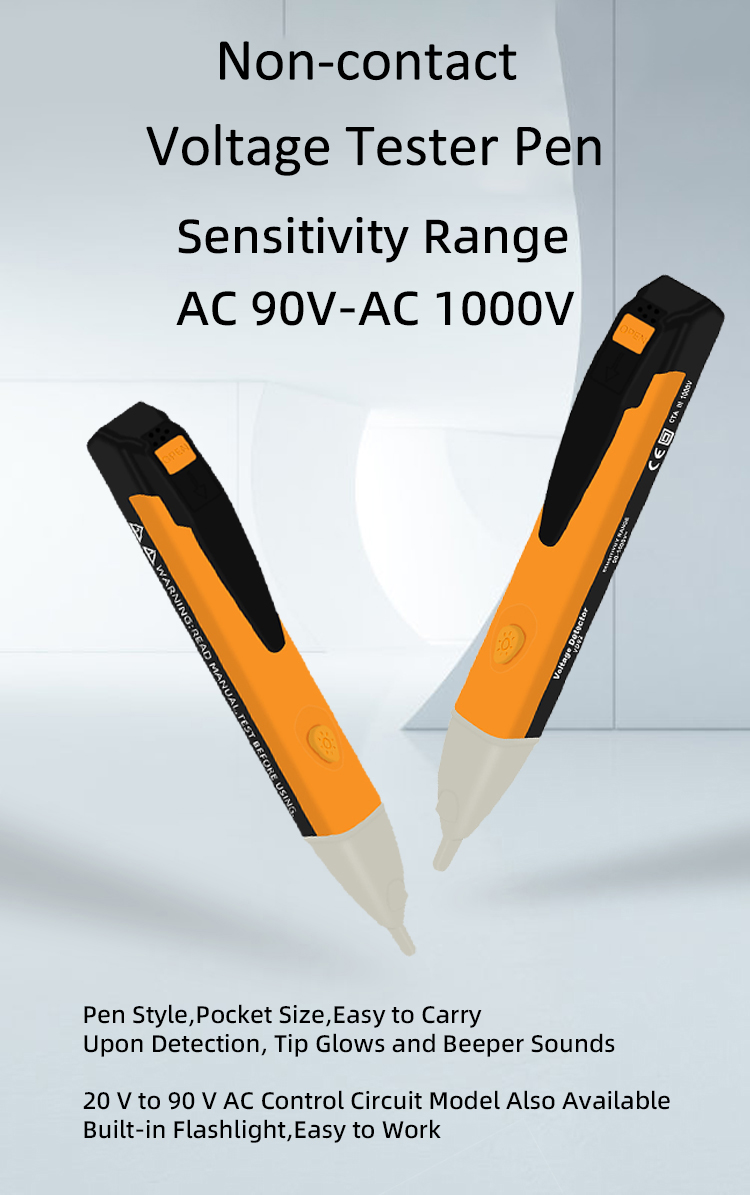

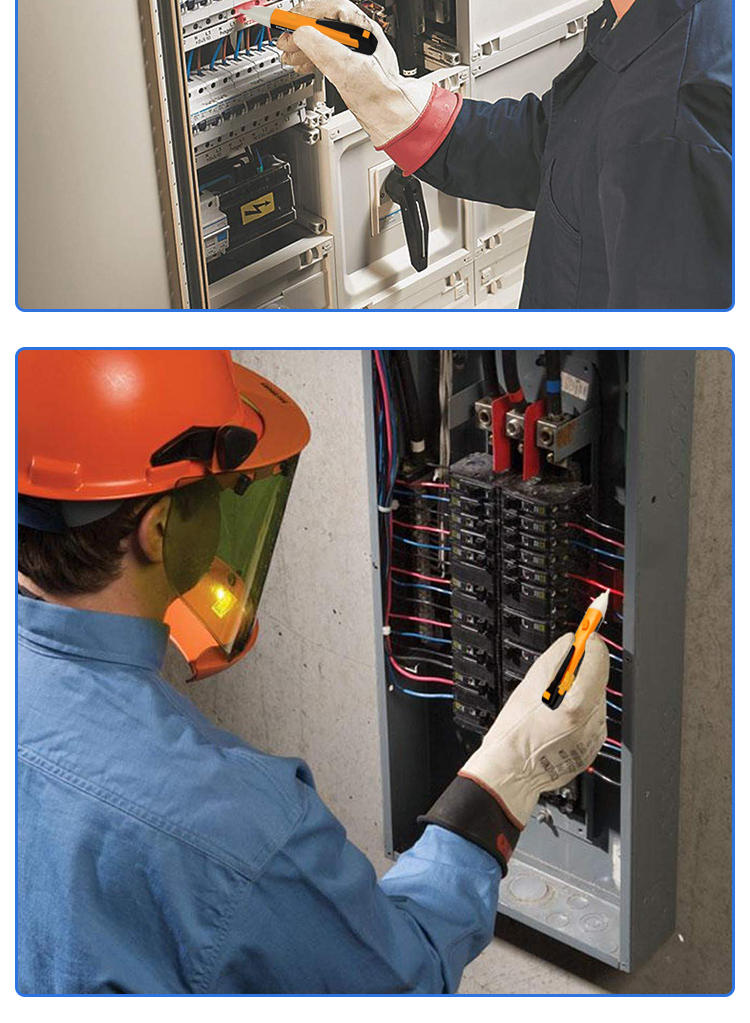

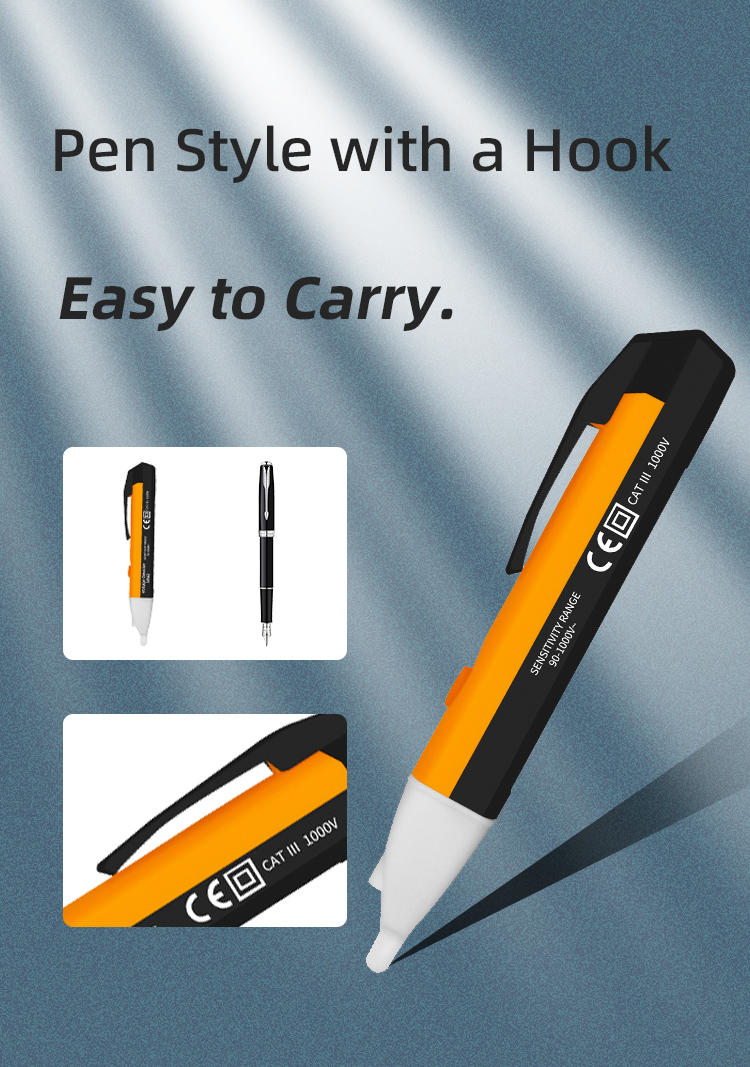

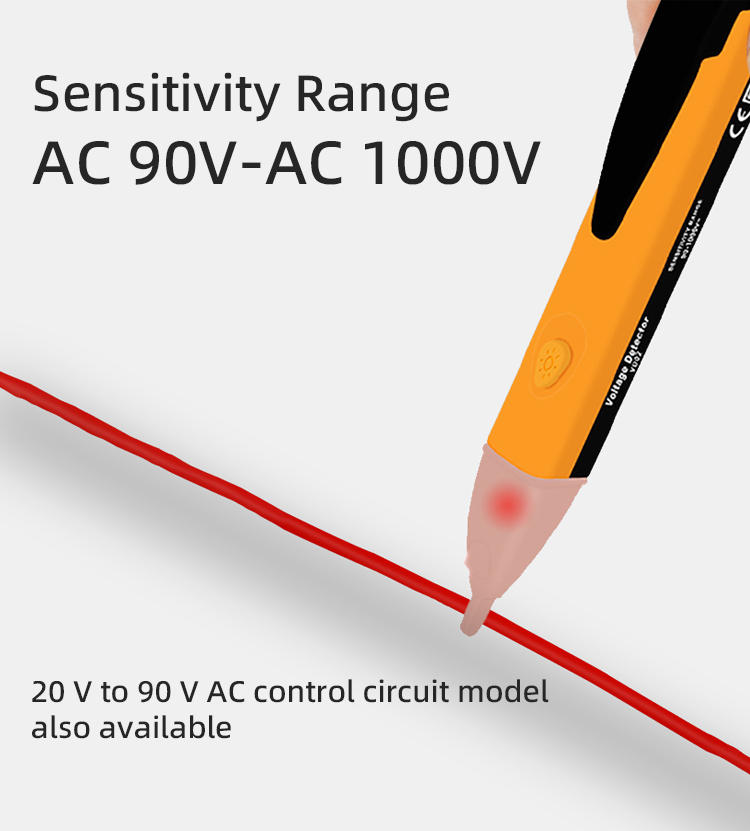

Overview:The VD02 non-contact voltage detector allows you to quickly test live circuits at work or at home. AC non-contact voltage testers are easy to use - just touch the tip to a terminal strip, outlet or power cord. Electricians, maintenance, service, security personnel and homeowners can quickly test live circuits at the workplace or home. Easy to carry in your shirt pocket.feature:Once detected, the tip lights up and beeps. CAT IV 1000 V provides additional protection. Extended range: 90 V AC to 1000 V AC. 20 V to 90 V AC control circuit models are also available.Tip:1 The buzzer will sound when voltage is detected. When voltage is detected, it emits a loud, audible beep and the tip lights up red. 2 90 V to 1000 V AC or 200 V to 1000 V AC voltage detection range for a wide range of applications. The wide voltage sensing range allows for a wide range of applications. Low voltage versions from 20 V to 90 V AC are also available for control circuits.

How to install the battery?

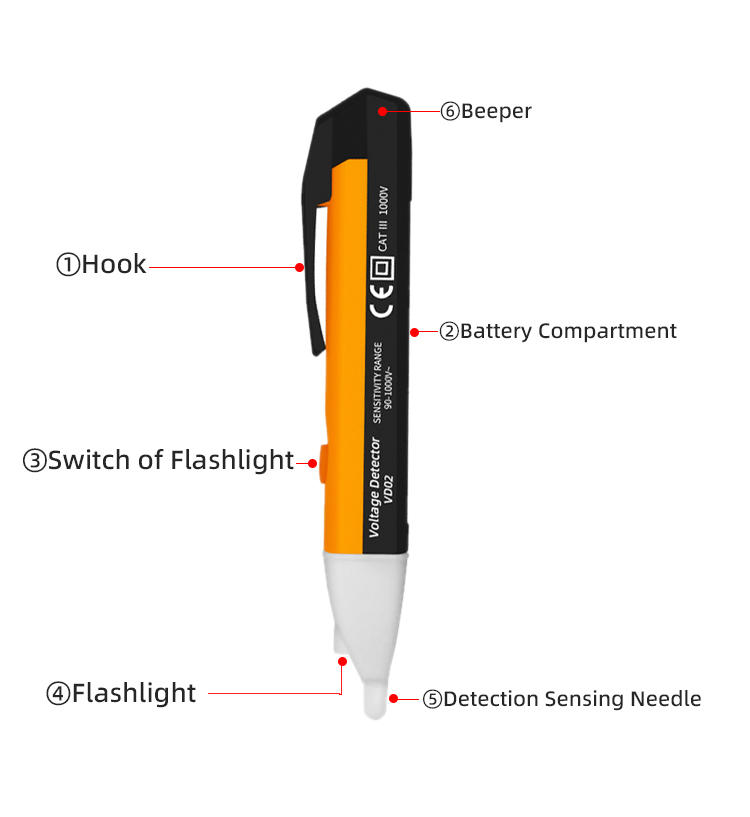

1. Press the button on top of the clip to open the case, then slide the top and bottom of the tester apart. 2. Remove all used batteries and install two new batteries, referring to the diagram to ensure correct polarity. 3. Clamp the two halves of the housing together and slide them together until you hear the clips engage.

How to use the test pen?

1. Press the button lightly to turn on the power. Press and hold for 2 seconds to turn the power off and there will be no operation.

5 minutes, power offautomatically.

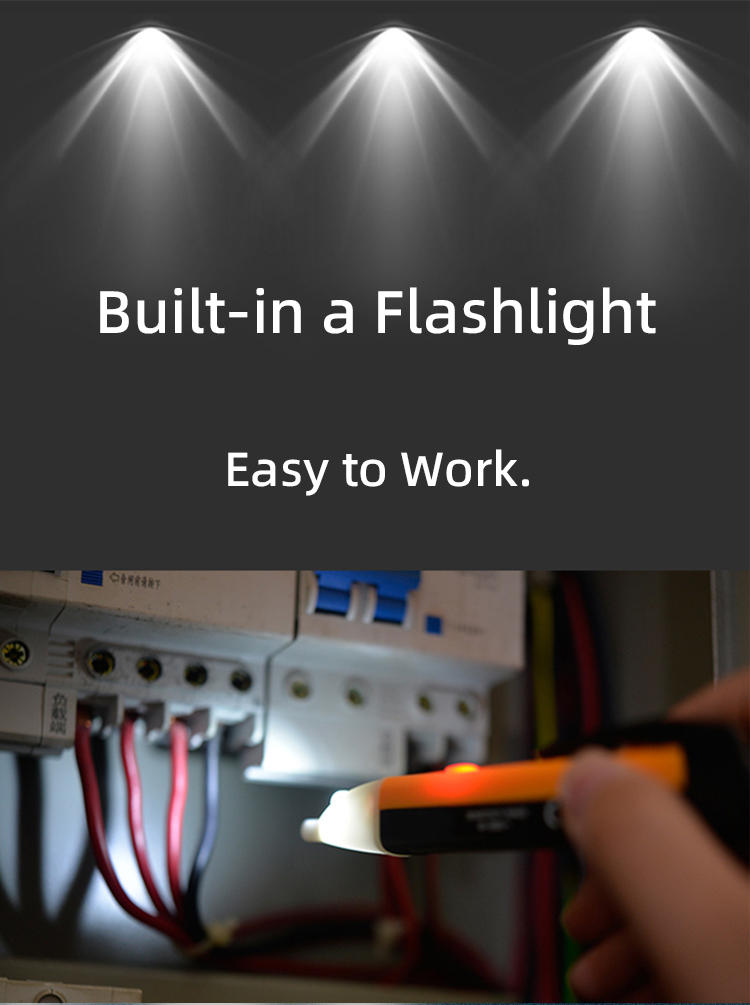

2. Press the LED light twice quickly to switch to high or low sensitivity detection state. The LED is always on to indicate low sensitivity.

LED flash indicates high sensitivity. The default setting is low sensitivity. 3. When the battery power is low, the LED does not light up and the tester cannot work normally. For example, the test is

After completion, the buzzer may emit a weak sound, and the battery should be replaced in time to ensure that the tester can work properly.

normal work. 4. When the tester is close to the electric field, the red LED flashes and the buzzer alarms. The higher the flashing frequency, the stronger the electric field, which is the live wire and neutral wire of the alternating current, which can be judged by the sound and light alarm.

warn

Never use on circuits exceeding 1000V AC. Never mix old and new batteries. Never mix different battery types. Never dispose of batteries in fire. Never attempt to charge ordinary batteries. For objects with uncertain dangerous voltages, the fact that the unit does not alarm does not mean that there is noDanger, please do not touch any part of it

To avoid the risk of electric shock.
