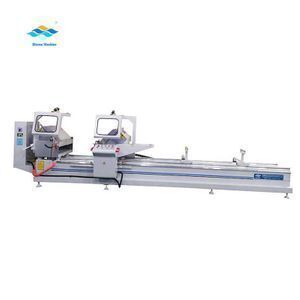

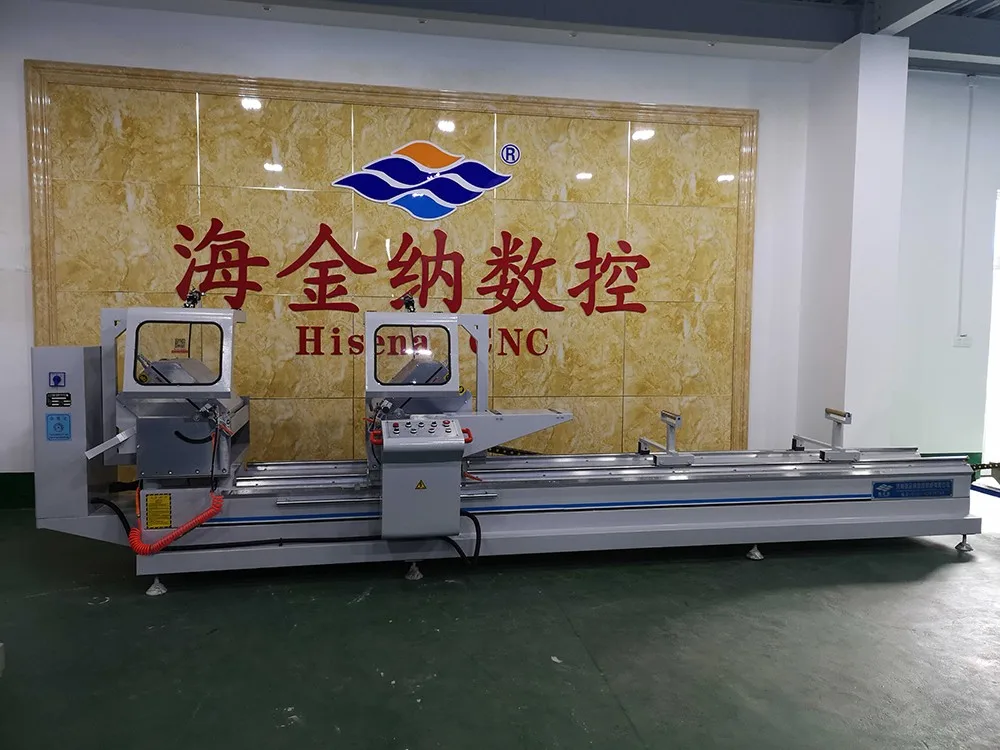

High precision aluminum profile double head cutting saw machine for 45 degrees

Supplier: Jinan Haijinna CNC Machinery Co., Ltd.
Region: Shandong, China
Contact: Mr Jinan Hisena
Price: $3800.00 /set
Min. Order: 1 set

Click here to contact

Product details

Packaging Detail:	plywood container;	Application:	45 and 90 degrees angle cutting;
Supply Ability:	50 Set/Sets per Month;	Cutting height:	Max 160mm;
Input Power:	380V 50Hz;	Dimension(LWH):	450011001400mm;
Warranty:	1 Year;	Product name:	Aluminum profile cutting saw;
Voltage:	380v;	Payment Terms:	L/C,T/T,Western Union,MoneyGram;
Input power:	2*1.5Kw;	Warranty:	12 Months;
Cutting width:	Max 120mm;	Port:	Qingdao Port;
Saw Blade Specification:	450304mm;	After-sales Service Provided:	Online support;
Applicable Material:	PVC;	Cutting angle:	Automatically Inverted /everted45° and 90°;
Power(W):	3Kw;	Brand Name:	Hisena;
Weight:	1000Kg;	Production Capacity:	50sets/month;
Cutting length:	3700-4500mm;

Product Description

Main Features

1. Used for cutting aluminum alloy profile
2. Feeding system adopts imported linear guide pair, with high accuracy and long service life.
3. The heads can automatically flip ±45° and 90°.
4. Saw blade rotate smoothly due to high accuracy main spindle.
5. Imported carbide saw blade give accurate processing and high endurance.
6. Imported linear bearing motion pair ensured steady processing accuracy.
7. Uniform speed feeding and smooth motion due to airdraulic damping cylinder.
8. Auto-opening guard shield ensured safety operation.

Main Technical Parameters

Power supply	380V 50Hz	Cutting W x H	120x200 mm
Main motor power:	Power 2*1.5kw	Repeat locating length	≤0.2mm
Input power	3kw	Angle cutting tolerance	±5′
Air pressure	0.4-0 .6 M pa	Plane of cutting surface	≤0.10
Air consumption	200L /min	Cutting profile surface roughness	Ra12.5um
Main motor rotation speed:	3000rpm.	Size: (width × high × long)	4500mm × 1170mm × 1400mm
Max/min Cutting length	3700-450mm	Weight:	1500Kg
Saw blade dimension:	φ450× φ30	Cutting angle:	-45 ° 90 ° 45 °

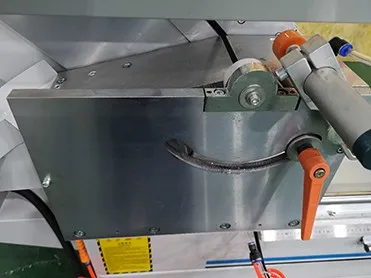

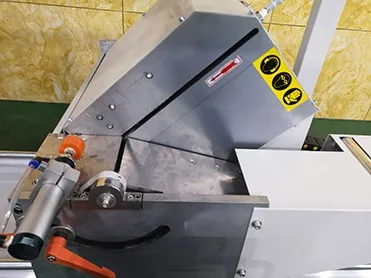

Detailed Images

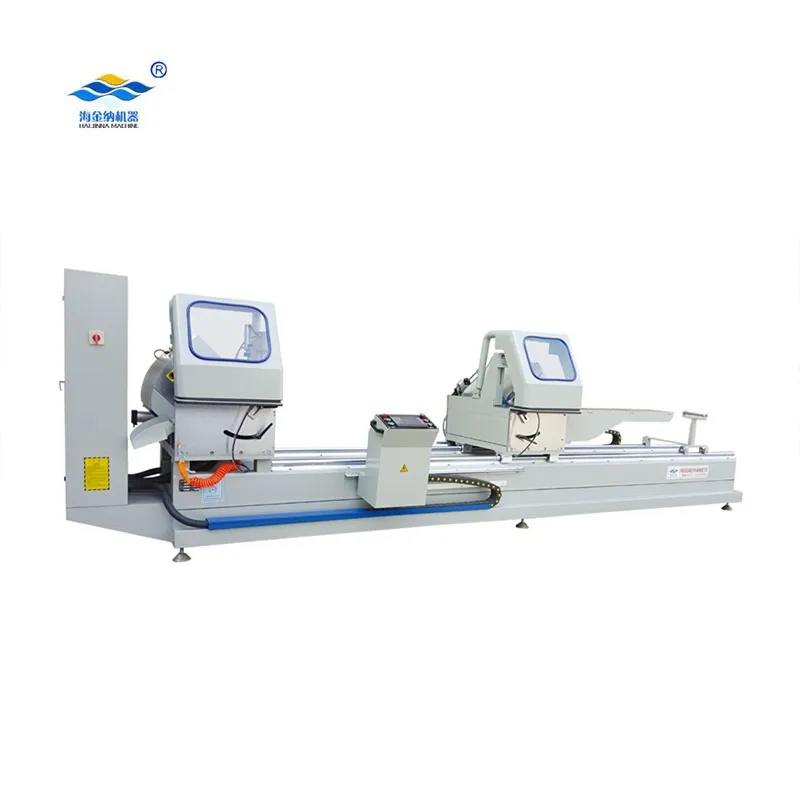

500 CNC double head cutting saw

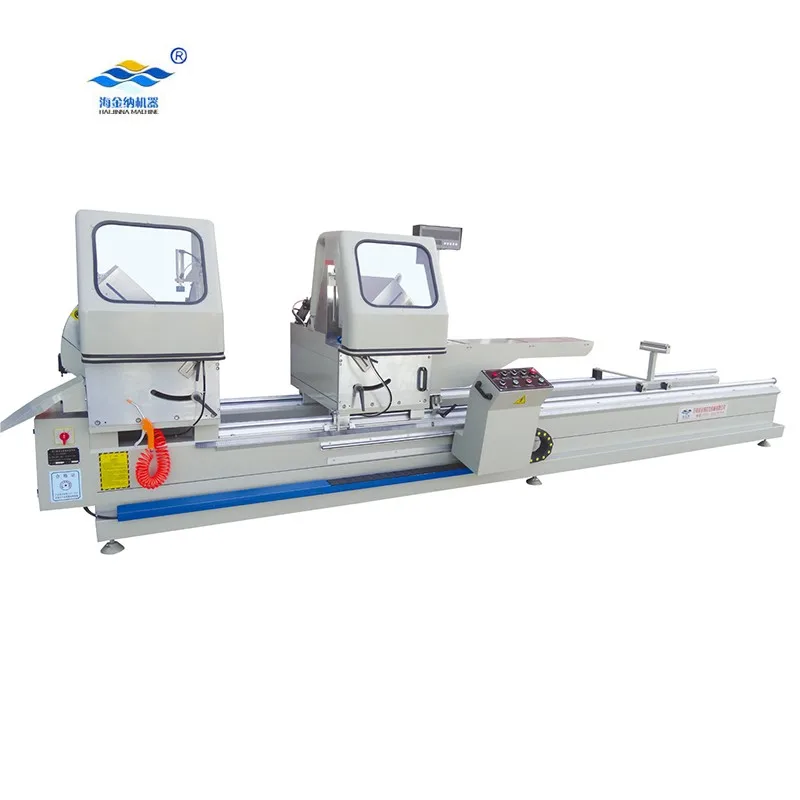

Digital display double head cutting saw

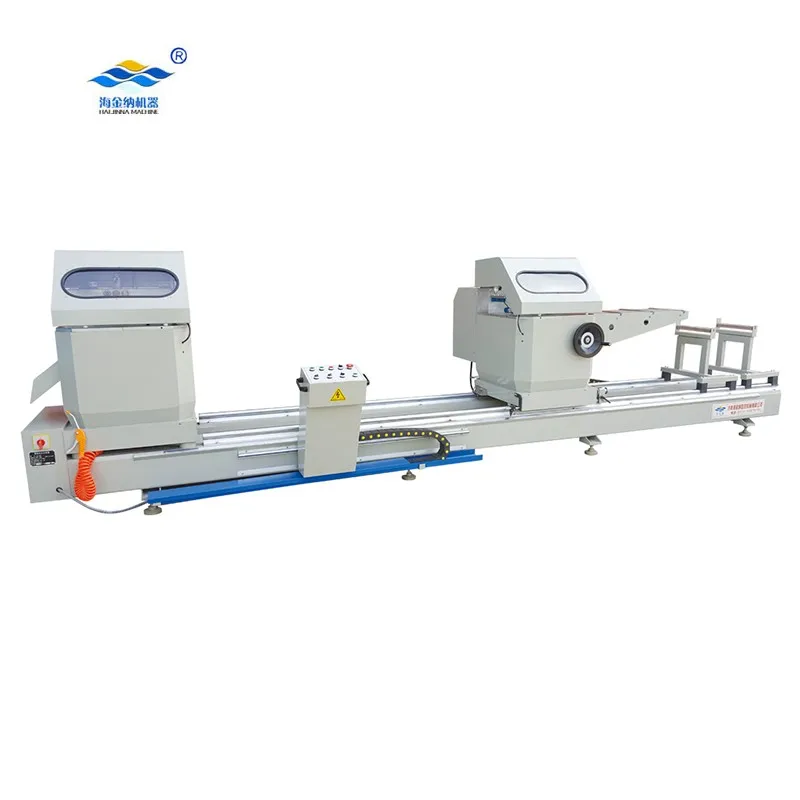

Heavy duty double head cutting saw

Company Profile

Jinan Hisena CNC Machinery CO.,LTD.

Jinan Hisena CNC Machinery Co.,Ltd is specialized in designing,manufacturing and retailing of Aluminum/Upvc window-door machines and Insulating glass equipments for more than 10 years.
"Reputation gains success,quality create future"is our management idear.We keep on absorbing advance technoligy and management experience in our country and abroad,raising our quality level of products.

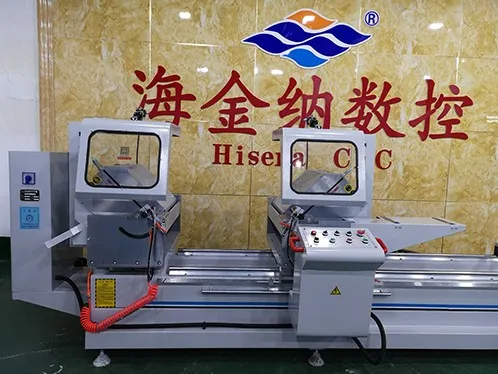

Workshop and Office

Exhibition

Our Customers

Packing & Delivery

1.Payment Terms: 40% T/T in advance, 60% T/T balance before delivery.
2.Delivery Time:15 working days after payment.

FAQ

1.Are you a factory or trading company?
We are a factory that has more than 10 years online sales experiences
2.Where is your factory located? How can I visit there?

Our factory is located in Jinan City, shandong Province, China .You can fly to Jinan international airport directly.we will pick you up. All our clients, from home or abroad, are warmly welcome to our company.
3.How do you regard quality control?
A:Quality is the most important. Hisena CNC machinery always attach great importance to quality control from the every beginning to the every end.
5.How to order?
A:please send us your purchase order and requirement in Alibaba.com,or by email, fax or can contact us on skype anytime .we need to know following information for your order .
a):product information, about quantity ,size and color as u requirement
b):delievery time
