Woodworking furniture horizontal precision cnc wood boring machine

Product details
Thickness of Material:50mm;Port:Lianyungang or Shanghai port;
Payment Terms:L/C,T/T;Dimension(L*W*H):4300*2380*2000mm;
Condition:New;CNC drill configuration:9V;
Applicable Industries:Hotels,Advertising Company,Wood Working;Certification:CE;
Drilling speed:4500r/min;Plate length:No limited;
Motor Type:Servo Motor;Spindle power:2.2KW*2pcs;
Plate width:50-1200mm;Power(W):6KW;
Weight:According to product;Brand Name:BJD;
After-sales Service Provided:Online support;The drilling power:2.2KW;
Packaging Detail:plastic film and plywood case or packages according to your requirements .;Control system:German System;
Voltage:380V 50Hz;Place of Origin:Jiangsu China (Mainland);
Product name:Cnc wood boring machine;Supply Ability:300 Set/Sets per Month Cnc wood boring machine;
Warranty:1 Year;CNC drill configuration.:12V4H;

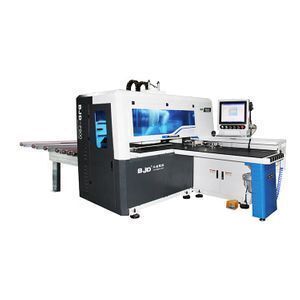

Woodworking furniture horizontal precision cnc wood boring machine

  Cnc wood boring machine

Related Products

Product Description

Application:

Suitable for panel furniture, cabinet doors, office furniture, custom furniture, door industry and other industries.



Material:

multi-layer board, particle board, ecological board, MDF, wave board, etc.



Machine Features:
1. A high-speed, continuous machining CNC drilling equipment, dockable software, the largest workpiece is 2400 * 1200mm, - a worker can process more than 1150 workpieces per day;
The feeding workbench is an air floating work surface, which effectively protects the workpiece from being scratched during the sliding process;
2. Double clamps, which automatically adjust the clamping position according to the length of the plate, which can easily process small plates or large plates without additional adjustment;
3. The worker only needs to scan the barcode, the machine can automatically complete the drilling of the six faces of the workpiece and the whole process of the upper and lower slots of the workpiece without manual technical intervention to achieve zero error processing;
4. According to the different production needs of users, choose different discharging methods (before going forward, going forward and going out), or you can choose automatic conveying roller or side discharging, which is convenient for connecting or multi-machine production side by side.

Technical parameter

Model

BJD-P800

Machine Size

4300*2380*2000mm

Plate length

No limited

Plate width

50-1200mm

Thickness of Material

50mm

Maximum feeding height.

50mm

Maximum operating speed

X:140m/min Y:80m/min Z:40m/min  u:140m/min

Control system

German System

Spindle power

2.2KW*2pcs

Spindle speed

0-18000r/min

Other power (excluding main shaft)

  6KW(Without dust collector, vacuum pump )

Working voltage

380V 50Hz

CNC drill configuration.

12V4H

CNC drill configuration

9V

Drilling speed

4500r/min

The drilling power

2.2KW
