SFP1000 outer diameter mounted portable flange facing machine flange facing machine

Supplier: Wenzhou Shenrui Machinery Equipment Co., Ltd.
Region: Zhejiang, China
Contact: Ms Alice Qin
Price: $16800.00 / 1 - 1 sets
$16000.00 / 2 - 2 sets
$15500.00 / 3 - 4 sets
$14900.00 / >=5 sets
Min. Order: 1 set

Click here to contact

Product details

delivery time:	7-15 days	payment terms:	L/C, Western Union, D/P, D/A, T/T, MoneyGram
Place of origin:	Zhejiang, China	Rotating speed:	10 rpm
expiration of pay:	Via transaction guarantee, T/T, paypal, etc.	Core components:	Engine, motor
Face Range (OD):	500mm-1000mm (19.6 inches-39.3 inches)	Showroom location:	not any
Face form:	Faces, RTJs and Grooves	Supply capacity:	100 sets per month
Applicable industries:	Energy & Mining, Retail, Construction Engineering, Building Materials Stores, Machinery Repair Shops, Manufacturing Plants, Others	application:	metal workpiece
Video outbound inspection:	if	product name:	Portable flange facing machine
Package preview:		Tool holder travel:	110 mm
Health status:	new	Air requirements:	1500-3000L/min @0.63-0.8Mpa Power: 2HP
Core component warranty:	1 year	Marketing type:	2020 new products
port:	Ningbo, Shanghai	Mechanical test report:	if
Weight (kg):	520kg	Clamping diameter:	200mm-1000mm (7.9 inches-39.3 inches)
Installation form:	Internal installation. horizontal and vertical	Warranty:	1 year
Packaging details:	wooden box	Main selling points:	Easy to operate

product description

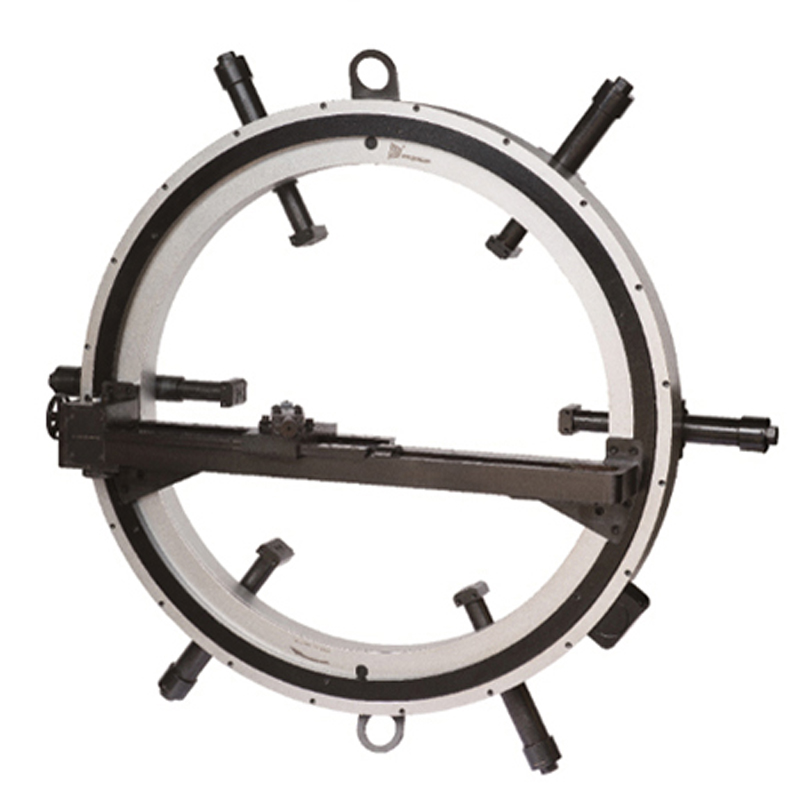

SFP1000 outer diameter mounted portable flange facing machine flange facing machine

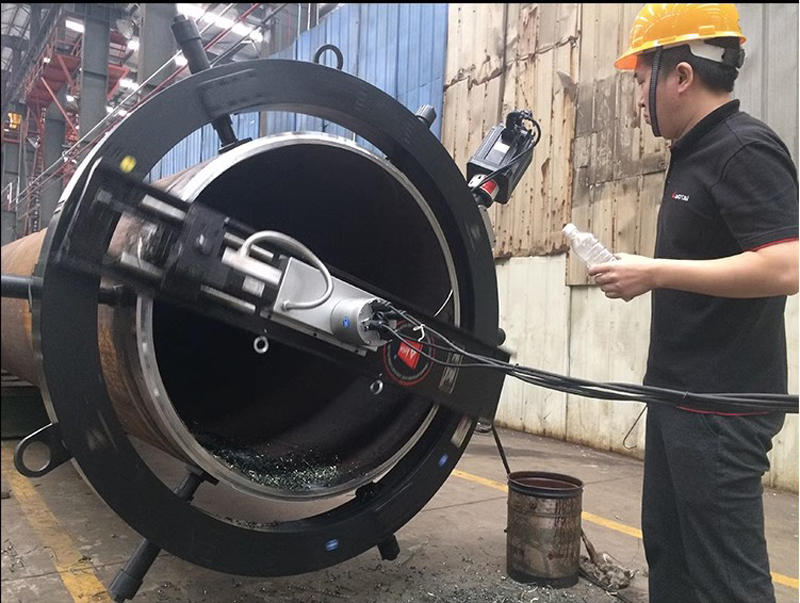

The OD mounting flange facing machine is specially designed for flange face, sealing groove and serrated surface preparation, and welding preparation. and countersinking. The equipment adopts the latest circuit and ball screw technology, and adopts a modular design concept as a whole. Every step of the design is based on on-site processing. This machine is widely used in flange connections in petroleum, chemical, natural gas, nuclear power and other industries. The machine is lightweight and facilitates on-site maintenance. High safety and efficiency are guaranteed.

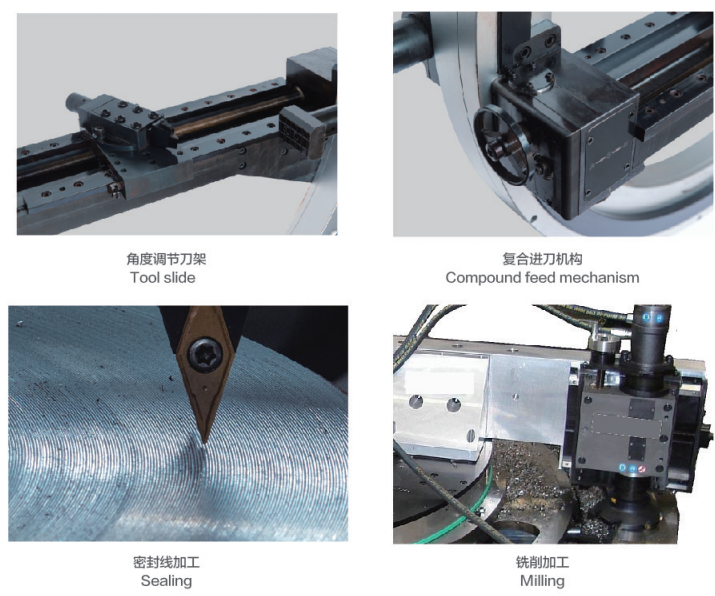

Function overview

feature:

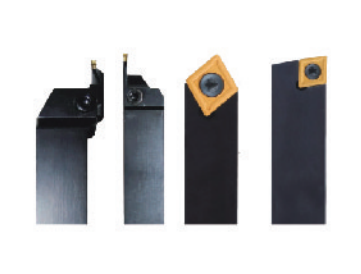

1. Boring and milling cutters are optional.

2. Drive motor: pneumatic, CNC drive, hydraulic drive

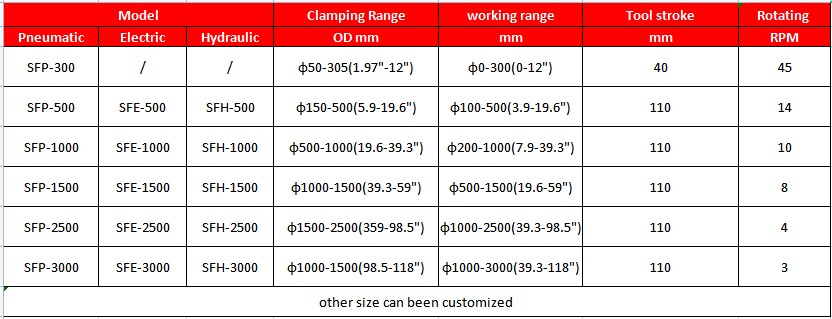

3. Working range 0-3000mm, clamping range 150-3000mm.

4. Light weight, easy to carry, quick to install and easy to use.

5. Blank processing, smooth surface processing, phonograph processing, rack and valve seat sand gasket.

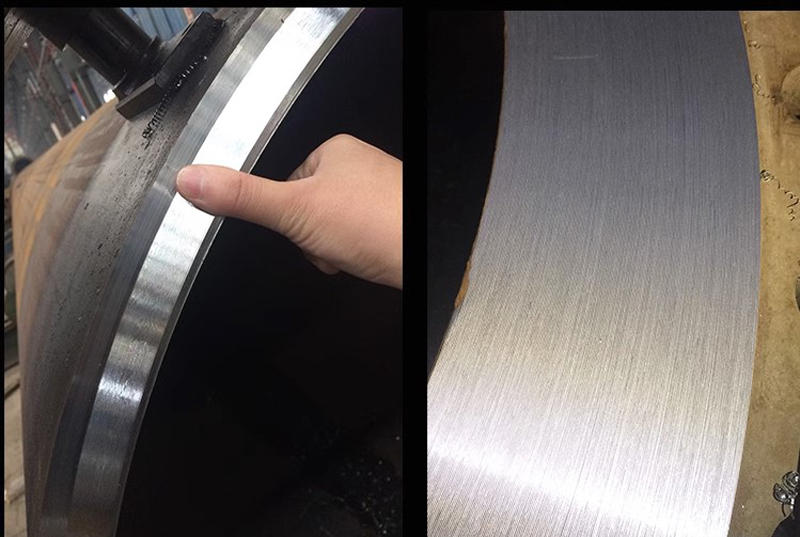

6. High quality finish can be obtained. Cutting feed is performed automatically from the outside diameter. Inward 7. Standard stock finishing steps are: 0.2 - 0.4 -0. - 0.8 mm
