High Quality Steel Storage Tank Liquid Gas Separator Liquid Moisture Separator

Supplier: Mingyi Intelligent Equipment (tianjin) Co., Ltd.
Region: Tianjin, China
Contact: Ms Crystal Tian
Price: $2950.00 / 1 - 9 sets
$2700.00 / >=10 sets
Min. Order: 1 set

Click here to contact

Product details

Function:	Water and oil separation	application:	liquid separation
Function:	separation	Packaging details:	wooden box
Package preview:		Marketing type:	normal product
Mechanical test report:	if	port:	Tianjing, China
Material:	Carbon steel	Applicable industries:	manufacturing plant
Core components:	PLC, engine, pressure vessel	model:	MY-01
Warranty:	1 year	Place of origin:	Tianjing, China
capacity:	Meet the requirements	Voltage:	380V
product name:	Centrifuge	weight:	50kg
Key words:	Liquid supercritical extraction machine	Health status:	new
Supply capacity:	10 sets per month	payment terms:	L/C, Western Union, D/P, T/T, MoneyGram
Core component warranty:	1 year	Drum diameter:	Meet the requirements
Dimensions (lengthwidthheight):	custom made	Showroom location:	not any
Type of machine:	Centrifugal liquid-liquid-solid separator	Video outbound inspection:	if
brand:	Mingyi	Processing:	Splitter
Name:	divider

Product Description

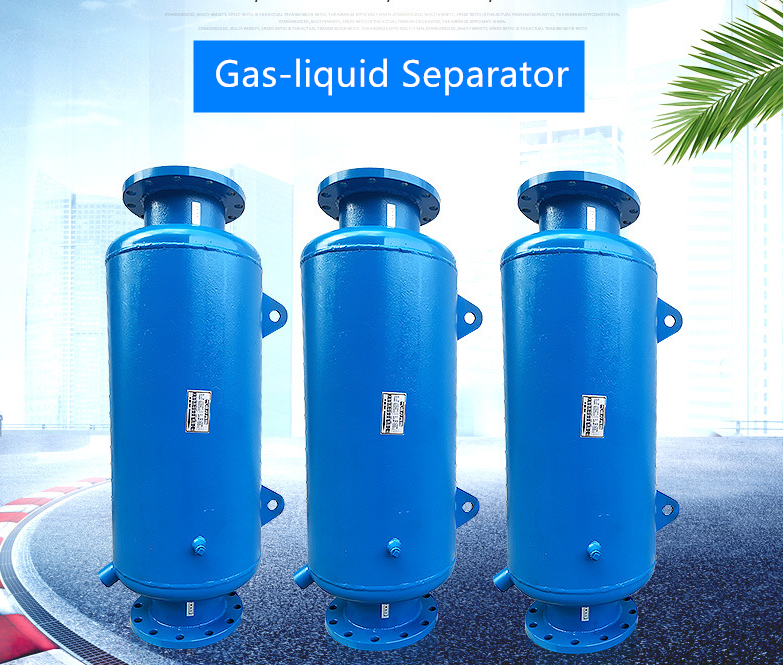

Gas-liquid separator

The soda-water separator uses the principles of centrifugal separation and screen filtration to realize the separation device for liquid removal. It is generally installed in front of the drying device and removes part of the moisture in the air through coarse filtration to reduce the workload of the drying device.

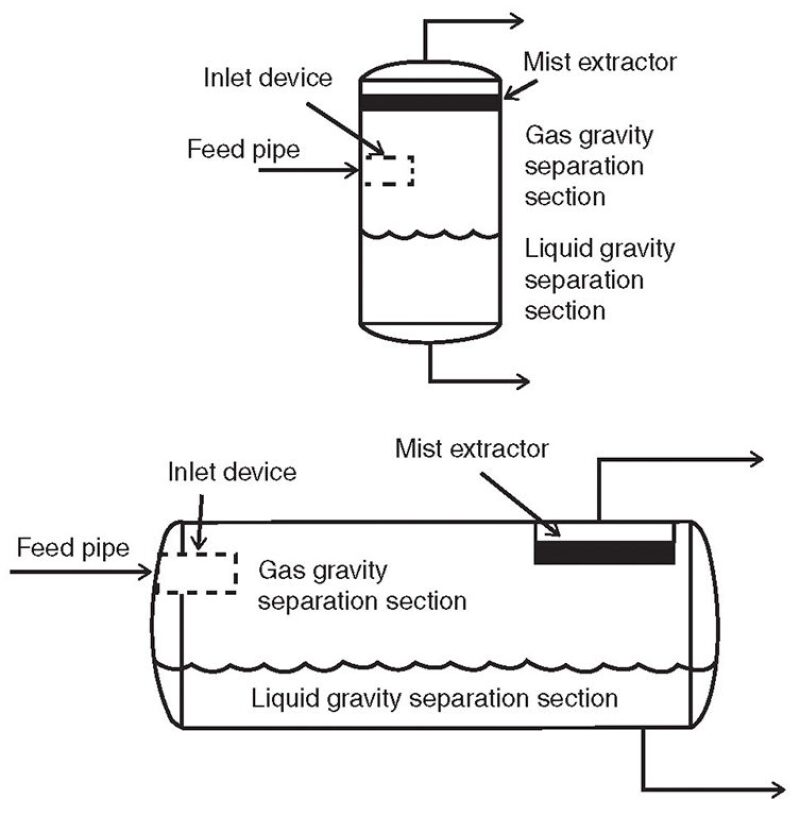

The main components of a typical vertical or horizontal gas-liquid separator are shown in the figure below, including the feed pipe, inlet device, gas gravity separation section, mist eliminator and liquid gravity separation section.

figure

1. High separation speed, high separation precision and good effect;
2. The product has high integration, automatic and manual dual control, and is compatible with multiple control methods (direct + PLC + computer + DCS);
3. The product is skid-mounted in a container, which is convenient for mobile transportation and is more in line with safety production requirements;
4. Low energy consumption, output 4-20mA and HART signal connection;
5. Humanized design, accepting customized design and manufacturing according to customer requirements.

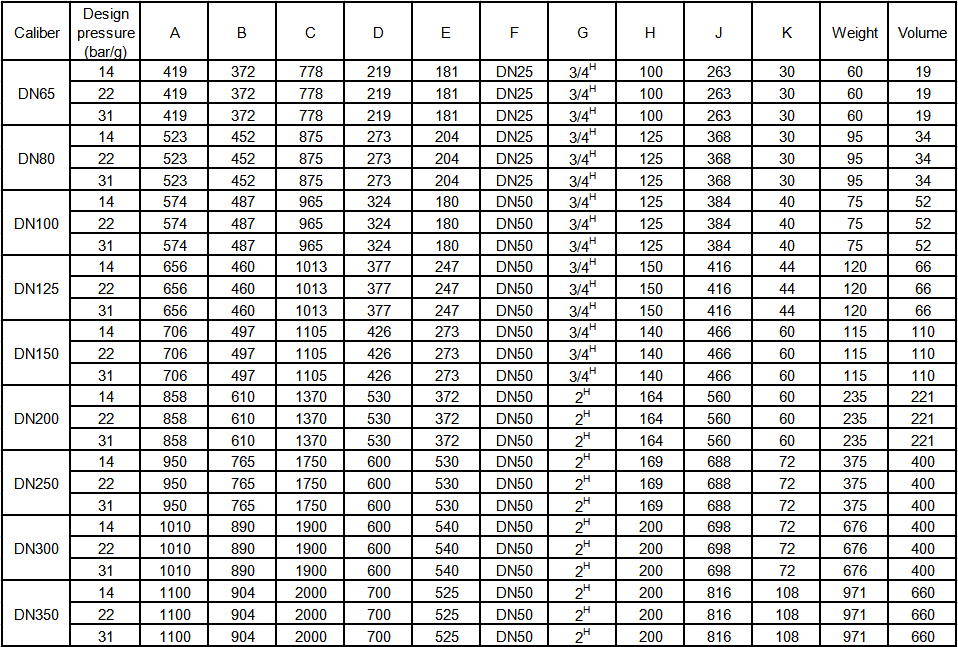

product specifications

Applications

Vertical gas-liquid separators are generally used when the gas-liquid ratio is high or the gas volume is large.
Horizontal gas-liquid separators are used where large volumes of liquid are involved.

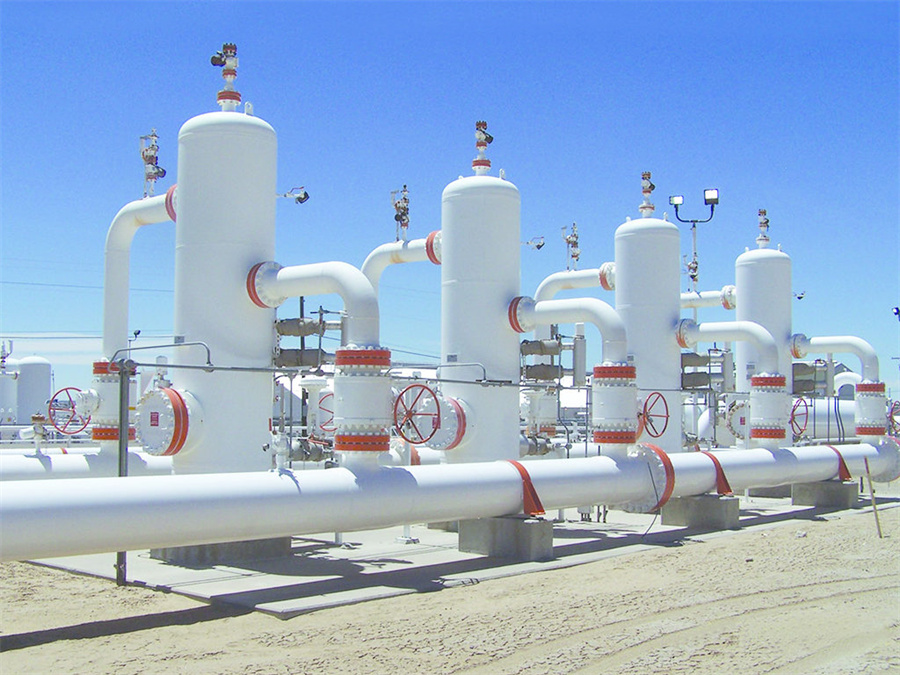

Vapor separators are widely used in many industries and applications, such as: petrochemical and chemical plants, refrigeration systems, compressor systems, gas pipelines, paper mills, liquid ring pumps, vapor condensation flash tanks, etc.

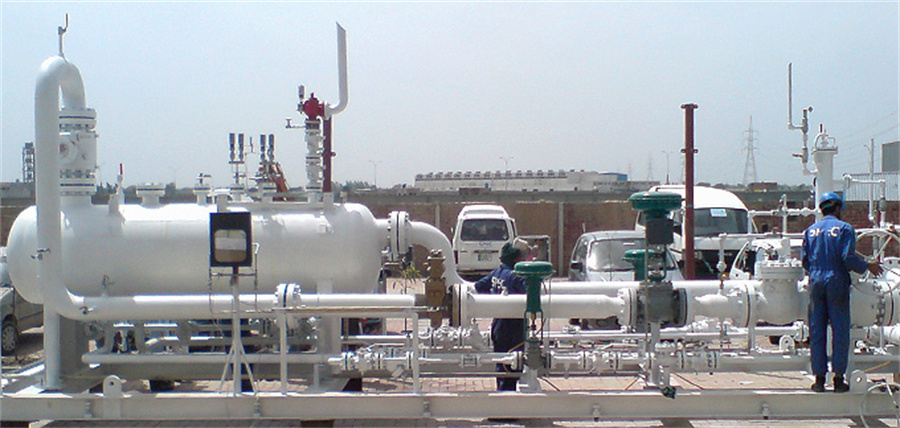

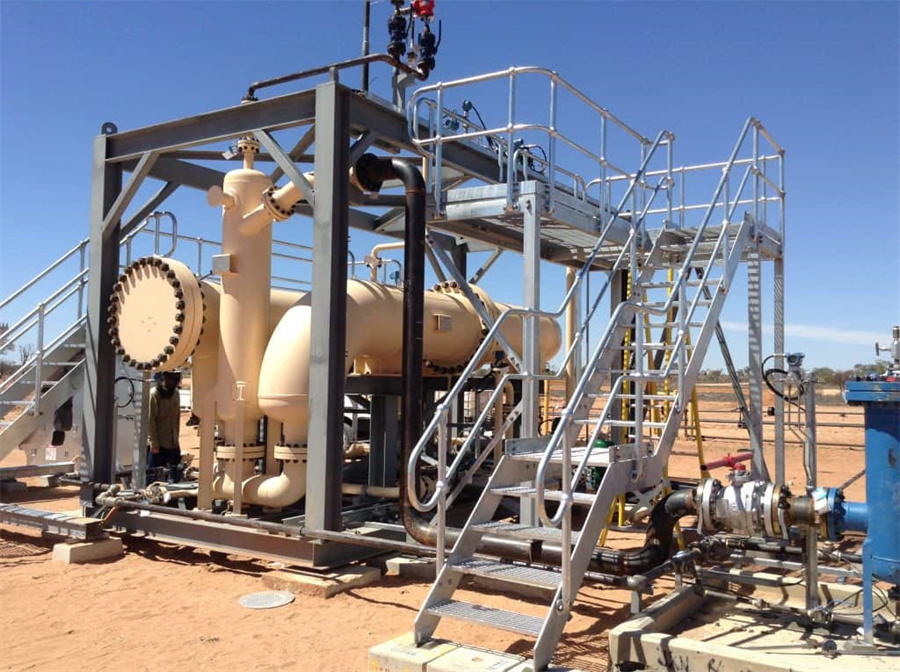

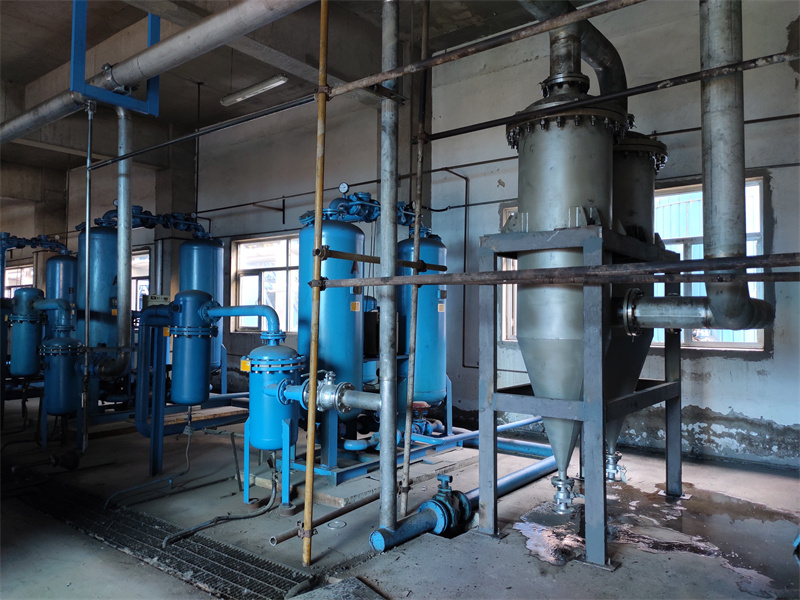

work place
