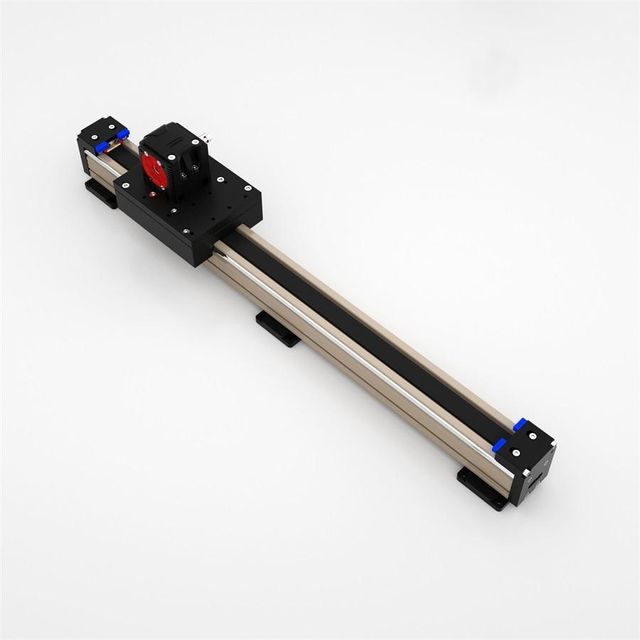

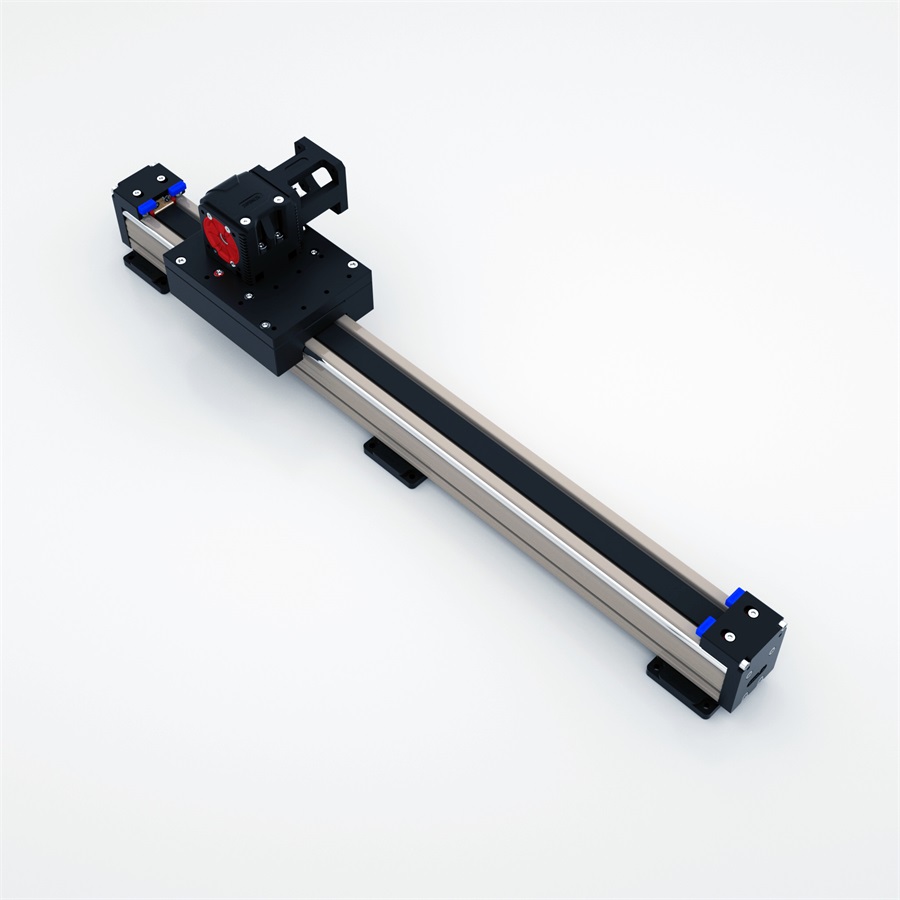

High-efficiency multi-slider operating stroke 800mm synchronous belt driven linear slide

Supplier: Shenzhen Jufeng Jingke Automation Technology Co., Ltd.
Region: Guangdong, China
Contact: Ms Yingmin Huang
Price: $200.20 /piece
Min. Order: 1 piece

Click here to contact

Product details

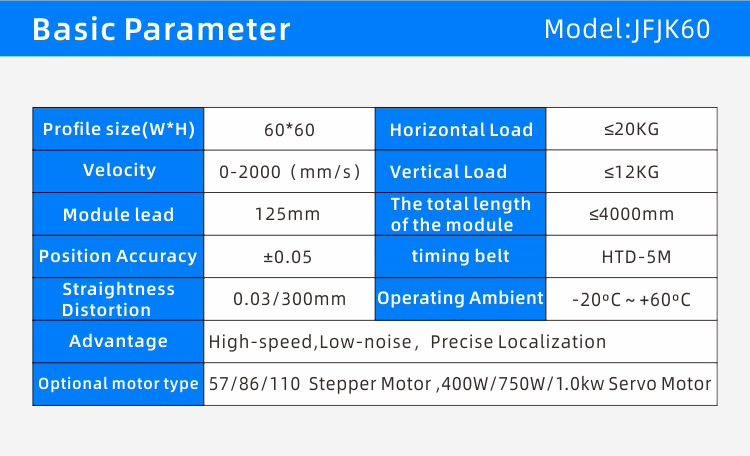

Maximum horizontal load:	≤20KG	Single piece packaging size:	125X25X25cm
feature:	Multiple workstations possible	Core component warranty:	1 year
Valid itinerary:	800mm	Advantage:	Work at multiple workstations
Video outbound inspection:	not available	Place of origin:	Guangdong, China
Rail width:	60mm	Mechanical test report:	not available
Health status:	new	Core components:	Bearings, gears, motion slides
Sales unit:	Single product	Applicable industries:	Hotels, clothing stores, building materials stores, manufacturing plants, machinery repair shops, food and beverage factories, farms, restaurants, retail, food stores, print shops, construction projects, energy and mining, food and beverage stores, advertising agencies, others
brand:	Jufeng Ieyasu	Packaging details:	wooden box
main application:	manufacturing	Gross weight of single piece:	16.000kg
Marketing type:	normal product	Maximum vertical load:	≤12kg
Warranty:	1 year	application:	Industrial machinery and automated production fields
Model:	JFJK60	Weight (kg):	9.04
type:	Linear Guides	color:	Champagne + black
Showroom location:	not any

about delivery fee

Shipping costs vary based on the length and quantity you require. Please contact us for shipping calculation before placing an order.

Product price does not include accessories. Please contact us for a more detailed quote, delivery time and logistics cost calculation.

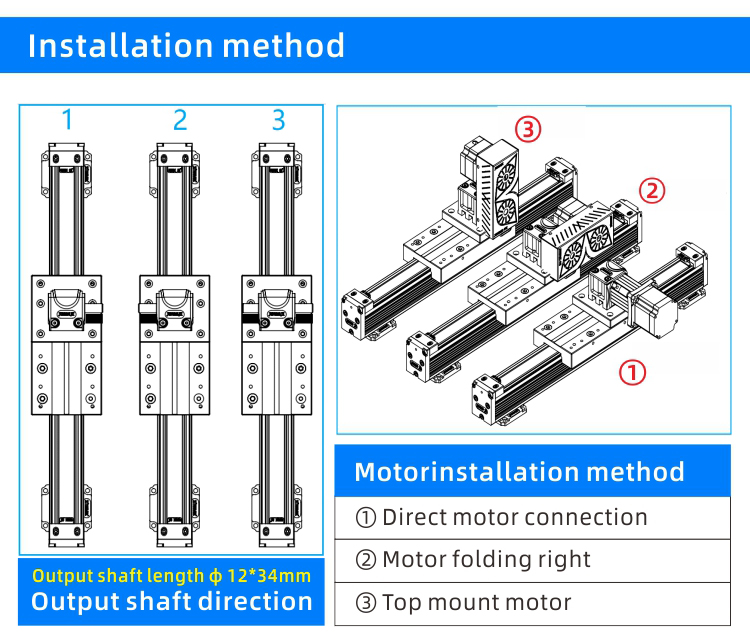

If you need to install additional motors, please provide the motor drawings and we will customize a special motor mounting bracket for you.

About choosing more models

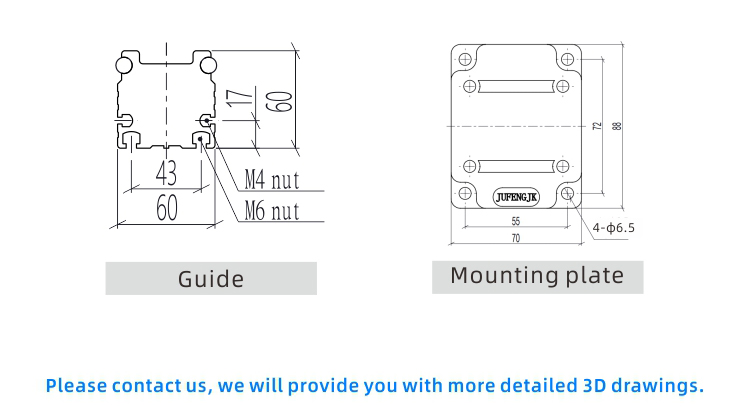

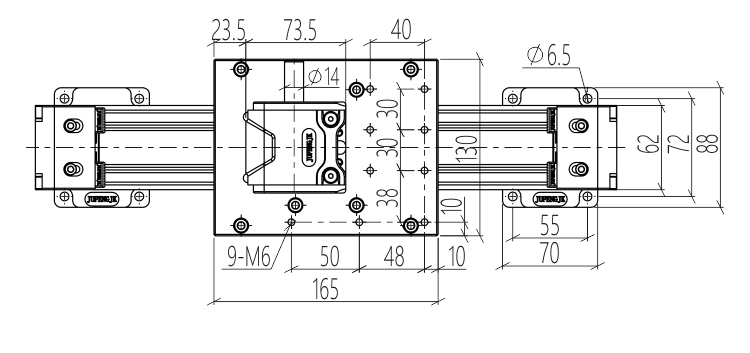

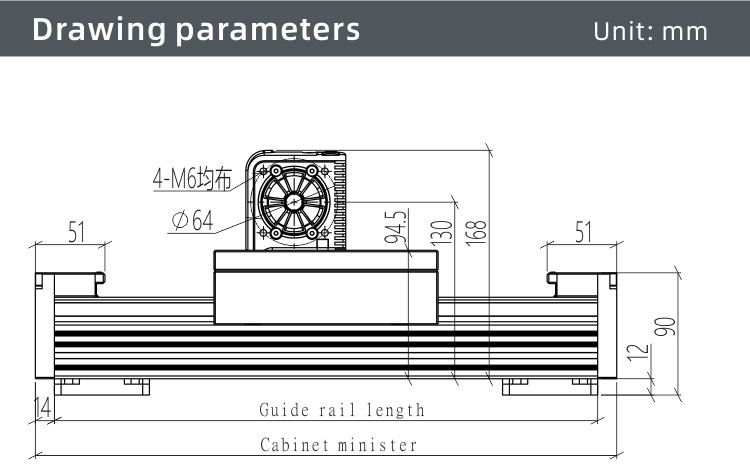

Please contact us and we will provide you with more detailed 3D drawings

Stroke(mm)	100	200	300	400	500	600	700
Total length (mm)	403	503	603	703	803	903	1003
Weight (kg)	5.89	6.34	6.79	7.24	7.69	8.14	8.59

Stroke(mm)	800	900	1000	1100	1200	1300	1400
Total length (mm)	1103	1203	1303	1403	1503	1603	1703
Weight (kg)	9.04	9.49	9.94	10.39	10.84	11.29	11.74

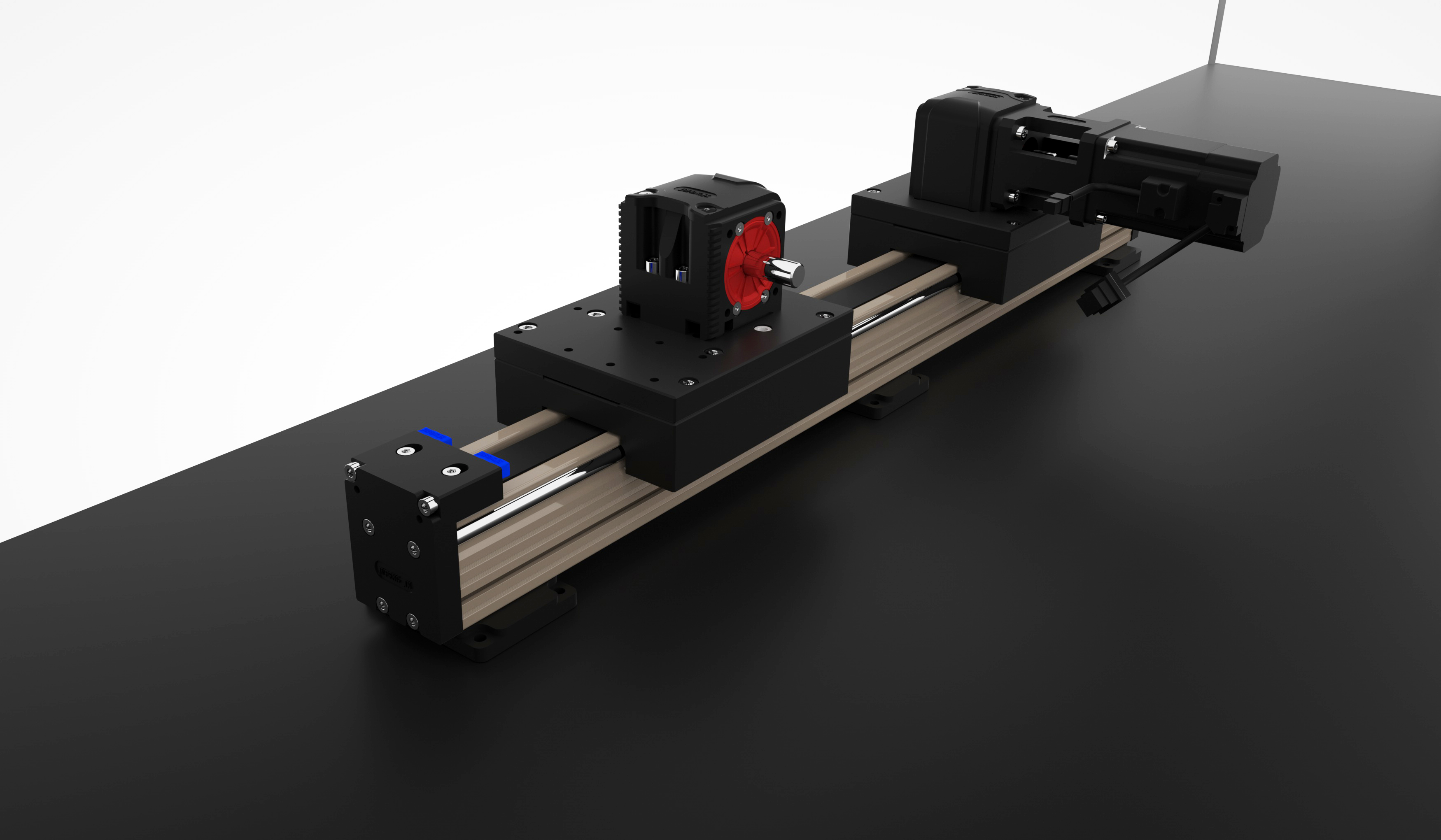

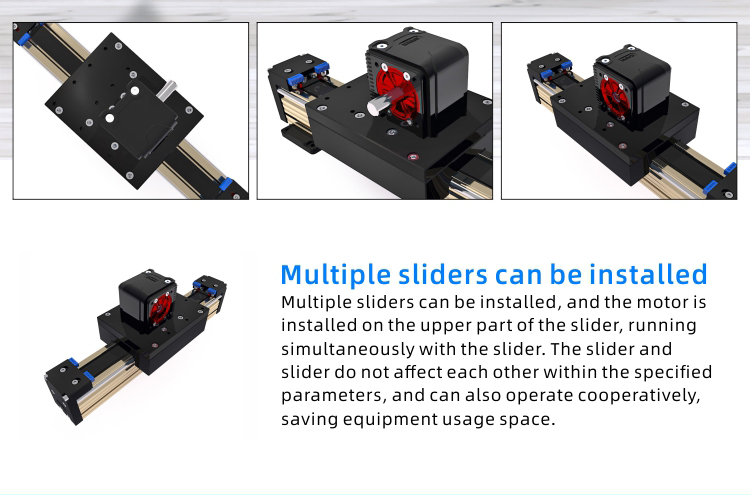

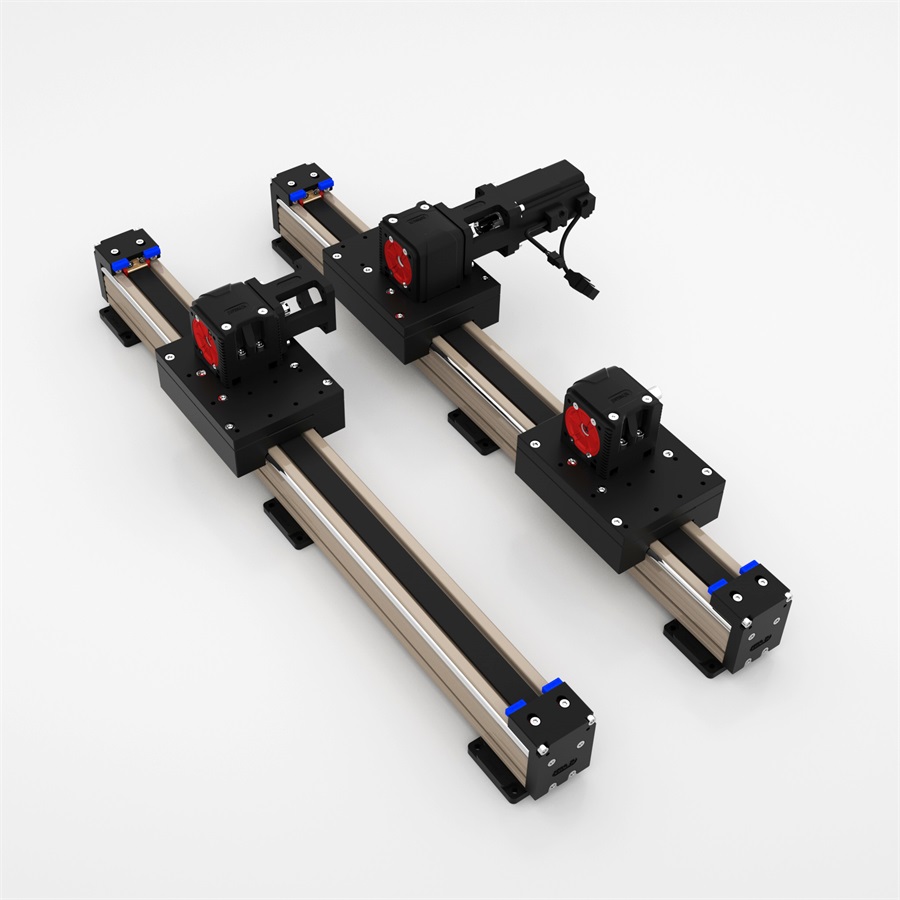

Multiple sliders can be installed

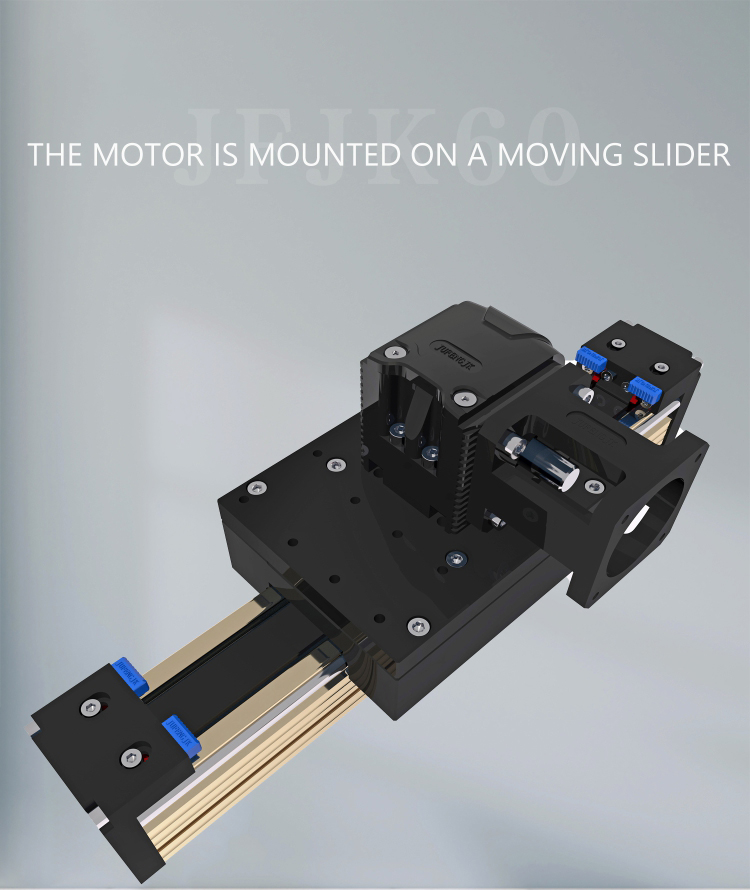

Multiple slide blocks can be installed, and the motor is installed on the upper part of the slide block and runs synchronously with the slide block. The slider and slider do not affect each other within the specified parameters, and can also operate together to save equipment space.

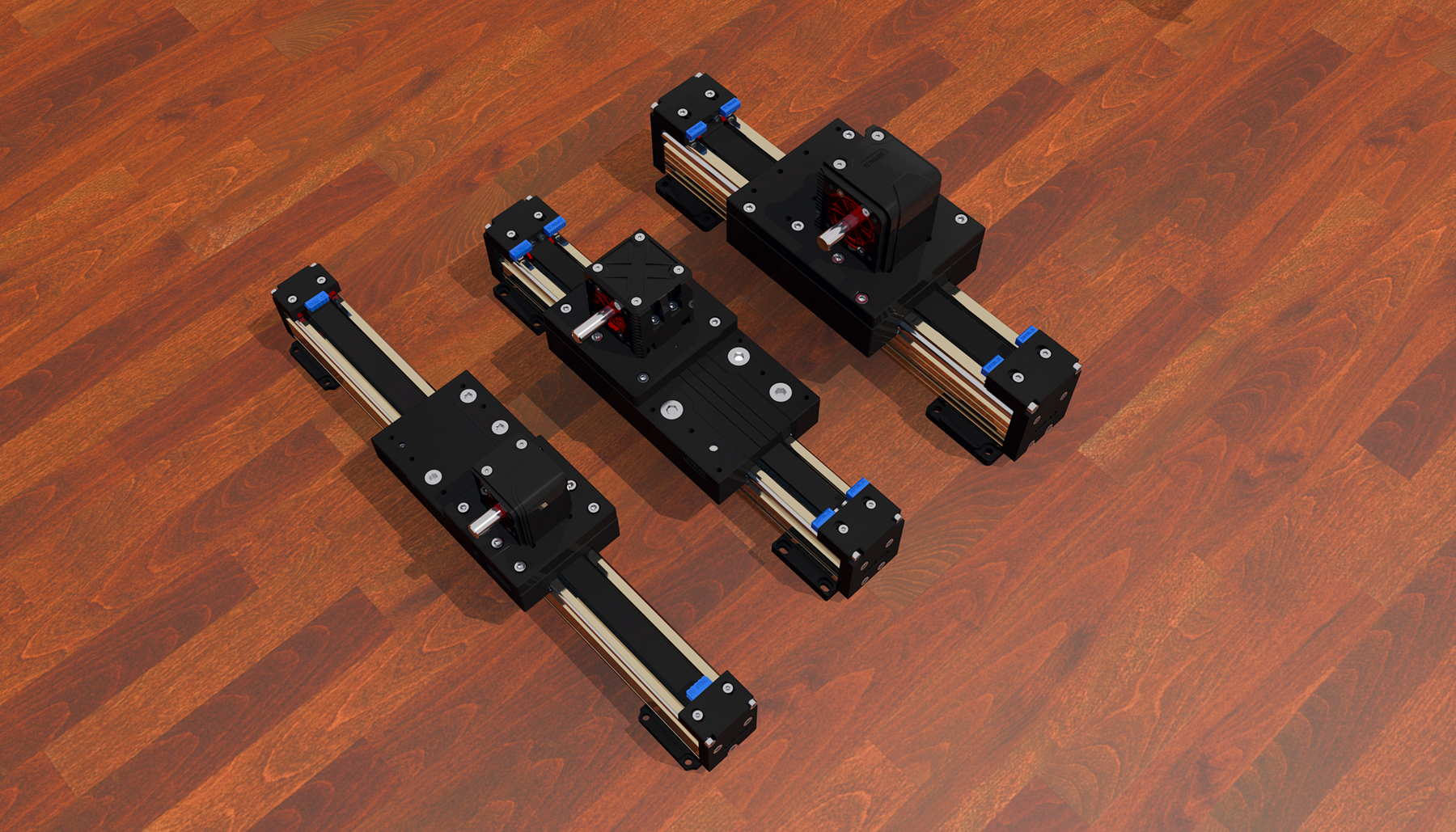

More specifications to choose from
Model	JFJK45	JFJK50 type	JFJK60
*WidthHeight (mm)**	45*45	50*50	60*60
maximum horizontal load	12kg	15kg	20kg
maximum vertical load	5kg	8kg	12kg
