Single gross weight: | 10 KG; | Phase: | Single Phase; |
Input voltage: | 140V-260V; | Selling Units: | Single item; |
Frequency: | 50Hz/60Hz; | Brand Name: | SAKO & OEM; |
Control type: | relay; | capacity: | 3000W; |
Single volume: | 1 cm; | Model Number: | WVR; |
Color: | OEM; | name: | Wall mount automatic voltage regulator 3000W for air conditioner; |
Type: | electronics; | Protection: | lower voltage higher voltage; |
Usage: | SVC; | Place of Origin: | Zhejiang China (Mainland); |
Display: | Meter Display / LED Display; | Current Type: | AC; |
Output voltage: | 220V; |

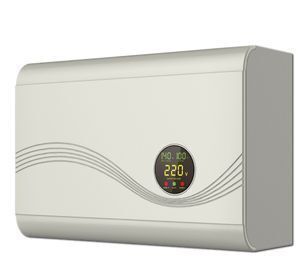

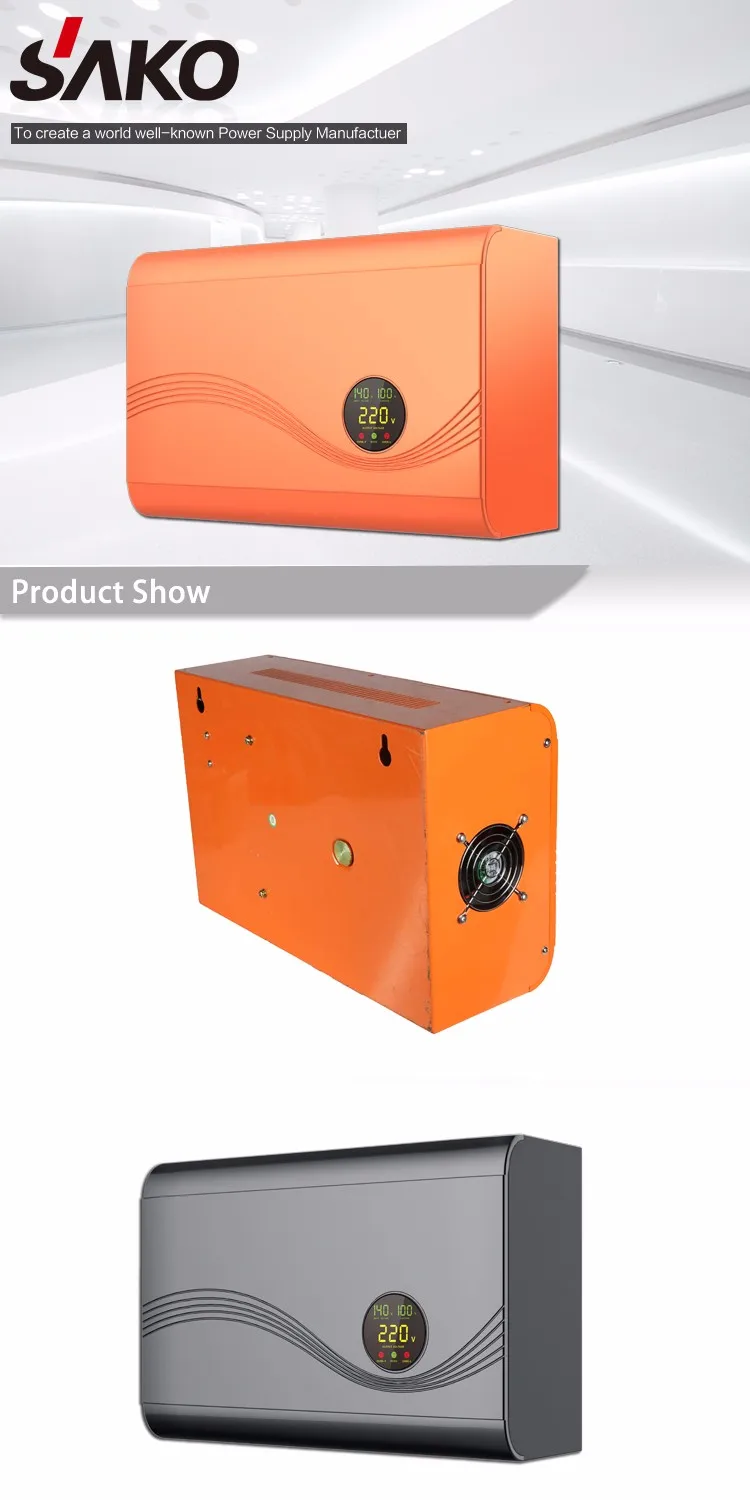

Wall mount automatic voltage regulator 3000W for air conditioner

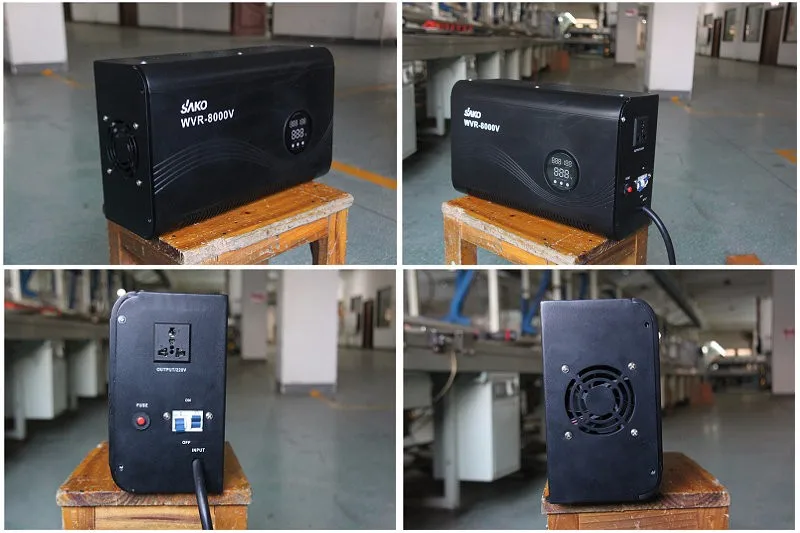

Product | Technology | WVR-8000V | WVR- 10000V |
Power (VA) | |||
Input | Phase | Single phase | |
Voltage (2) | AC 100V-260V | ||
Voltage (3) | AC 140-260V | ||
Frequency | 50Hz/60Hz | ||
Output | Voltage Range | AC220V | |
Precision | ±8% | ||
Frequency (Inverter Mode) | 50Hz/60Hz | ||
Power factor | 100% | ||
Function | Control type | relay | |
Over/Low Volt protection | yes | ||
Digital display | Show input and output voltage | ||
Temperature protection | yes | ||
Over current protection | yes | ||
Delaying | 6 Secs(short)/ 120 Secs(long) | ||
Short Circuit & Over Load | MCB | ||
USE | Air conditioner type | 1ton | 1.5ton |
Efficiency | AC-AC | 0.96 | |
Acoustic | Noise level | ≤50dB | |
Environment | Temperature | -5-60 DegreeC | |
Humidity | 20% to 90% |
