weight: | 500kg | Voltage: | 380V/220V,220V/380V |
strength: | 550W | Warranty: | main part |
Rewinding speed: | 300 rpm | Function: | winding yarn |
port: | Ningbo/Shanghai | Health status: | new |
color: | blue | engine: | 0.55kW |
Dimensions (length*width*height): | 3750*680*1060mm | Showroom location: | not any |
Silk frame: | 6 support | application: | winding yarn |
Applicable industries: | yarn winding | Post-warranty service: | Video technical support, spare parts |
Key words: | cone to skein | Automatic level: | Semi-automatic |
usage: | winding yarn | Production capacity: | 300m/min |
payment terms: | Letter of credit, wire transfer | Supply capacity: | 10 groups per day |
brand: | Flying Tiger | After-sales service provided: | Engineers can repair machinery overseas, free spare parts, video technical support, and online support |
Name: | Reeling machine | Packaging details: | wooden box |
Memory Capacity: | Require | Package preview: | |
Local service locations: | not any | Certification: | Certification |
Place of origin: | Zhejiang, China |

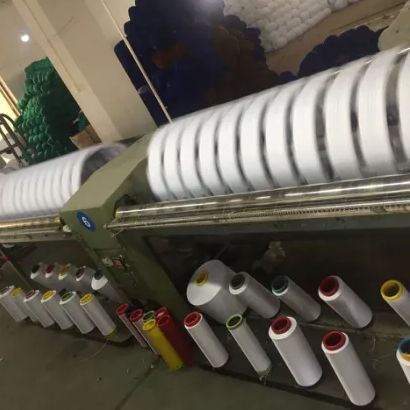

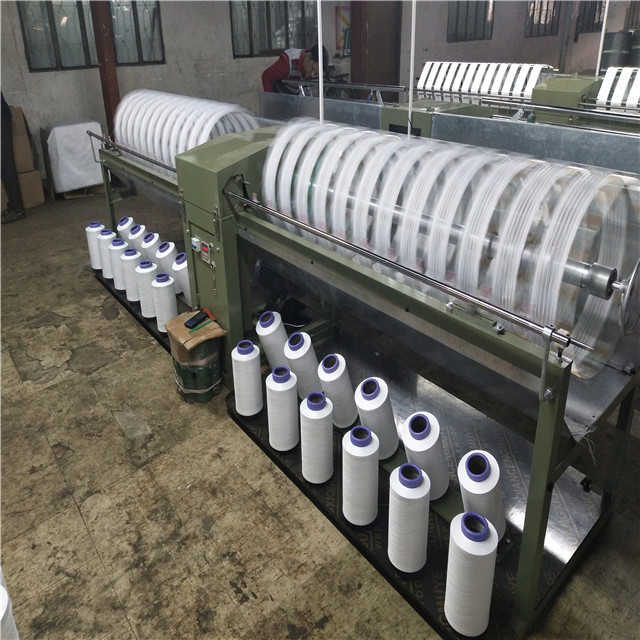

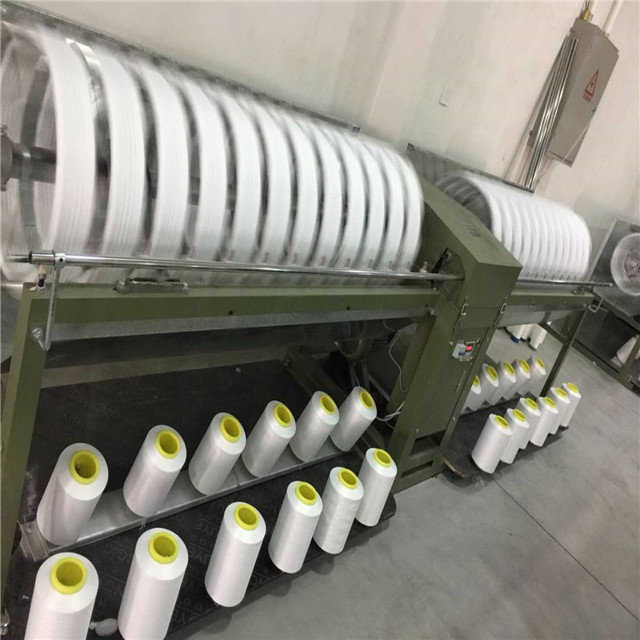

FH24K skein and reeling machine has a simple structure and is easy to operate. It can easily take off the yarn after staining. This machine can easily wind up nylon skeins.
Used for:
Wool spinning, knitting, silk, nylon yarn, high elastic yarn and other industries, after winding and twisting process, it is processed into fixed weight and fixed length yarn for the next process of dyeing, state transportation and playing a role in polyester high elastic yarn Buffering effect. Preshrunk.
There are two options for spinning boxes:
One is a galvanized pipe, and the other is made of aluminum alloy with grid oxidation treatment, which is durable.
It can be produced according to your requirements, as follows:
1. Automatic control of yarn breakage test
2. Automatic control of finished product management
3. Electromagnetic brake
Circumference of skein: 1500mm-1800mm
Specification:
outline | The box is single-sided, from bottom to top |
Number of knives | 24 knives/set |
Tool distance | 140mm |
Rotating speed | 300-500 rpm |
wire frame | 6 support |
strength | 0.55kW |
volume | 3750mm*680mm*1060mm (length*width*height) |
Voltage | 380 volts, three phase, 50 Hz |
Yarn wrapping | Acrylic yarn, nylon, etc. |
Creel circumference | Can be customized by user, usually 1500mm |
We can make special types according to customers' requirements.
