Autogas MAP sensor 4Bar suitable for CNG LPG conversion ECU kit spare parts gnv gnc glp vehicle map sensor

Product details
type:temperature sensorport:Any port in China
payment terms:L/C, Western Union, D/P, D/A, T/T, MoneyGramcar brand:CNG liquefied petroleum gas vehicle, CNG liquefied petroleum gas vehicle
Model:tundraAuto parts:toyota truck
Place of origin:Sichuan Province, Chinasample:Available
Warranty:1 yearMinimum order quantity:1
brand:Optical fiber transmission technologyPayment:Western Union.PayPal
product name:[fct] cng lpg mp48 ecu 4cyl cng map sensor ngv ecu map sensor suitable for 6cylPackage:carton
quality:high leveldeliver goods:1-3 working days
Packaging details:Carton Packing Autogas MAP Sensor 4Bar Suitable for CNG LPG Conversion ECU Kit Spare Parts gnv gnc glp Vehicle Map SensorOEM:Provide OEM services
Shipping:Sea Freight Air Freight DHL FedEx EMSSupply capacity:50,000 sets per month
Year:2010-2013,2010-2011,2011-2013Original equipment number:FC
model:FCT-AEB
Product Description

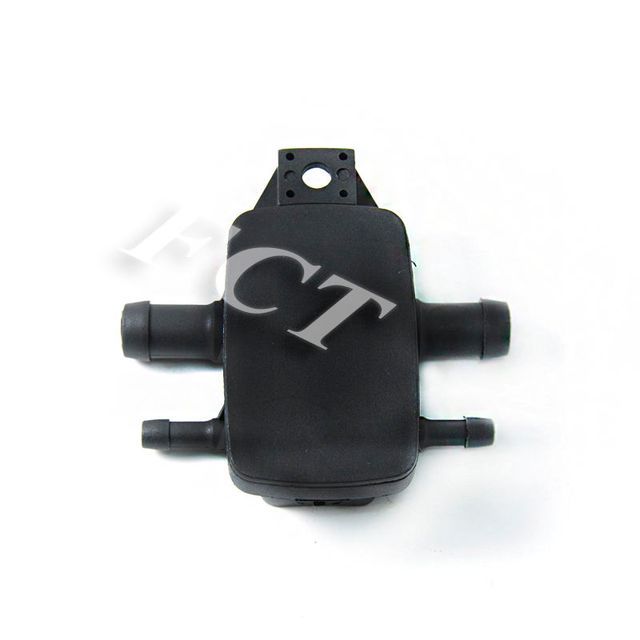

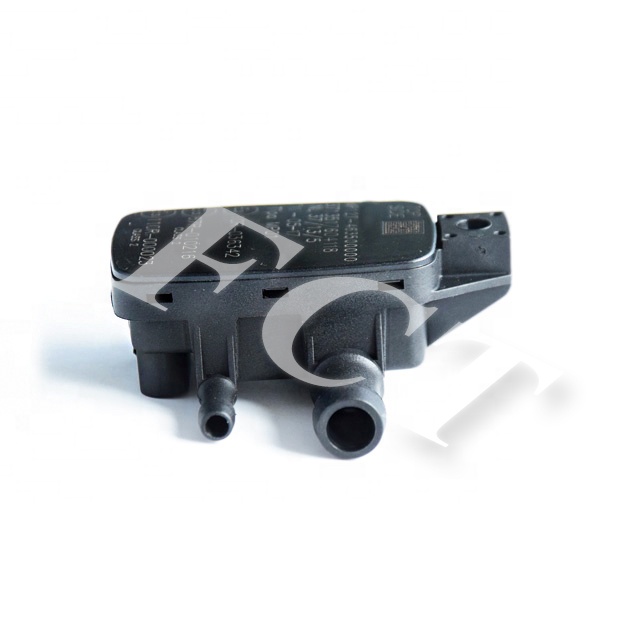

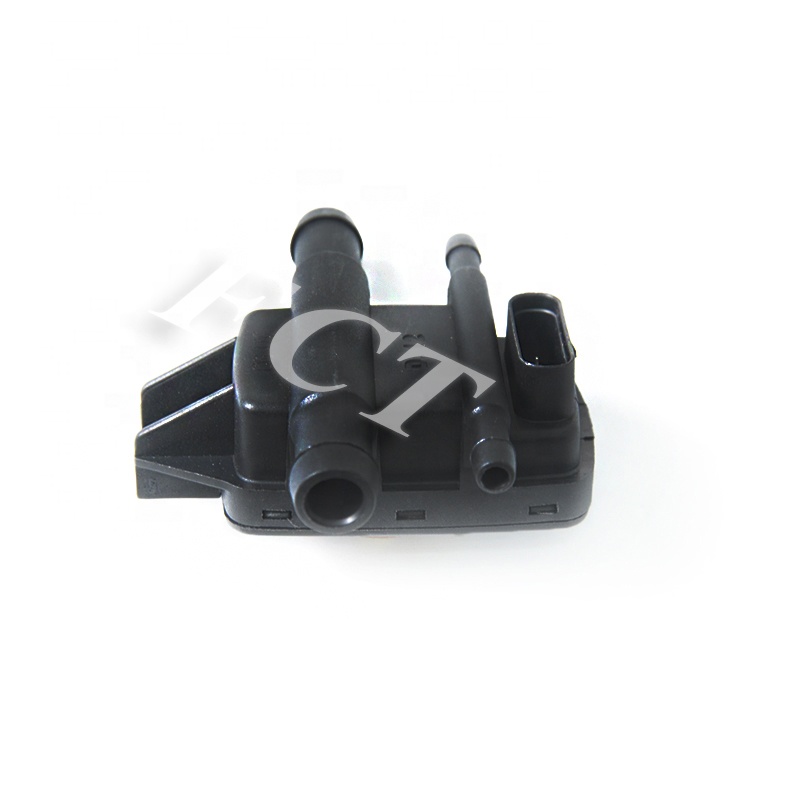

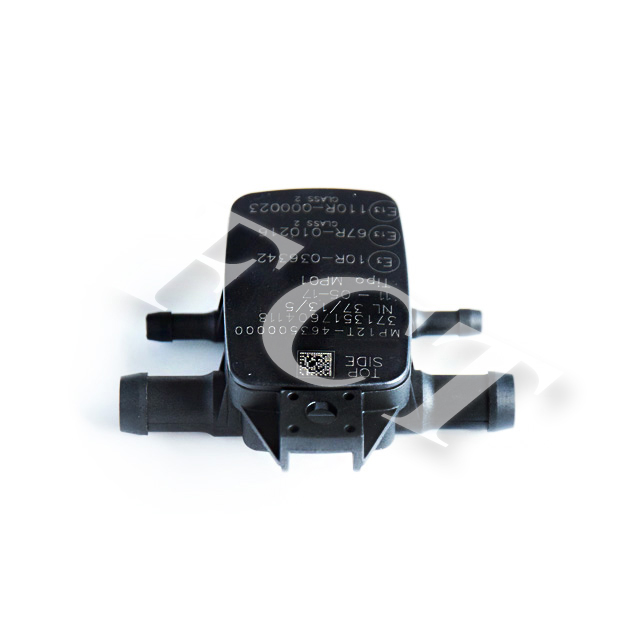

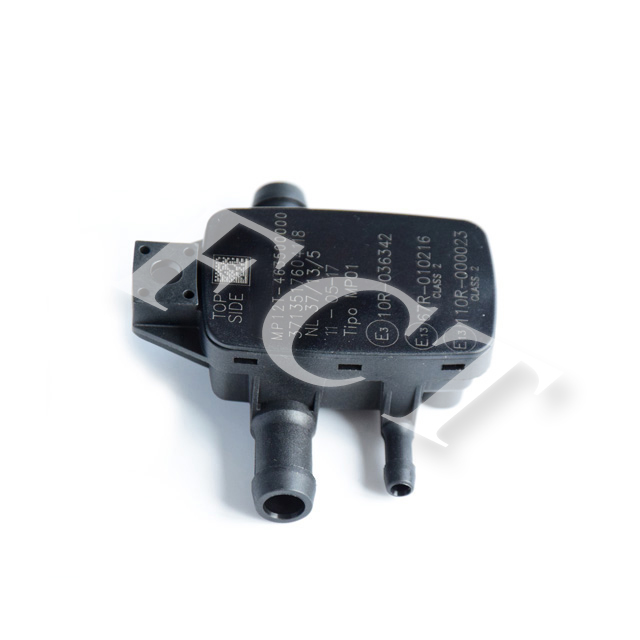

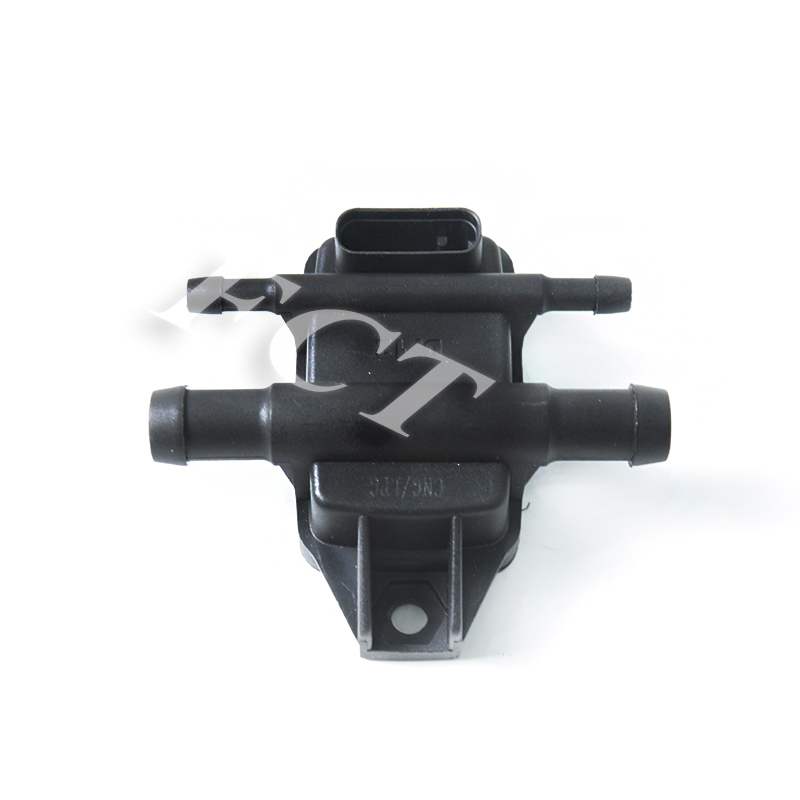

FC Autogas MAP Sensor 4Bar for CNG LPG Conversion ECU Kit Spare Parts gnv gnc glp Vehicle Map Sensor
Gasoline ECUs are installed in OEM (Original Engine Manufacturer) cars. In a CNG sequential system, the CNG ECU is synchronized with the gasoline ECU to provide the same performance with both fuels, namely CNG and gasoline. The ECU is the brain of the entire CNG timing system.

High quality LPG CNG MAP sensor 5 pin air pressure sensor for car LPG CNG conversion kit.

The MAP sensor or manifold air pressure sensor is the primary input to the ECM or engine control module. This sensor detects changes in intake manifold pressure and converts them into signal voltages. Learn about MAP sensors from an electronic perspective and read the wiring diagram


Complete type:
Compressed natural gas/liquefied petroleum gas
Cylinder type:
Sequential injection 3/4 cylinder
Operating Voltage:
10-16V
connect:
36 pins
Operating temperature
-20℃+120℃
Packing
carton

brief introduction:

1. Map sensor for 300 ecu kits

2. MP48 ECU map sensor OEM service

3. 2568D ECU 6/8 cylinder map sensor

Technical specifications

1. Voltage range: 9-16V (nominal 12V).
2. Pressure sensor output voltage: 0-5V.
3. Pressure sensor measurement range: 0-400kPa.
4. Maximum overload of pressure sensor: 1600kPa.
5. Temperature sensor type NTC 4k7. Leak-free connection type AMP (5-pin).
6. The operating temperature range of the gas temperature sensor is -25℃ to +120℃.
USB interface cable details:
