Multi-saw machine, panel saw, automatic table saw machine and milling table multi-functional woodworking machine

Supplier: Zhengzhou The Right Time Import And Export Co., Ltd.
Region: Henan, China
Contact: Ms Nancy Young
Price: $270.00 / 1 - 4 sets
$260.00 / 5 - 14 sets
$240.00 / >=15 sets
Min. Order: 1 set

Click here to contact

Product details

Marketing type:	Hot selling, competitive price	type:	circular saw
use:	carpentry	brand:	zero point DS
Voltage:	220 volts	Supply capacity:	100 sets per month
Place of origin:	China	style:	horizontal
port:	Tianjin, Shanghai, Qingdao, Dalian	Packaging details:	Transport safety packaging
usage:	Saw board/square lumber	Mechanical test report:	if
Health status:	new	style:	horizontal
Core component warranty:	1 year	payment terms:	L/C, Western Union, D/P, D/A, T/T, MoneyGram
Table size:	120cm*100cm	Applicable industries:	Building material stores, machine repair shops, manufacturing plants, home use, construction projects
Flip board:	50*30cm	Core components:	other
Main selling points:	Easy to operate	guide:	1251001000mm

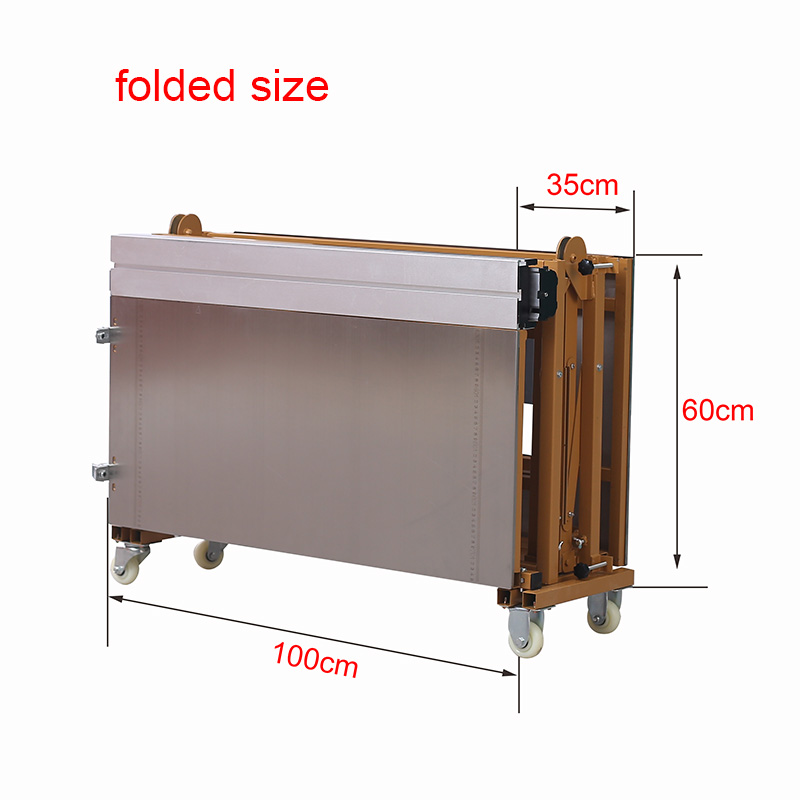

Warranty:	1 year	Folded size:	1006035cm
application:	carpentry	Package preview:
Place of origin:	Henan, China	Weight (kg):	85kg
Machine weight:	85kg	Province:	Province
Video outbound inspection:	if	Expand Size:	21525075cm
Dimensions (lengthwidthheight):	According to pictures	brand:	zero point DS

Product display

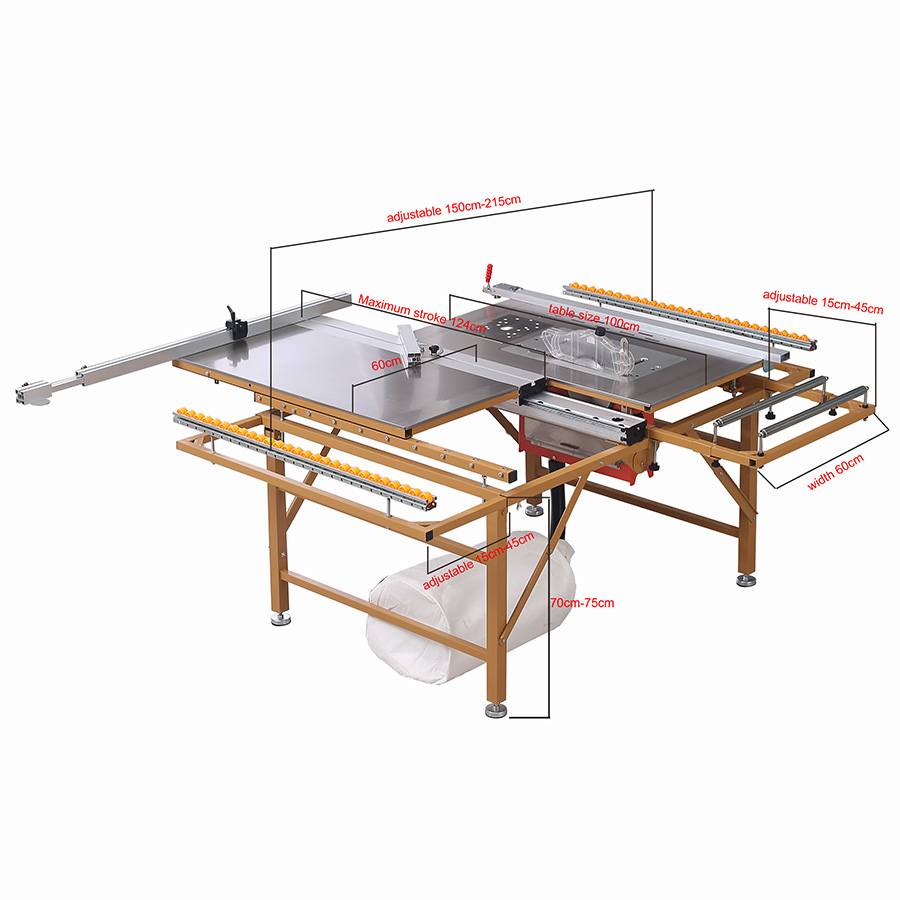

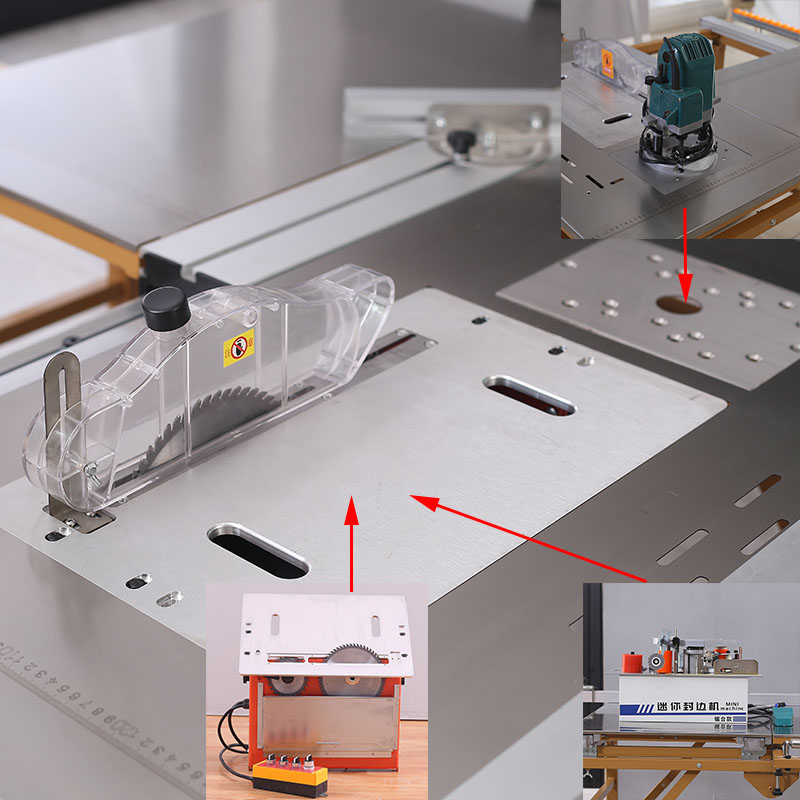

ZDS125 dust-free sliding table saw, the main slide rail uses light precision guide rail, the auxiliary guide rail uses 10 precision bearings + silent cotton, the main table is made of stainless steel, thickness 1mm, the frame is 4*4cm square tube, double beam reinforcement on both sides, can Extended on three sides. Equipped with 2 sets of enlarged universal wheels, it is easy to move after folding.

It can cut 1.2 meters horizontally, 2.4 meters vertically, and bevel at 45°.

It is accurate, portable, stable, reliable, practical and can be operated by one person.

detailed picture

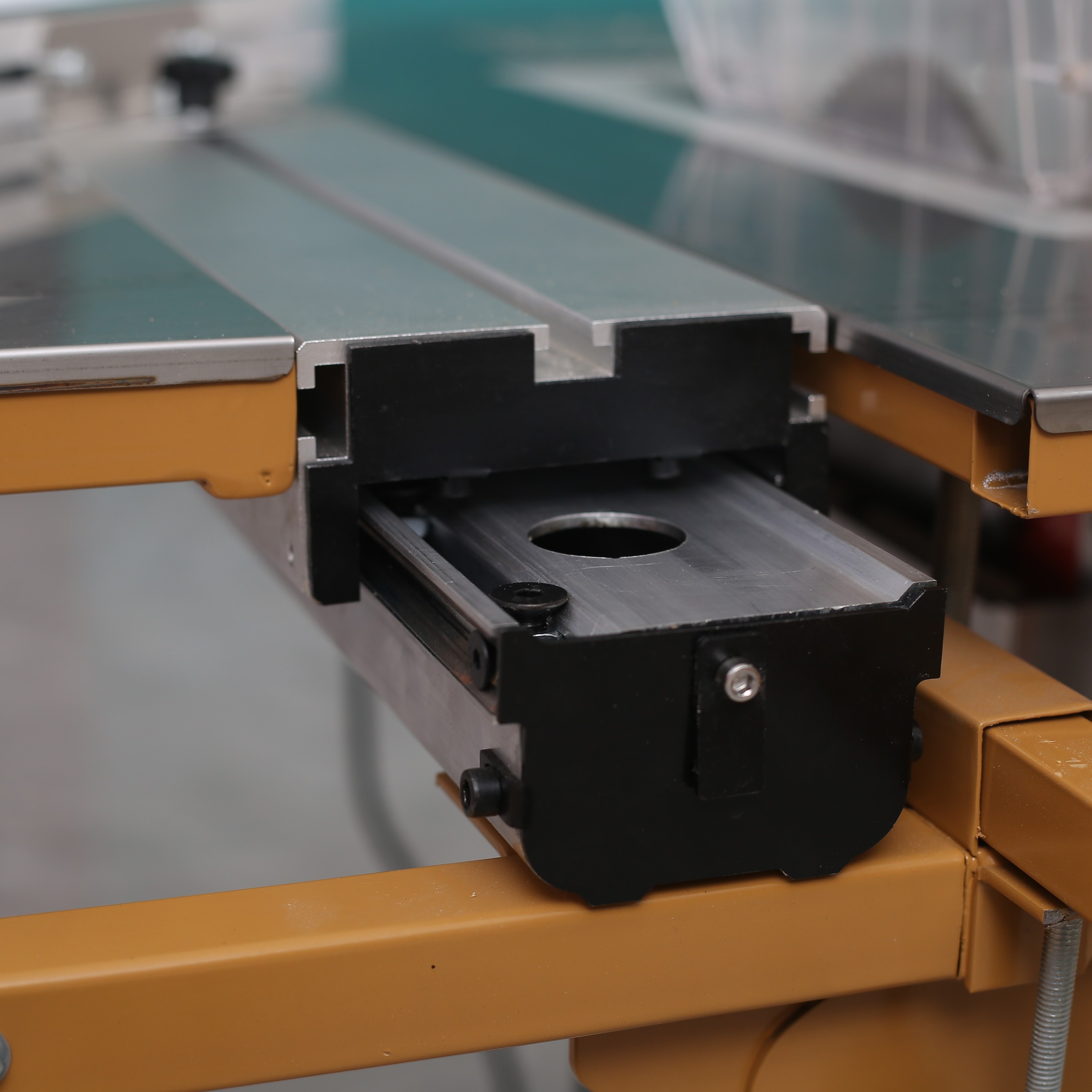

main track

125*100*1000mm precision guide rail, sturdy and durable

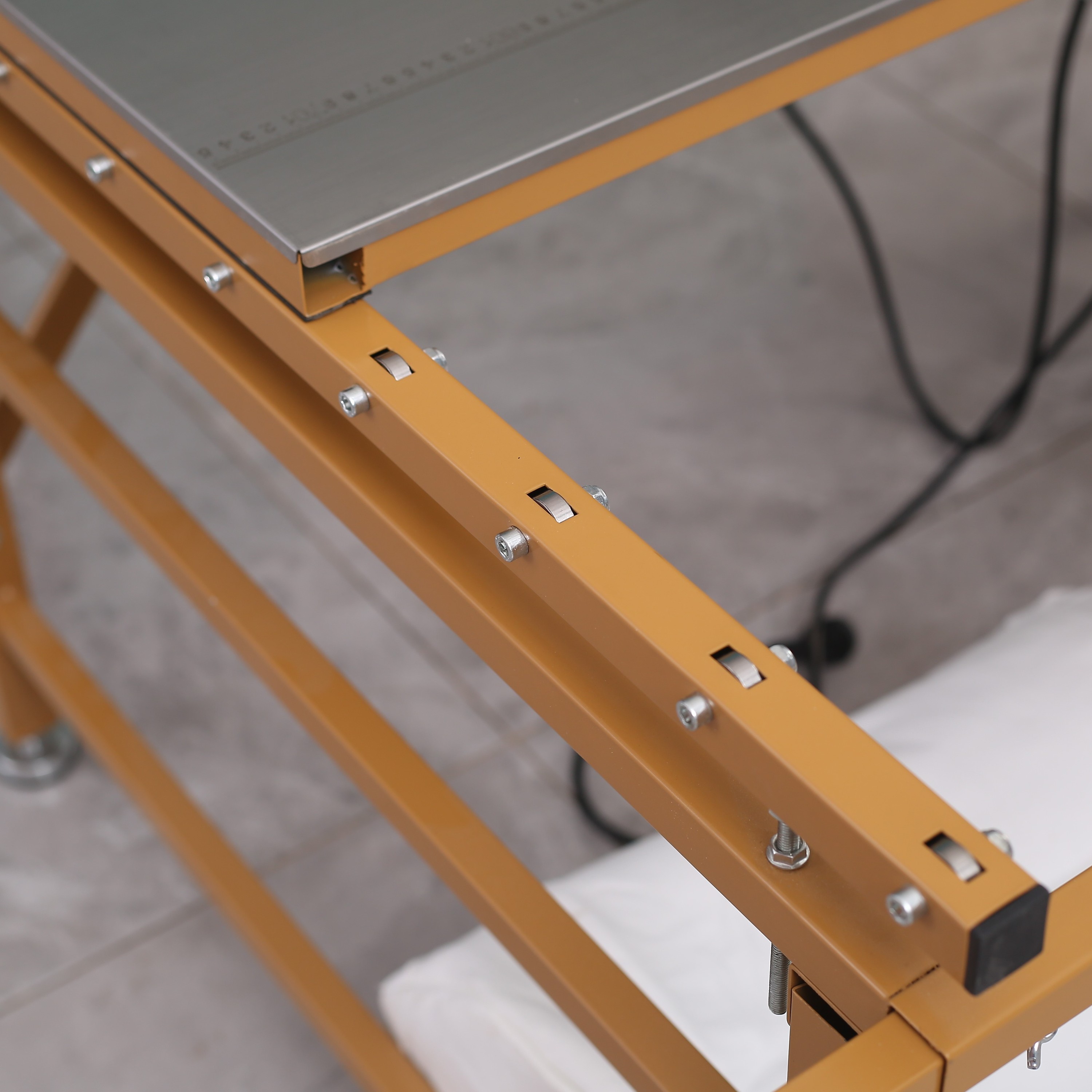

suborbital

10 precision bearings + silent cotton, smooth pushing and pulling

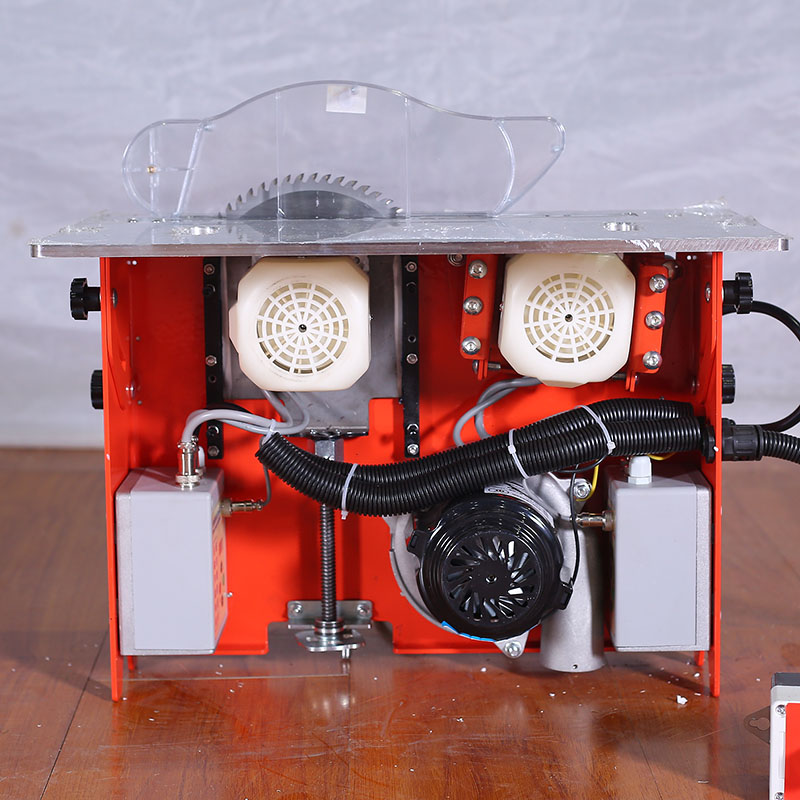

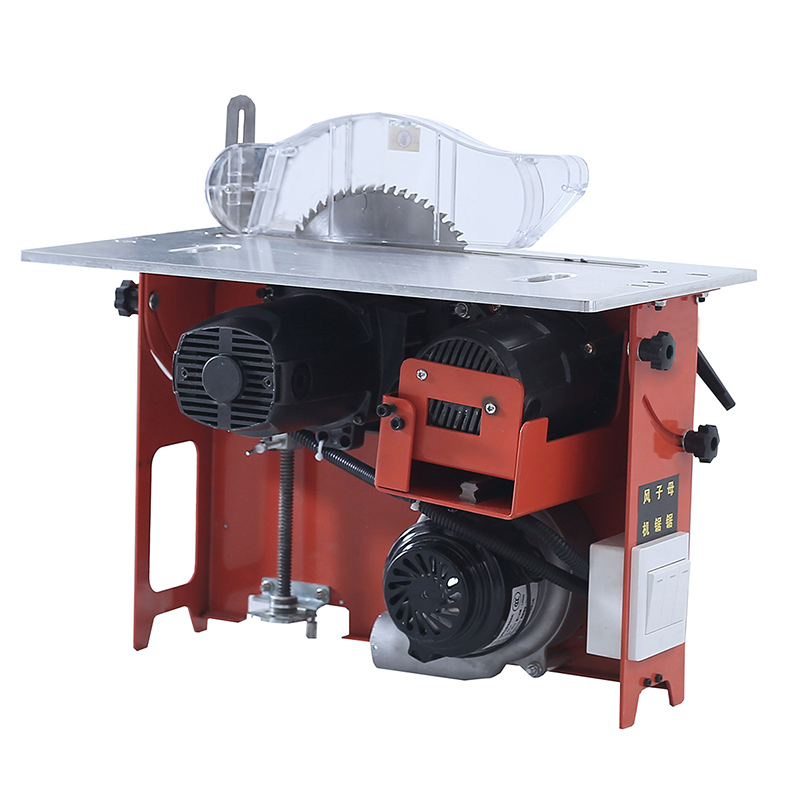

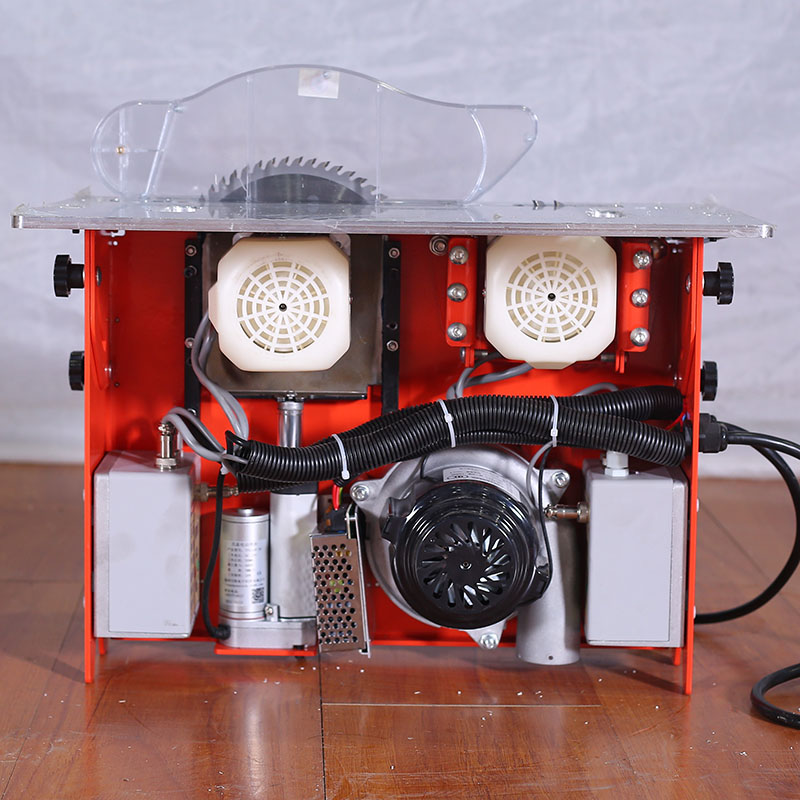

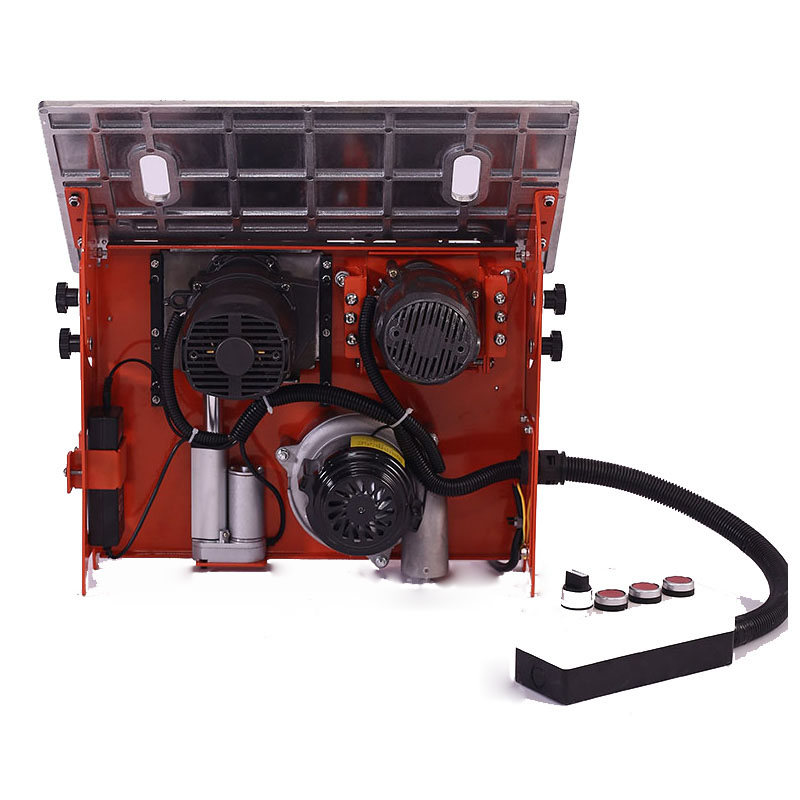

Name			Manual lift dust-free saw	Manual lift brushless saw	Electric lifting dust-free saw	Electric lift brushless saw
Model			ZDS10	ZDS11	ZDS20	ZDS21
Operating Voltage			220V/50Hz	220V/50Hz	220V/50Hz	220V/50Hz
High saw power			2600 watts	1600 watts	2600 watts	1600 watts
Small saw power			1600 watts	550 watts	1600 watts	550 watts
Large saw speed			4500 rpm	4500 rpm	4500 rpm	4500 rpm
Small saw speed			13000 rpm	5500 rpm	13000 rpm	5500 rpm
Vacuum power			1200 watts	1200 watts	1200 watts	1200 watts

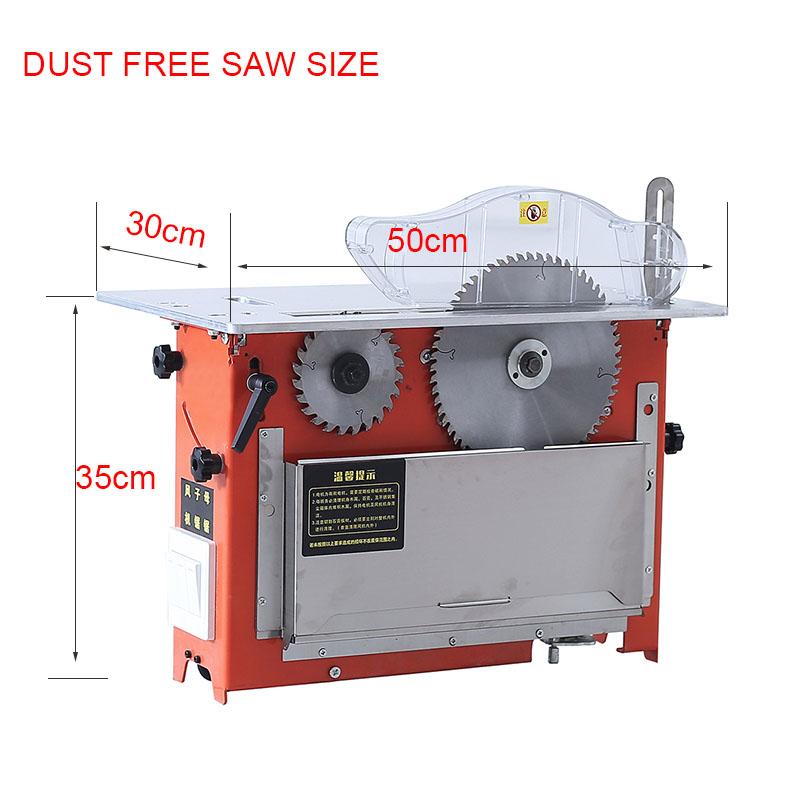

total measurement			503035cm	503035cm	503035cm	503035cm
weight			23kg	23 grams	26kg	26kg
Saw blade size	big saw	8/9 inches	8/9 inches	8/9 inches	8/9 inches
Saw blade size		small saw	4 inches	5 inches	4 inches	5 inches
elevation method	big saw	Manual	Manual	electrical	electrical
elevation method		small saw	Manual	Manual	Manual	Manual
engine			Hanchuan copper core motor	Custom brushless motor	Hanchuan copper core motor	Custom brushless motor

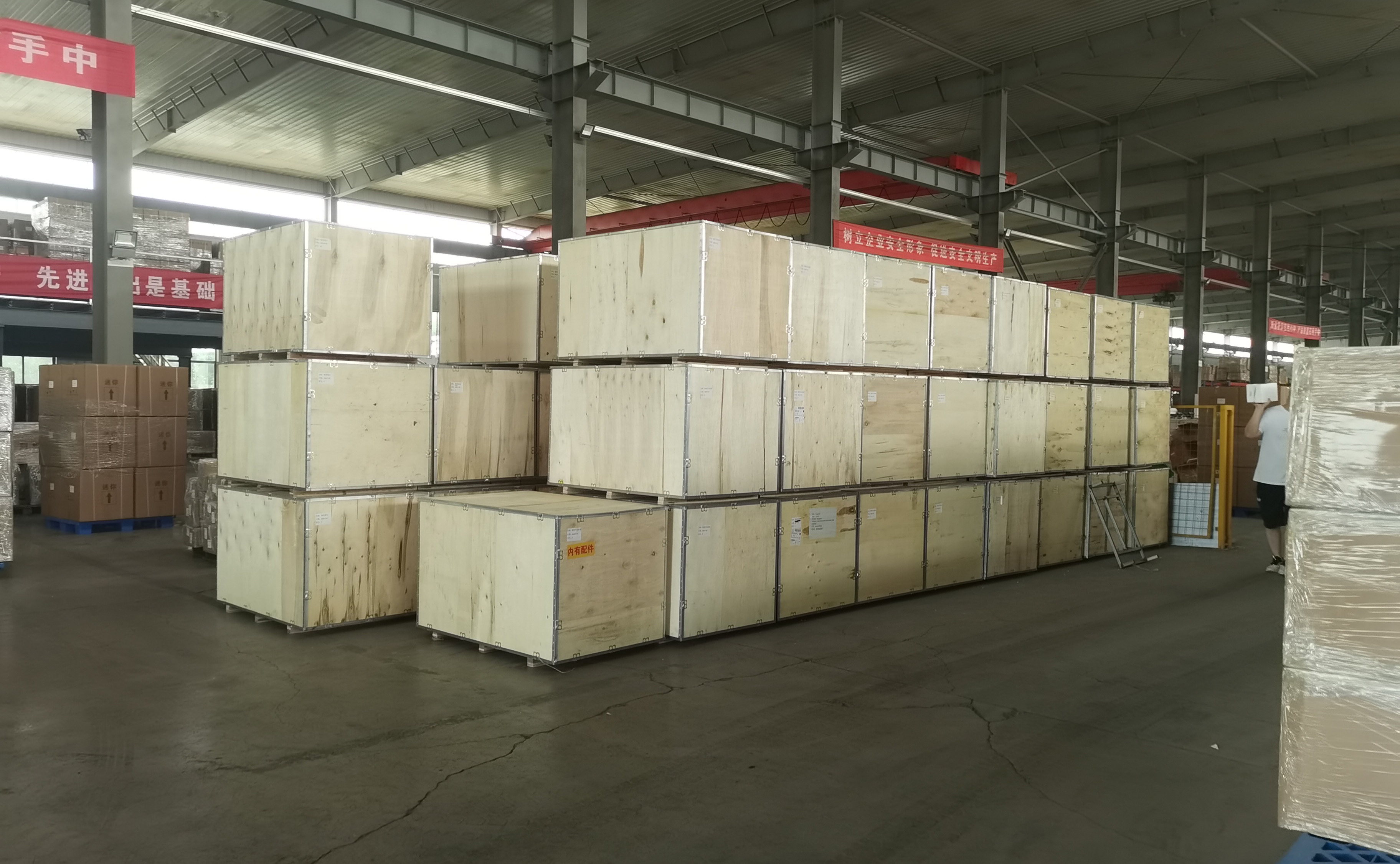

Packaging and shipping
