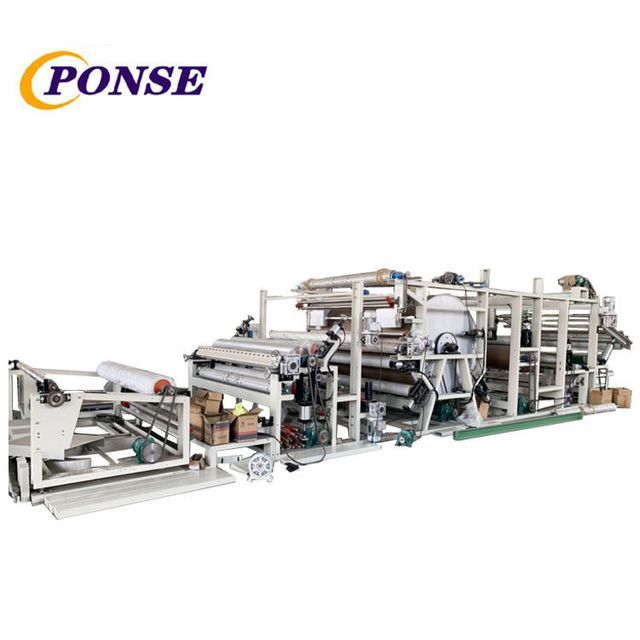

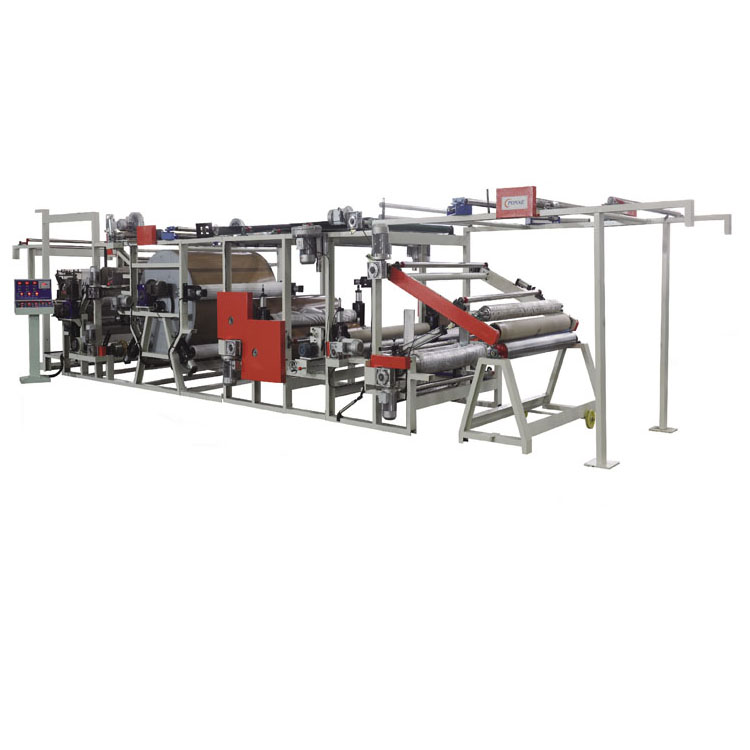

PU PP non-woven fabric laminating machine

Product details
Name:Four workers operate bonding cloth machineMaterial:Non-woven fabric/plush toys
Core components:engineHealth status:new
Marketing type:New products for 2023feature:laminated
port:ShanghaiAutomatic level:automatic
strength:55kWVoltage:380V/220V,380V/220V
Packaging details:Standard wooden boxAfter-sales service provided:On-site maintenance and repair services
Video outbound inspection:ifweight:8000
Lamination width:1.8mPlace of origin:Jiangsu, China
Certification:CE; ISO9001Dimensions (length*width*height):6.2*2.6*2.5m
Driver type:electricalcolor:customizable
Supply capacity:80 laminators per monthCore component warranty:1 year
application:for laminated fabricsShowroom location:not any
Glue type:Polyurethane glueApplicable industries:manufacturing plant
brand:PonsMechanical test report:if
payment terms:L/C, T/T, laminatorWarranty:1 year, 3 years
Production capacity:20m-35m/minute
Effective working width
1600mm or customized
Gluing method
laminated
Heating roller diameter
1500mm
Heating roller width
1800mm or customized
heating method
Electric heating tube
electricity
45kW
Fitting speed
900-1200 meters/hour
aspect
12000*2400*2500mm
feature:
*Solvent-based bonding, the material is firmly bonded, soft and comfortable to the touch, and washable.
*The machine is controlled by a PLC system with a touch screen. The modular design structure and HMI control system make operation easy and simple.
*Equipped with thermal oil heating system (optional).
•The tension-free unwinding roller makes the lamination material smooth and even, and the bonding strength is good.
*The rollers also make laminates smooth and even, especially elastic materials.
*Precise infrared centering devices ensure edge alignment during lamination.
*The modernly designed glue application system ensures the accuracy of the amount of glue applied.
*Equipped with pneumatic expansion shaft, easy to operate.
application
* Textiles, foam, leather, automotive interiors, packaging, etc.
* Fabric to fabric, fabric to non-woven fabric, fabric to film (membrane), such as PU, TPU, PTFE, PE, PVC, etc.
* PU + leather, fabric and foam laminator for footwear industry.
* Shoemaking materials, such as EVA+fabric, foam+fabric, cloth+leather, cloth+fabric,
* Clothing materials, handbags, such as fabric + waterproof film, fabric + fabric, fabric to foam, foam to foam laminated EVA sheet, insole board, PU leather laminated felt and EVA foam, fiberglass cloth and aluminum foil
* Automobile industry (car interior, car seats) Interior decoration and home textile industry (office chairs, sofas, baby products, fillings, bedding)

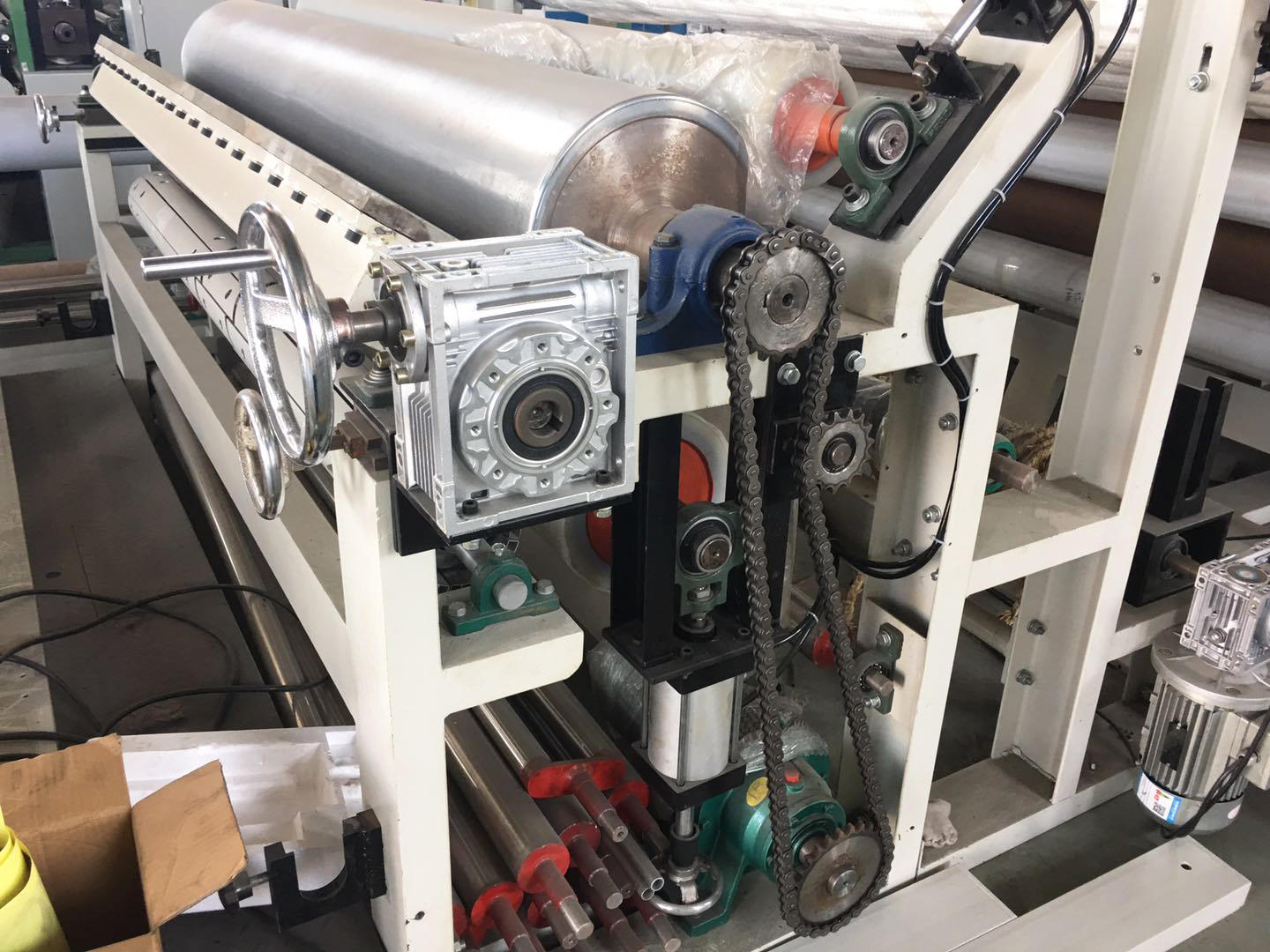

The modernly designed glue application system ensures the accuracy of the amount of glue applied.

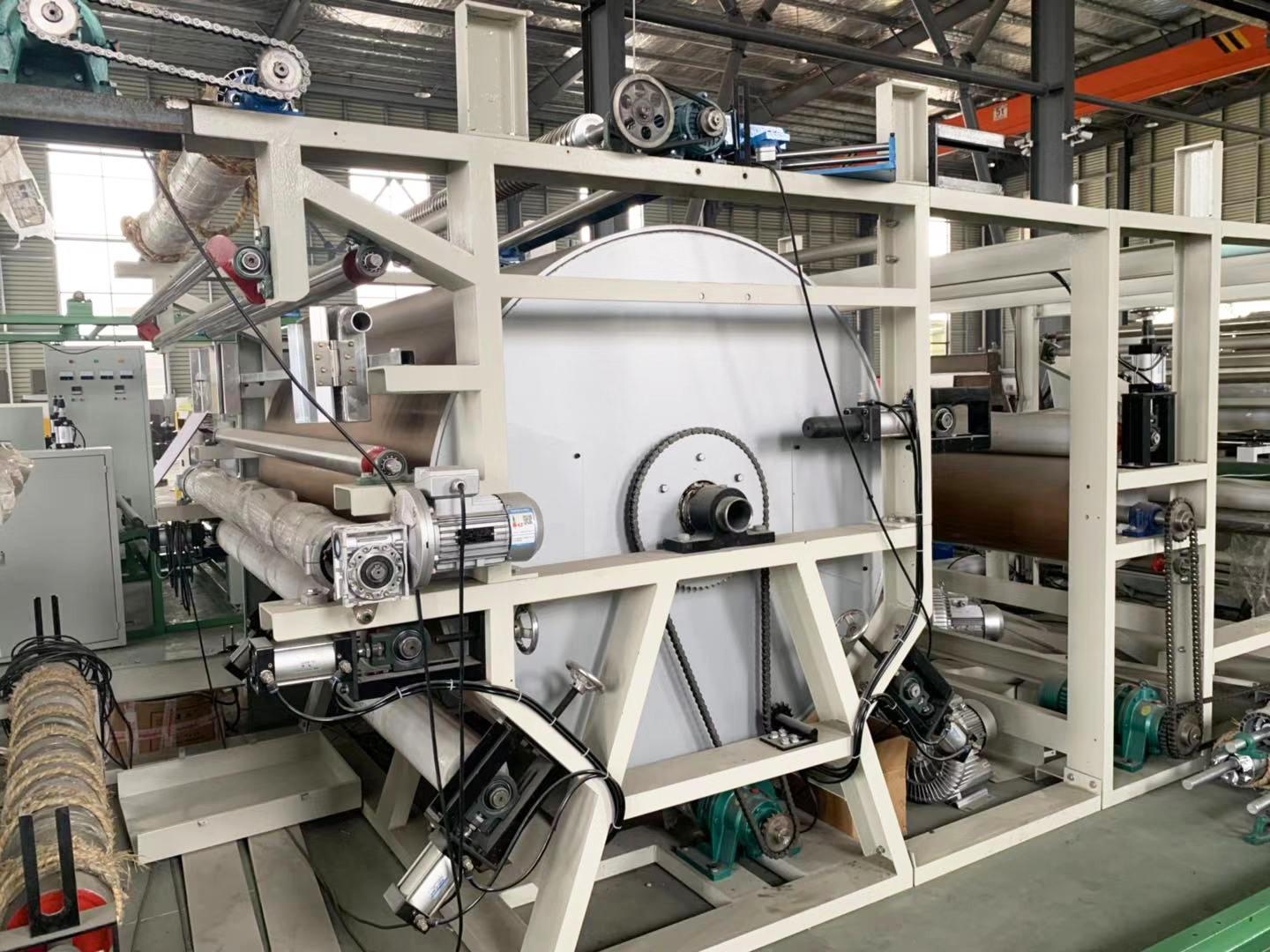

The heating roller is made of high-temperature resistant polytetrafluoroethylene paper, and electric heating tubes, thermal oil or steam can be added inside.
Water cooling device for better bonding results
Tracking device for pulling laminated fabric

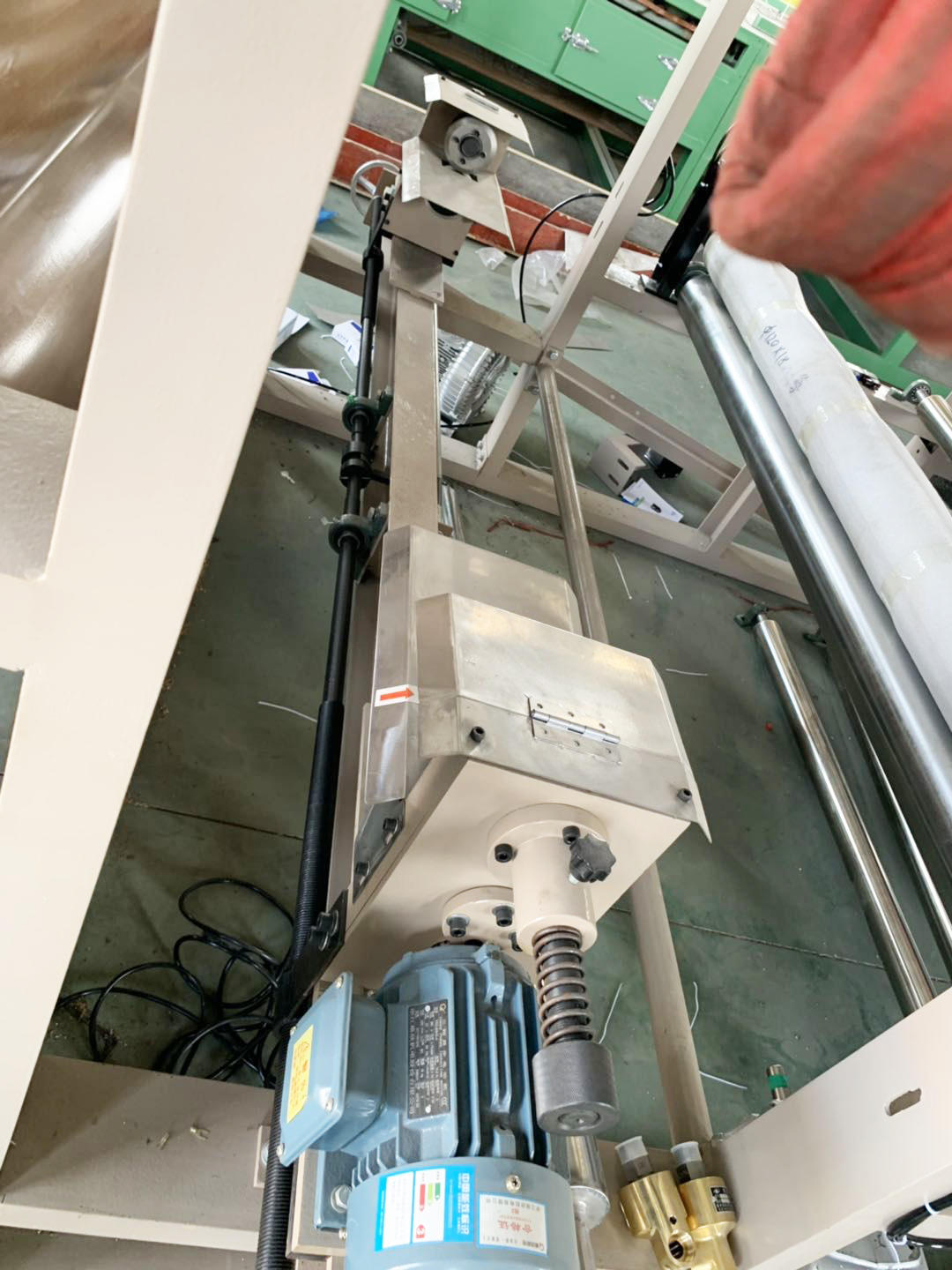

Automatic hydraulic/pneumatic EPC (edge ​​position control system) ensures neat edge alignment during work
Unwinding and rewinding are controlled by magnetic constant tension
1.high-tech enterprises: Pons is a well-known manufacturer of hydraulic cutting machines, laminating machines and embossing machines in China. It conducts technical research and development on cutting machines, laminating machines and embossing machines. It has complete facilities and is a registered R&D design engineer. It has been established for more than 20 years and has rich experience. . R&D and production, with extremely high independent research and development capabilities, is also a high-growth enterprise supported by the state, and has good potential economic benefits.

2.Customers are distributed at home and abroad: Ponse has a large number of customers located in Jiangsu Province, Anhui Province, and Guangdong Province. etc. and have established long-term cooperative relationships with foreign customers. Our company is a self-produced and self-sold company with no agency price, affordable price, excellent quality, and many customers.
1. Frequently Asked Questions >> About Trading Company or Factory
we are factory. We build the machines ourselves.

2. FAQ >> Where is your factory located? How do we visit?
Our company is located in Dagang Town, Yandu District, Yancheng City, Jiangsu Province. You are welcome to visit our company, which is only a 4-hour drive from Shanghai.

3. Frequently Asked Questions >> About delivery deadline
Normally we send goods in FOB term. But CNF and CIF terms are also acceptable, depending on customer preference.
4. FAQ>>About delivery time
Usually it takes about 10-20 days after we receive your confirmation. (it depends on the quantity)

5. FAQ>>About payment
30% deposit, balance to be paid before shipment

6. FAQ>>About the printing press
Projects require a custom approach due to industry specifics, materials, sizes, shapes, handling, etc. Ponse's highly trained technical support team will be happy to discuss all of your options over the phone, or you are more than welcome to visit our facility to view machinery and test equipment Cut your material.
