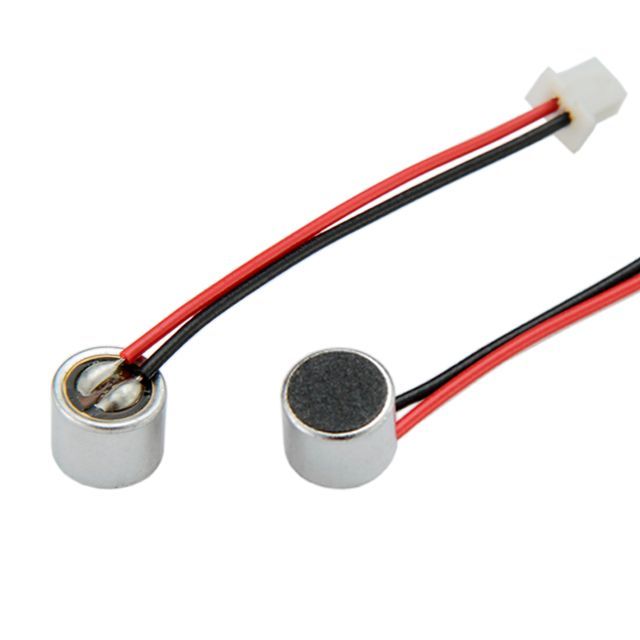

AOSPOW 6050 omnidirectional microphone dual capacitor welding wire microphone network surveillance camera microphone
-
Supplier: Shenzhen Marquess Electronics Co., Ltd. -
Region: Guangdong, China -
Contact: Ms yoko yam -
Price: $0.22 / 5000 - 9999 pieces
$0.21 / 10000 - 19999 pieces
$0.20 / >=20000 pieces -
Min. Order: 5000 pieces
Product details
| model: | ASF-F6050AL40SDN-L | Directional characteristics: | Omnidirectional |
| Rated voltage: | 3V DC | Efficiency - Type: | Sensitivity |
| frequency: | 20-16000 Hz | Current consumption: | 500 (maximum) uA |
| voltage range: | 1.0~10.0V DC | Frequency Range: | 20-16000 Hz |
| Supply capacity: | 1,200,000 pieces per week | port: | Yantian Port Shekou Port |
| Frequency response: | 20-16000 Hz | Rated voltage: | 3V DC |
| Sitting height (maximum): | 5.0mm | size: | 6.0*5.0mm |
| Maximum input sound pressure level: | 110 decibels | Dimensions/Dimensions: | 6.0*5.0mm |
| Material: | aluminum | Installation type: | lead |
| Standard working voltage: | 3V DC | Output type: | Numbers, I²S |
| Input type: | DC | impedance: | 2.2kΩ(maximum),2.2kΩ(maximum) |
| powered by: | 500 (maximum) uA | payment terms: | L/C, Western Union, D/A, T/T, MoneyGram |
| technology: | not applicable | Operating temperature: | -20℃～70℃ |
| termination: | Quick connection | Signal to noise ratio: | 58 dB (minimum) |
| brand: | Ospov | type: | microphone |
| Voltage - Input (Max): | 10.0V DC | Place of origin: | Guangdong, China |
| Sensitivity: | -40±2dB | Height (maximum): | 5.0 mm |
Product Description
Part Name | Omnidirectional 6050 wire bonding microphone | ||||||
Model | AS-F6050AL40SDN-L | ||||||
Sensitivity | -40±2dB | ||||||
impedance | 2.2kΩ (maximum) | ||||||
signal-to-noise ratio | 58 decibels | ||||||
Frequency response | 20-16000 Hz | ||||||
Specification | 6.0*5.0mm (mm) | ||||||
Q1: Can I have free samples?
A1: If what you need is our regular products, we can provide you with free samples of less than 10 pieces. In addition, you will be responsible for paying all associated shipping charges.
Q2: How will you control product quality?
A2: Our products have strict production process requirements and strict quality inspection standards. The conventional sensitivity remains within the ±2dB floating range, far exceeding the industry standard of ±3dB. In addition, our production complies with ISO9000, 14000, ROHS, CE and FCC requirements.
Q3: Can products be customized, modified and developed according to design drawings?
A3: Yes, we provide OEM service and can customize products according to drawings. If the product requires the development of a new mold, mold fees and sample fees will be charged. We will refund after confirming that the order reaches a certain quantity.
