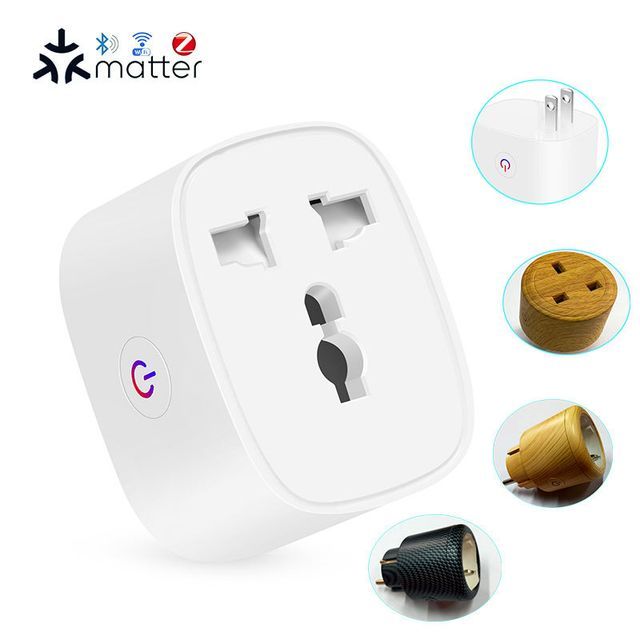

American plug Tooya BSD61 substance wifi mesh no energy monitor 20a 16a tasmota esphome firmware custom smart home socket
-
Supplier: Shenzhen Tuya Technology Co., Ltd. -
Region: Guangdong, China -
Contact: Ms Nina lai -
Price: $3.77 / >=100 pieces -
Min. Order: 100 pieces
Product details
| Supply capacity: | 100,000 pieces per month | Package preview: | |
| feature: | Wifi | port: | Shenzhen Port |
| Product packaging and carton size: | View specific information | Packaging details: | Carton + woven bag |
| operating system: | Microcontroller | Customization support: | software reengineering |
| Place of origin: | Guangdong, China | brand: | Far away |
| Private mold: | Yes | design: | bar |
| protocol: | WiFi can be customized through zigbee | payment terms: | L/C, Western Union, D/P, D/A, T/T, MoneyGram |
| program: | Can be customized with Tasmota | use: | common |
| Screen: | < 2" | Plug type: | United States, General |
| model: | SH-CT-TY-BSD61-US | camera: | no camera |
| chip: | ESP8285 |
Specification
thing | value |
product name | WiFi smart socket |
Specification | universal plug |
Output current | 20A/16A (optional) |
Operating Voltage | AC100-240V 50/60Hz |
color | white |
shell material | PC+ABS fire rating V0 |
Working humidity | <80% |
Operating temperature | -20℃-+50℃ |
Wi-Fi distance | 50 meters outdoors, up to 30 meters indoors (depending on building materials and structure) |
Wireless network type | 2.4GHZ 802.11b/g/n |
Network security level | WPA/WPA2 |
Operating power consumption | <1.3W |
Standby power consumption | 0.4 watts/hour |
indicator light | Red and blue lights (red power light, blue WiFi light) |
Certification standards | FCC/ROSH/ETL |
normal load | 1100W |
Maximum service life | 100,000 times |
Our advantage
We can use Tasmota based on esp8285 for firmware flash any custom program any custom firmware any custom function any custom laser printing protocol can be changed to Wifi or Zigbee
feature
1. Mobile app remote control 2. Timing function 3. Countdown function 4. Power-off memory 5. Status feedback 6. Shared control 7. Overload protection 8. Manual switch 9. Can be added in batches, group control 10. Supports Amazon Alexa, Google Intelligent voice control such as Assistant, Xiaodu, Xiaoai, Tmall Genie, etc. 11. Meter statistics (optional)
Dimensions/Packaging | ||
Product size (CM) Product net weight (g) | 5.9*4.5*5cm/56.6g | |
Packaging size (CM) Product gross weight (g) | 6.3*5*6cm/66.6g | |
Packing quantity/packing weight/carton size (PCS/Kg/CM) | 1 pack, 100PCS/7.6Kg/31*30.5*25CM | |
1 pack, 280PCS/43*31*51CM | ||
4 packs of 62 sets (248PCS)/36*34*36CM | ||
2 packs of 90 sets/43*31*27CM | ||
