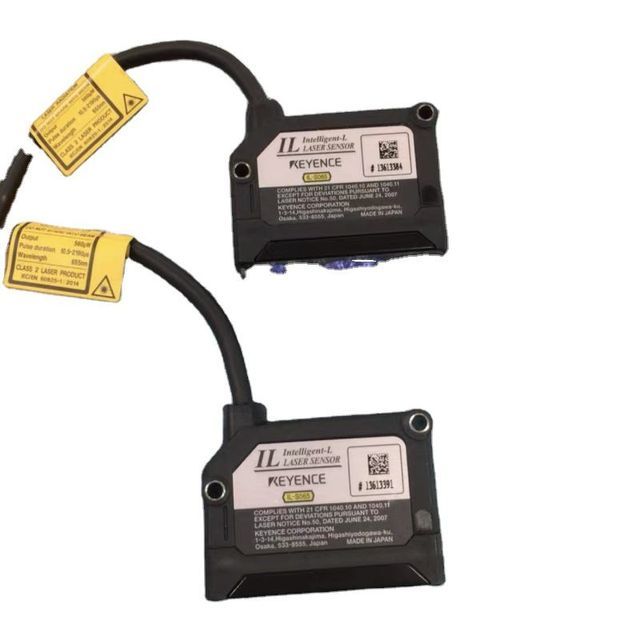

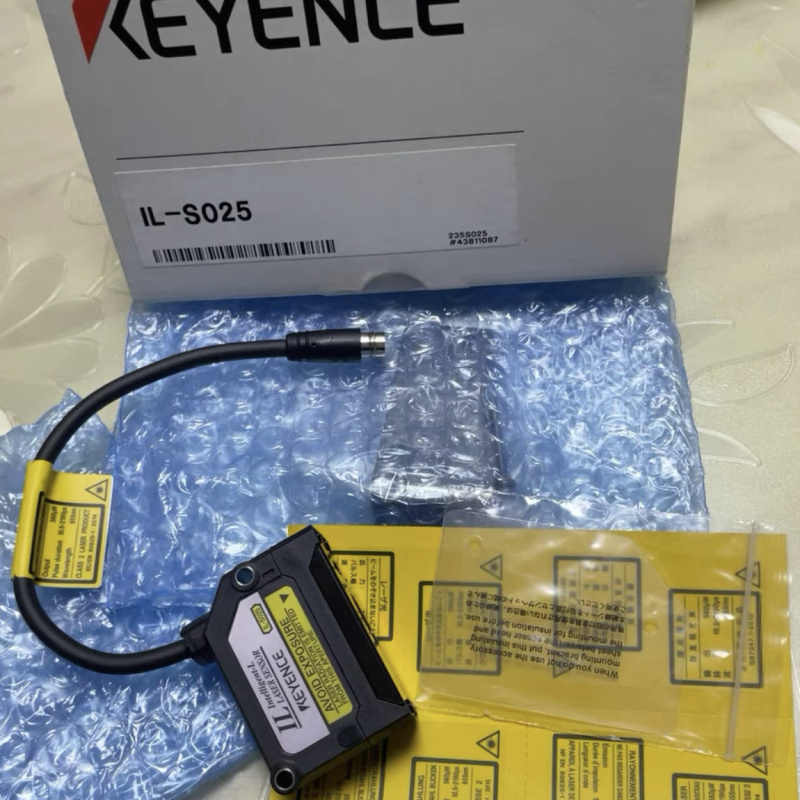

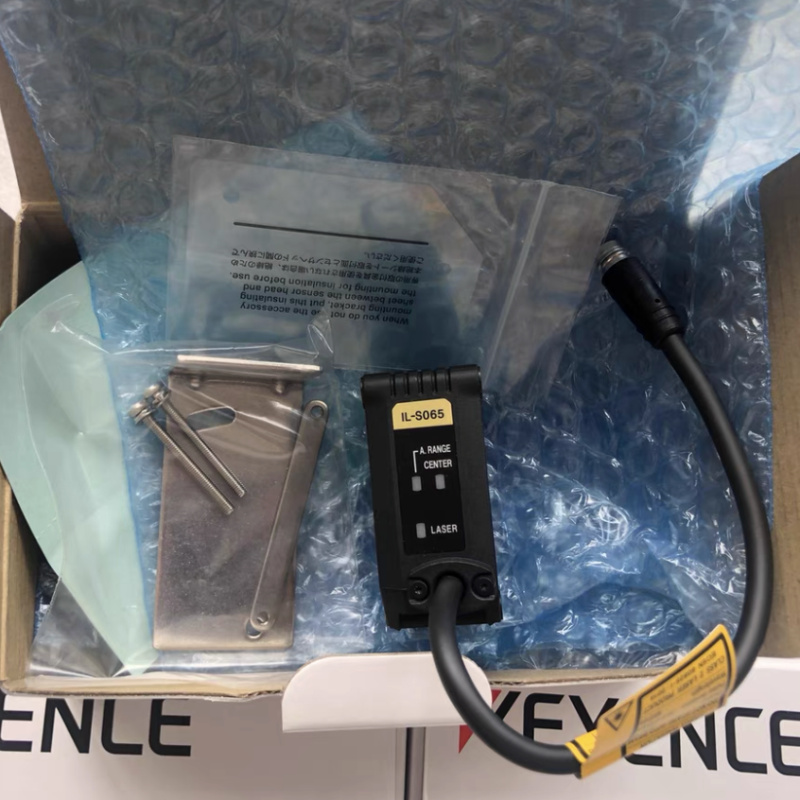

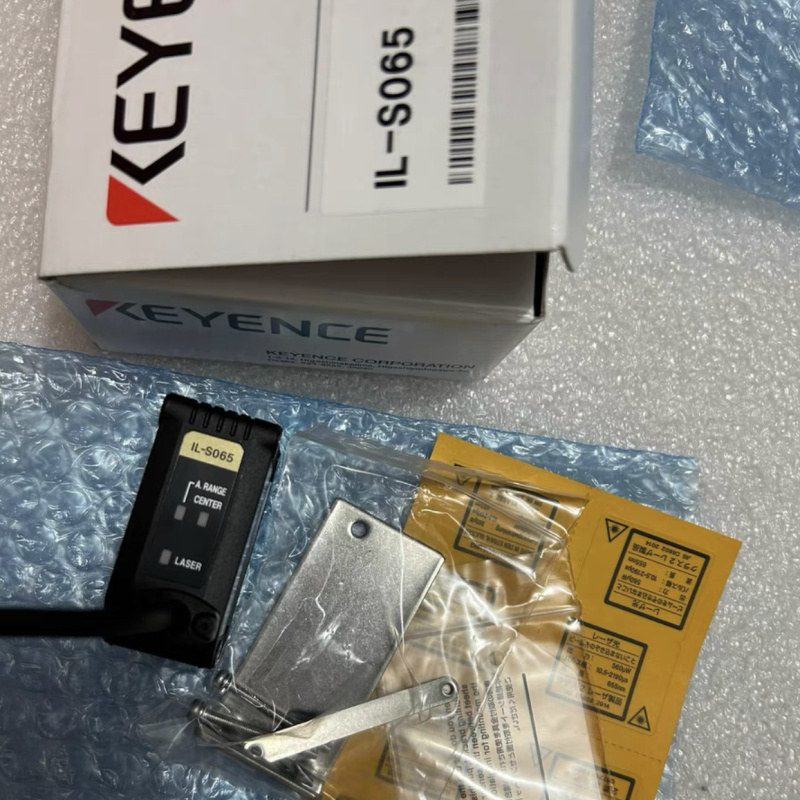

KEYENCE IL-S025 IL-S065 IL-S100 laser sensor head brand new and original

Model

IL-S025

reference distance

25mm

Measuring range

20 to 30 mm

light source

type

Red semiconductor laser, wavelength: 655 nm (visible light)

Laser

Class 2 (FDA (CDRH) Part1040.10)*1, Class 2 (IEC 60825-1)

output

560 microwatts

Spot diameter (standard distance)

About. 25 x 1,200 microns

linearity

±0.075% of full scale (20 to 25 mm)*2*3
±0.1% of full scale (20~30mm)*2*3

Repeatability

1 micron*4

Sampling Rate

0.33/1/2/5 ms (level 4 available)

Running status indicator light

Laser emission warning indicator: green LED, Analog range indicator: orange LED, Reference distance indicator: red/green LED

Temperature characteristics

0.03% of full scale/°C*3

Environmental resistance

Enclosure grade

IP67 rating

pollution level

3

ambient light

Incandescent lamp: 10,000 lux*5

ambient temperature

-10 to +50 °C (no condensation or freezing)

Relative humidity

35 to 85 % RH (non-condensing)

Vibration resistance

10 to 55 Hz, dual amplitude 1.5 mm, 2 hours each in X, Y, and Z directions

Material

Shell material: PBT, Metal parts: SUS304, Packaging: NBR, Lens cover: Glass, Cable: PVC

weight

About. 60g

*1 FDA (CDRH) laser classification is implemented based on IEC 60825-1 in accordance with the requirements of the laser bulletin
No. 50.
*2 Value when measuring KEYENCE standard target (white diffuse object).
*3 The FS of each model is as follows. IL-S025: ±5 mm IL-S065: ±10 mm
*4 Value when measuring KEYENCE standard target (white diffuse object) at reference distance, sampling rate: 1 ms, and
Average times: 128.
*5 Value when the sampling rate is set to 2 ms or 5 ms.
