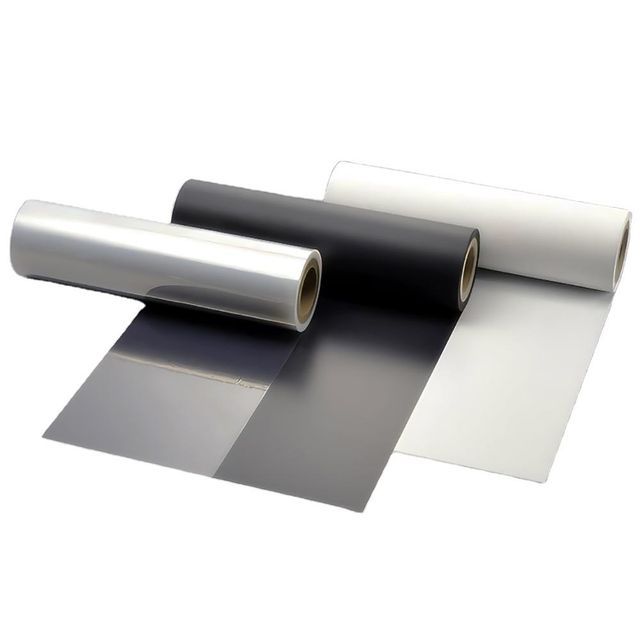

1100mm wide 0.3mm thick black TPT back sheet for making solar panels
-
Supplier: Xiamen Mars Rock Science Technology Co., Ltd. -
Region: Fujian, China -
Contact: Ms Winnie Chan -
Price: $5.99 / >=100 meters -
Min. Order: 100 meters
Product details
| Shrinkage: | ≤0.6% | Breakdown voltage strength: | ≥85KV/mm |
| elongation: | ≥100 | Material: | Fluorine, PET, etc. |
| width: | 1100mm | port: | Xiamen |
| Place of origin: | Fujian Province, China | Vapor permeability: | ≤2.5g/m2.d |
| Partial discharge voltage: | ≥1000VDC | tensile strength: | ≥120 |
| Supply capacity: | 1,000,000 meters per month | thickness: | 0.3mm |
| Package preview: | payment terms: | Western Union, T/T, MoneyGram, Credit Card, PayPal | |
| brand: | Mars rocks | Packaging details: | Packaging details: Sturdy carton with enough foam Delivery details: Samples can be shipped within 15 days after payment |

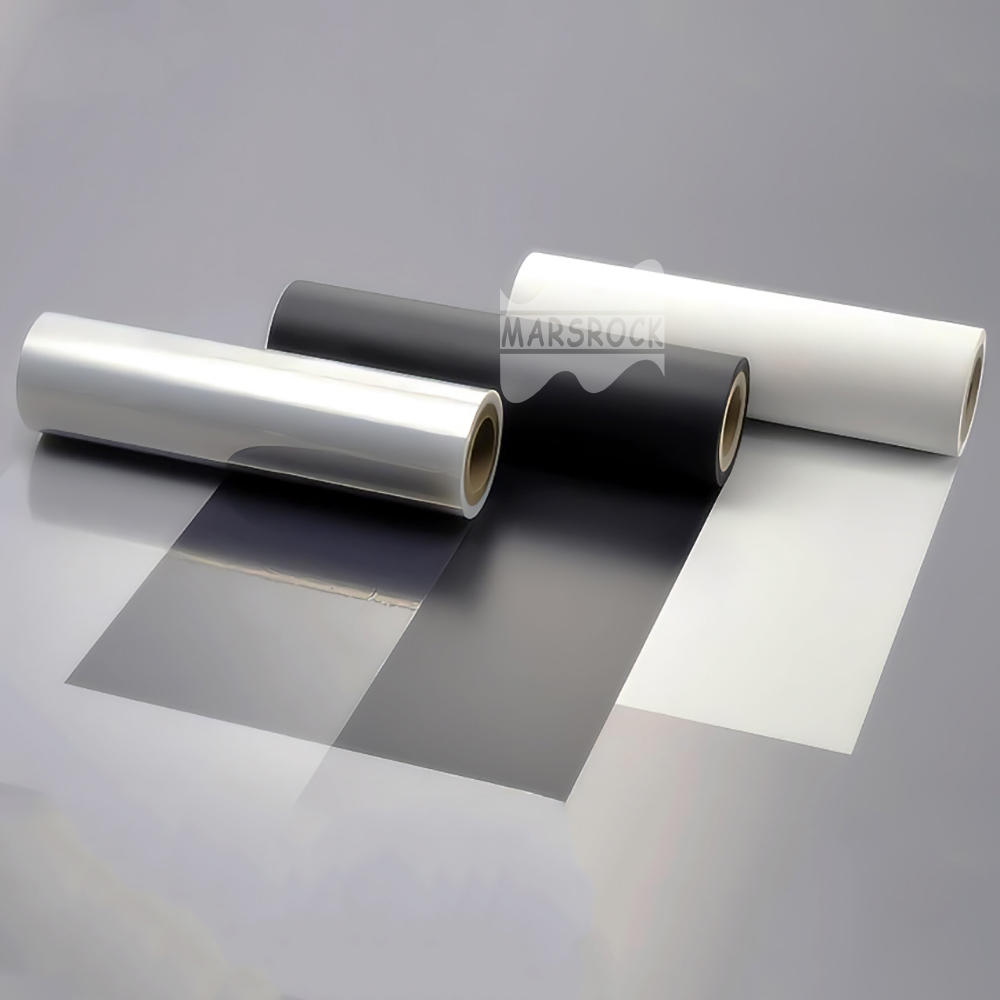

| color: | black or white | model: | MR-Backplane-1100 |
attention:
If you have special requirements for the size of the TPT backsheet or need TPT backsheets in other colors, please contact us directly. If your quantity is right, we can provide you with any size TPT backsheet up to 1100mm width.
Product Description

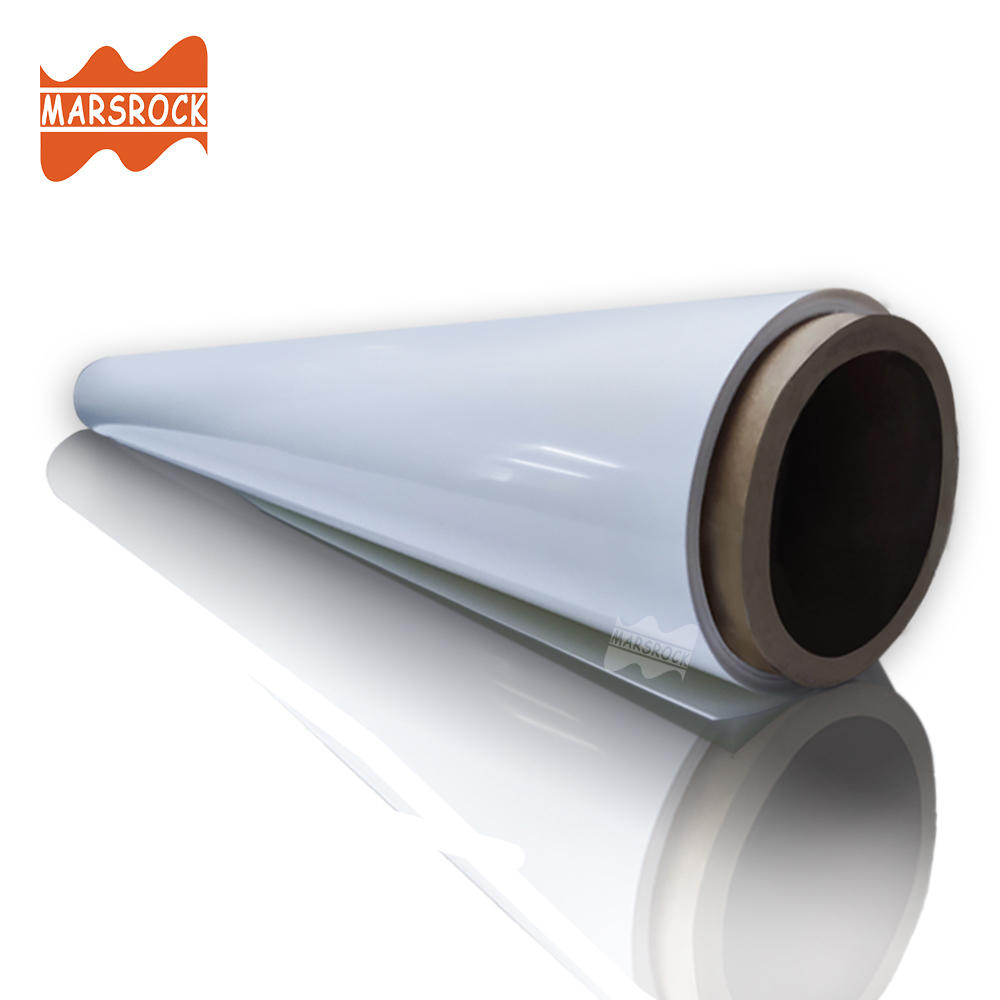

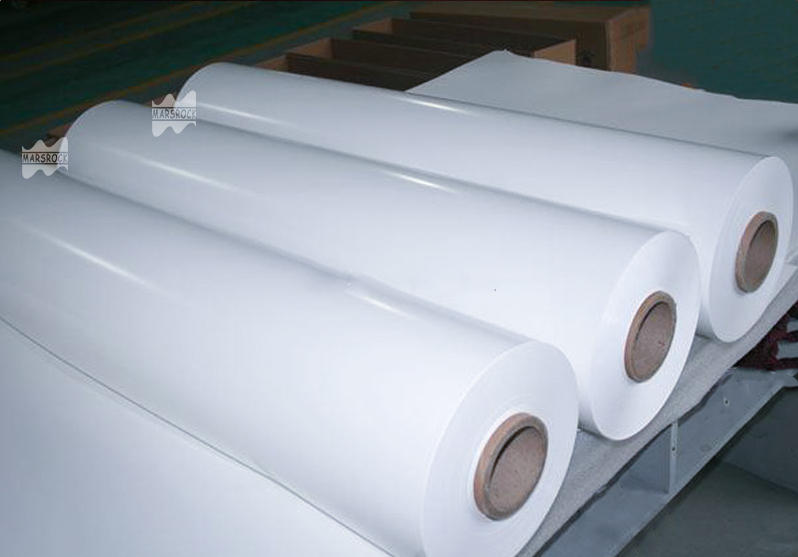

Solar TPT backsheet is one of the key packaging materials used in photovoltaic modules. It is composed of fluorine material with excellent weather durability and PET with excellent electrical insulation.
Specification
thing | value |
birthplace | China |
Fujian | |
brand | Mars rocks |
model | MR-Backplane-1100 |
width | 1100mm |
thickness | 0.3 mm |
color | black or white |
Material | Fluorine, PET, etc. |
Shrinkage | ≤0.6% |
elongation | ≥100 |
Breakdown voltage strength | ≥85KV/mm |
partial discharge voltage | ≥1000VDC |
Vapor permeability | ≤2.5g/m2.d |
tensile strength | ≥120 |
Applications
Application advantages
1. High weather resistance
It has passed the double 85 1000-hour accelerated aging test and the 3000-hour artificial ultraviolet irradiation (QUVB) test without delamination, cracking, blistering, yellowing or embrittlement after aging.
2. High safety
The safety level has passed the flame retardant UL94-V2 flame retardant level. The UL flame spread index is less than 100, effectively ensuring the safety characteristics of the component.
3. High insulation
TUV Rheinland PD>=1000VDC (based on HFF-300), which can avoid arc modules.
4. High water vapor resistance
Using an infrared moisture permeability tester, the moisture permeability is ≤1.0g/m2.d.
5. High adhesion
After nanoplasma treatment, the surface energy with high fluorine content can last more than 45mN/m for six months.
6. High-end events

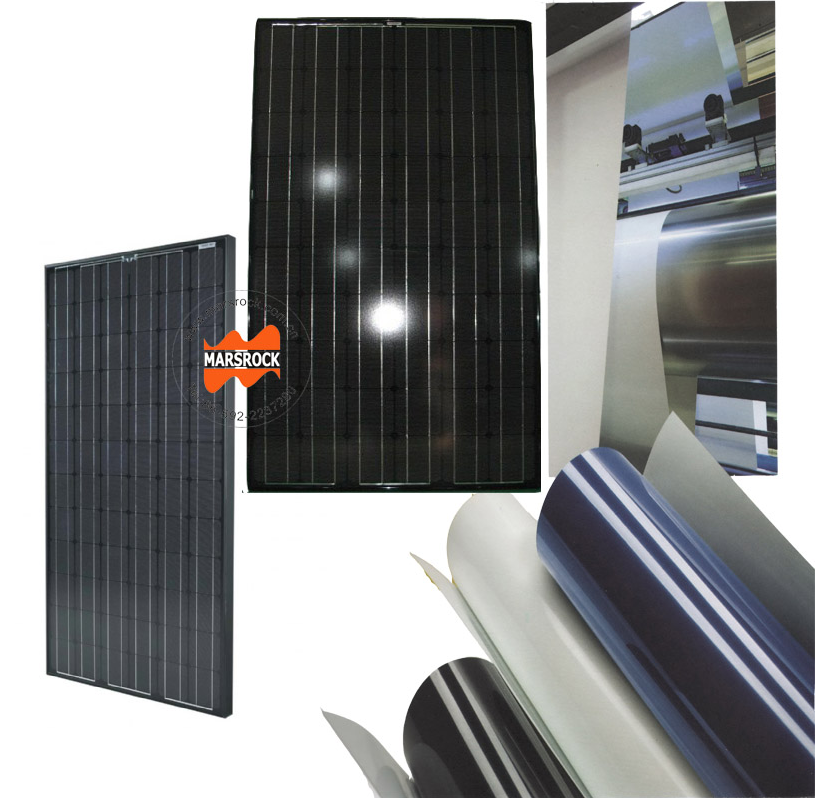

Suitable for crystalline silicon cell module packaging in large photovoltaic power stations.
7. High compatibility
Good compatibility comes from bonding with other packaging materials of the module.
8. High efficiency
Due to its double-sided bonding, there is no need to distinguish the front and back sides of the backplane when packaging components, which brings convenience to technicians.
9. High flexibility
The bonding data of module bone package and EVA can be adjusted according to customer requirements
It has passed the double 85 1000-hour accelerated aging test and the 3000-hour artificial ultraviolet irradiation (QUVB) test without delamination, cracking, blistering, yellowing or embrittlement after aging.
2. High safety
The safety level has passed the flame retardant UL94-V2 flame retardant level. The UL flame spread index is less than 100, effectively ensuring the safety characteristics of the component.
3. High insulation
TUV Rheinland PD>=1000VDC (based on HFF-300), which can avoid arc modules.
4. High water vapor resistance
Using an infrared moisture permeability tester, the moisture permeability is ≤1.0g/m2.d.
5. High adhesion
After nanoplasma treatment, the surface energy with high fluorine content can last more than 45mN/m for six months.
6. High-end events
Suitable for crystalline silicon cell module packaging in large photovoltaic power stations.
7. High compatibility
Good compatibility comes from bonding with other packaging materials of the module.
8. High efficiency
Due to its double-sided bonding, there is no need to distinguish the front and back sides of the backplane when packaging components, which brings convenience to technicians.
9. High flexibility
The bonding data of module bone package and EVA can be adjusted according to customer requirements
