Mechanical test report: | if | Ultimate vacuum: | 10pa (no load) |
Voltage: | 110V/220V | Cold trap coil temperature: | <-40℃ (no load) |
Health status: | new | Material: | SUS304, SUS304L, SUS316, SUS316L |
heating method: | electro-thermal | type: | Freeze drying equipment |
Layer spacing: | 45mm | power supply: | 220V 50Hz |
Warranty: | 1 year | Dimensions (length*width*height): | 500mm×640mm×890mm |
Showroom location: | not any | Core components: | Others, engine, refrigeration system, vacuum system, heating system, control system |
port: | Shanghai, Tianjin, Qingdao | Packaging details: | Packaging: Carton or wooden box packaging, customized packaging is available. |
product name: | Household Freeze Dryer/Freeze Dryer | Processing capacity: | 4-8KG/batch |
Material pallet dimensions: | 305mm×510mm | Video outbound inspection: | if |
strength: | 1100W-2300W,1100W | Core component warranty: | 1 year |
Number of trays: | fourth floor | Applicable industries: | Manufacturing plant, food and beverage plant, restaurant, household, retail, food store, food and beverage store, chemical, biological |
Freeze-drying area: | 0.1-0.6 | payment terms: | Letter of credit, wire transfer, MoneyGram, PayPal |
application: | Chemical processing, food processing | Place of origin: | Henan, China |
Marketing type: | Hot Products of 2023 | Main selling points: | automatic |
Supply capacity: | 1,000 sets per month | Weight (kg): | 80 |
brand: | Fendi |

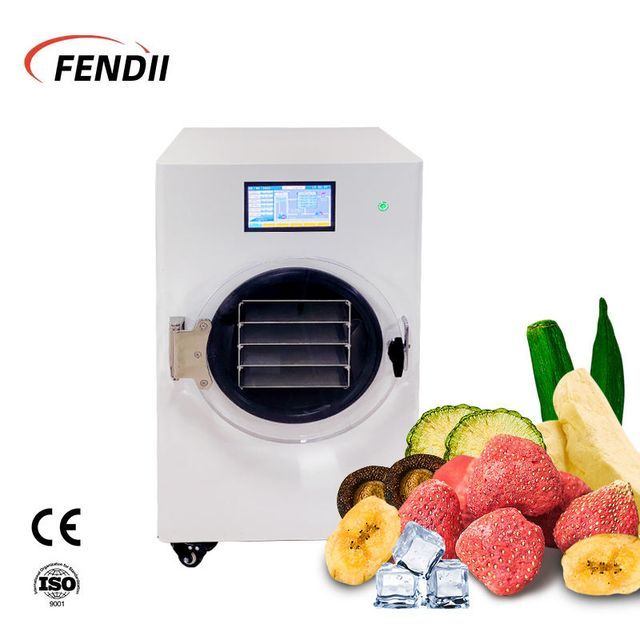

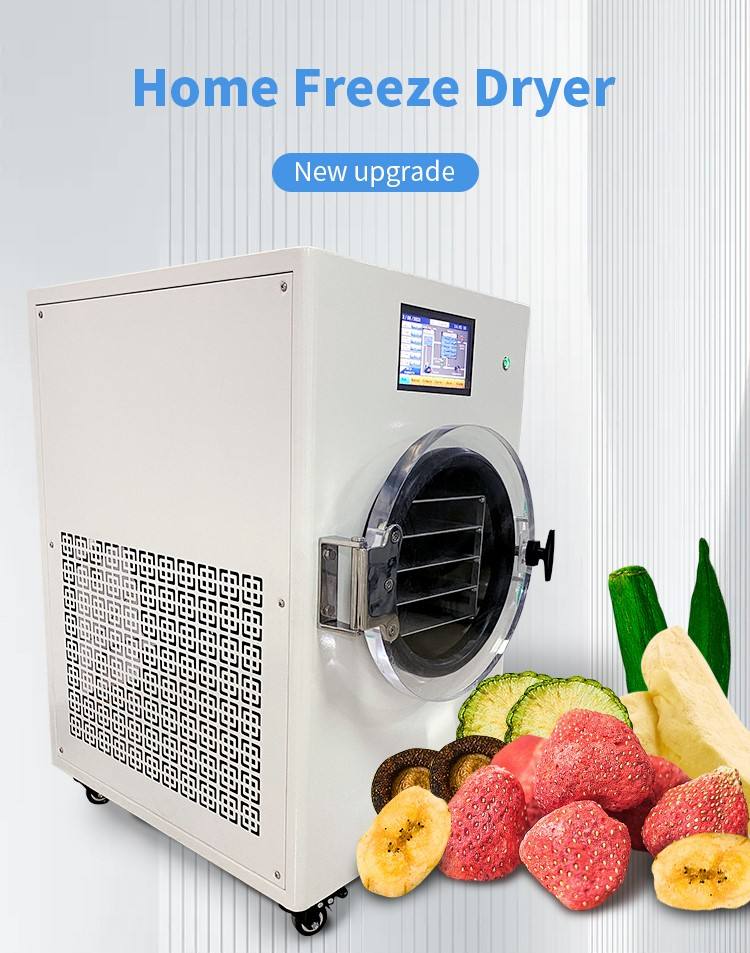

Household vacuum freeze dryer
Vacuum freeze drying technology, also known as sublimation drying, is a method of pre-freezing water-containing substances and sublimating the water under vacuum. The original biological and chemical properties of freeze-dried products remain basically unchanged and are easy to store for a long time. After adding water, it can be restored to the state before freeze-drying and maintain its original biochemical characteristics. Therefore, vacuum freeze-drying technology is widely used in food, chemical industry, biological products and other fields.

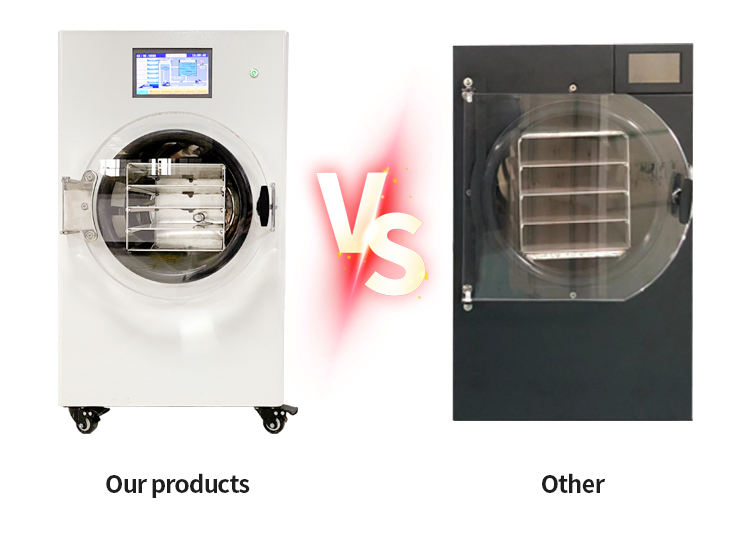

Compare | Lanfan 0.4 | Other brands 0.4 |

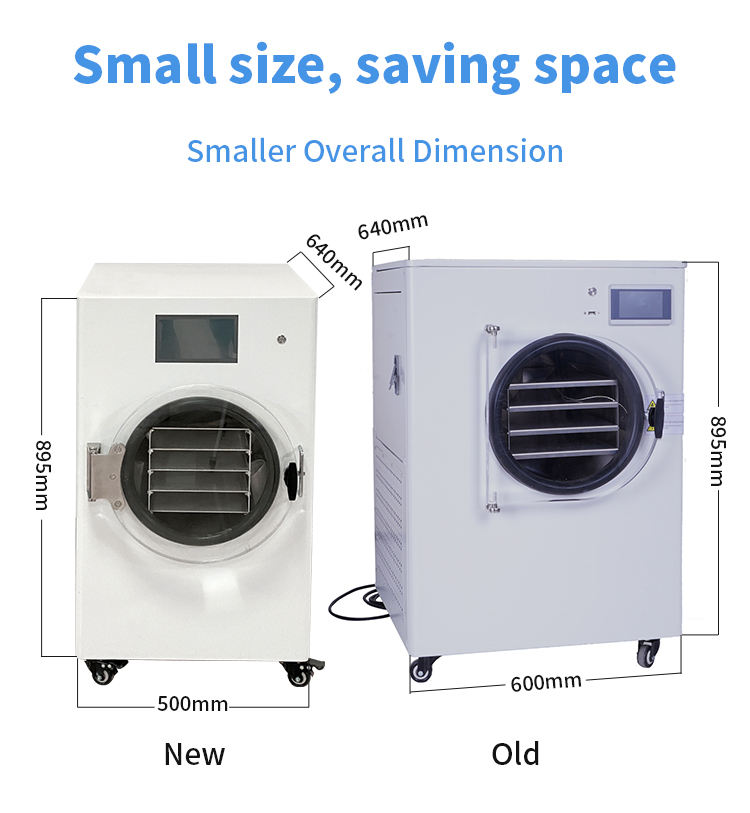

Dimensions (mm) | 500x640x890 | 455x540x730 |
Equipped with universal casters for easy movement | No casters | |
Cold trap size (mm) | Φ305x510 | Φ315x435 |
Pallet(mm) | 4 pallets | 4 pallets |

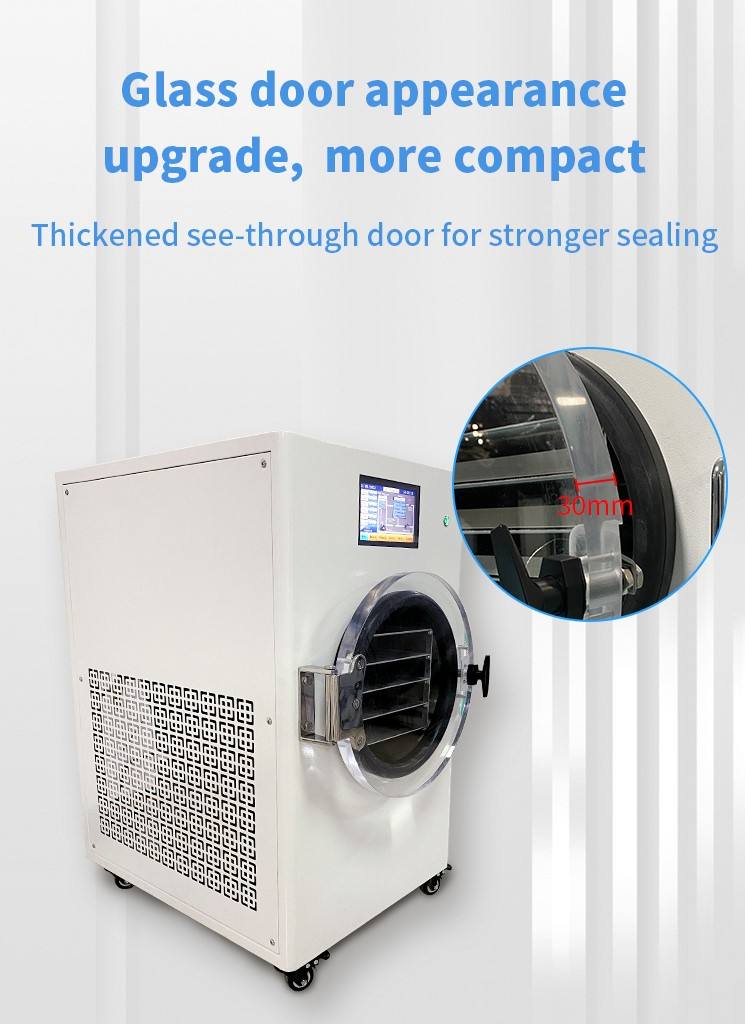

Door thickness (mm) | 30 | 20 |
frame | Iron frame + spray plastic | Aluminum gusset + paint |
(Strong, not easy to scratch) | (Easily scratched) | |
compressor | French Danfoss brand | Chinese local brands |
Cold trap temperature (°C) | ≤-40℃ | ≤-25℃ |
Ultimate vacuum (pa) | No load: <10Pa | No load: <3000Pa |
Drying temperature (℃) | -40℃~+60℃ | -25℃~+60℃ |

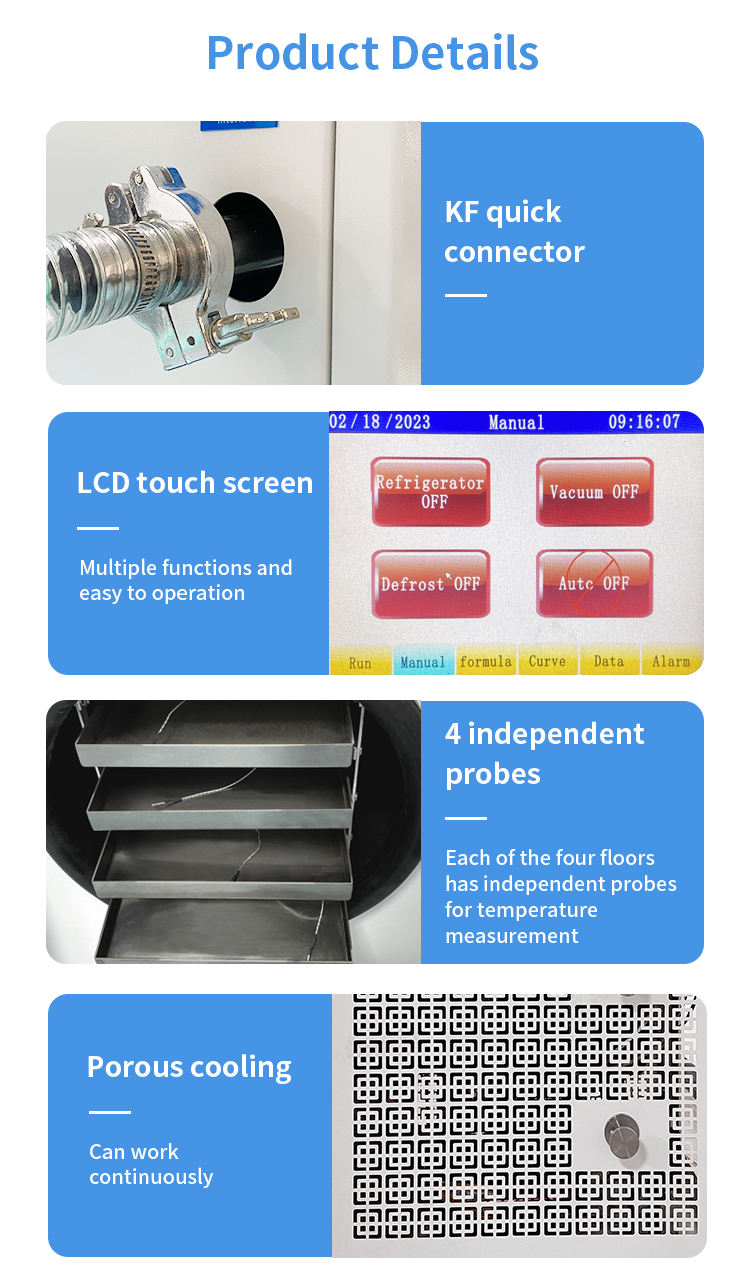

temperature probe | 4 independent probes | 1 probe |
Product number |
HFD-1 |
HFD-4 |
HFD-6 |
HFD-8 |
Freeze-drying area |
0.1 square meters |
0.4 square meters |
0.6 square meters |
1 m2 |
cold trap temperature |
≤-40℃ |
|||
ultimate vacuum |
No load: <10Pa |
|||
power supply |
220V/110V 50HZ/60HZ |
|||
strength |
1100 watts |
1550 watts |
2000 watts |
2500 watts |
processing power |
1-2kg/batch |
4-6kg/batch |
6-8kg/batch |
10-16kg/batch |
2.5-5 pounds/batch |
9-13 lbs/batch |
13-18 lbs/batch |
22-35 lbs/batch |
|
weight |
127kg |
142kg |
203kg |
203kg |
279 pounds |
313 pounds |
447 pounds |
447 pounds |
|
Number of pallets |
3 pieces |
4 pieces |
4 pieces |
8 pieces |
Pallet size |
275*145*20mm |
425*200*20mm |
435*315*30mm |
435*265*25mm |
11*6*0.8 inches |
17*8*0.8 inches |
17*12.5*1.2 inches |
17*10.5*1 inches |
|
Packaging size (width*length*height) |
750*630*1120mm |
830*630*1250mm |
830*800*1500mm |
830*800*1500mm |
30*25*44 inches |
33*25*49 inches |
33*32*59 inches |
33*32*59 inches |
Household freeze dryer is a small vacuum freeze dryer. Suitable for home use and freeze-drying in small quantities. Widely used in freeze-drying of fruits, vegetables, meat, Chinese medicinal materials, health products, etc. Dried foods and materials are easy to store for a long time and can retain the taste, nutrients and shape of the raw materials to the greatest extent.
