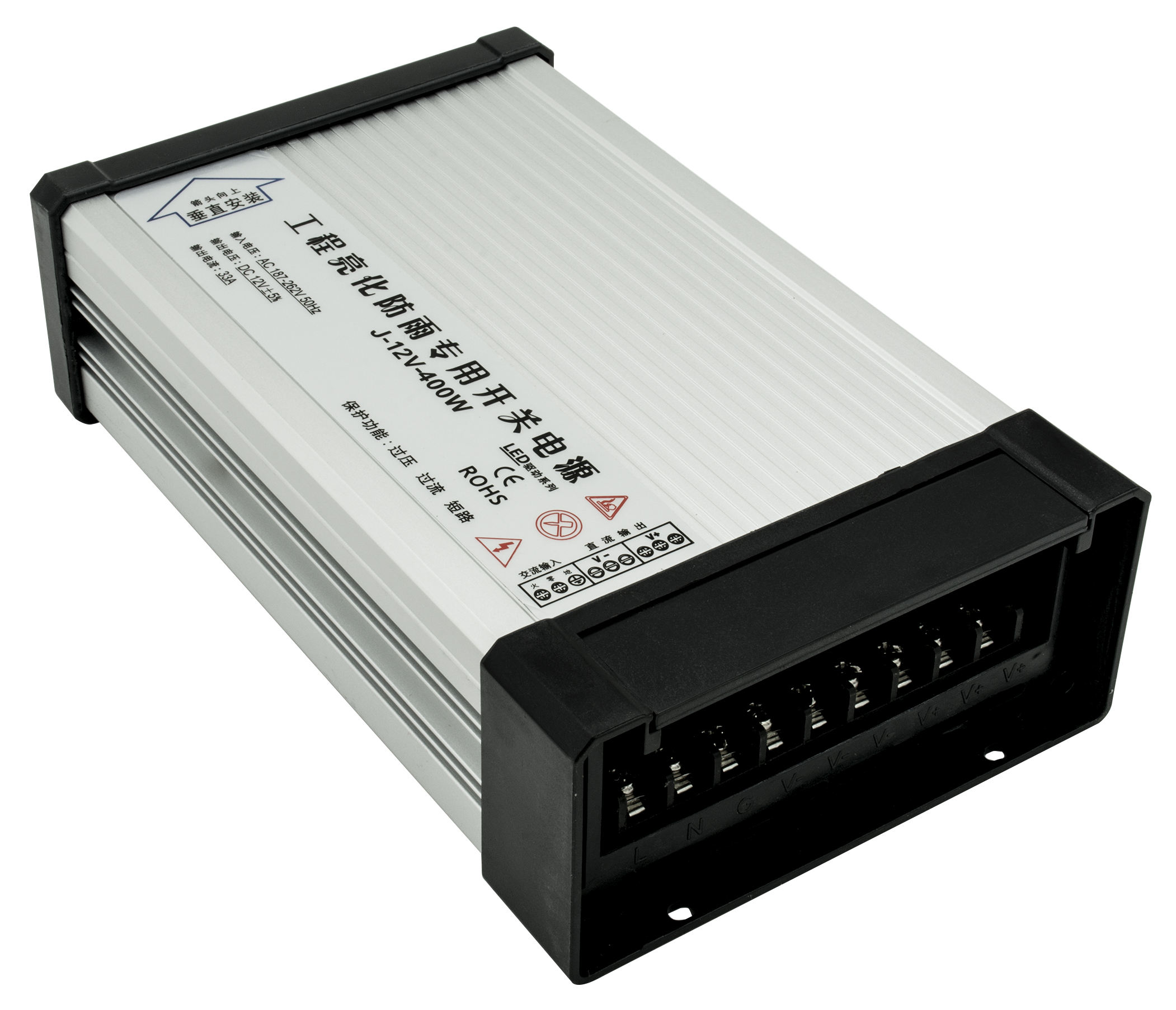

400W 12V LED power driver 220V AC to DC transformer IP65 rainproof power supply

Product details
brand:Yaozhouapplication:LED light strips, LED modules, LED displays, CCTV, etc.
Output current:0-33Amodel:MJF400W
Material:Aluminum housingSupply capacity:1000 pieces per day
product name:IP65 400W LED power supplyOutput frequency:50/60 Hz
Output type:singlepayment terms:L/C, Western Union, D/P, D/A, T/T, MoneyGram, PayPal
port:Shenzhen/Guangzhou/Shanghai/NingboPlace of origin:China
Input voltage:AC200-240,AC200-240color:silver white
The output voltage:11.5-12.4vweight:0.5kg
size:120*58*189mmOutput Power:301-400W
Warranty:2 yearsefficiency:80%
Packaging details:1. Neutral packaging 2. Brand packaging 3. Customized packagingtype:constant voltage

400W 12V LED power driver 220V AC to DC transformer IP65 rainproof power supply

Specification


1. AC input power, suitable for anywhere in the world

2. Protection function: short circuit, overload, overvoltage, overtemperature.

3. Built-in EMI filter, minimal ripple

4. 100% full load aging test

5. Small size and high efficiency

6. Comply with EN60950 GB4943 UL60950 safety standards

7. Comply with GB9254 EN55022 EMC standard

Model 12V 400W 24V 400W
output DC voltage 12V 24V
Rated current 33.3A 16.6A
Current range 0~33.3A 0~16.6A
rated power 400W 400W
Ripple and Noise (Maximum) 150mVp-p 150mVp-p
voltage tolerance ±1% ±1%
Settings, rise time 1000ms, 50ms/230VAC at full load 1000ms, 50ms/115VAC
Hold time (typ) 20ms/230VAC 16ms/115VAC at full load
enter voltage range 85~132VAC/170~264VAC
Frequency Range 47~63 Hz
Power factor (typ) Power factor>0.6/220VAC
Efficiency (Typical) 82% 85%
AC current (typ) 7A/115VAC 4A/230VAC
Inrush current (typ) 40A/115VAC 60A/230VAC
short circuit Protection type: Automatic recovery after fault condition is eliminated
Protect overload 105~135% hiccup mode, automatic recovery
DC regulation. scope 115%~135% Cut off output and automatically recover
environment Operating temperature -20℃~+60℃
Working humidity 20%~90%RH
Storage temperature and humidity -40℃~+85℃,10%~90%RH
Safety & Electromagnetic Compatibility safety standard EU CE, ROHS
Pressure resistant I/PO/P:1.5KVAC I/P-FG:1.5KVAC O/P-FG:0.5KVAC
Electromagnetic compatibility testing standards EN55015:2006;EN61547:1995+A1:2000;EN61000-3-2:2006;
EN61000-3-3:1995+A2:2005;EN61347-1:2001;EN61347-2-13:2006
Product Description

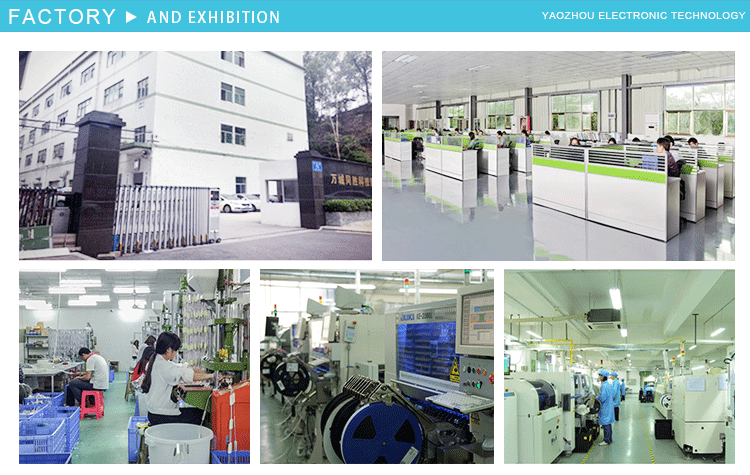

Factory information





Yaozhou Electronic Technology Co., Ltd. was established in 2007 and has more than 10 years of experience in professionally manufacturing LED lamp series products. We integrate research, production, sales, after-sales service, etc. At the same time, more than 300 experienced technical teams and marketing teams ensure that we have international customers. Provide various samples, parts, certificate copies to customers to check the quality of our products and build mutual trust. Product styles are constantly updated to meet the different needs of customers and adapt to market demand.
