Package preview: | payment terms: | Western Union, Wire Transfer, PayPal | |
life span: | 10.000-20.000 hours | Warranty: | 1 month |
port: | Shenzhen | application: | Indoor or outdoor use for sign display |
brand: | Cody | Function: | Steady on/flash/off |
Flash mode: | Fast flash/slow flash/flashing on and off | Package: | OPP bag packaging |
type: | custom made | The main advantage: | LED buckle |
flexible: | Easy to bend and can be cut into any shape | Supply capacity: | 500,000 pieces per month |
Voltage: | DC 12V, AC 110V-220V | Place of origin: | Guangdong, China |
size: | A0,A1,A2,A3,A4,A5,A6 can also be customized | model: | ECODI-B07 |
El backlight specifications
thickness |
0.3-0.5mm |
high brightness |
60-80CD (white on/white off); 85-120CD (white on/pink off and other colors) |
long lasting |
20,000 hours based on animation effects. |

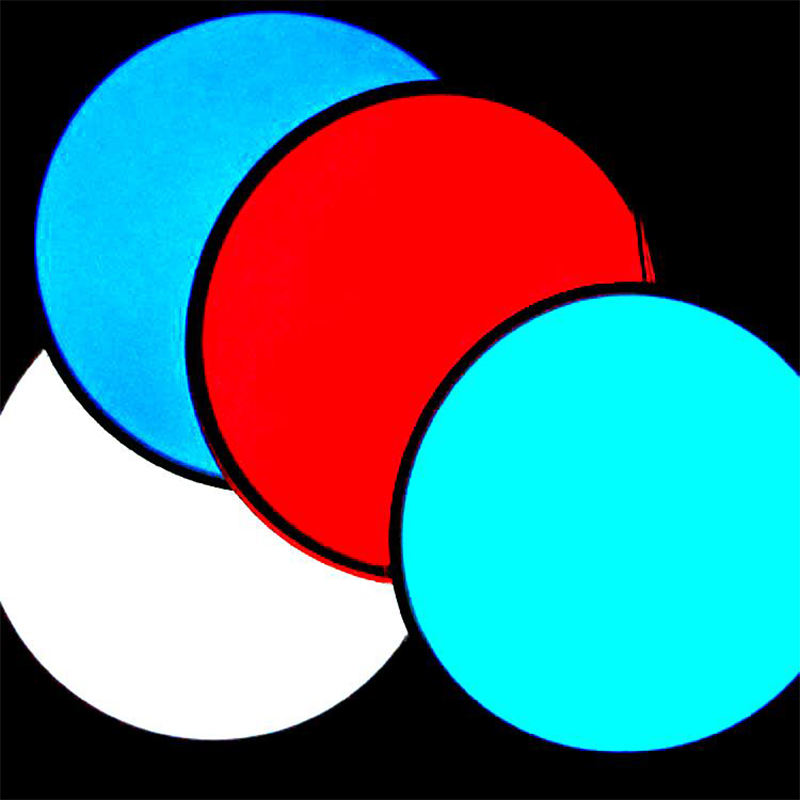

shape |
Standard or irregular shapes |
Function |
Always on/flash/off, please note the flash function if necessary |
Voltage |

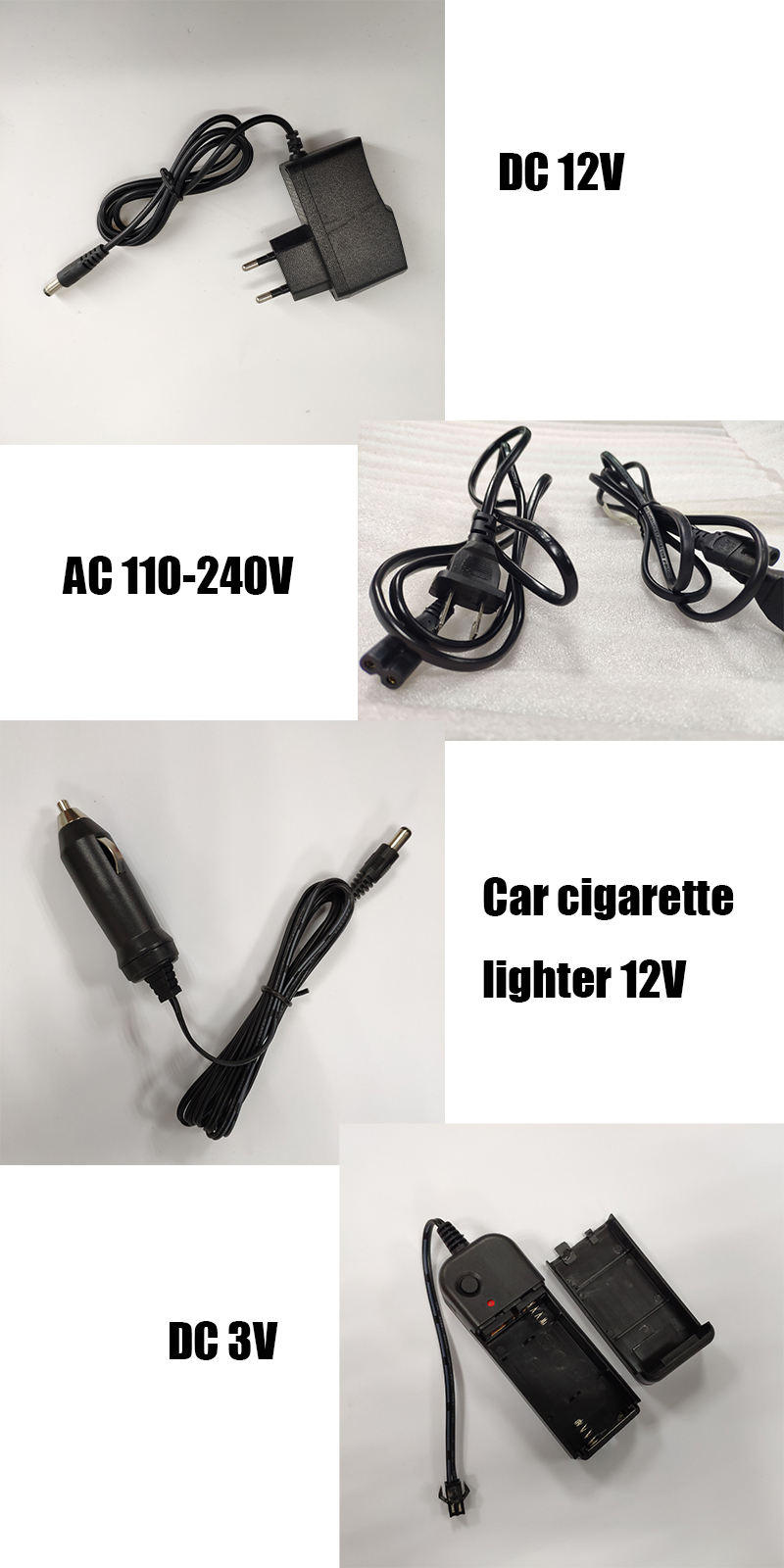

Lighting area less than 1250cm² --- DC12V + adapter, lighting area greater than 1250cm² --- AC90-240V |

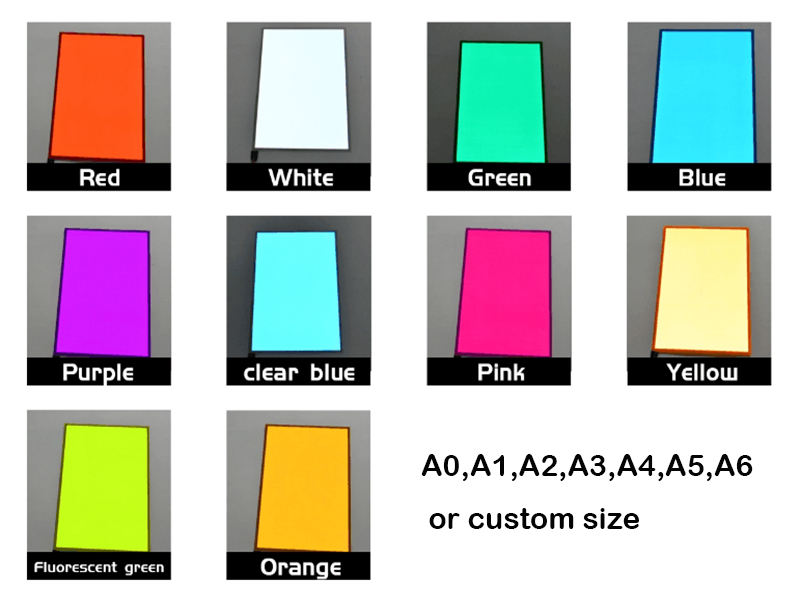

color |
White illumination/pink off, white illumination/white off, blue illumination, yellow illumination, it can cover any color print on it. |
Operating temperature |
-30°C to 70°C |
Storage temperature |
-40°C to 85°C |
Humidity range |
5% to 95% |
Warranty |
1 year |
Certification |
UL, RoHS, CE, etc. |
application |
Indoor, outdoor, vehicle |
Power supply frequency |
200HZ-2000HZ |
Low power consumption
|
≤0.8mW/cm2 |
El backlight size
EL sheet standard size |
||
size |
Length (cm) |
Width (cm) |
A0 |
118.9 |
84.1 |
A1 |
84.1 |
59.4 |
A2 |
59.4 |
42.0 |
A3 |
42.0 |
29.7 |
A4 |
29.7 |
21.0 |
A5 |
21.0 |
14.8 |
A6 |
14.8 |
10.5 |

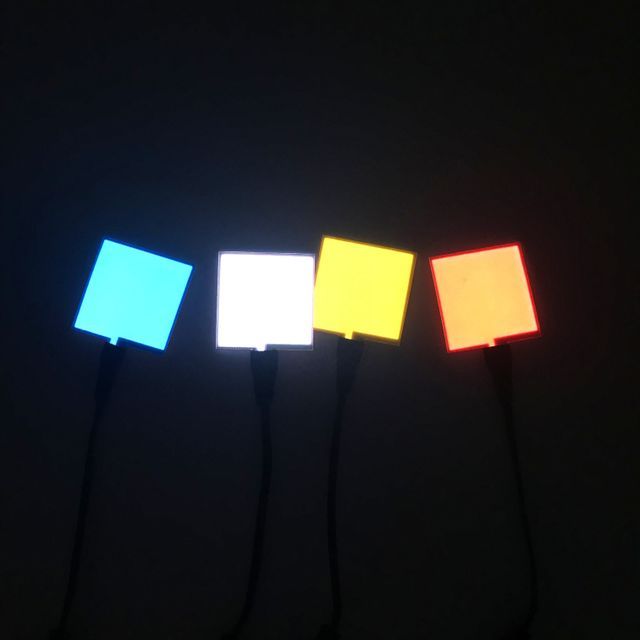

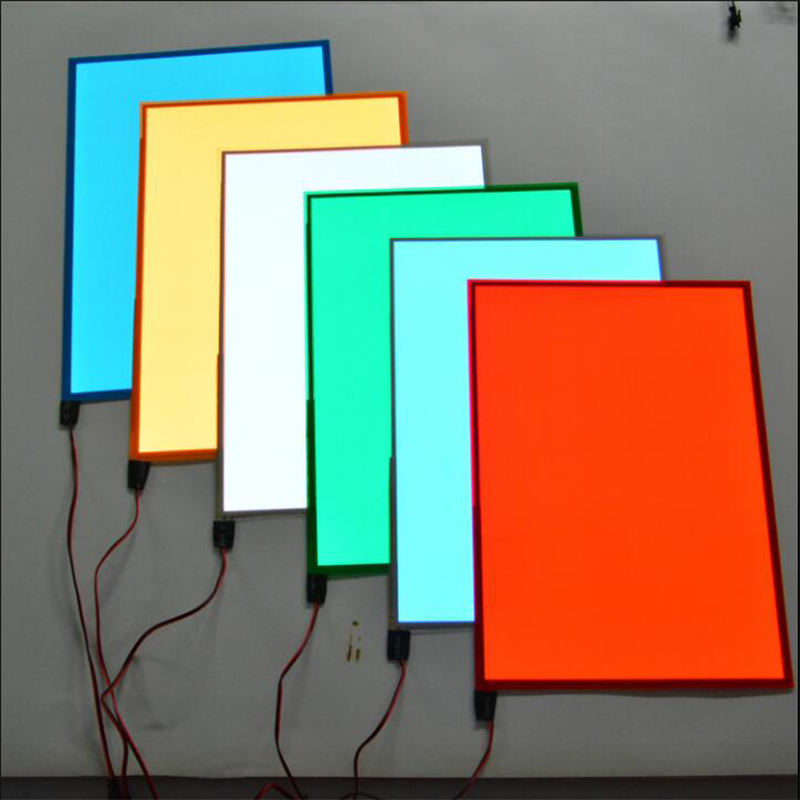

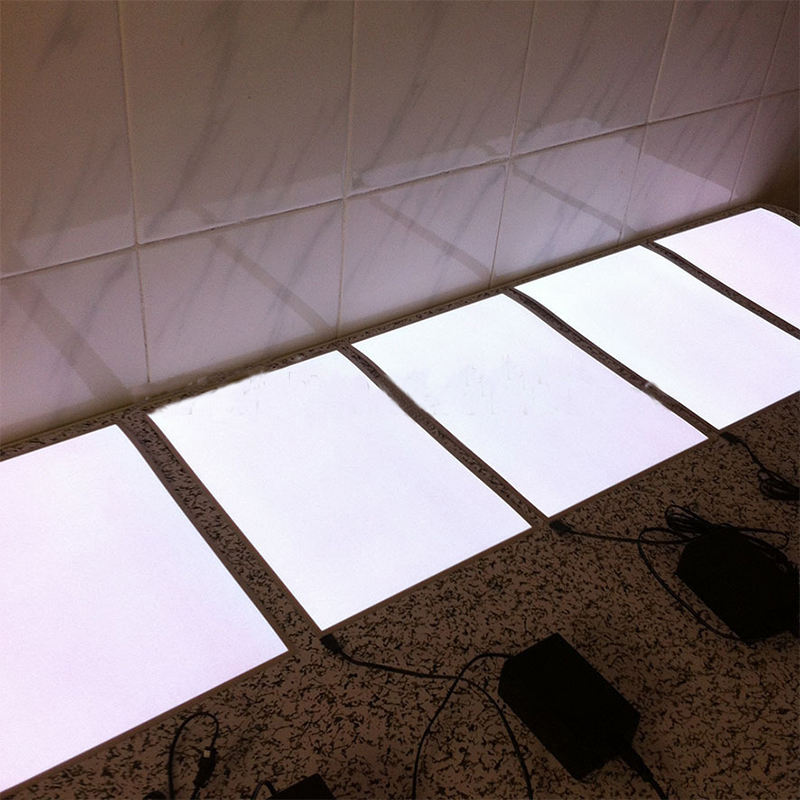

el backlight picture:
El backlight characteristics
♥Ultra thin about 0.3-0.5mm.

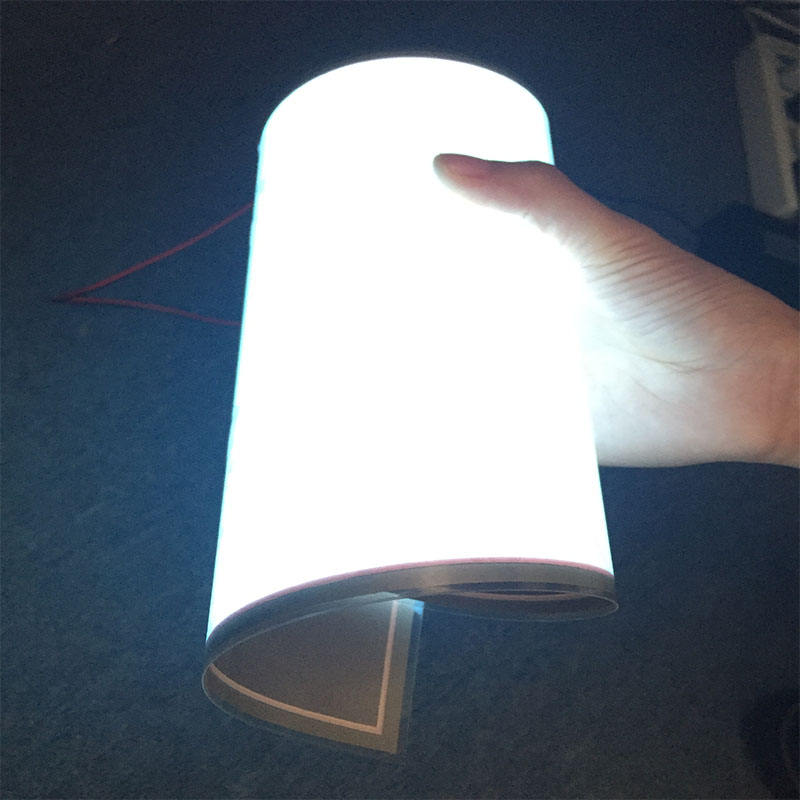

♥Flexible: Can be shipped in rolls.
♥Low power consumption, waterproof
♥Various flash models can be designed according to customer requirements.
♥Long life: at least 8000 hours, up to 20000 hours.
♥Soft light, green product, harmless.
♥ Aluminum frame and PVC hard board are available
El backlight guarantee
If there are any problems with our products, please return them to us after we confirm
In order to ensure our quality, each el sheet will be inspected before shipment.
El Backlight Considerations
These panels can be cut into any shape! Regular scissors will work fine for cutting this EL panel, but after cutting the panel you should seal the exposed edges with some tape or epoxy to avoid shorting the panel or shocking yourself.
El backlight package
PVC/OPP bags 100 pieces/box each
Gross weight: 16KG
Outer box size: 52x41x32cm
Shipping method
1. By express: DHL, UPS, FEDEX, TNT, EMS - about 3-7 days
2. Air freight: 3-5 days
3. Shipping: about 20 days
our service
Consulting service: After receiving your message, we will reply within 24 hours; we will try our best to reply after receiving the message.
Sample service: For custom designs, it takes 5-7 days to make your own design; when the quantity reaches our MOQ, the sample fee will be refunded.
Bulk order service: confirm all details before production; update production status; send pictures and videos before shipment; ship after production is completed.
Why choose us?

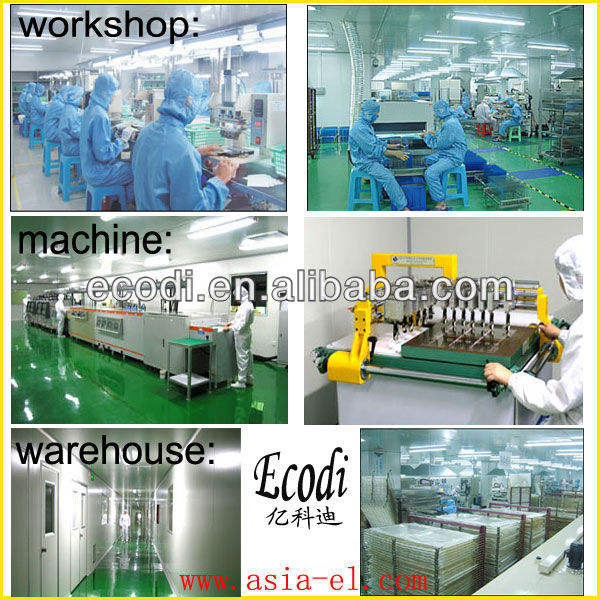

Aikedi Technology Co., Ltd. is a manufacturer of EL products for more than 10 years. Such as EL T-shirt, EL hoodie, EL backlight, EL wire and other EL products.
As a professional factory, "quality first, operating with integrity" is our principle, and "focusing on EL products, only doing EL, and professional EL" is our positioning.
Let us work with you for mutual benefit and common growth. You are welcome to contact us when you are free, we will be at your service at any time!
