SFU6310 SFU6320 ball screw assembly 63mm large lead ball screw ball bearing screw with stepper motor

Supplier: Suzhou Junjie Hongsheng Automation Technology Co., Ltd.
Region: Jiangsu, China
Contact: Mr Zhaojie
Price: $12.20 / 2 - 49 pieces
$10.20 / >=50 pieces
Min. Order: 2 pieces

Click here to contact

Product details

Warranty:	unavailable	Packaging details:	Plastic bags and wooden or cardboard boxes
Showroom location:	not any	Applicable industries:	hotel
model:	SFU6310 ball screw	Health status:	new
feature:	High reliability/smooth operation/durability/high rigidity and preload	brand:	china factory
Marketing type:	New products for 2023	Material:	CF53 carbon steel, bearing steel
Supply capacity:	1000 pieces per month	Thread direction:	correct
Nut type:	single nut	Screw length:	custom made
port:	Shanghai	Performance:	High operating performance
Mechanical test report:	not available	Core components:	Bearings, bearing balls, screws, nuts
grade:	C7.C5.C3	Ball screw diameter:	63mm
structure:	Ball screw + nut	Manufacturing process:	Rolled thread
length:	100-6000mm (customized)	Video outbound inspection:	if
payment terms:	Western Union, wire transfer	Weight (kg):	3
Package preview:		lead:	10/20mm
Place of origin:	Jiangsu, China	Core component warranty:	not available

Product Description

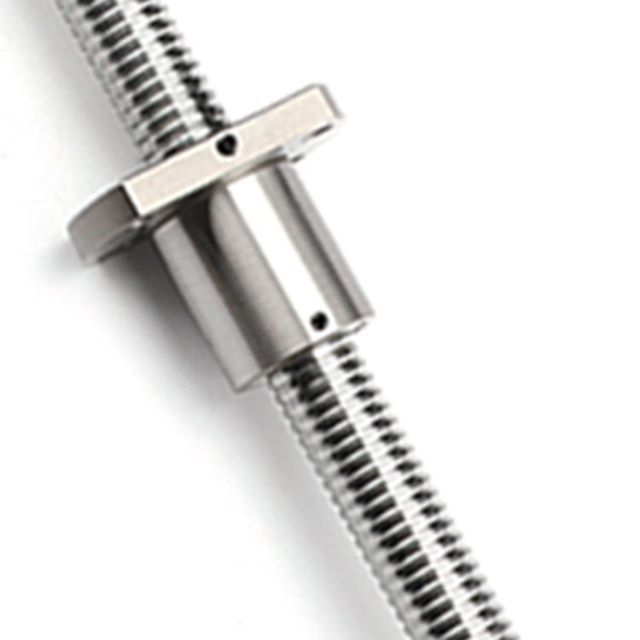

Ball screw with nut detail
Ball screw consists of screw, nut and balls. Its function is to convert rotational motion into linear motion, which is further
The extension and development of ball screws. The significance of this development lies in the transformation from sliding action to rolling bearings; ball screws have low friction and are widely used in various industrial equipment and precision instruments.

What can we offer?
-1. We have TBI or THK size for you to choose.
Our ball screws and nuts are the same size as TBI or THK and are interchangeable with TBI or THK.
TBI sizes are available in stock.
THK sizes can be produced on request.
-2. We can process both end faces of the ball screw according to your requirements.

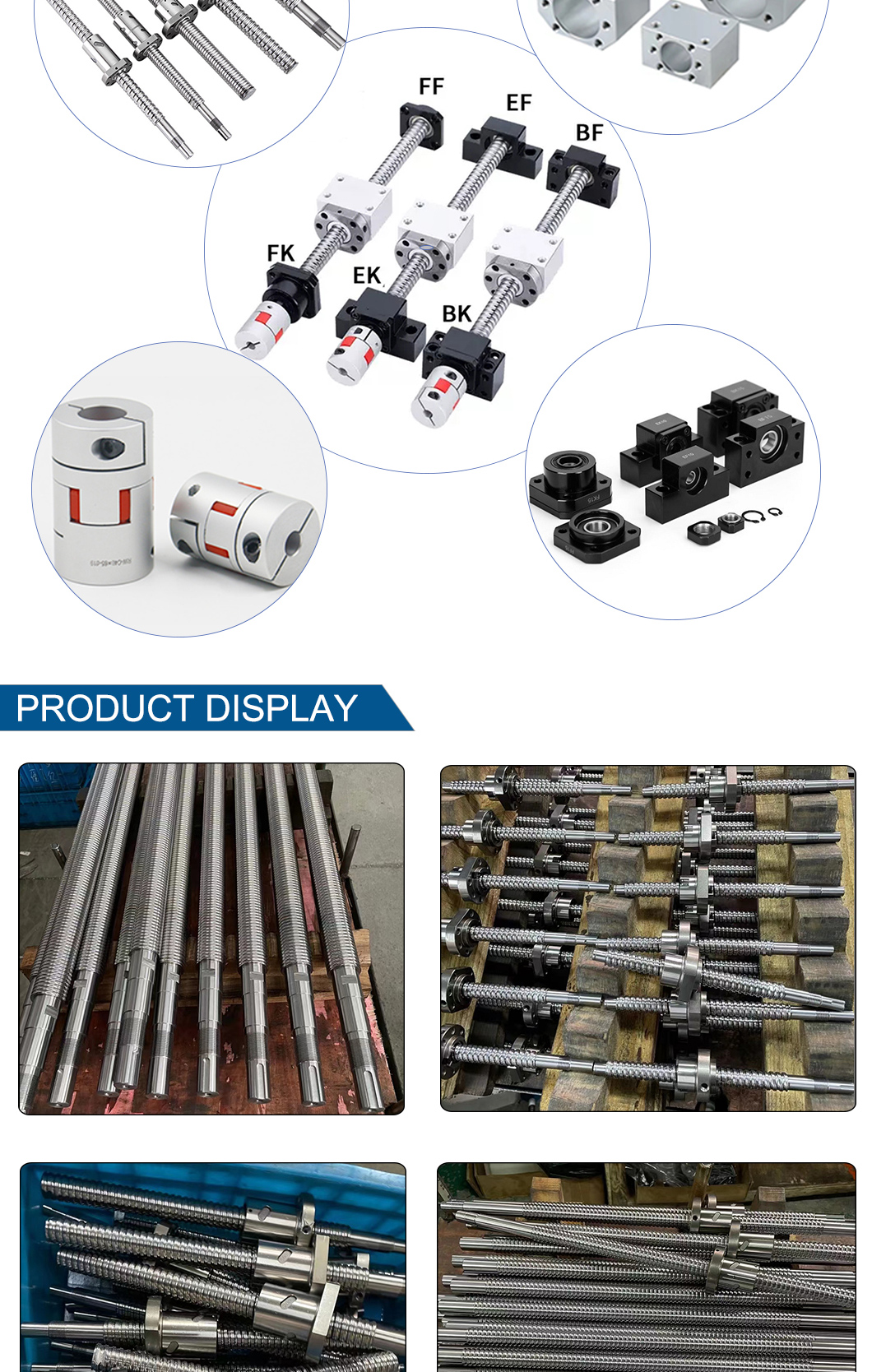

-3. Complete range of products matching ball screws.
We can match you exactly, including machined ball screws, ball screw nuts, nut housings/nut holders, couplings, end support units. As shown in the table below.

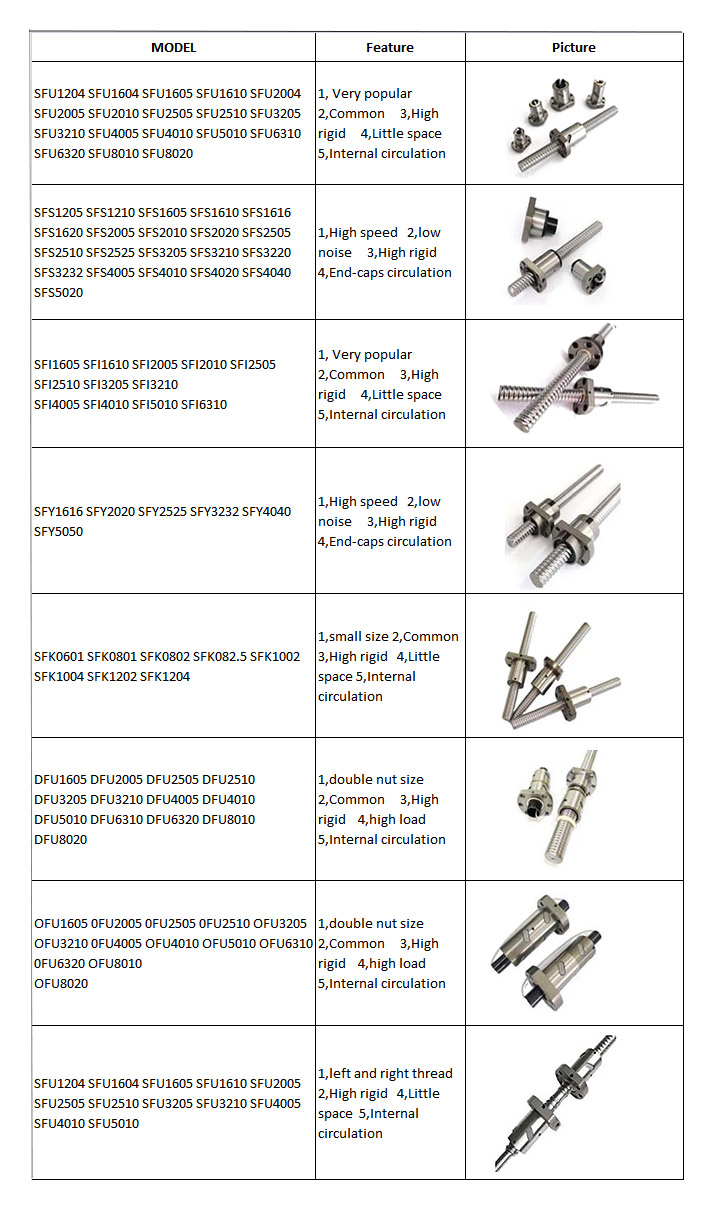

-4. We provide many different series of ball screws and screw nuts, such as SFU, SFS, SFI, SFY, SFK, DFU, DFI series, etc.Each series has its own characteristics. The following figure lists the differences in appearance and characteristics for your reference.

SFU ball screw nut model (plastic guide or metal guide)

SFU1204-3;SFU1605-3;SFU1605-4; SFU1610-2; SFU2005-3;SFU2005-4;SFU2505-3;SFU2505-4;SFU2510-4;SFU3205-3; 4; SFU5010-4;SFU6310-4;SFU8010-4

SFK ball screw model

SFK0601;SFK0801;SFK0802;SFK082.5;SFK1002;SFK1004;SFK1202;SFK1402

SFS ball screw model

SFS1205;SFS1210;SFS1605;SFS1610;SFS1616;SFS1620;SFS2010;SFS2510;SFS2525;SFS3210;SFS4010

SFI ball screw model

SFI1605;SFI1610;SFI2005;SFI2505;SFI2510;SFI3205;SFI3210;SFI4005;SFI4010

SFE ball screw model

SFE1616;SFE2020;SFE2525;SFE3232;SFE4040

SFY ball screw model

SFY1616;SFY2020;SFY2525;SFY3232;SFY4040

SFA ball screw model

SFA1610;SFA1620;SFA2010;SFA2510;SFA2525

Ball screw end support model

BK10 BF10, BK12 BF12, BK15 BF15, BK17 BF17, BK20 BF20, BK25 BF25, BK30 BF30, BK35 BF35, BK40 BF40

EK06 EF06, EK08 EF08, EK10 EF10, EK12 EF12, EK15 EF15, EK20 EF20; EK25 EF25

FK06 FF6, FK08 FF08, FK10 FF10, FK12 FF12, FK15 FF15, FK20 FF20, FK25 FF25, FK30 FF30

Ball screw nut housing model (aluminum or iron)

DSG12H(1204), DSG16H(1605/1610), DSG20H(2005/2010), DSG25H(2505/2510), DSG32H(3205/3210), DSG40H(4005/4010), DSG50H(5005/5010)

Our ball screws have the advantages of high precision, long life, no backlash, and preload.

The quality is as good as TBI or THK brands. We guarantee that the rolled ball screw reaches C7 accuracy and the ground ball screw reaches C5/C3 accuracy.

We pay more attention to pre-sales, sales and after-sales services.

We have large inventories with short lead times for TBI sizes and quick customization for THK sizes.

Product parameters
