Wholesale DC1500V 22 in 1String pv combiner box for 50MW Vietnam solar projects

Click here to contact

Product details

Single gross weight:	50 KG;	Monitoring unit:	YES;
String Number:	22;	Package Type:	Packed in carton Box and then Put in pallets;
DC Circuit Breaker:	EX9MV2S-PV DC1500V/ Noark Brand;	Fuse:	Hollyland brand;
Model Number:	CBE-22-DC1500V;	Single package size:	410X910X240 cm;
Certificate:	CE /TUV;	Package Preview:	https://sc01.alicdn.com/kf/HTB1rF0aaODxK1Rjy1zcq6yGeXXao.jpg_640x640.jpg,https://sc01.alicdn.com/kf/HTB1gkhcaPzuK1RjSsppq6xz0XXaj.jpg_640x640.jpg;
SPD:	CBE brand;	System Voltage:	DC1500V;
Brand Name:	CBE;	Enclosure:	cold roll steel plate;
Performance:	Monitoring;	Place of Origin:	Anhui China (Mainland);
Selling Units:	Single item;	Proof grade:	IP65;

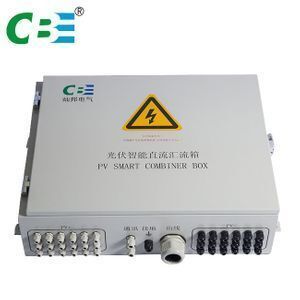

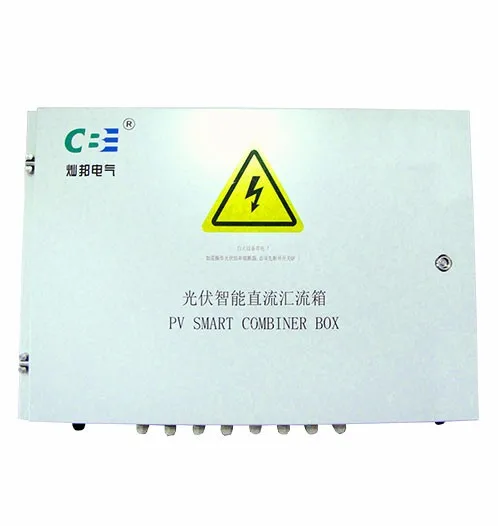

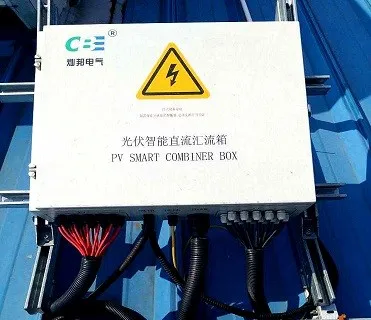

Outlook&Inside View

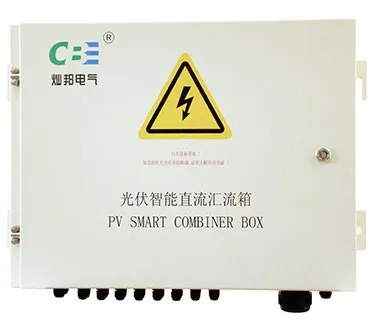

Product Details Show

Why Choose Us

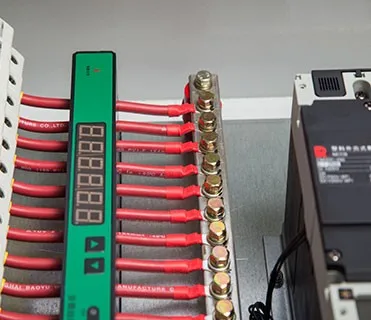

Beautiful cables in order

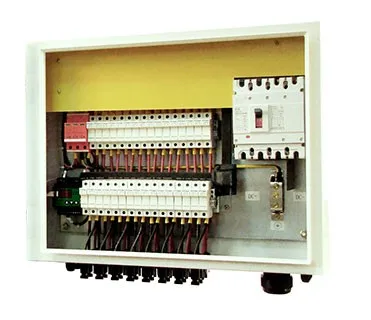

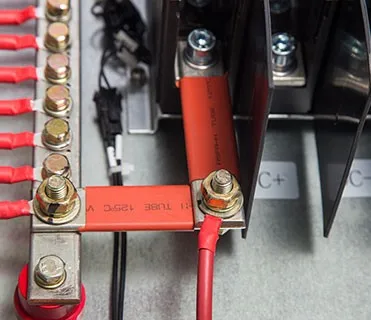

Inside look

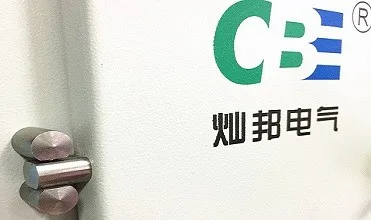

Stainless steel hinge

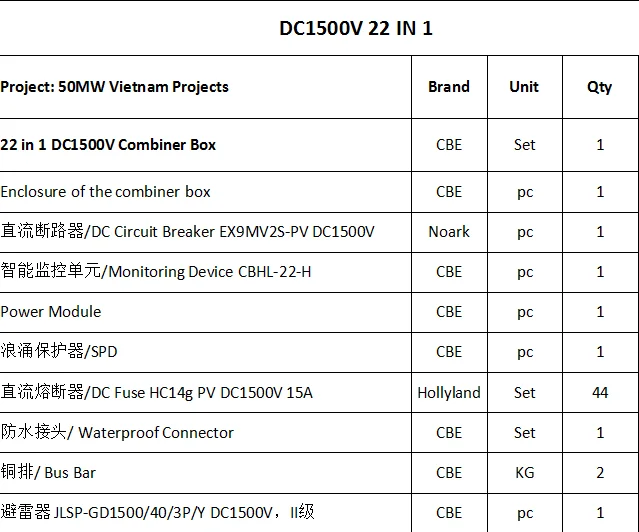

Product Parameters

Type	CBHLD-8Z	CBHLD-12Z	CBHLD-16Z	CBHLD-24Z
System Voltage(V DC)	1000V
Input No.	8	12	16	24
Output	1
The maximum input current per string(A)	15
Positive and negative string inputs cable(㎜²)	4~6
Positive and negative string outputs cable(㎜²)	2*50~120
Grounding cable diameter(㎜²)	≥16
Protection function
Fuse	Yes.(Rating Voltage1000V Rating current:15A(breaking capacity ≥30KA
DC circuit breaker	Yes(Rating Voltage:1000V),DC islator switch could be selected
SPD	Yes(In:20KA,Imax:40KA,Up≤3.6KV)
Blocking diode	Could be selected
Protection grade	IP65
Temperature and humidity	Working Temperature:-25~+50℃,Storage Temperature:-40~+70℃,humidity:0~95%,No condensate, no corrosive gas place
Altitude	≤4000m
Intelligent communication
Measuring Method	Hall-effect
Communication	RS 485/Modbus-RTU
Function	string current collection of PV panels&Voltage and temperature collection of PV panels&SPD failure detection
Power supply	Self-power supply
Enclosure
Material	colded-roll plate,SS304,PC,FRP
Protection grade	IP65
Connector	MC4&PG
WHD(mm)	500500160mm	500600160	500650160	500mm×700mm×160mm
Weight(kg)	30	35	36	40
