Switching Power Supply 12V 1A 2A 3A 4A 5A Wall Mounted Adapter

Product details
Selling Units:Multiple of 50;Cable line:1.2m,also can be customized;
service:OEM,ODM;Usage:phone, laptop, LED display radio, video machines,, security systems;
DC hole:5.5*2.1mm/5.5*2.5mm;Output Type:DC;
Gross weight per batch:0.25 KG;Warranty:2 years;
Plug:UK EU US AU JP KC;Model Number:TDX-1204000;
Package Type:Switching power supply 12V 1A 2A 3A 4A 5A Wall mounted adapter,PE bag+white box;wattage:48w;
Place of Origin:Guangdong China (Mainland);Case size:114*50*30.5mm;
Usage:Game Player;Brand Name:TDX;
Output:12V 4A;Connection:Desktop;
Color:black or others;Package size per batch:0.42X0.34X0.2 cm;

Switching Power Supply 12V 1A 2A 3A 4A 5A Wall Mounted Adapter

TDX Products



Product Description

Input voltage range

90-264V

Input voltage Frequency

47-67Hz

Output voltage

12V

Output current

4A

Output power

48W

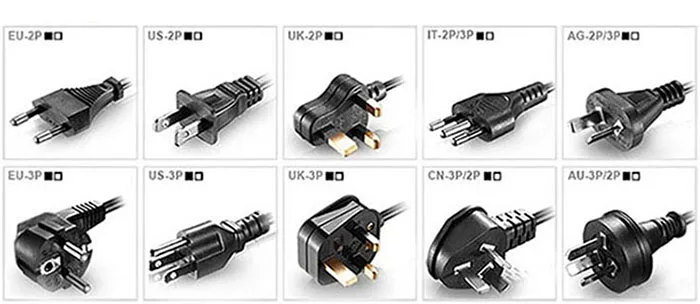

AC Plug (optional)

3C,UL,AU,EU,UK,KC plug

Output ripple and noise

120mvp  at full road with 20MHz bandwidth

Size

114*50*30.5mm

Net weight

280g

Output voltage Adjustable rate

5%

No-load Power Comsuption

<0.15W

Energy Efficiency Standard

90%

Transistor connecting method

Single-ended type

Turn On Delay Time

<3S (AC:110V and full load)

Color

 black or customization

Protection

SCP,OVP,OLP,OTP, OCP

Packaging detail

PE bag or as your requirements

Working humidity

20-90% RH

 Storage Temp & Humidity

-20- 85 ℃

Warranty

 24 Months

Safety Standard

IEC60950,EN60950,UL60950,EN6001,EN55022,EN55024

certification

CE,GS,ROHS,UL ,SAA,CB,IEC,CUL,CCC,FCC

Sample

2 free samples

Features:

1. High efficiency and low operation temperature
2. AC input power suitable for the world
3. Soft-start current can reduce the AC input impact efficiency
4. With short-circuit and overload protection
5. Compact size ,light weight
6. 100%full-load burning test
7. Installed with EMI filter ,minimum wave



Safety Specifications :

Universal Input 100~240VAC 50/60Hz
over voltage protection: 120%min
over current protection: 120%min
over protection
Short-circuit protection: automatic recovery
Load regulation: ± 5%
Green Circuit Design
High Efficiency





Certifications



Company Information

Our workshop

1.Safe working condition

2.Stric technology monitoring.

3.100% full-load burn-in ,Over 4 hours aging.

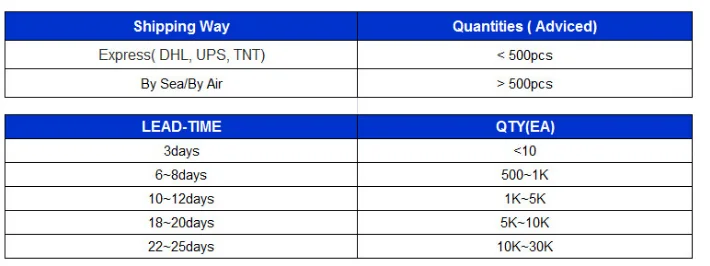

Packaging & Shipping

 Switching Power Supply 12V 1A 2A 3A 4A 5A Wall Mounted Adapter

                          1PCS/OPP Bag

                          25PCS/Board

                          50PCS/Carton

                          Carton Size:42*34*23.5CM

Delivery Details : within 10-14 days after get your payment
