Fully Automatic Horizontal Hydraulic Waste Cardboard Press Baler,Full-automatic Straw Baler

Supplier: Jining Hengwang Mining Machinery Co., Ltd.
Region: Shandong, China
Contact: Ms Aggy Li
Price: $22000.00 /set
Min. Order: 1 set

Click here to contact

Product details

Material:	Stainless Steel;	Keyword:	Hydraulic Baling Machine;
Packing material:	non;	Power:	55kw;
Key Selling Points:	Easy to Operate;	Applicable Industries:	Garment Shops,Machinery Repair Shops,Printing Shops,Construction works ,Food & Beverage Shops;
Automatic Grade:	Semi-Automatic;	Certification:	ISO;
Name:	Horizontal Hydraulic Waste Cardboard Press Baler Straw Baler;	Warranty:	1 Year;
Packing speed:	according to the material;	After-sales Service Provided:	Overseas service center available;
Weight:	38000 kg;	Machine name:	Horizontal Hydraulic Waste Cardboard Press Baler Straw Baler;
Packaging Type:	Bags,Barrel,Belt,Bottles,Cans,Capsule,Cartons,Case,Film,Foil,Pouch,Stand-up Pouch;	Usage:	Compress Waste Paper;
Voltage:	220V/380V;	Payment Terms:	L/C,T/T,Western Union;
Brand Name:	heng wang;	Place of Origin:	Shandong China (Mainland);
Condition:	New;	Packaging Material:	Glass,Metal,Paper,Plastic;
Port:	shanghai qingdao dalian shenzhen ningbo;	Packaging Detail:	wooden case;
Function:	High Effieciency;	Supply Ability:	1000 Set/Sets per Month Horizontal Hydraulic Waste Cardboard Press Baler Straw Baler;
Product name:	Horizontal Hydraulic Waste Cardboard Press Baler Straw Baler;	Type:	Other;
Dimension(LWH):	11600mm3700mm5500mm;	Application:	Apparel,Beverage,Chemical,Commodity,Food,Machinery & Hardware,Medical;
Driven Type:	Electric;

Product Description

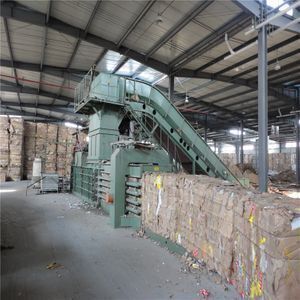

Widely used for compressing waste cardboards, cartons, paper, plastic film, straw etc.which are popular in packaging and corrugation industrial, bear breweries, recycling center as well as in printing plants etc.

Conveyor is optional for conveniently feeding the waste to the chamber.

Technical Parameter

Pressure of cylinder	180 tons
Main cylinder	YG300/210-2800	Made by ourselves
Push wire cylinder	YG90/60-760	Made by ourselves
Cut wire cylinder	YG80/50-50	Made by ourselves
Shrink cylinder	YG220/160-150	Made by ourselves
Bale size	W1100×H1300×L(500~1800)mm	The length can be adjusted
Feed opening size	2400×1020 mm(L×W)
Cycle time	18 s	Unload
Pressure of hydraulic system	18MPA
Throughput	17~25 tons / h
Main motor power	55 KW / 75 HP×2	Speed of revolution1440 r / min
Cut wire motor power	1.5KW / 2HP	Speed of revolution 1440 r / min
Cooling motor power	2.2KW/3HP	Speed of revolution 1440 r / min
Main hydraulic pump	4535VQ75A45×2	Displacement 762 ml / r
Cooling hydraulic pump	CB-B80
Strapping mode	Full automatic
Number of belting	5 lines
Wire size	3.0 mm
Feeding device	Conveyor or wind pipe
Operation mode	Full automatic	Push button + touch screen
Voltage	3P—200V/220V/380V/400V/415V—50/60Hz	The voltage can be customized
Control voltage	DC24V
Cooling mode	Water cooling
Oil reservoir	2100 L
Oil	L—HM 46	Ambient temperature 0~30℃
Machine overall dimension	11600mm×3700mm×5500mm(L×W×H)	Without conveyor
Machine weight	38000 kg	Include conveyor
