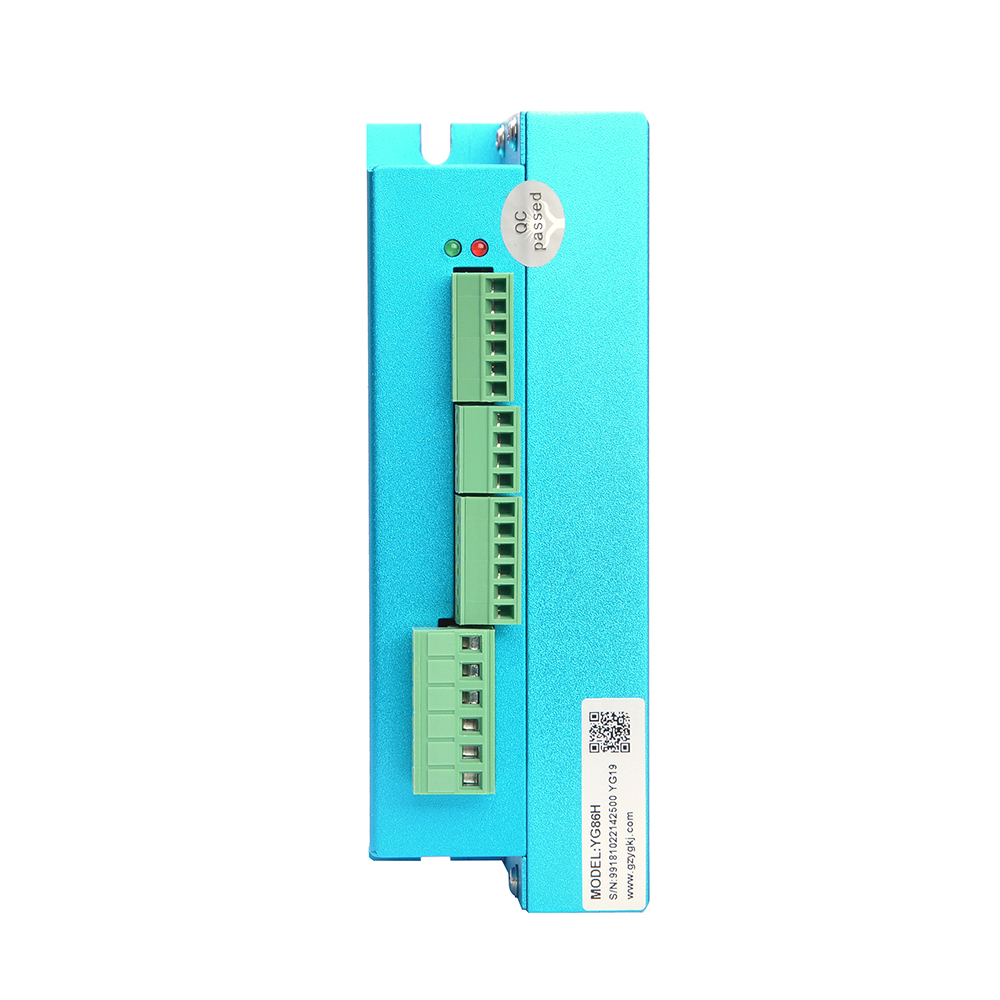

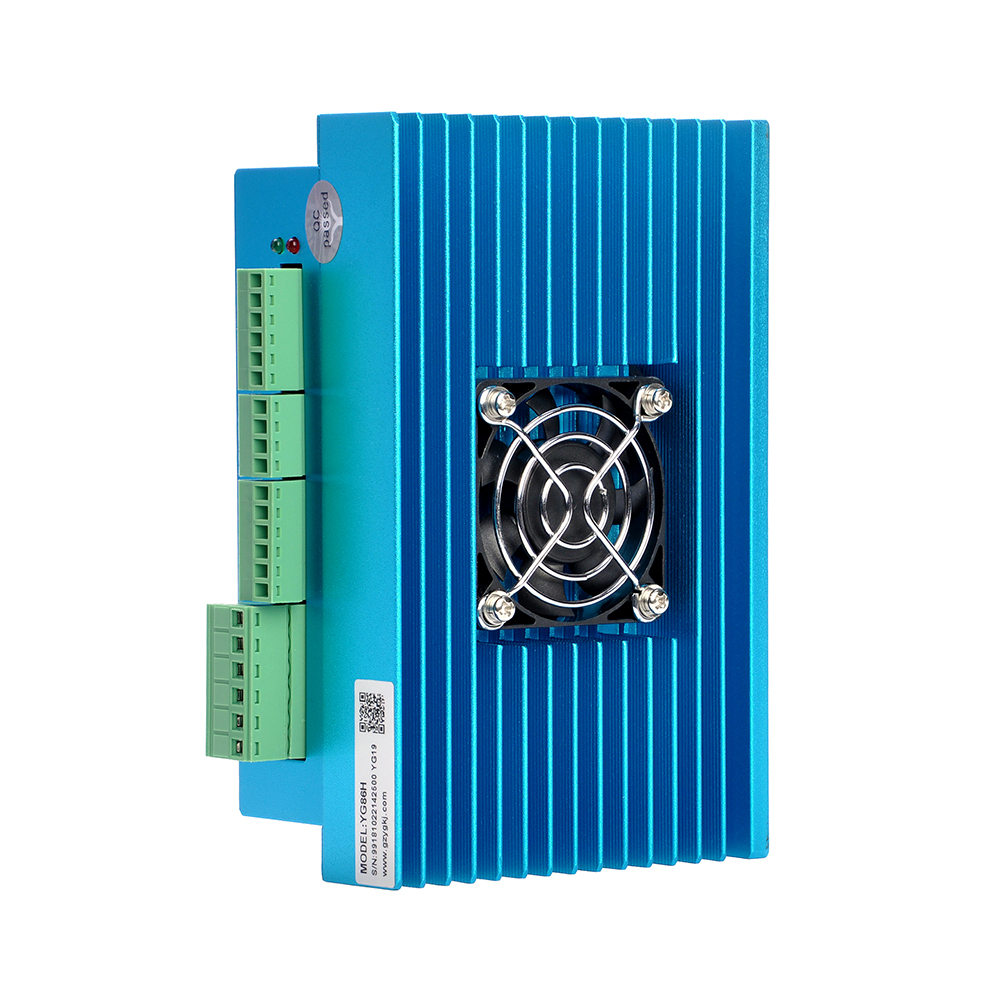

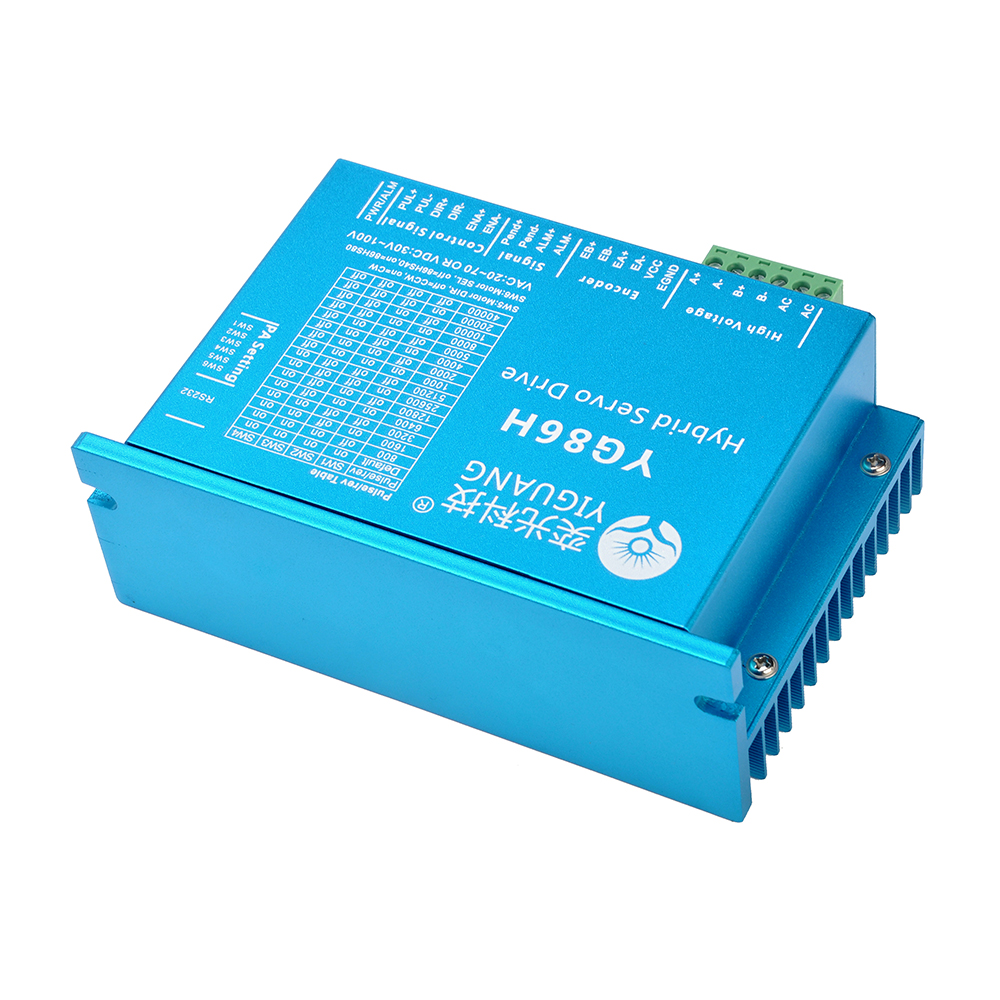

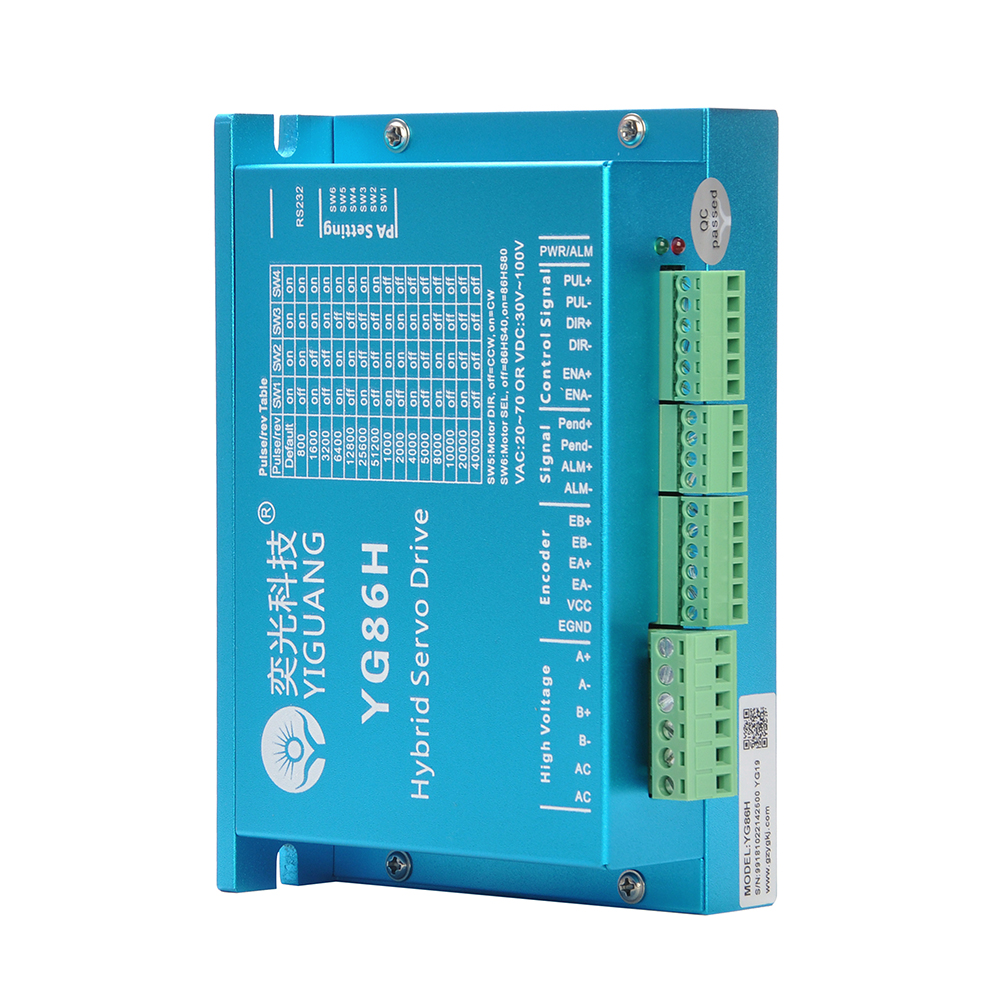

product name: | Two-phase hybrid servo AC and DC motor driver | Rated voltage: | AC voltage 18V-80V |
Input supply voltage: | 18V-80V | Sales unit: | Single product |
Motor type: | stepper motor | Warranty: | 3 months-1 year |
brand: | RK | Certification: | CE |
Package preview: | | Maximum output current: | 8.2A |
Single piece packaging size: | 15.1X9.7X5.2cm | Matching motor: | 86HBM80-1000 hybrid servo motor |
control method: | Pulse and direction | Place of origin: | Guangdong, China |
Packaging details: | carton | model: | YG86H |
Gross weight of single piece: | 0.570kg | | |
parameter | YG86H | | | |
| minimum value | Typical value | maximum | company |
Continuous output current | 0 | - | 8.2 | A |
Input supply voltage | +18 | - | +80 | volt |
Logic input current | 7 | 10 | 20 | Well |
Pulse frequency | 0 | - | 200 | kilohertz |
Insulation resistance | 500 | | | Megohm |
Provides encoder current | | | 50 | Well |
cooling method | Free cooling or external radiator | |
Usage environment | Use occasions | Try to avoid dust, oil mist and corrosive gases |
| temperature | 0℃-50℃ |
| humidity | 40-90%RH |
| Shock | 10~55Hz/0.15mm |
Storage temperature | -20℃-65℃ | |
weight | About 570 grams | |

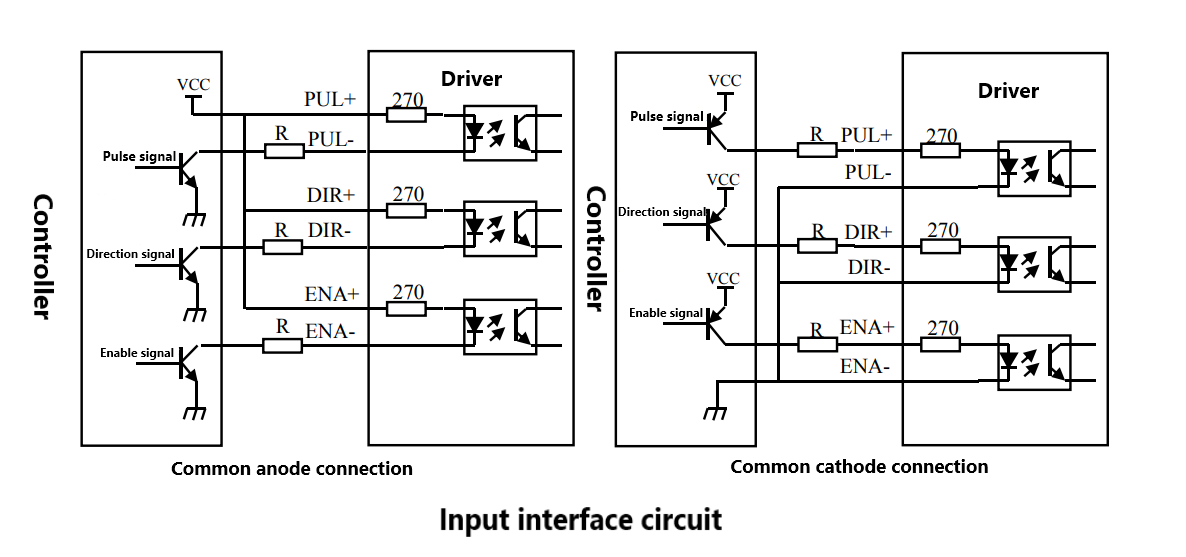

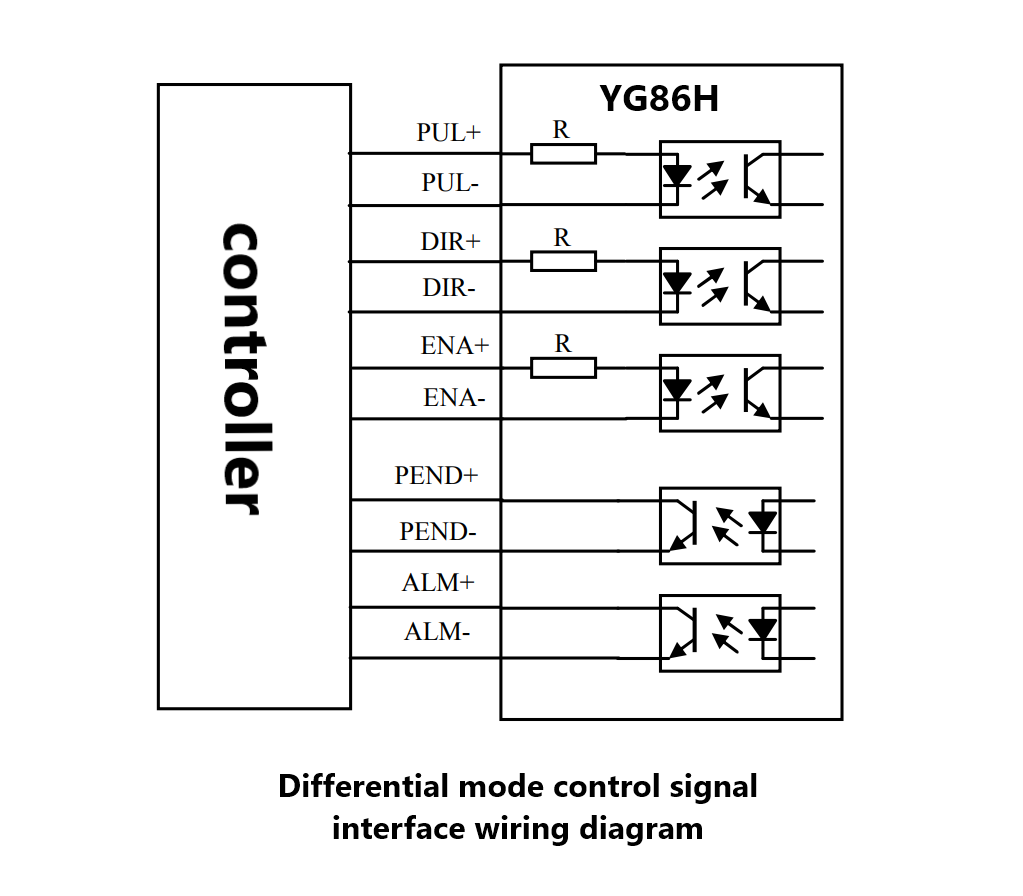

Technical Features *Adopts new 32-bit DSP chip for motor control; *Adopts advanced vector closed-loop control technology; *Has trapezoidal wave test function; *Static current and dynamic current can be set arbitrarily (within the range of 0-8.2a); *Can be driven 86 series hybrid servo motor; * Optocoupler isolated differential signal input; * Maximum pulse response frequency is 200kHz; * Subdivision setting (in the range of 200~51200); * With over-current, over-voltage, and tracking error over-tolerance protection;
