Agricultural conveyor roller chain CA550 10 FT, RCC50-0014, CLCA550, 042-CA550CL

payment terms:	L/C, Western Union, D/P, D/A, T/T, MoneyGram	Strand type:	single
Standard or non-standard:	standard	Place of origin:	Zhejiang, China
Applicable industries:	Manufacturing plants, machine repair shops, energy and mining	brand:	eternal power
brand:	Jeremy Weir	Project spacing:	1.63 inches
type:	roller chain	Meets specifications:	ISO 9001
port:	Shanghai/Ningbo	Material:	Stainless steel

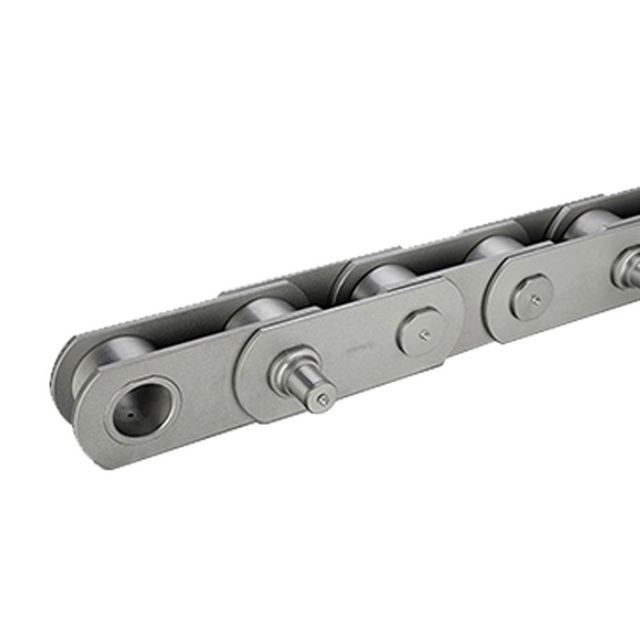

#CA550 Agricultural Roller Chain 10ft, RCC50-0014, CLCA550, 042-CA550CL

Pitch size: 1.63 inches

Drum diameter: 0.664 inches

Width between inner panels: 0.780 inches

Pin diameter: 0.283 inches

Lead length L maximum: 1.378 inches

Lead length Lc max: 1.496 inches

Inner panel depth: 0.760 inches

Board thickness: 0.110 inches

Average tensile strength: 11511 lbs.

Material: carbon steel

Length: 10 feet

Weight per foot: 1.300 lbs.

All our chain products undergo strict process measures to ensure the best quality! This includes heat treatment to ensure optimal service life and toughness of all components. Solid hardened and shot peened precision rollers are standard on most of our chains. The bushing provides a smooth roller bearing effect, reducing shock loads when the chain engages the sprocket teeth. During the chain assembly process, all chain components are oriented to ensure the pins, bushings and side plates are positioned correctly for optimal chain strength and long service life. The assembled chain is then dipped in hot lubricant. This lubrication and its application process greatly increases the service life of the chain and further protects it from the effects of the environment. All of our chains are factory preloaded. They are pre-tested to support and maintain the expected loads that the chain will be subjected to when in use. This helps align the chain components to minimize initial elongation. This will greatly extend the life of the chain. All our chains are certified to ISO 9001:2000 QM, ISO 14001 (documenting the sustainability and environmental compatibility of production and waste treatment processes) and the ISO/TS 16949 quality requirements of the automotive industry.
