Best 220V 380V 2x72 3 wheel belt grinder sander surface grinder for knife making
-
Supplier: Anhui Advanced Grinding Tools Co., Ltd. -
Region: Anhui, China -
Contact: Ms Melody Qian -
Price: $980.00 / 1 - 9 sets
$900.00 / >=10 sets -
Min. Order: 1 set
Product details
| Warranty: | 2 years | Customization support: | OEM, ODM |
| Supply capacity: | 100 sets per month | Package Size: | 640*640*450mm |
| Place of origin: | Anhui, China | Maximum motor speed: | 2900SFPM |
| Flat grinding frame aluminum wheel dimensions: | 60*60mm(diameter*thickness) | port: | Any port in China |
| Package weight: | 95kg | Abrasive belt motor power: | 1.5/2.2kw (variable frequency drive) |
| Abrasive belt size: | (1600-2100)*50mm | Packaging details: | Waterproof film and wooden box packaging |
| product name: | ADV 116-1 belt grinder | Energy source: | electrical |
| grade: | DIY, industrial | Voltage: | 220V,380V |
| engine: | 12 months warranty | payment terms: | L/C, D/A, D/A, wire transfer |
| speed: | 0-35 meters/second | Rubber wheel size: | 280*50mm(diameter*thickness) |
| Grinder type: | Horizontal belt grinder, vertical belt grinder | Package preview: | |
| current: | other | application: | Metal hardware grinding, polishing, copper, LRON, ferrous metal materials, brass, steel |
| model: | ADV 116-1 |
We provide local services in the following countries. We are opening more agents.
If you would like to know if there is local service in your location, pleaseClick here.
Machine description

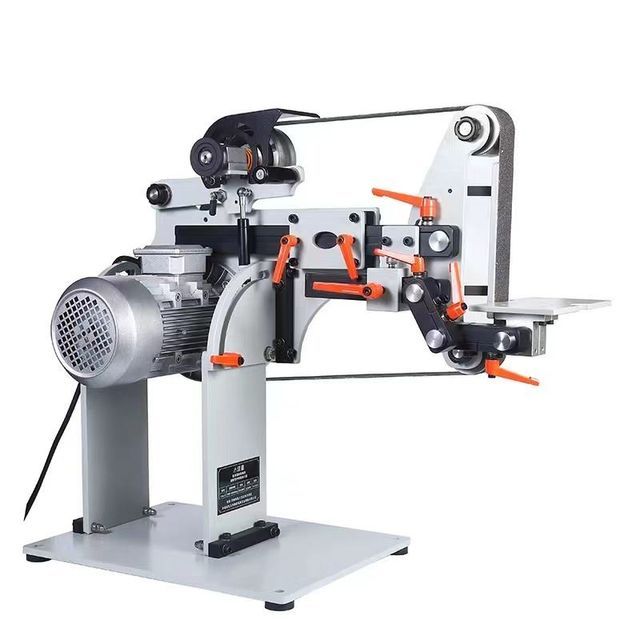

Multifunctional vertical/horizontal belt sander 2"*72", 2"*82" 1.5 kw 3 knife making modes
1. This brand of high-precision abrasive belt grinder is an ideal machine for cutting, profiling, handle and finishing, satin or mirror processing.
2. The frame is made of No. 45 steel, with stable structure, low noise, minimal vibration and long service life. It represents the top level of abrasive belt grinders produced by ADV Grinding Tools.
3. The ADV 116-1 abrasive belt grinder is multi-purpose and very creative. The first choice for DIY replacement.

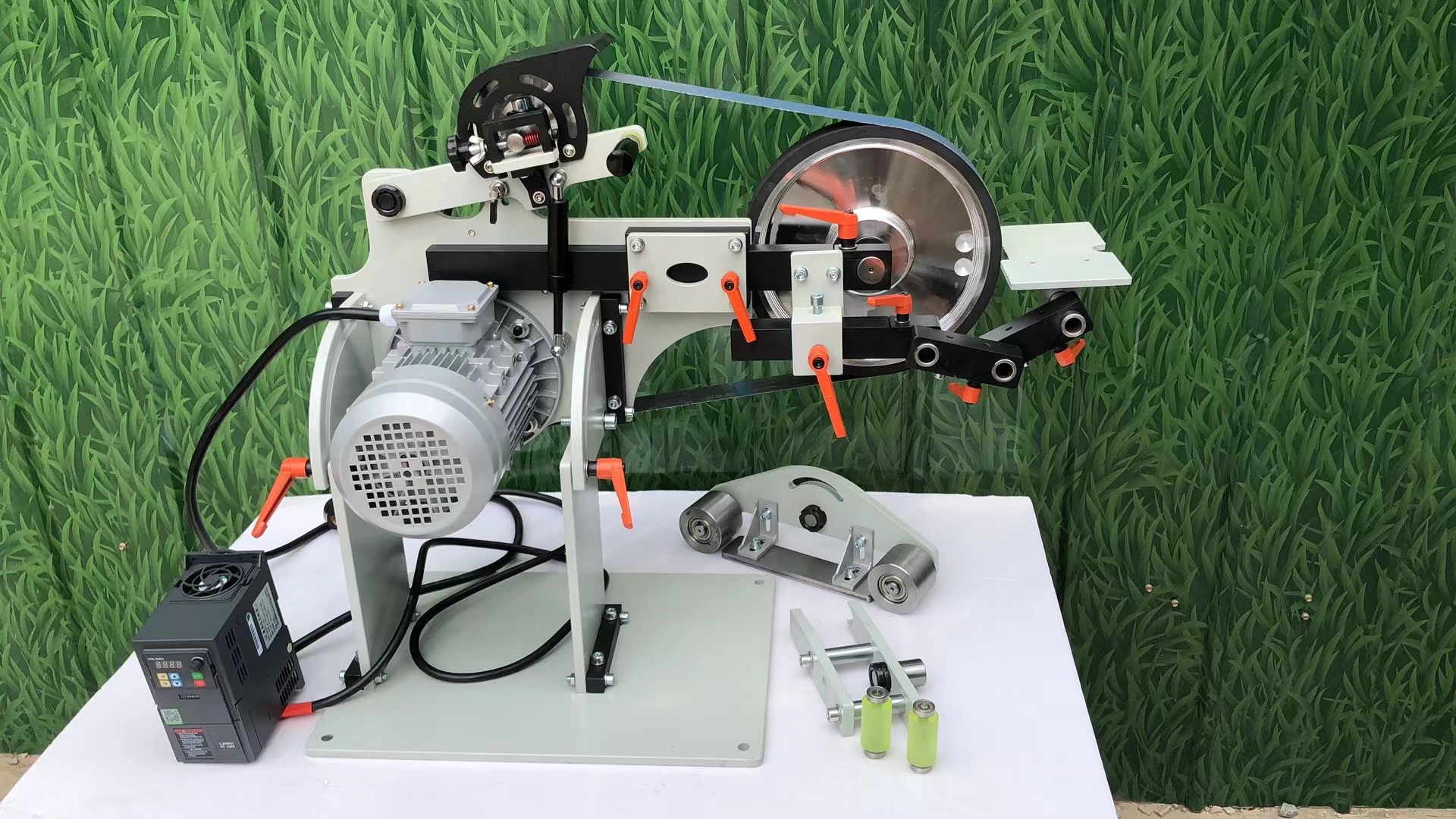

4. The machine can change the speed through a tuning converter, making it more flexible and versatile.
5. The machine has high stability. There is a slight vibration even when placing a coin on the machine, which spins at up to 2900rpm.
Machine parameters
No | thing | Specification |
1 | Model | ADV 116-1 |
2 | Abrasive belt size | (1600-2100)*50mm |
3 | Abrasive belt motor power | 1.5/2.2kw (variable frequency drive) |
4 | Three different grinding stands | Flat grinding stand, arc grinding stand, rubber wheel stand |
5 | Rubber wheel size | 280*50mm(diameter*thickness) |
6 | Flat grinding frame aluminum wheel dimensions | 60*60mm(diameter*thickness) |
7 | speed | 0-35 meters/second |
8 | Spindle speed | Up to 2900 rpm |
9 | Package Size | 640*640*450mm |
10 | Package weight | 95kg |
For more solutions pleasecontact us.

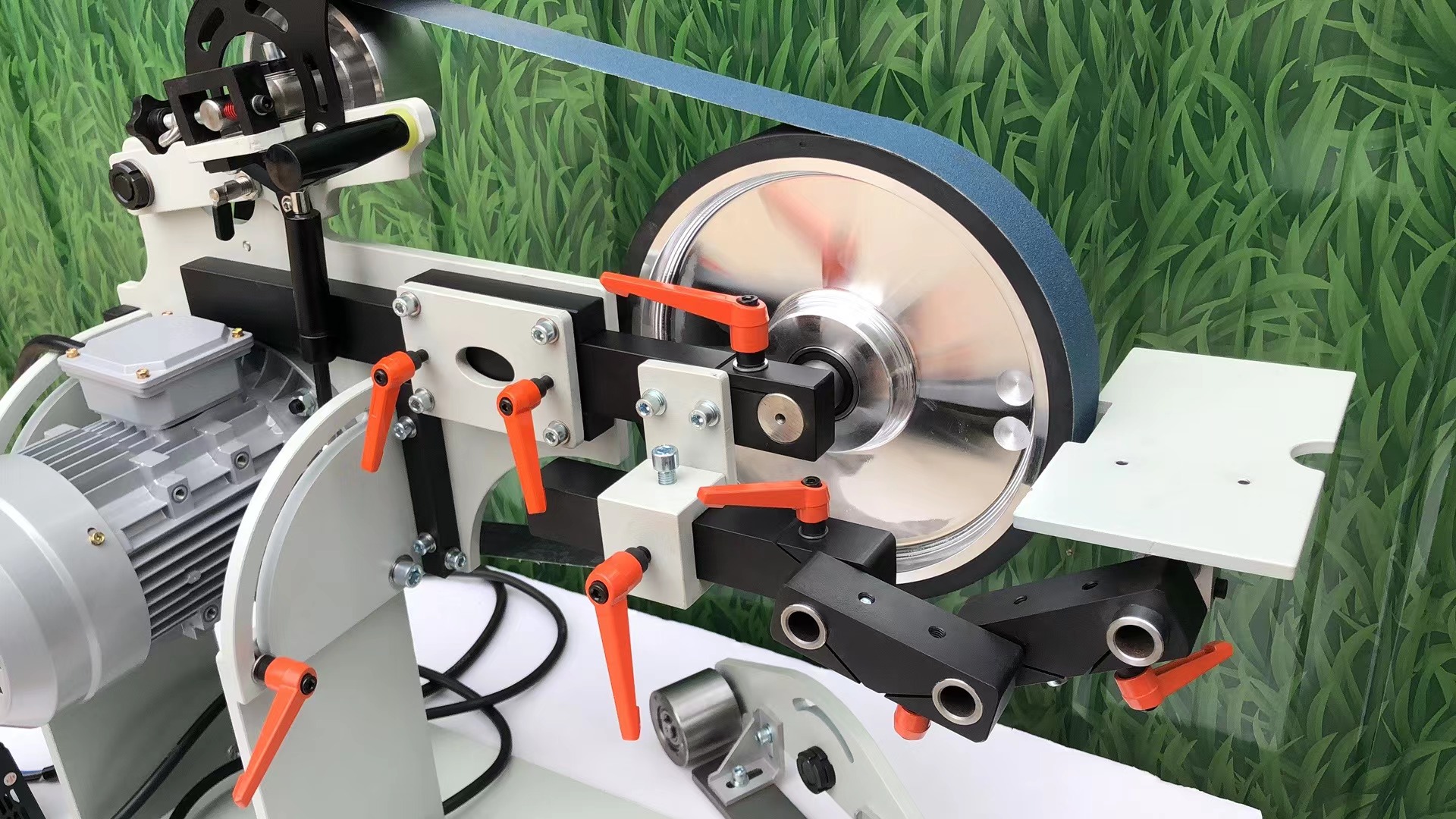

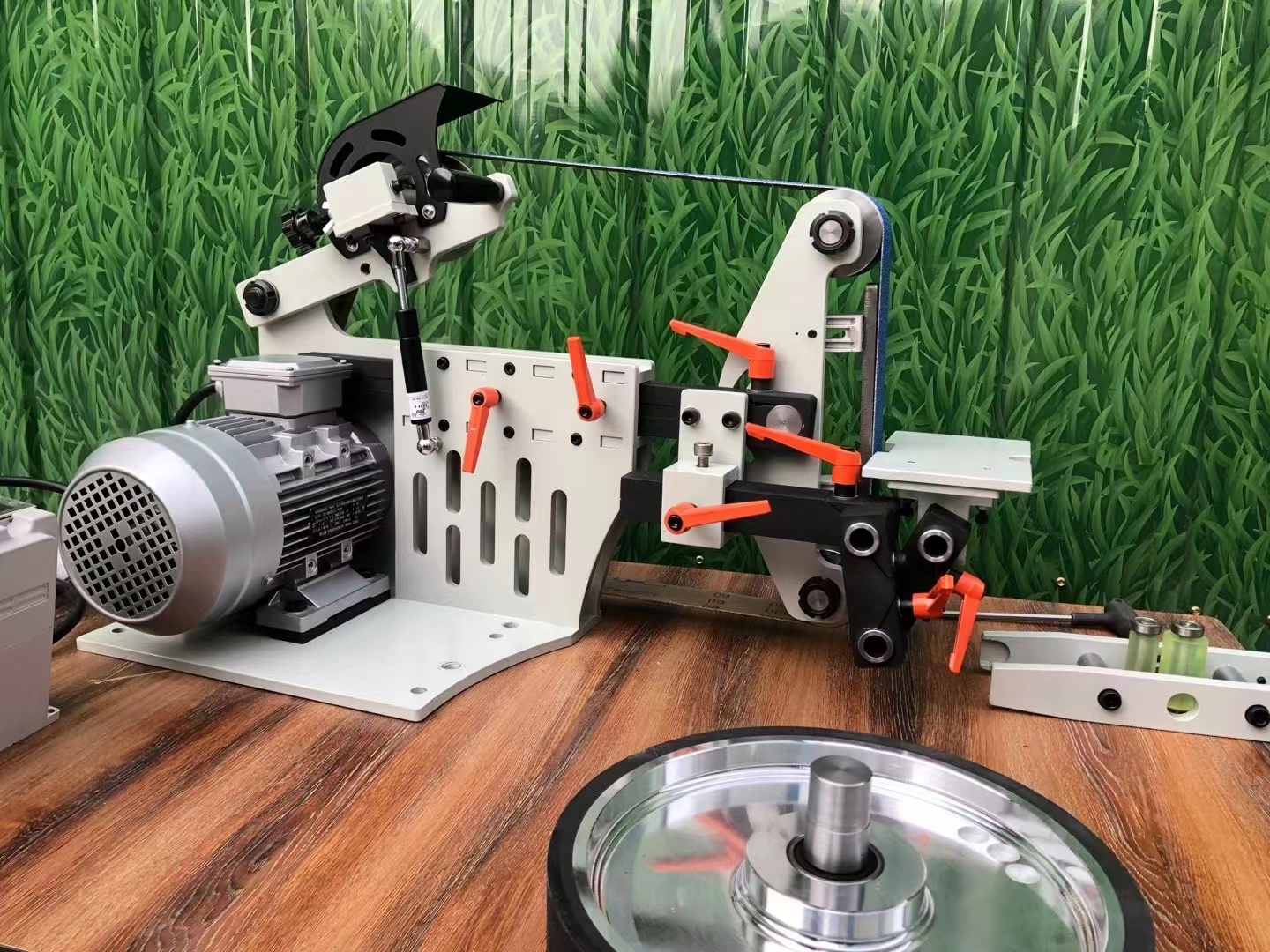

Mechanical Parts

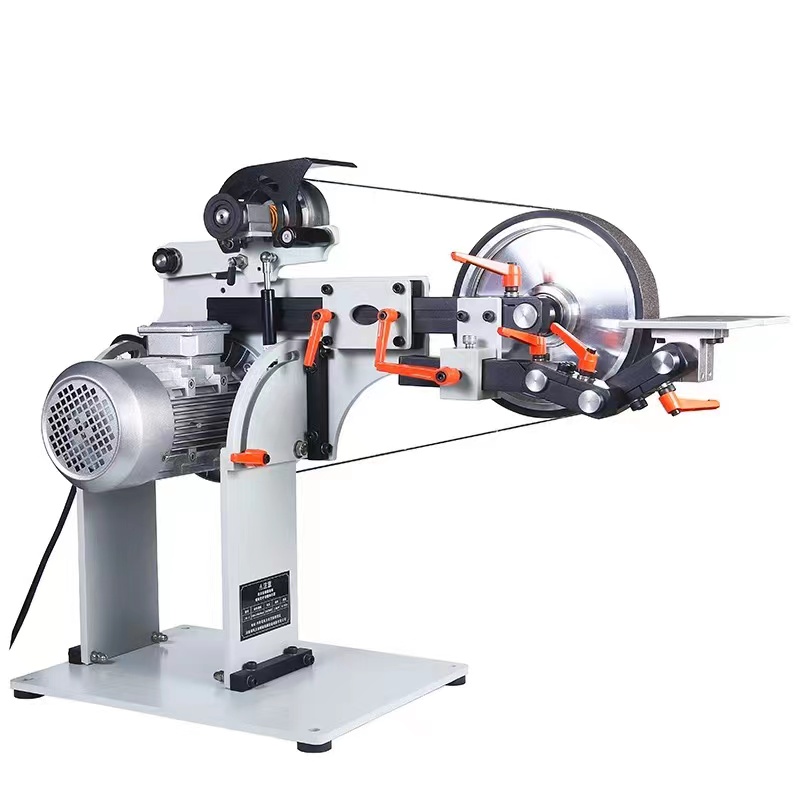

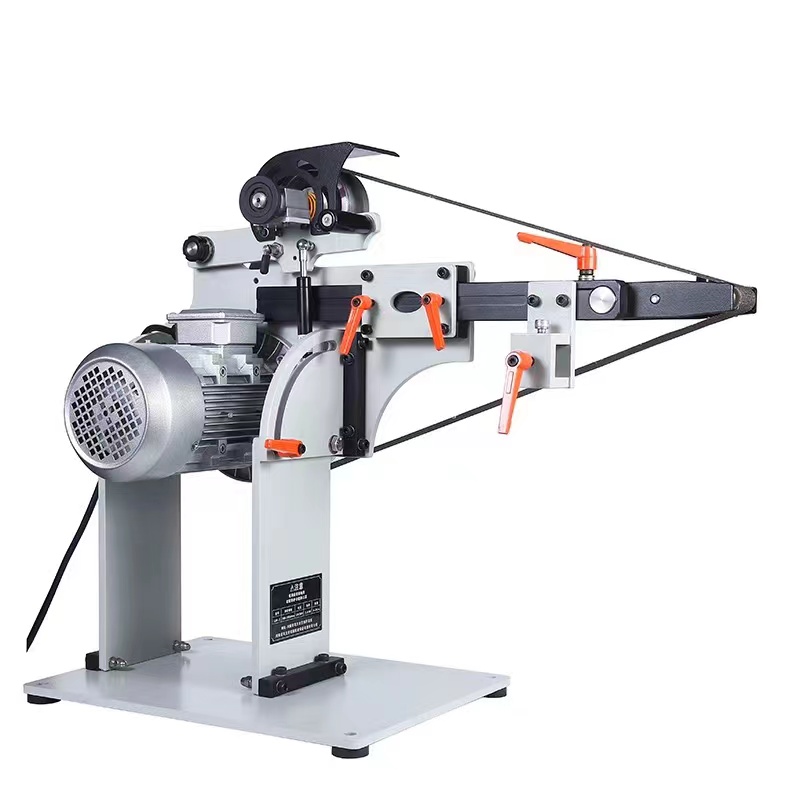

ADV 116-1 vertical/horizontal multi-purpose belt sander.
>About the ADV 116-1 vertical/horizontal multi-purpose belt sander, it is easy to operate and can be adjusted and replaced accordingly.

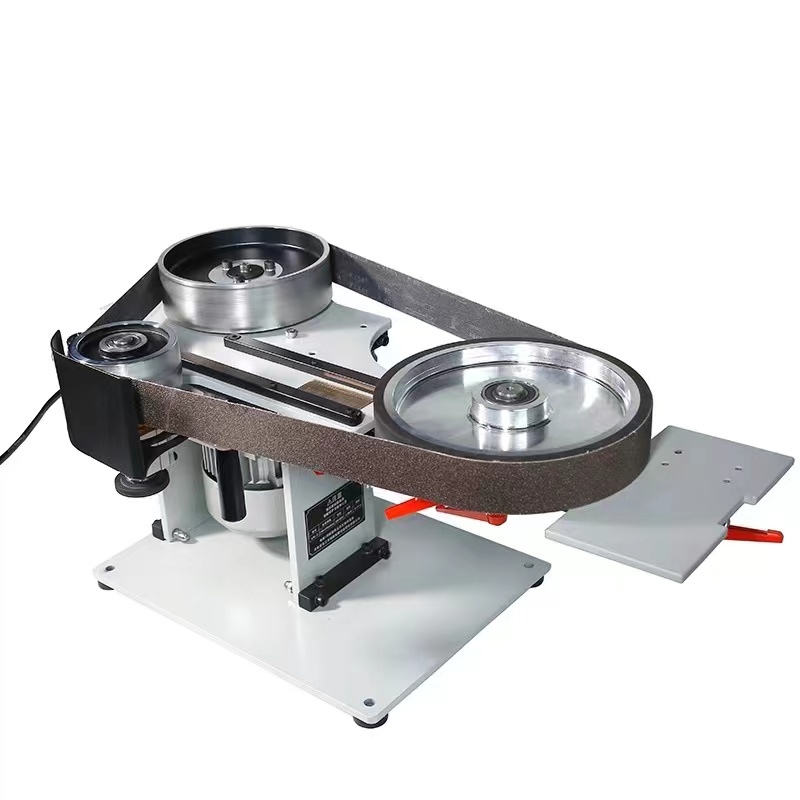

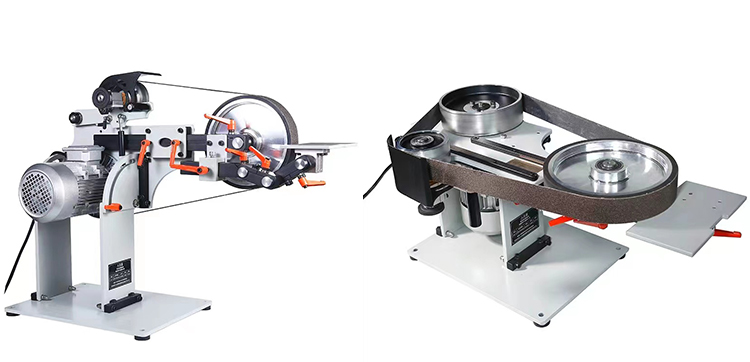

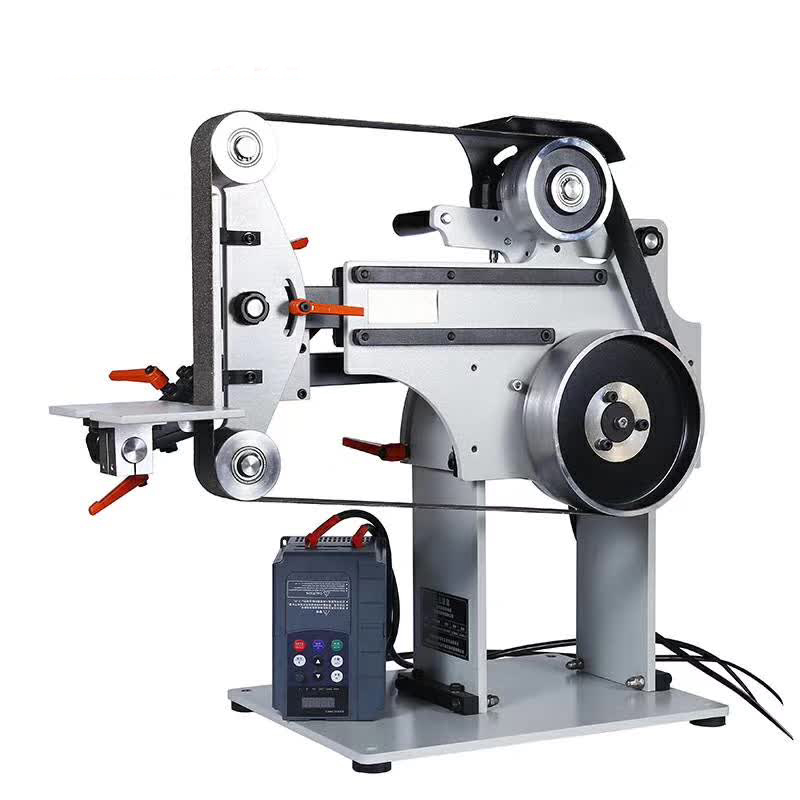

vertical and horizontal
Easy-to-switch flip mechanism, can be used vertically or horizontally

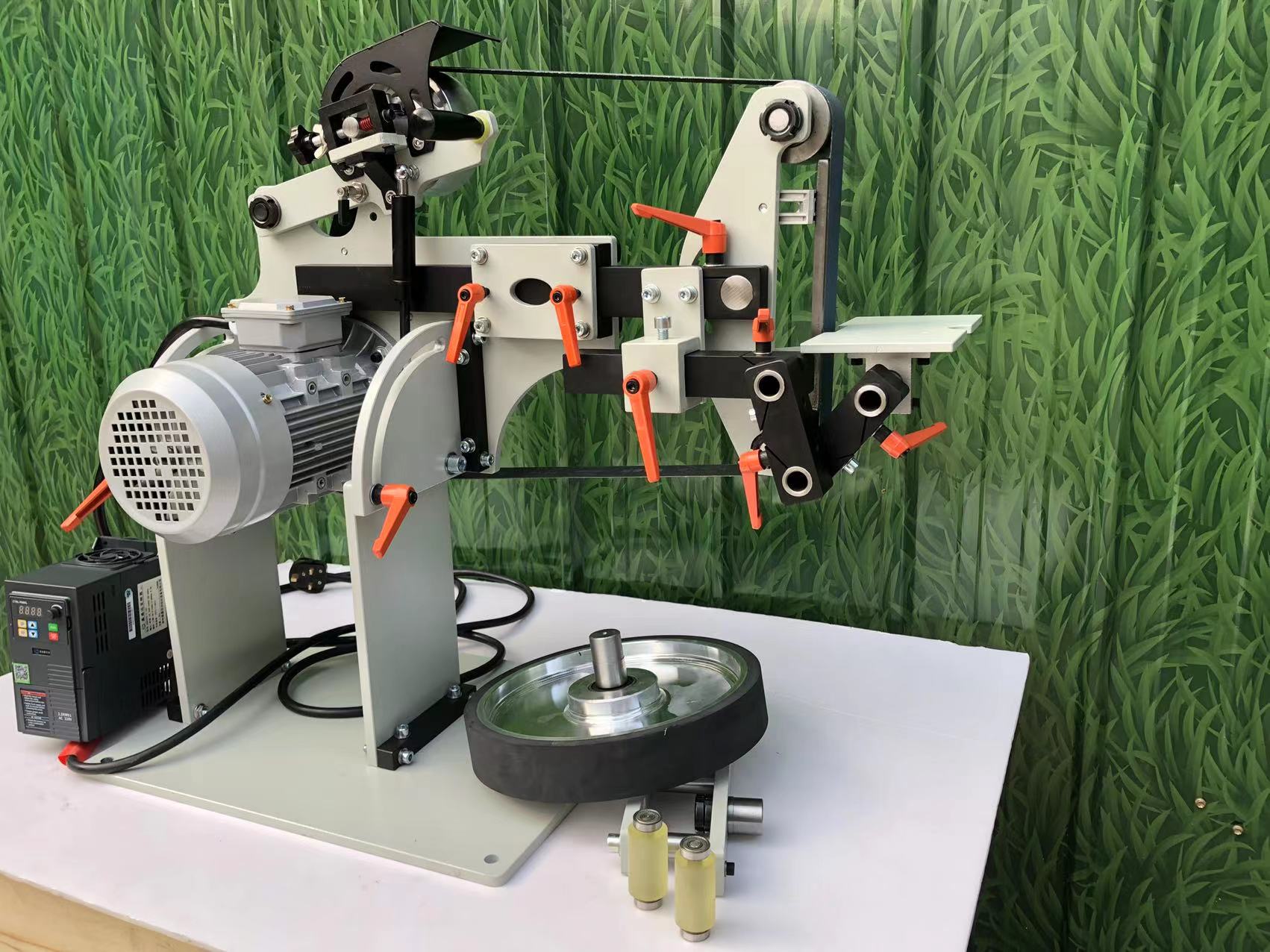

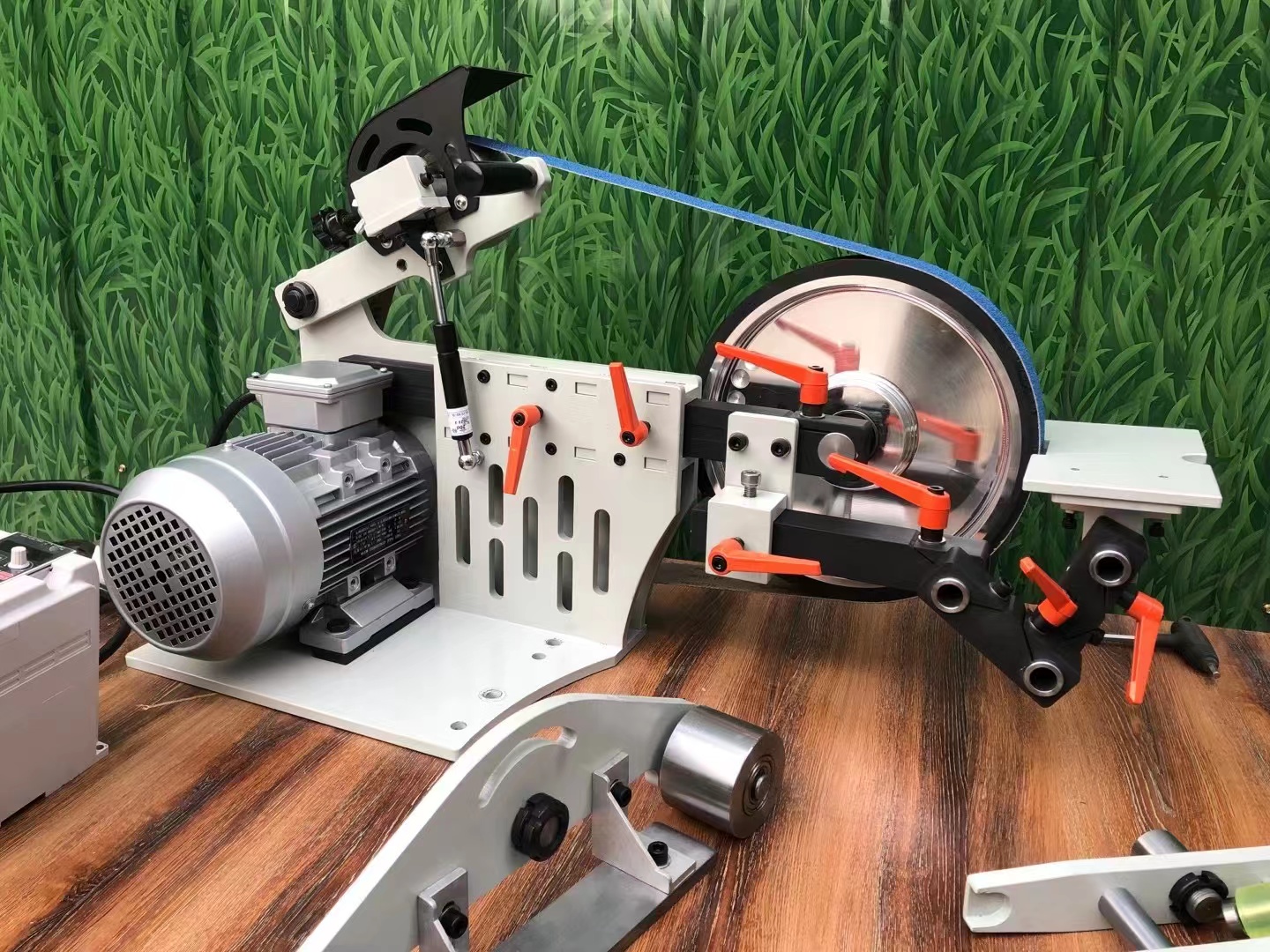

Available grinding wheels:
Rubber grinding wheel
Flat grinding wheel
arcGrinding wheel
Machine application
Application materials
ADV 116-1 belt sanding machine is suitable for stainless steel, steel, aluminum, copper, wood, etc.
Application products:
Ideal for grinding various small items such as knives, spoons, forks, mobile phone cases, watches, small decorations, etc.

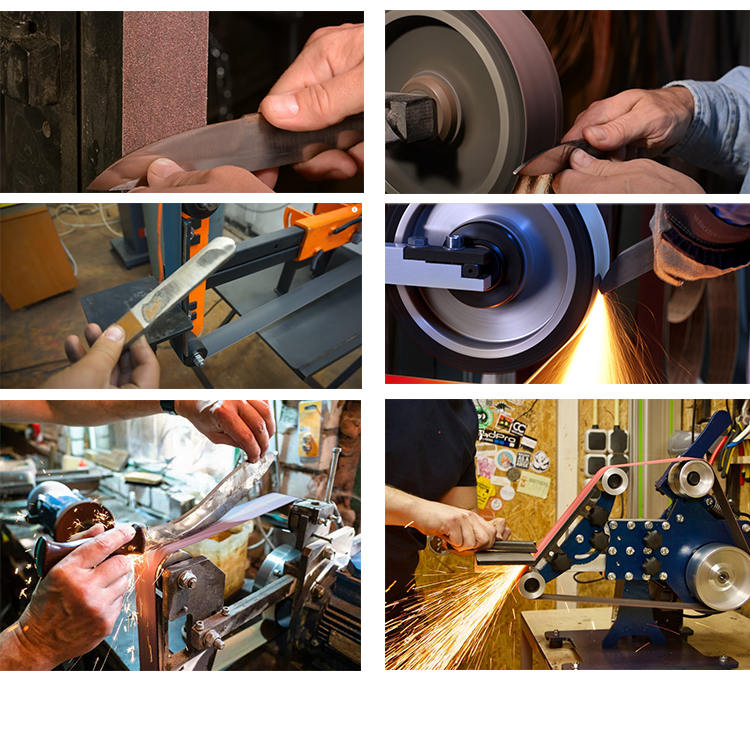

Application scenarios:
We support providing free test samples to customers
If you have any questions about the ADV 116-1 Belt Grinder or other related issues, please contact us today.
