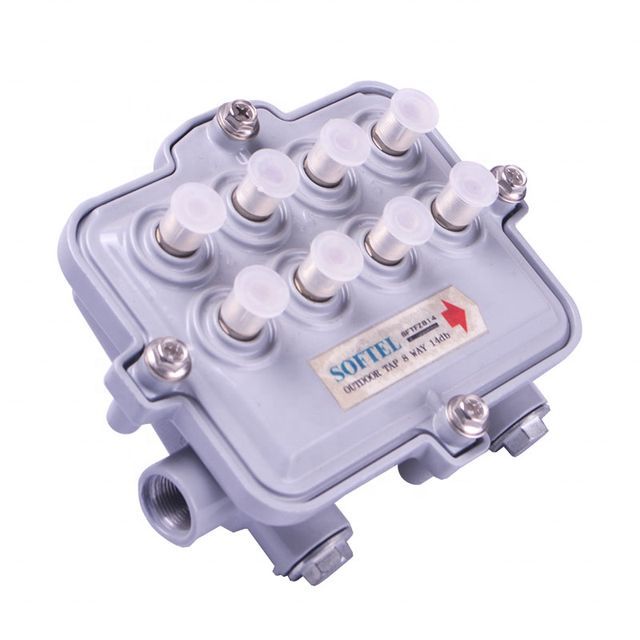

Softel 5-1000MHz 1/2/4/8-channel CATV tap MultiTap

tap value

b

11

14

number 17

20

twenty three

26

29

32

Insertion loss

in and out

(-dB maximum)

Frequency(MHz)

5~10

-

3.2

1.6

1.0

0.6

0.5

0.5

0.4

11~300

-

3.0

1.7

1.0

0.7

0.7

0.6

0.5

301~400

-

3.2

1.9

1.3

0.9

0.9

0.8

0.5

401~450

-

3.5

2.0

1.4

1.1

1.0

0.9

0.7

451~600

-

3.7

2.2

1.5

1.2

1.1

1.0

0.8

601~750

-

4.1

2.6

1.8

1.5

1.4

1.3

1.2

751~900

-

4.5

3.0

2.2

1.7

1.7

1.5

1.4

901~1000

-

4.9

3.5

2.5

2.0

2.0

1.8

1.7

Tap loss

Instant click

(±1.5dB)

5~10

11.0

15.0

17.0

20.0

23.0

26.0

29.0

31.5

11~750

11.0

15.0

17.5

20.5

23.5

26.0

29.0

32.0

751~900

11.5

15.0

17.5

20.5

23.5

26.5

29.0

32.0

901~1000

11.5

15.5

17.5

20.5

23.5

26.5

29.0

32.0

Tap-To-Tap isolation

(Decibel minimum)

5~10

20

20

20

20

20

20

20

20

11~600

twenty four

twenty four

twenty four

twenty four

twenty four

twenty four

twenty four

twenty four

601~750

twenty three

twenty three

twenty three

twenty three

twenty three

twenty three

twenty three

twenty three

751~1000

20

18

20

20

20

20

20

20
