Automatic intelligent material warehouse with bulk sheet metal

Supplier: Jinan Chuangyi Intelligent Equipment Co., Ltd.
Region: Shandong, China
Contact: Ms weita ai
Price: $15000.00 /set
Min. Order: 1 set

Click here to contact

Product details

Supply capacity:	100 sets per month	Key machines:	Warehousing system
Electric car:	3 towers	Place of origin:	Shandong Province, China
central control system:	1 set	Package preview:
Automatic level:	automatic	payment terms:	L/C, Western Union, D/P, D/A, T/T, MoneyGram
Health status:	new	Loading and unloading robot:	1 set
Voltage:	220V	laser cutter:	3 towers
storehouse:	Group 1	After-sales service provided:	Online support
port:	Qingdao	product name:	Wholesale sheet metal intelligent automated material warehouse
Packaging details:	wooden box	brand:	creativity
Storage layer:	12 layers (can be customized)	weight:	24000kg
Mechanical capabilities:	100	Dimensions (lengthwidthheight):	30001500mm-60002500mm
Key words:	Automated sheet metal warehouse	type:	automatic machinery

Product Description

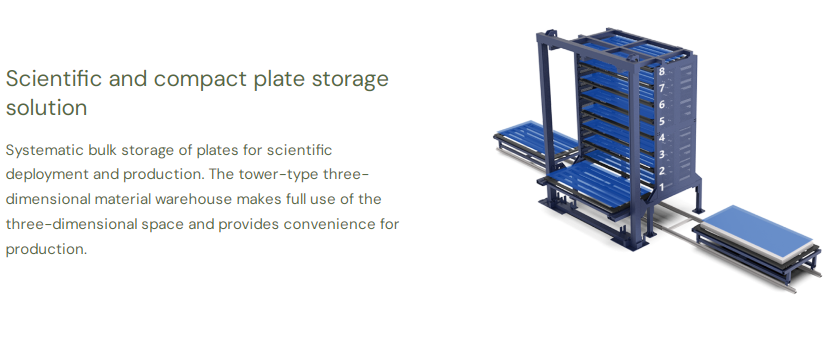

The automatic three-dimensional warehouse system is an efficient storage equipment that can be used in the sheet metal processing industry. Being able to quickly and accurately store and extract sheet metal materials of various specifications plays an important role in improving production efficiency and reducing costs.

detailed picture

advantage

1. Large load capacity.

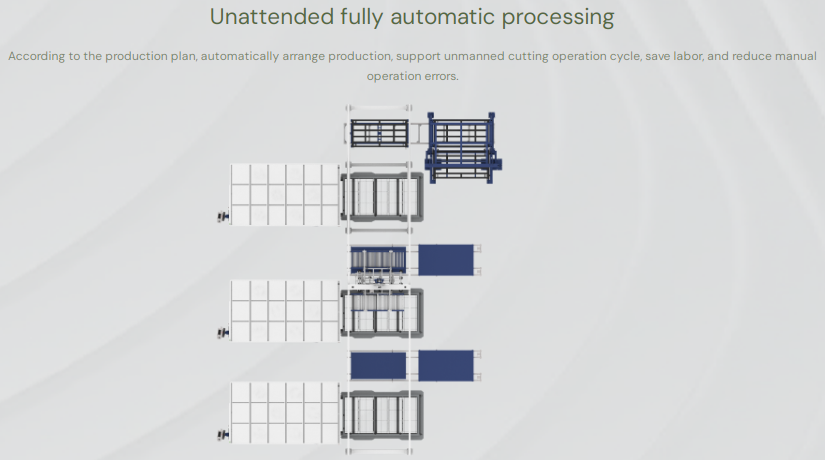

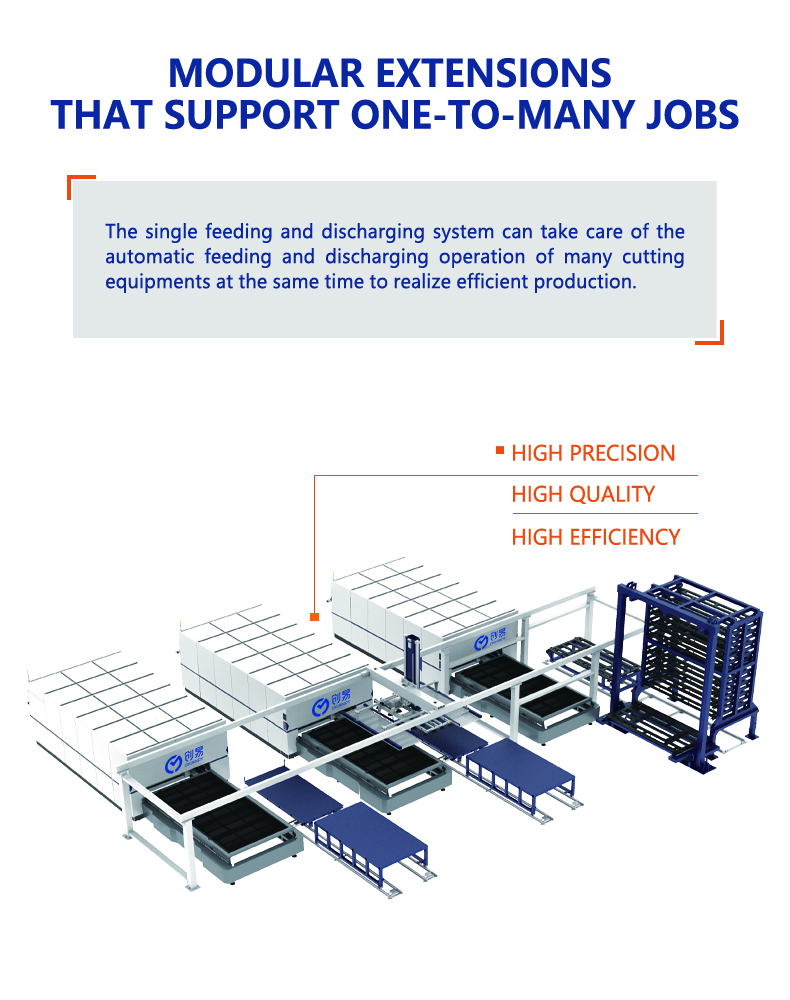

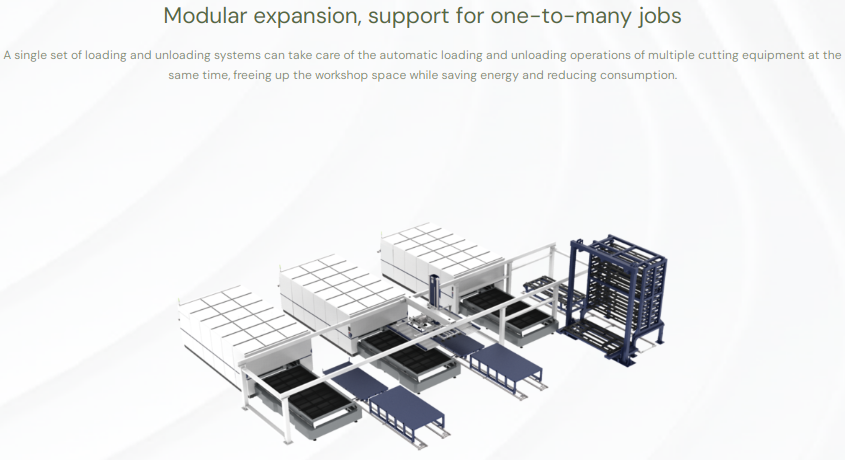

2. It can be combined with plate laser cutting machines and tower silos to realize automatic storage, loading and unloading of metal plates.
3. The standard parallel cylinder causes less wear on transmission components and increases the service life of the equipment.
4. More flexible combination with equipment, both vertical and horizontal types are available.
5. Fast and efficient.
6. Achieve small parts cutting.
7. Optional electric vehicles can realize a 24-hour smart factory.
8. Enhance brand image.
9. Bus system, bus absolute value motor, strong anti-interference ability, no need to return to the origin when starting up.
Faster transmission speed, standard teaching pendant, saving offline programming time. Remote control is possible.

Specification

storehouse	Group 1
Loading and unloading robot	1 set
electric cart	≤ 3 towers
laser cutter	≤ 3 towers
central control system	1 set
Maximum feeding size	6000*2000mm
Minimum feed size	800*800mm
Single layer weight	4000kg
Single layer payload	3000kg
storage layer	≤12 layers (can be customized)
Operating Voltage	220V/380V 50HZ/60HZ

application
