Continuous waste tyre pyrolysis plant with CE

Click here to contact
Product details
Tire Machine Type:Tire Recycling Machine;Product name:Continuous waste tyre pyrolysis plant with CE;
Condition:New;Port:Qingdao Port & Shanghai Port & Lianyungang Port;
Capacity:5TPD, 6TPD, 8TPD, 10TPD, 12TPD, 15TPD,;The whole plant cover area:L*W*H= 30m*10m*7m;
Payment Terms:L/C,D/P,T/T,Western Union,ESCROW;Fuel:Pyrolysis oil/Natural gas/ Coal;
After-sales Service Provided:Field installation, commissioning and training;After-sales Service Provided:Engineers available to service machinery overseas;
Main machine raw material:Q345R, Cr12 alloy steel, Stainless steel ;;Certification:ISO14001 , ISO9001 , CE,;
Brand name:YILONG;Type:Tire Machine;
Place of Origin:Henan China (Mainland);Brand Name:YILONG;
Voltage:three terms;Year:2019;
Weight:35-40 Ton;Warranty:2 Years;
Packaging Detail:15TPD: 1*40FR open container and 2*40HQ containers.;Power(W):18-30 KW;
Reactor thickness:16mm, 18mm, 20mm,;Machine testing:X-ray and pressure.;
Supply Ability:17 Set/Sets per Month;End product:Tyre oil,Carbon black, Steel wire.;
Dimension(L*W*H):Reactor size : D2800*7500mm;
About Us
Company Name
Shangqiu Yilong Machinery Equipment Co., Ltd.
Covering Area
28000 Square Meters
Founded Year
2008
Certification
ISO, CE,8 national invention patents and utility model patents
Main Productions
Tyre/Plastic/Acrylic/Oil Sludge etc...Pyrolysis Machine
 Crude Oil/Used Engine Oil/Pyrolysis Oil  Disitllation machine
Engineer Ownded
4 R&D Engineers, 19Technical Persons
International Market
15% Europe, 14% Southeast Asia, 33% Chinese Mainland, 5% America, 7% Africa, 8% Middle East, 3% East Asia, 11% South Asia, 4% Central Asia, 11% South Asia
Product Description
SPECIFICATIONS FOR PYROLYSIS MACHINE
Capacity
5 TPD,  6 TPD,  8TPD, 10TPD, 12TPD, 15TPD
Reactor Material
Q245R boiler plate,  Q345R steel plate ,  Alloy Steel Plate,  Stainless Steel.
Reactor Thickness
16.45mm, 18.45mm
Weight
30-40 Tons ( Varies by Design and Capacity)
Working Power
15-30KW ( Varies by Design and Capacity)
Area Cover
300 square meters (L*W*H= 30M*10M*7M)
Labor need
2-4 persons( Varies by Configurations)
Processing Time
Loading 2 hours, Processing 8-9 hours, Discharge carbon and steel 1.5 hour
(Take 12 tons/day as sample)
Applicable Material
Waste tyre, Waste Rubber, Waste Plastic, all kinds of oil sludge, waste aluminiu, foil, electric cable, Waste Leather Offcut, Waste Acrylic(PMMA), etc...
Heating fuel
Pyrolysis Oil,  Natural Gas,  Electric ,  Coal,  Firewood .
1)  Raw Material can be used in Pyrolysis machine


2)  End Product

No.
Name
Output
Usage
1
Tyre oil
40-45%
* can be sell directly.
* make diesel and gasoline by use oil distillation machine.
* can be as fuel for heating pyrolysis machine or distillation machine.
2
Carbon black
35-40%
* can be sell directly.
* make fine carbon by use carbon black refining machine.
* make pellet by use carbon make pellet machine.
3
Steel wire
15%
* can be sell directly.
* make steel bloom by use hydraulic press-packing.
4
Non-condensible gas
5%
* can be as fuel burn by use gas burn system(we supply gas burner free.)
* extra gas also be storage as fuel for other heating.


3) Layout Drawing

Why Choose Us
Trustworthy Company -- Shangqiu Yilong Machinery Equipment Co., Ltd
1
 10 Years Manufacturing Experience
2
Keeping updating in each detailed parts
3
Whole Lifetime responsible for Machine Running defects
Trustworthy Machine -- Quality and After-sale Service
1
Free Installation, Debugging and Training.
2
2 Years Warranty for whole set machine
3
Reactor Lifetime can be more than 10 years
4
Discharging time Require only one hour and no need cooling.
5
Running Machine can be visited before confirming contract
Machine Superiority
Reactor Material
Low Alloy Steel material ensure its lifetime to be more than 5 years
Alarm System
Equipment has Auto-alarm system(once pressure higher than normal ,it will alarm)
Considerate Service
Provide foundation drawing/layout drawing/necessary preparations list for customer
High Efficiency Discharging
Discharge carbon black is sealing, when discharging carbon black, more efficient and clean, 2-3 times faster than normal discharge;
Labour Saving
 2 workers for auto feeding system, 3-4 workers for manual feeding system.
Qualified Part 1
Draft fan is low noise and heat-resistance, long life time;
Qualified Part 2
Speed reducer customized according National Standard, thicker shell and rate-adjustment motor
Qualified Part 3
Heat-resistance bearing and lubricate oil ensure the equipment working smoothly, and have long life time .
Others
There will be more advantages during your experiencing our machine ;-)
Certifications
Our Service

Pre-Sales Service

* Inquiry and consulting support.

* Sample testing support.

* View Running Machine.

  After-Sales Service

 * Free installation,Training, debugging.

 * Engineers available to service machinery overseas.

 * 24Hours phone for your calling anytime.

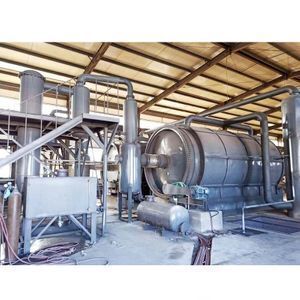

Running Machine
Customer Visiting
Shipping
