RC522 RFID Module with IC Card S50 Fudan Cards Key Chains

Product details
Supply Ability:50000 Piece/Pieces per Day;Current:13-26mA / DC 3.3V;
Brand Name:Okynewstar;Supported card types:S50, S70, UltraLight, Pro, Desfire;
Delivery Detail:1-3 workdays after payment;Idle Current:10-13mA / DC 3.3V;
Operating temperature:-20-80 degrees;Port:Hongkong;
Sleep current:<80uA ; Peak current: <30mA;Dimensions:40mm*60mm;
Relative Humidity:5% -95%;Place of Origin:Guangdong China (Mainland);
Voltage Supply:0 V ~ 48 V;Payment Terms:L/C,D/A,D/P,T/T,Western Union,MoneyGram,credit card;
Operating Frequency:13.56MHz;Packaging Detail:standard package(Anti-static bag + carton packaging);
Model Number:OKY3492;Storage temperature:-40-85 degrees;






High quality RC522 RFID Module with IC Card S50 Fudan Cards Key Chains



Features:

MF RC522 is applied to the highly integrated read and write.
13.56MHz contactless communication card chip.
Low-voltage, low-cost, small size of the non-contact card chip to read and write.
Smart meters and portable handheld devices developed better choice.
The MF RC522 use of advanced modulation and demodulation concept completely integrated in all types of 13.56MHz passive contactless communication methods and protocols.
14443A compatible transponder signals.
The digital part of to handle the ISO14443A frames and error detection.
support rapid CRYPTO1 encryption algorithm, terminology validation MIFARE products.
MFRC522 support MIFARE series of high-speed non-contact communication, two-way data transmission rate up to 424kbit/s.
MF RC522 are similar to MF RC500 MF RC530 , but also have the characteristics and differences. Communication between it and the host SPI mode helps to reduce the connection narrow PCB board volume, reduce costs.
The MF522-AN module design circuit card reader, easy to use.
Low cost, and applies to the user equipment development.
The reader and advanced applications development meet the user RF card terminal design/production needs.
This module can be directly loaded into the various reader modules, very convenient.

Specification:

Operating Current :13-26mA/DC 3.3V
Idle Current :10-13mA/DC 3.3V
Sleep Current: <80uA
Peak Current: <30mA
Operating Frequency: 13.56MHz
Supported card types: mifare1 S50, mifare1 S70 MIFARE Ultralight, mifare Pro, MIFARE DESFire
Environmental Operating Temperature: -20-80 degrees Celsius
Environmental Storage Temperature: -40-85 degrees Celsius
Relative humidity: relative humidity 5% -95%
Reader Distance: ≥50mm/1.95"(mifare 1 )
Module Size: 40mm×60mm/1.57*2.34"
Module interfaces SPI Parameter
Data transfer rate: maximum 10Mbit/s

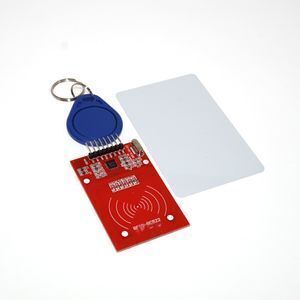

Package Contents:

1 x RFID-RC522 Module
1 x S50 Blank Card
1 x S50 special-shaped card (as shown by the key ring shape)

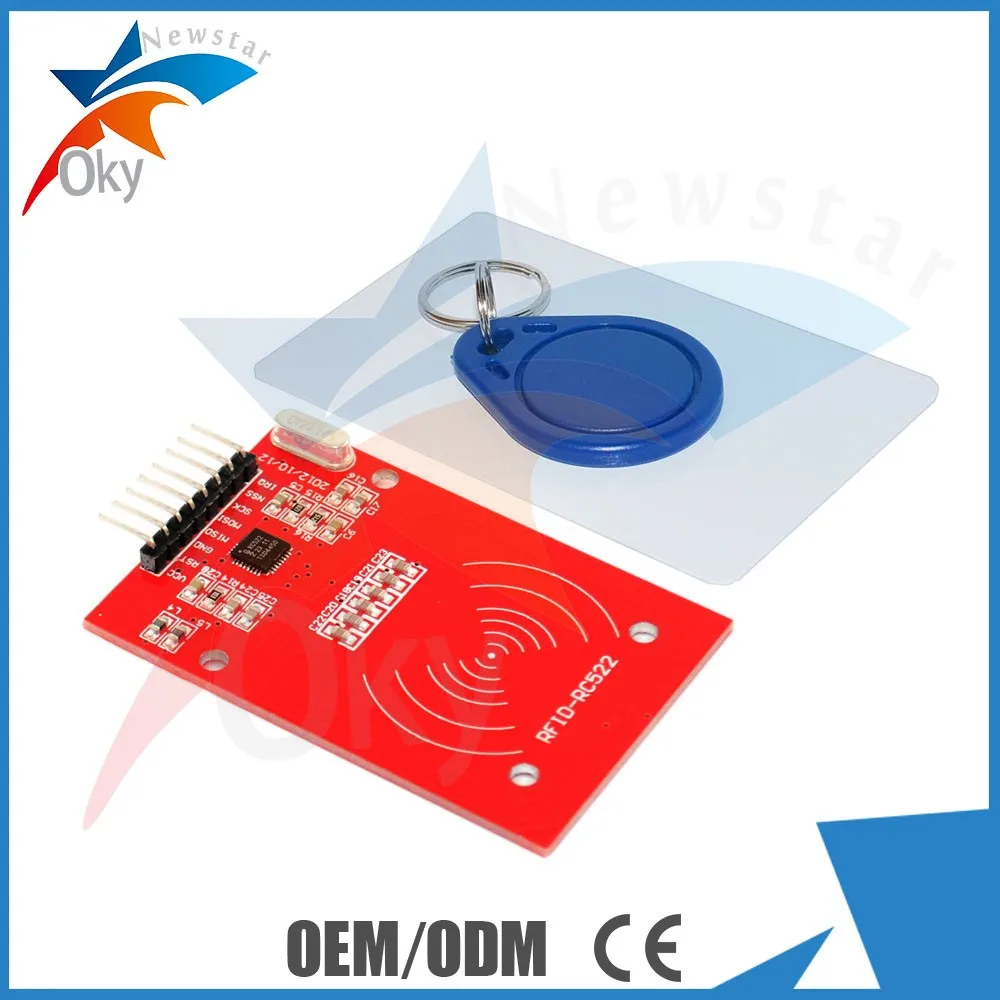

Photos:







































Company Information

Development:



2005, Established in Shenzhen, Guangdong, China, engaged in providing all kinds of diode, audino, integrated circuits, and electronic components.

2006-2008, Invested in Single Chip Microcomputer plant, specialized in manufacturing all kinds of sensor modules and power supply modules.

2009-2010, Started to manufacture Ardu-related modules, sensor modules, single development boards, etc.

2011-2012, Mainly provided various kinds of Ardu-related boards and shields, such as UNO R3, Mega, DUE, W5100 etc. At the same time, invested in the factory of 3D printer spare parts.

2013-2014, Took Ardu supplies as leading business,Cooperating with DIY factory, providing Ardu-related Robot products such as servo, control board cables and so on.

2015, Striving to develop overseas business, lower, accepting small batch orders. Investing in 3D printer factory and expanding product offerings.



Teams:



Awards:

Service & Advantage



1.Factory supply directly,can design,manufacture according to clients’ requirement.

2.Rich stock can satisfy urgent requirement.And support small orders.

3.2-3 years warranty.

4.24 hours reply service





Packaging & Shipping

Packing Procedure:

Shipping Ways and time needed:








FAQ



1. What is the terms of payment?

2. What is the delivery time?

Normally, 1-5 workdays after payment;

Special requirement orders, delivery time is negotiable.



3.If the products can’t work after receiving it,what should I do?

We will replace new items for you at once, and respect your final decision for wrong goods.



4.If the products don’t meet my demand after I received it,can I return it?

Yes,no problem.

You can return back to us, we will refund your full payment.





5.what is the warranty?



1-2 years warranty according to different products.



1-3 months to replace new items for free.



All products are tested strictly for 2-3 times before leaving factory. we have earned very good reputation in quality,Certified by the ISO9001.
