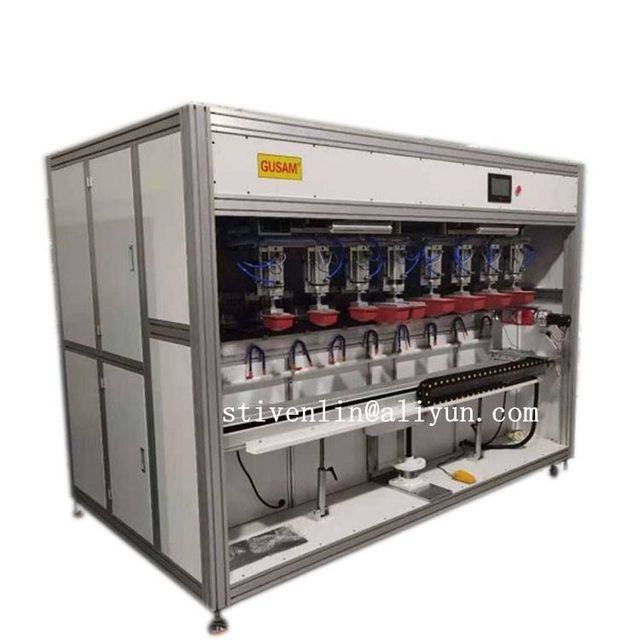

Eight-color plastic toy full body printing pattern machine toy automatic pad printing machine

Fully automatic eight-color rotating multi-angle multi-surface pad printing machine for plastic toys full body printing machine

1. Automatically rotate 360 ​​degrees, the XYZ three-axis servo motor drives the robotic arm to move the appropriate rubber head to the oiling and printing position according to the program input by the computer.

2. Eight steel plates can print 16 colors

3.Steel plate pattern size: 200*450MM

4. Multi-color printing PLC program control, human-machine interface digital system operation, providing multi-function settings, standard data, standardization, humanization perfect combination.

5. The running platform adopts shuttle movement, and the servo motor drives the material pushing platform. The platform moving position and distance sequence can be set arbitrarily to achieve the number of printing colors, and printing can also be done with increasing distance. Its printing position is accurate, the operation is stable, it can be moved to multiple positions, and it is easy to load and unload.

6. Independent pad blanking, perfect solution for large and small pattern substrates, the human-machine interface can be set to single-color printing or multi-color simultaneous printing, and can automatically set the product printing position to rotate 360 ​​degrees and print in multiple directions. It has powerful functions, high printing efficiency and simple operation.

7. This machine is equipped with automatic rubber head cleaning function, hot air drying system, safety protection door, and sealed environmentally friendly oil cup.

scope:

1. Payment terms: T/T 50% advance payment, balance after inspection before delivery

2. Using top-grade components, stable and durable

3. Equipped with English panel and instruction manual or video, easy to operate

4. Sample printing can be provided after order confirmation

5. OEM is available

About warranty coverage:
1).Quality warranty: one year after sale.

2). If you need, we can install and teach you printing technology.
3). We can also provide you with some easily worn parts, such as cylinder parts, power switches, etc.
