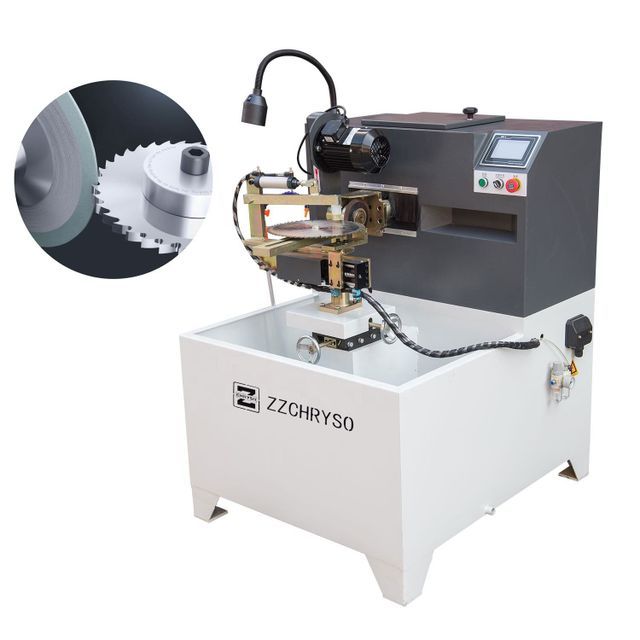

High quality face tooth grinding tct table saw blade grinder sharpener circular saw blade machine

Supplier: Zhengzhou Chryso Machinery Import&Export Co., Ltd.
Region: Henan, China
Contact: Ms Annie Wong
Price: $1690.00 / 1 - 2 sets
$1590.00 / >=3 sets
Min. Order: 1 set

Click here to contact

Product details

Whether CNC:	Normal	Maximum grinding diameter:	800 mm
Power (kW):	543 weeks	Product Name:	Automatic circular saw blade sharpener for sharpening blades
Diamond grinding speed:	2800r/min Carbide Saw Blade Sharpener	Marketing Type:	New products for 2023
Dimensions (LWH):	8506151320mm	Video factory inspection:	if
Origin:	Henan, China	Core component warranty:	1 year
Applicable industries:	Manufacturing plants, retail, woodworking plants	Year:	up to date
Diamond grinding:	Diameter 150Hole 32Thickness 10mm	usage:	Surface polishing
Voltage:	380 volts 50 Hz	Mechanical test report:	if
Key selling points:	Automatic	Grinding Angle:	0-30 degree carbide saw blade sharpening machine
Maximum grinding length:	2500 mm	Payment Terms:	L/C, Western Union, D/P, D/A, T/T, MoneyGram, Credit Card
Weight (kg):	157	type:	General saw blade grinding
Brand Name:	Zinc Ore	accurate:	0.005 mm
Gear pitch:	3-45 mm	Exhibition Hall Location:	No

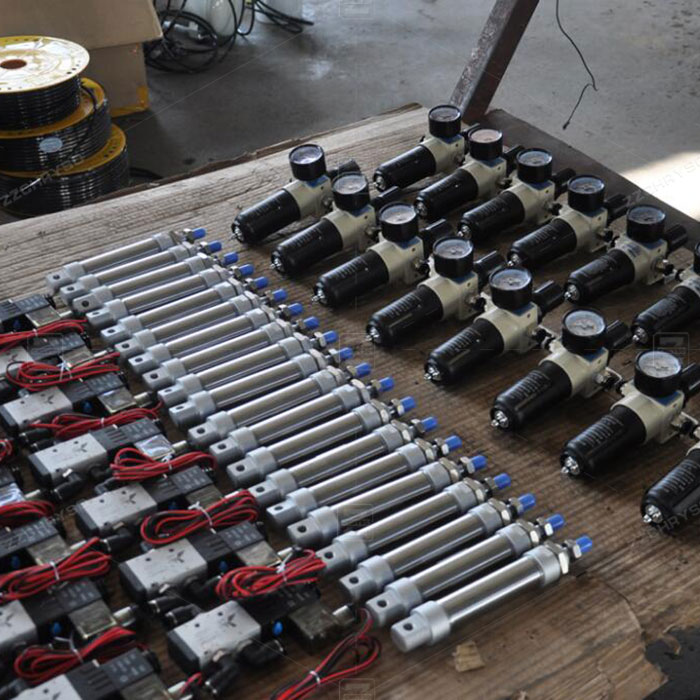

Core components:	Motor, PLC	Health status:	New
Warranty:	1 year

Product Description

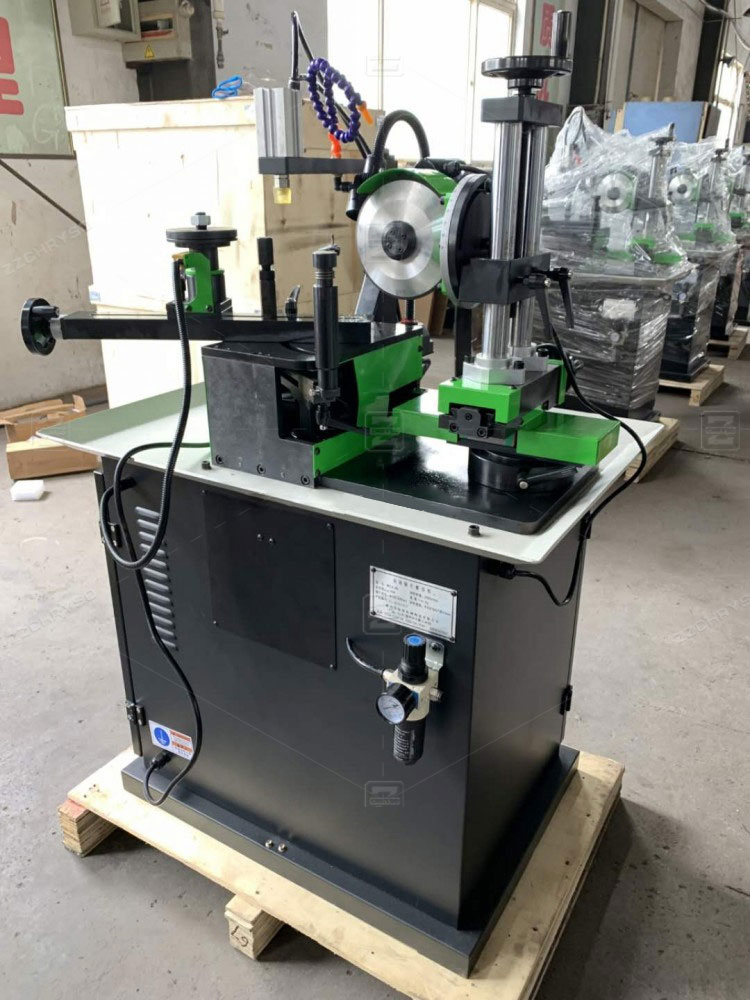

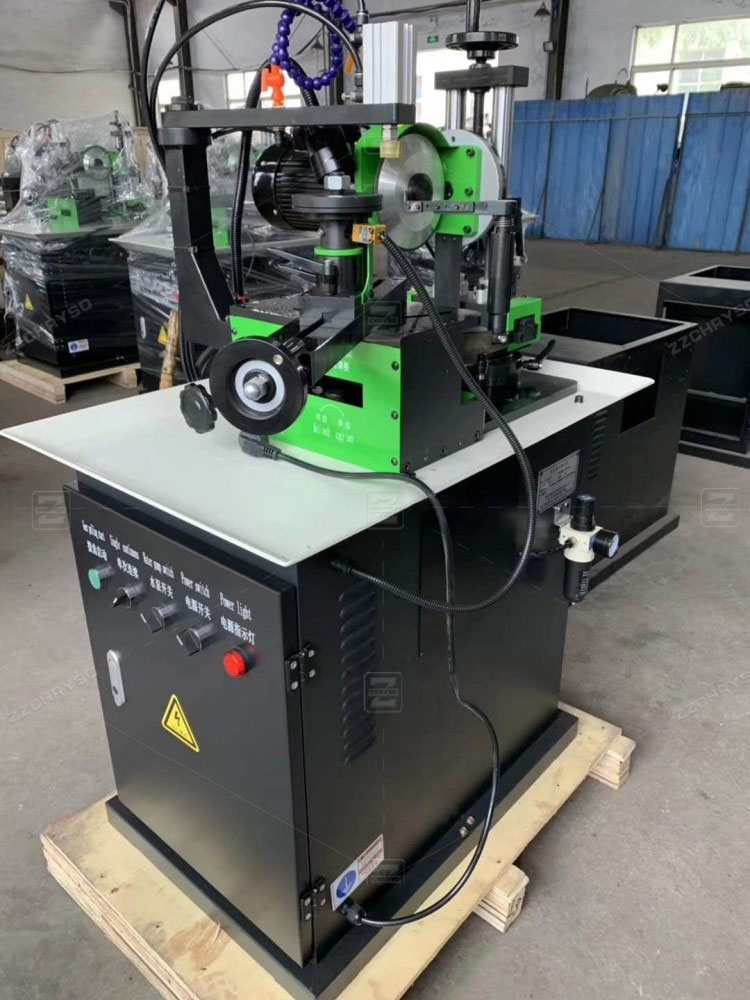

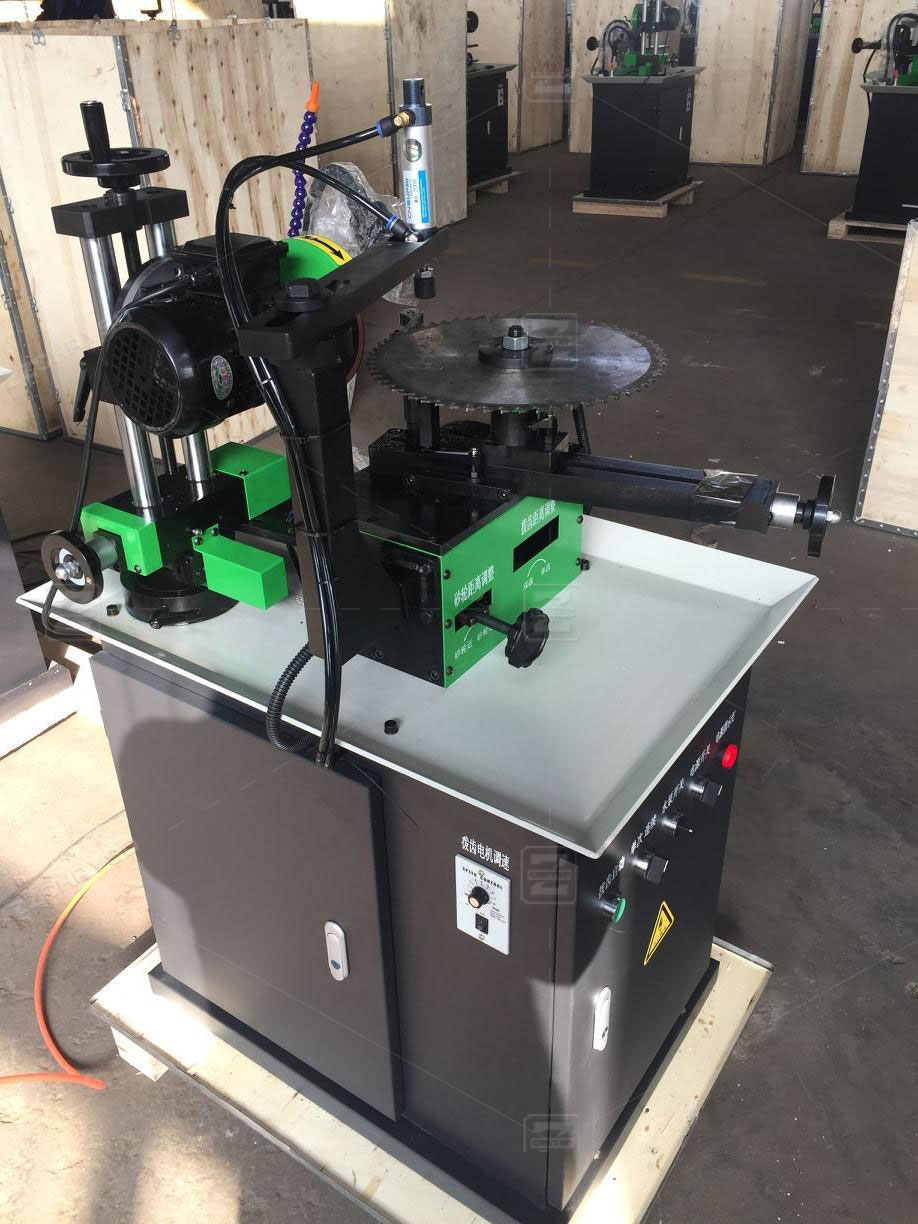

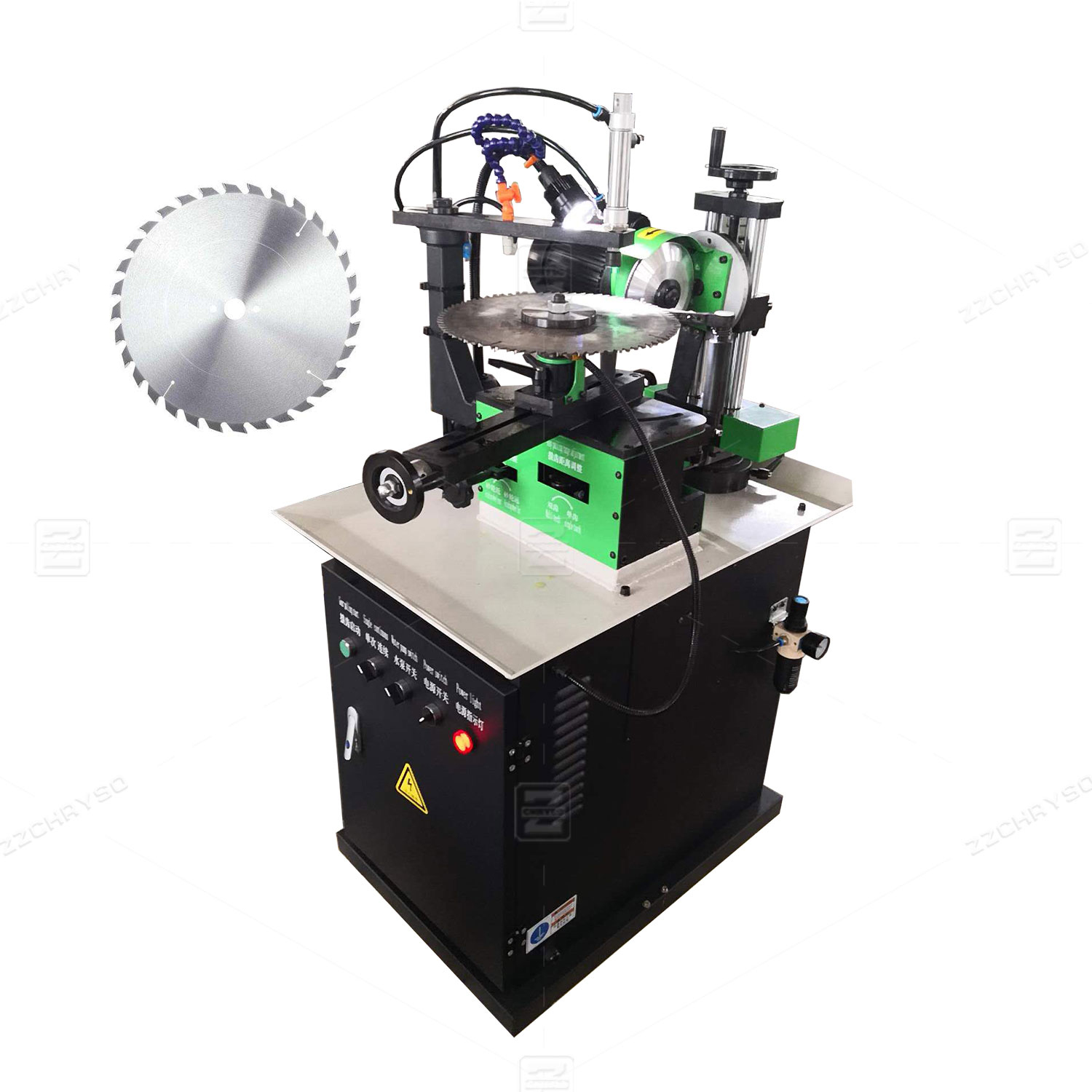

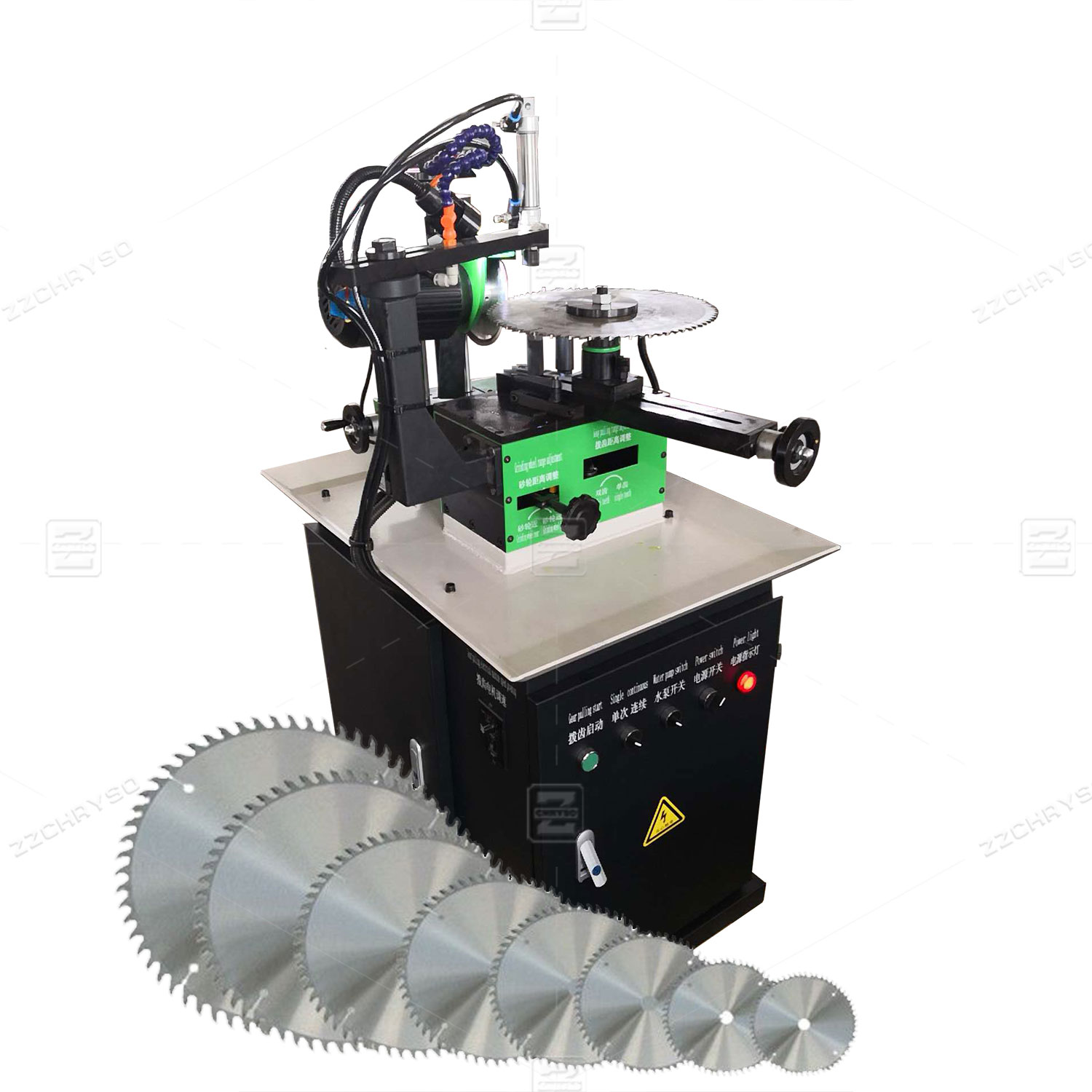

Automatic saw blade sharpener

1. The CRS-04 fourth-generation fully automatic saw blade grinder developed and produced by our company has the characteristics of intuitive structure, easy operation, practicality, precision and beauty.

2. The cutting angle, number of teeth and tooth depth of the saw teeth can be changed according to different chip requirements, and a sharp saw blade can be easily sharpened.

3. Materials of sharpenable saw blades: high speed steel (HSS) saw blades, flying saw (manganese steel) saw blades.

4. Can be worn with a variety of teeth. (left and right teeth, arc teeth, triangle teeth, high and low teeth).

5. The grinding time of the blade can be quickly adjusted according to different cutting requirements.

6. The handle can be tilted up and down, and chamfering can be done without changing the grinding wheel.

Working principle of automatic saw blade sharpener

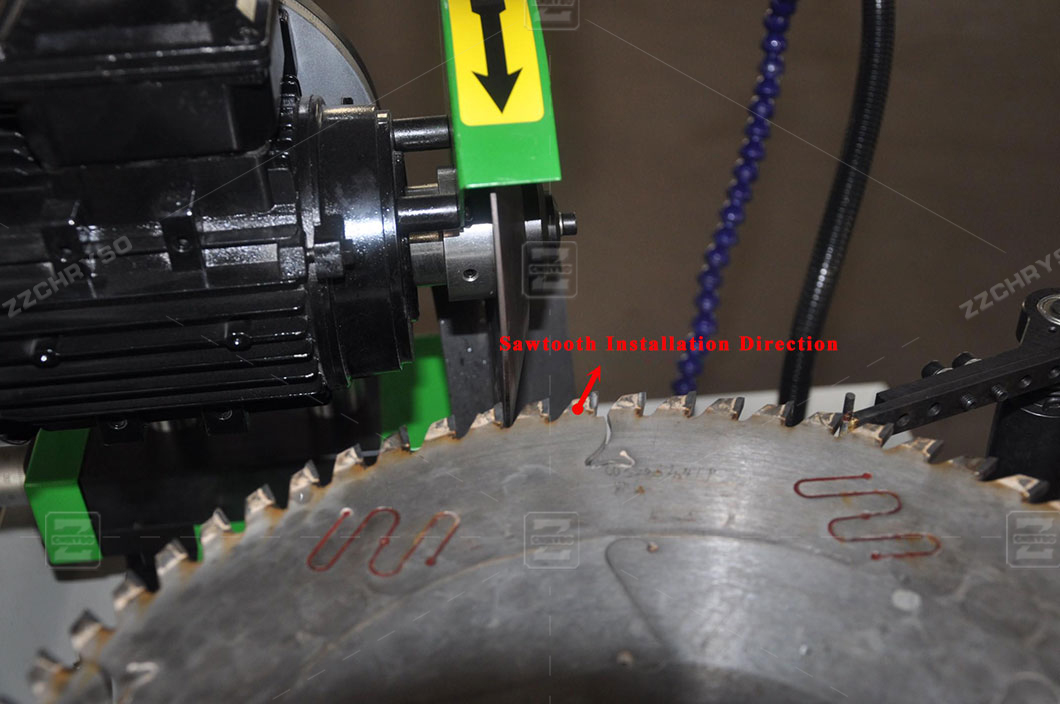

This machine completes the saw blade grinding completely by mechanical interlocking linkage: after the saw teeth are fed, the cylinder presses the saw blade, the needle returns, the grinding wheel mechanically feeds and grinds, and then returns, the cylinder is released, the saw teeth are fed, and the automatic machinery reciprocates to realize the saw blade grinding function.

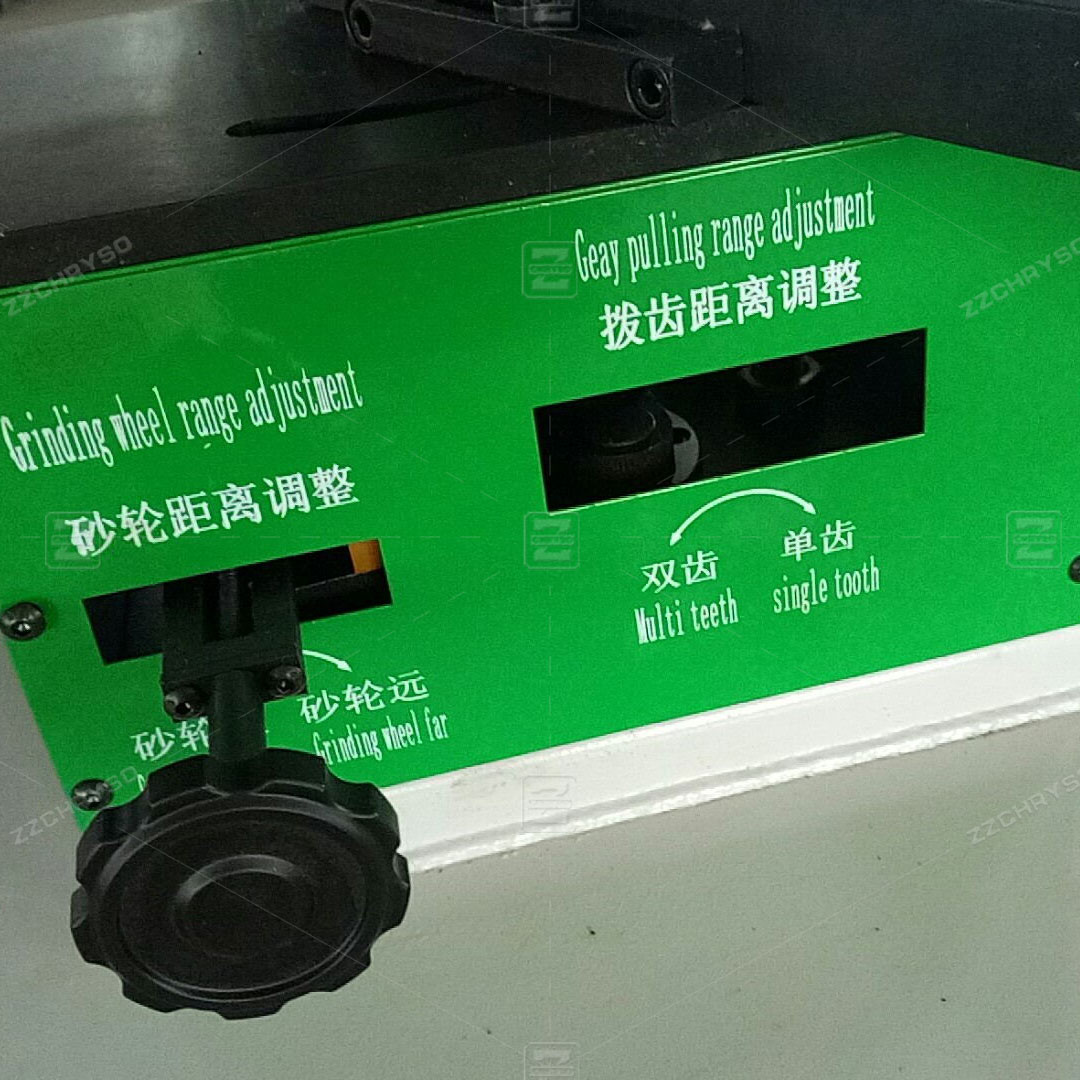

technology: Press the grinding blade onto the saw blade fixed shaft, adjust the dial pitch, adjust the grinding wheel grinding angle and feed distance, after starting the machine, adjust the grinding wheel feed amount, and automatically complete the saw blade grinding.

Specification

Product Name	Saw Blade Sharpening Machine
Saw blade grinding machine	120-800 mm
Total Power	543 weeks
Voltage	380 volts
frequency	50 Hz
Gear Pitch	3-45 mm
Grinding speed	Stepless speed regulation
Grinding wheel speed	2800 rpm
Grinding wheel specifications	Diameter 150Hole 32Thickness 10mm
aspect	8506151320mm
Packing size	9006651320mm
gross weight	157 kg

feature

Features of Universal Automatic Saw Blade Sharpener

1. Saw blade fixing mechanism 2. Automatic saw tooth mechanism

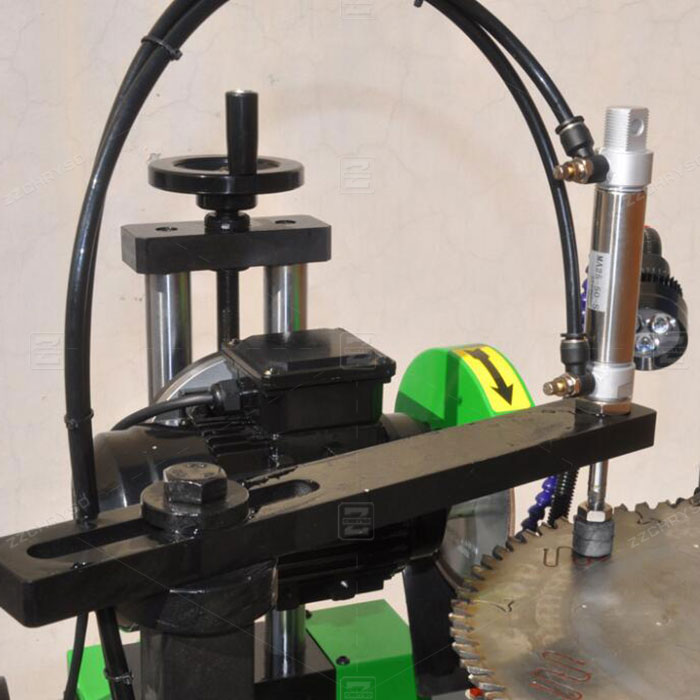

3. Automatic clamping mechanism for saw blade

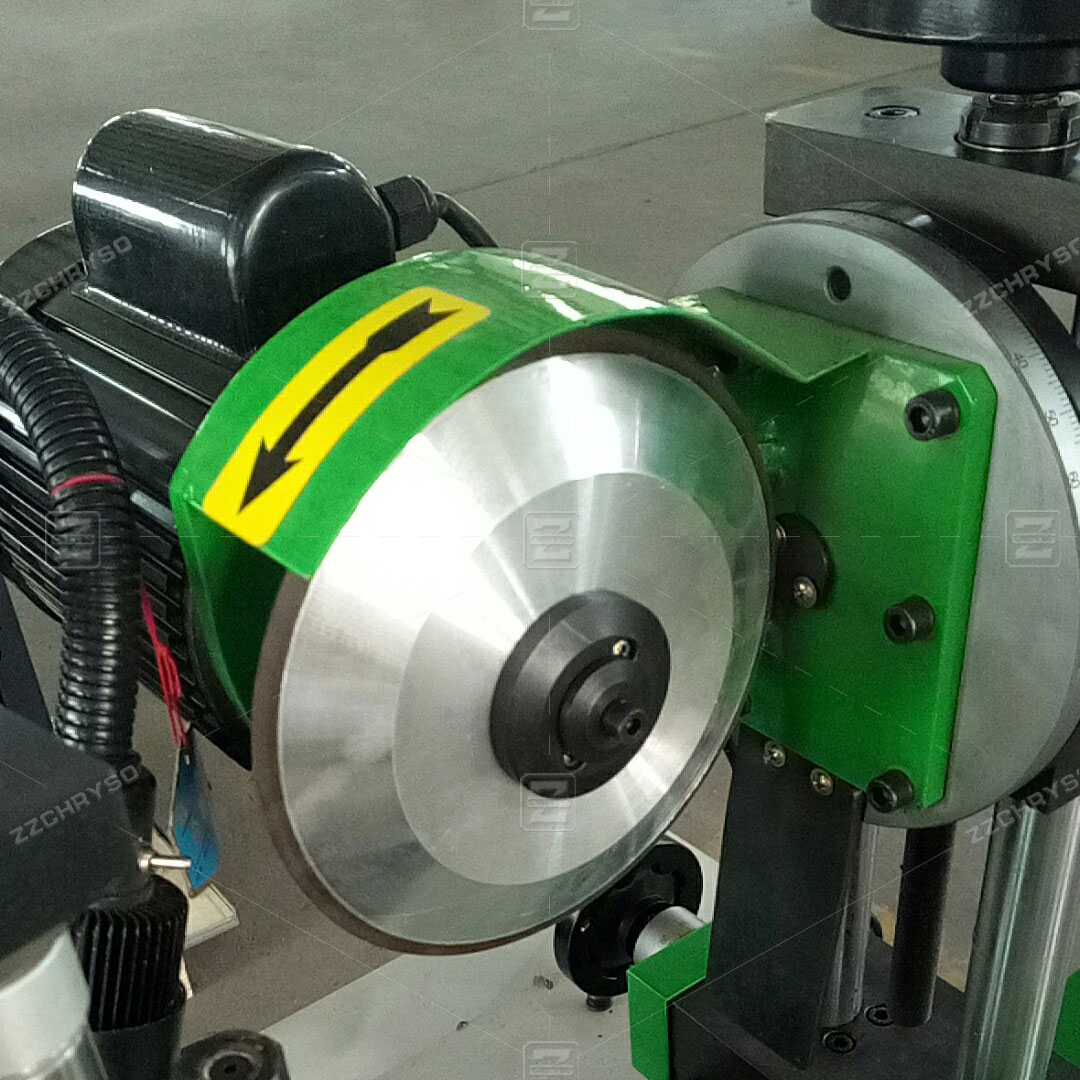

4. Grinding wheel mechanism

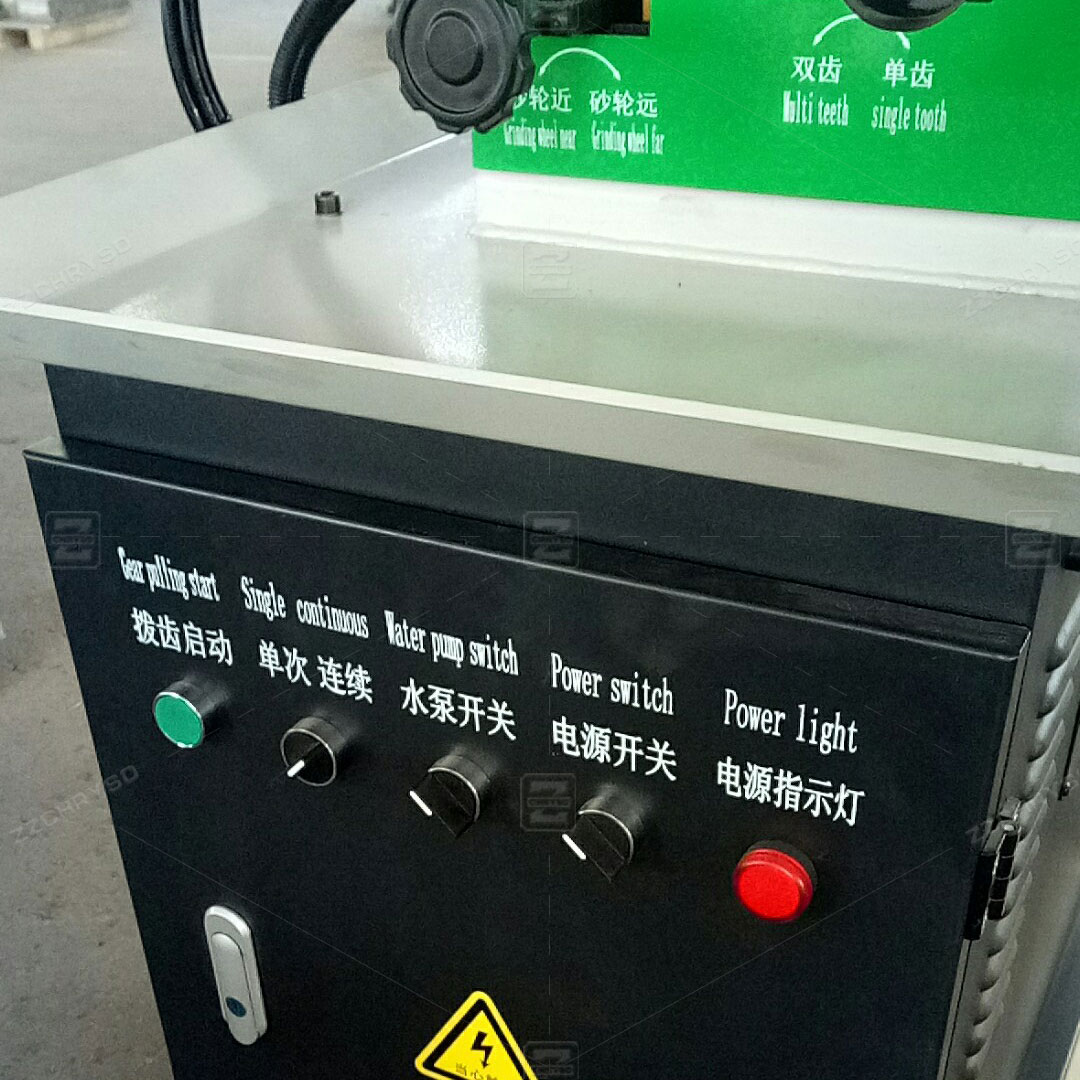

5.Electrical control mechanism
6. Cutting fluid cooling mechanism
