15.6-inch payment kiosk touch screen self-service ordering kiosk wall-mounted desktop floor-standing POS machine self-service payment kiosk

Supplier: Dongguan Tcang Electronics Co., Ltd.
Region: Guangdong, China
Contact: Ms Lulu Lin
Price:
Min. Order: 1 piece

Click here to contact

Product details

Product Description

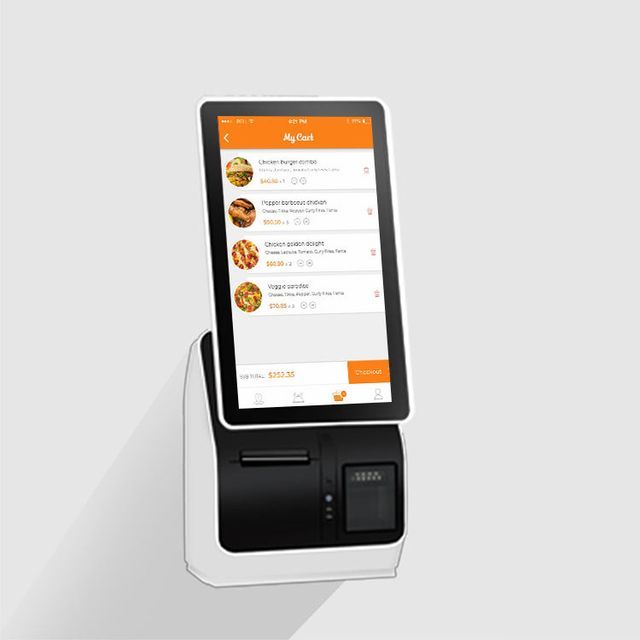

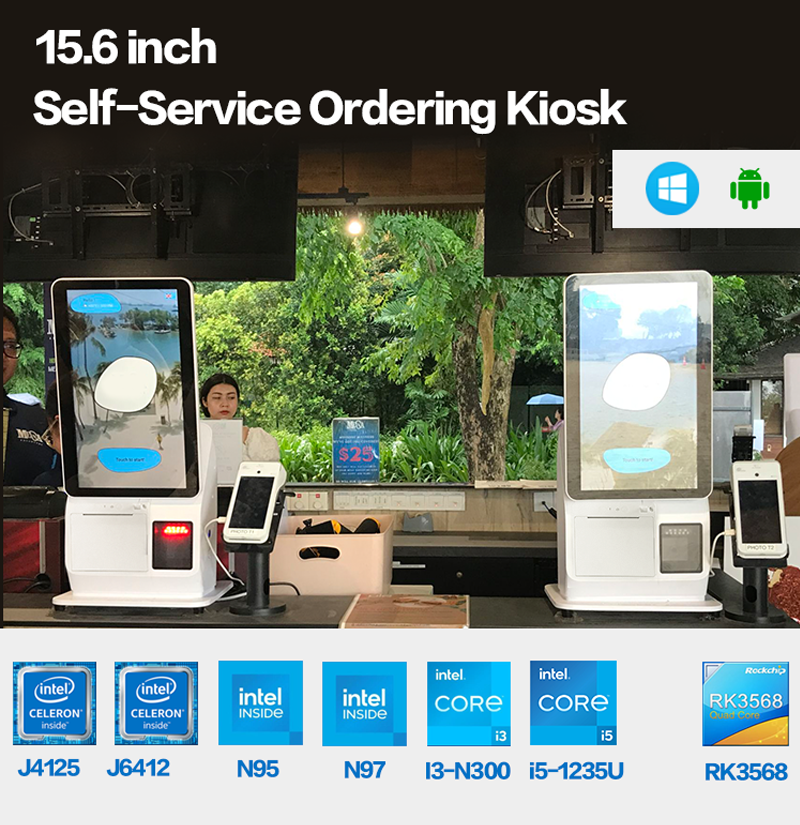

Payment Kiosk 15.6-Inch All-in-One POS Hardware Touch Screen Self-Service Ordering Kiosk.

1. TC-TOUCH-K12 15.6-inch POS machine POS system POS hardware. (Desktop/wall-mounted) 2. This product is equipped with an 80mm thermal label printer. 3.15.6 "Payment terminal LED TFT (1366*768) can be equipped with 1920*1080P" capacitive touch screen wall-mounted cash register self-service ordering machine hardware. 4. The point-of-sale system can be used for personal store cashiers, self-service ordering machines, Self-service machine 5.TC-TOUCH-K12 all-in-one machine, etc. POS machine system optional: "MSR, WIFI, speaker, RFID (read/read+write only)" desktop/wall-mounted, USB and COM ports optional.

6.This product supportsOEM/ODMcustom made. Delivery is fast and stable.Rapid production mold customization

7.After-sales service Solve some of your questions and practical problems

motherboard	Android	Windows
CPU	RK3568: Quad-core Cortex-A55, frequency up to 2.0GHz	J1900:: Quad Core 2.0GHz J4125: Quad core 2.0GHz J6412:: Quad Core 2.0GHz (Supports Core i3/ i5/ i7 CPU)
Operating system support	RK3568: Android 11/13	Windows 10/11, Linux
exhibit	15.6" LED TFT front	15.6" LED TFT front
brightness	250 nits	250 nits
solve	15.6" LED TFT(1366768) optional 19201080P	15.6 inches (1366*768)
touchscreen	Capacitive touch screen	Capacitive touch screen
tilt angle	35-90 degrees	35-90 degrees
Memory	2G	4G
solid state drive	32G	128G
SATA slot	No	1 mSATA slot

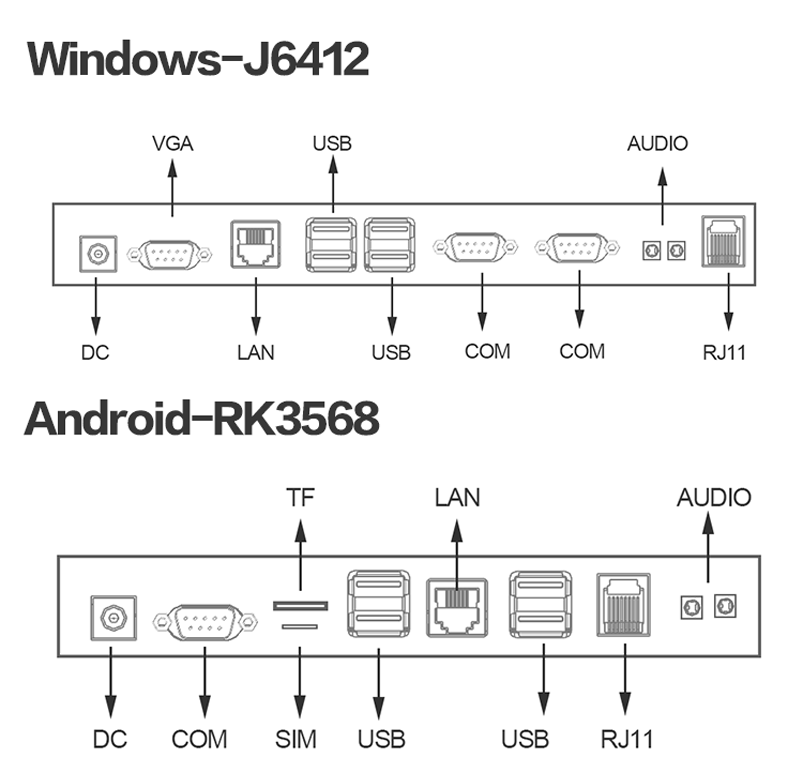

serial	1 serial port	1 serial port
USB	5 USB 2.0 (external), 2 x USB 2.0 (internal, reserved for touchscreen, MSR)	5 USB 2.0 (external), 2 x USB 2.0 (internal, reserved for touchscreen, MSR)
local area network	1 x RJ-45, Gigabit LAN, 100 adaptive 1 RJ11	1 x RJ-45, Gigabit LAN, 100 adaptive
VGA	No	1 x DB-15, female
DC	1×+12V 5A	1×+12V 5A
audio jack	1 x line out, 1 x microphone in, 1 x internal speaker	1 x line out, 1 x microphone in, 1 x internal speaker
Wifi	IEEE802.11b/g	(option)
card slot	1 SIM card 1 TF card	No

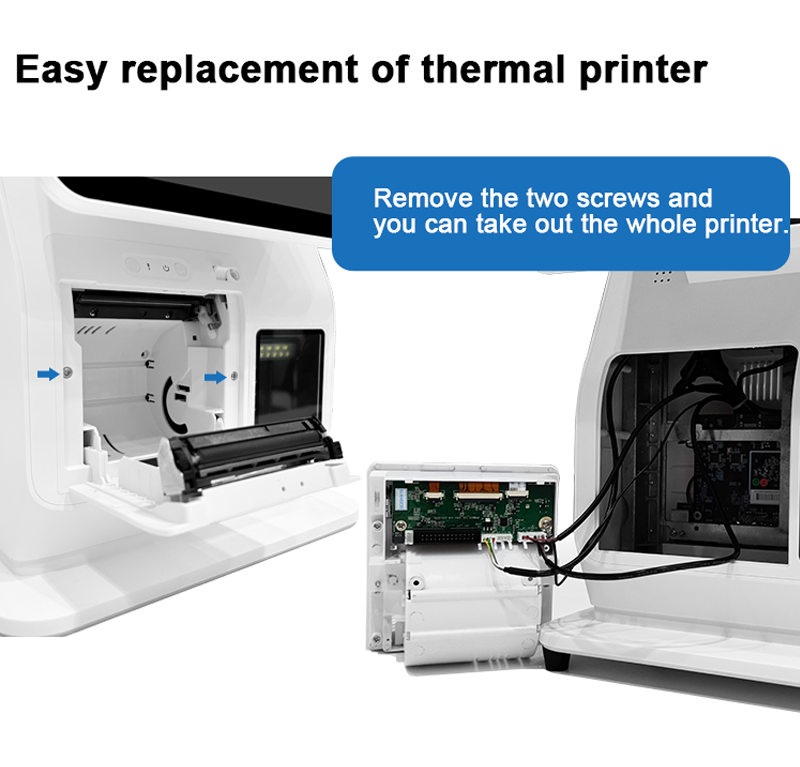

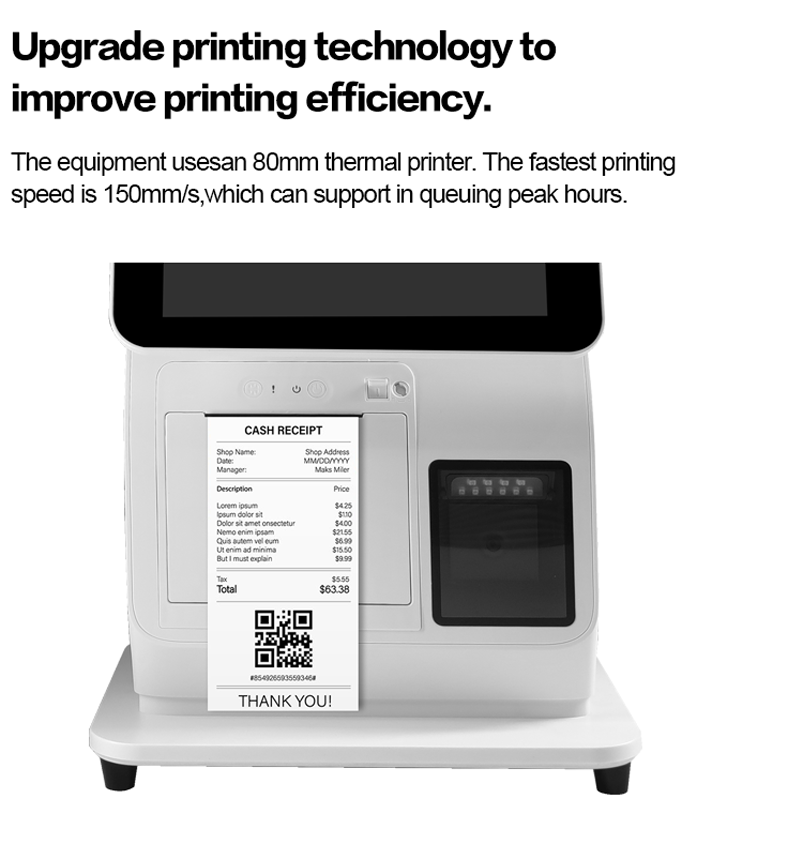

printer	80mm thermal receipt printer Printing speed 150mm/s, 100 kilometers between work and life, Tool life 1,000,000 times, Paper roll: maximum diameter 80mm	80mm thermal receipt printer Printing speed 150mm/sec, 100 kilometers between work and life, Tool life 1,000,000 times, Paper roll: maximum diameter 80mm

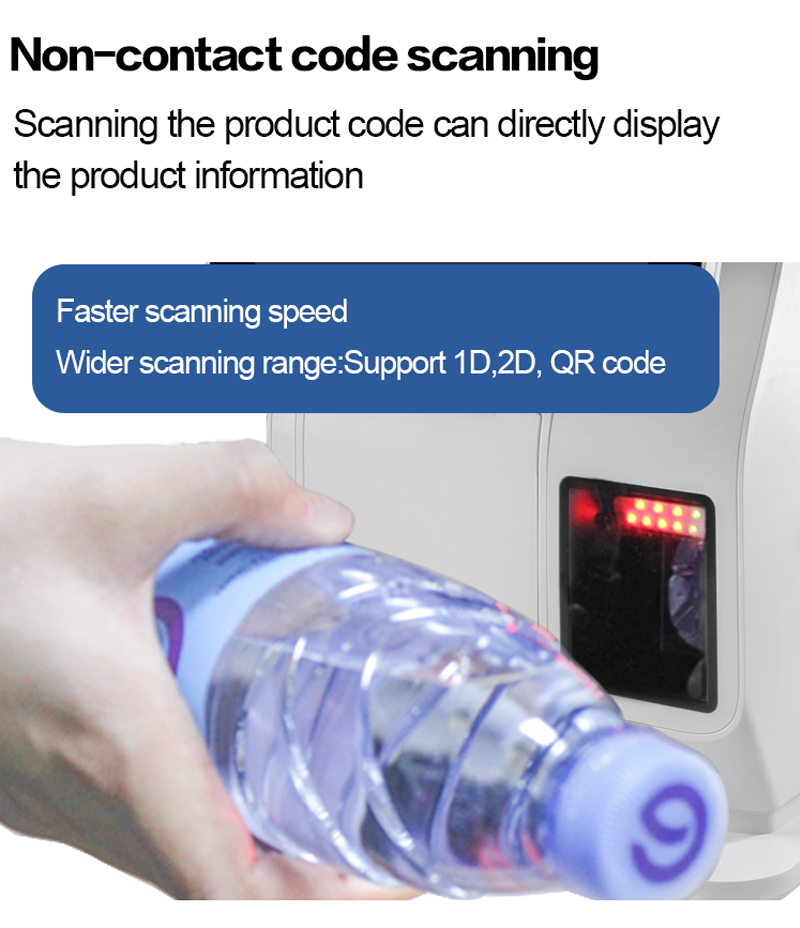

scanner	Support one-dimensional + two-dimensional code	Support one-dimensional + two-dimensional code

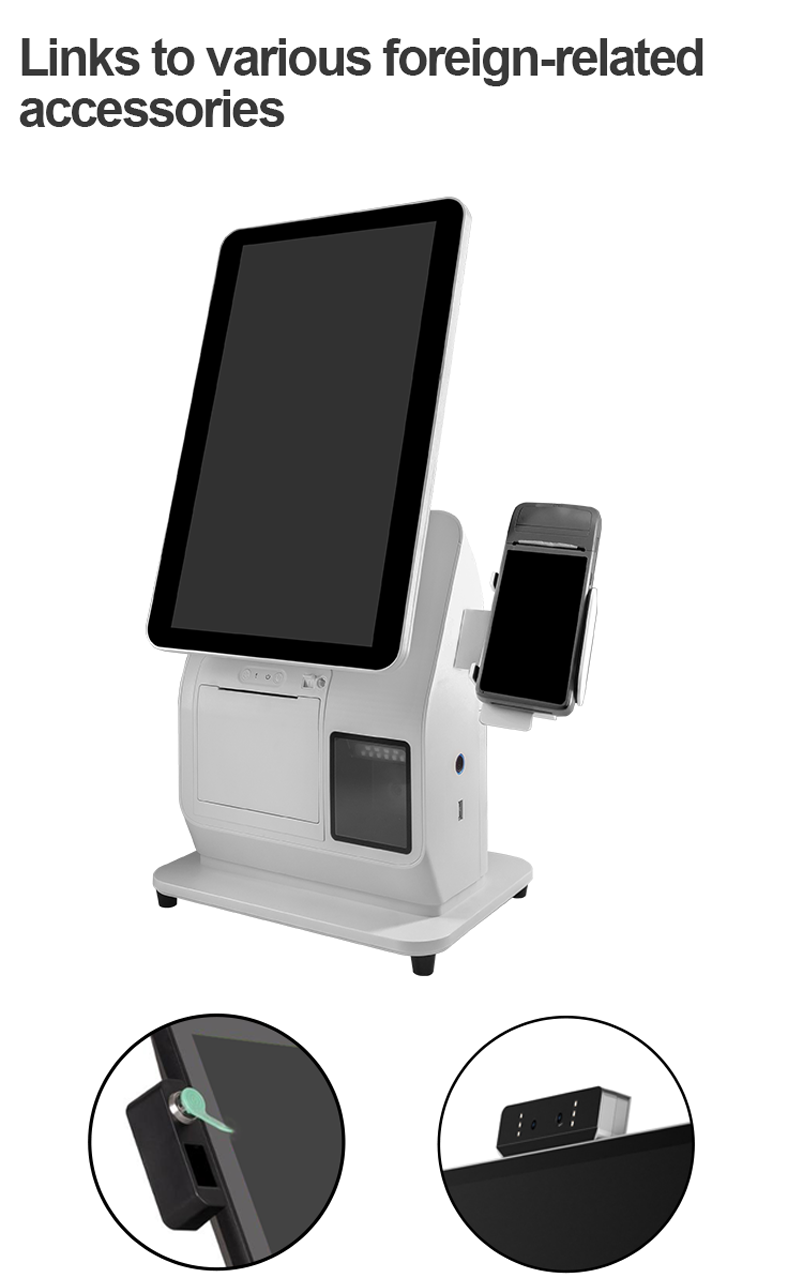

Elective	MSR, speaker, RFID (read only/read+write)	MSR, Wifi, speaker, RFID (read only/read+write)

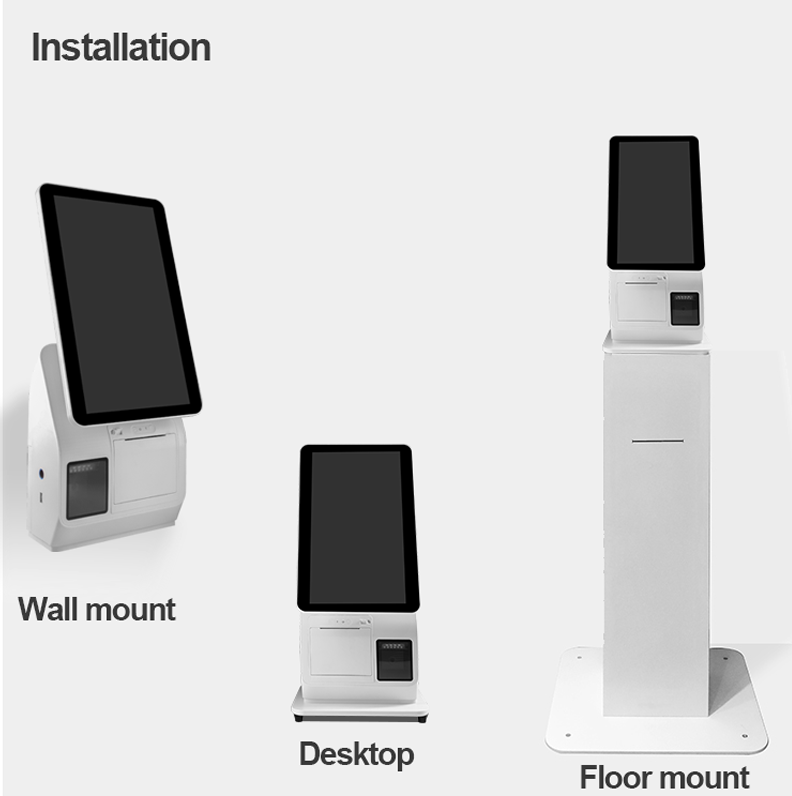

Booth design	Desktop/wall-mounted	Desktop/wall-mounted

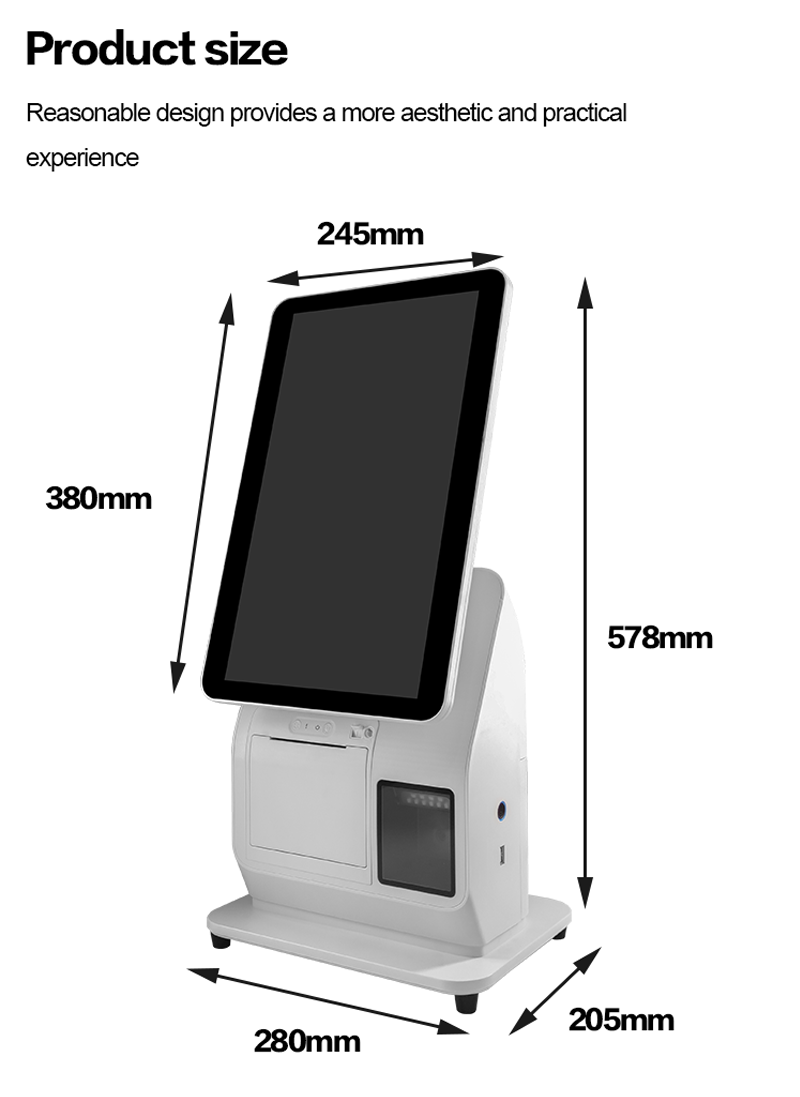

Packing size	363267cm	363267cm
Volume weight	15.5kg	15.5kg
