Tire No.: | 6; | Packaging Detail: | polished with was before shipping ,naked or ro-ro ship; |
Traction weight: | 3ton; | Tire specification: | 9R17.5 14PR; |
Chassis Brand: | Sinotruck; | Condition: | New; |
Transmission Type: | Manual; | Payment Terms: | L/C,T/T; |
Horsepower: | 112hp; | Place of Origin: | Hubei China (Mainland); |
Cab seat no.: | 3; | Emission Standard: | Euro 4; |
Displacement/Power: | 3856ml/83kw; | Wheelbase: | 3800mm; |
Flat plate size(L*W): | 5600*2300mm; | Fuel Type: | Diesel; |
Dimensions (L x W x H) (mm): | 7420*2350*2470mm; | Port: | Shanghai; |
Supply Ability: | 500 Set/Sets per Month; | Brand Name: | CJ; |
Gross weight: | 8280kg; |
Products features
1.This truck is mainly used for road fault vehicle, urban peccancy vehicles and rescue, etc.
2.4X2 high quality Dongfeng chassis, flat cab with left/right hand drive/AC.
3. Low fuel consumption
4. Factory sale .
Technical Parameters
This parameter is just for your referance, we can produce different specifications according
to your demands. Carbon steel, stainless steel, aluminum etc. metireals for you to chose from.
Vehicle main technical information | ||

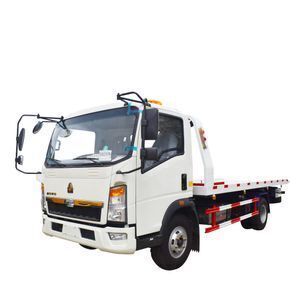

Product Name | howo flatbed wrecker truck | |
Dimension(L*W*H) | 7420*2350*2470mm | |
Gross weight | 8280kg | |
Curb weight | 5585kg | |
Flat plate size(L*W) | 5600*2300mm | |
Approaching/Departure Angle | 18/8(°) | |
Front/Rear suspension | 1160/2460mm | |
Traction weight | carry 3ton, tow 3ton | |
Max.speed | 90km/h | |
Chassis Parameters | ||
Chassis Brand | Sinotruck | |
Chassis model | ZZ1087D3814D183 | |
Fuel Type | Diesel | |
Tire Specification | 7.50R16LT,8.25R16LT, 8R17.5,9R17.5 14PR | |
Wheelbase | 3800mm | |
Leaf Spring No. | 3/5+3,8/9+6,11/9+7,11/11+7,9/12+9 | |
Front trend | 1600,1800mm | |
Rear trend | 1535,1595mm | |
Cab seat no. | 3 | |
Axle loading | 2870/5410 | |
Engine Parameters | ||
Manufacturer | Dongfeng Chaoyang Power | |
Model | CY4102-CE4D | |
Horse Power | 112HP | |
Displacement/Power | 3856ml/83kw | |
Emission standard | Euro 4 | |
Special function | ||
rated lift quality | 3000kg | |
bracket arm extension stroke | 3000mm | |
Max effective length of bracket arm | 1200mm | |
The maximum traction speed | 40km/h | |
Flat plate mechanism for wrecker | ||
flat plate size(L*W) | 5600*2300mm | |
flat plate working stroke | 2700mm | |
max.bearing quality of flat plate | 3000kg | |
Winch parameters for wrecker | ||
quantity | 1pcs | |
rated traction weight | 4000kg | |
length of wire rope | 23m |

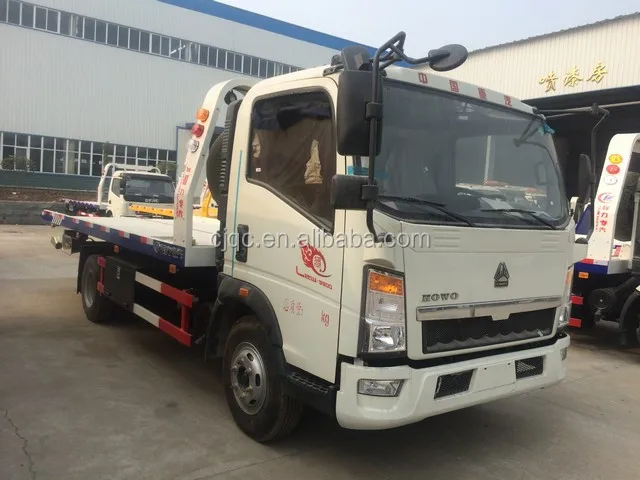

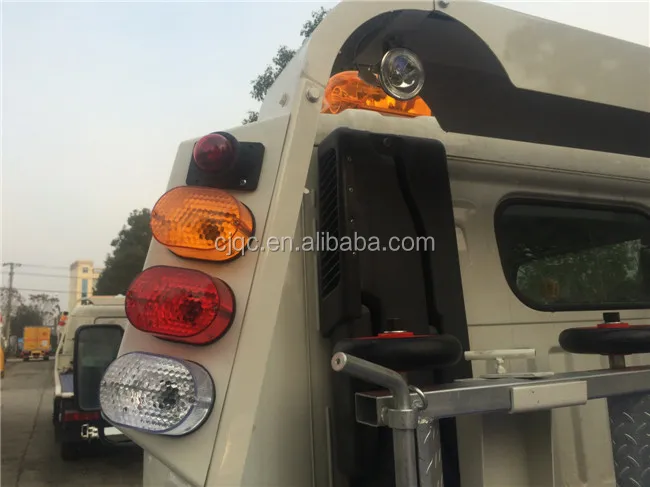

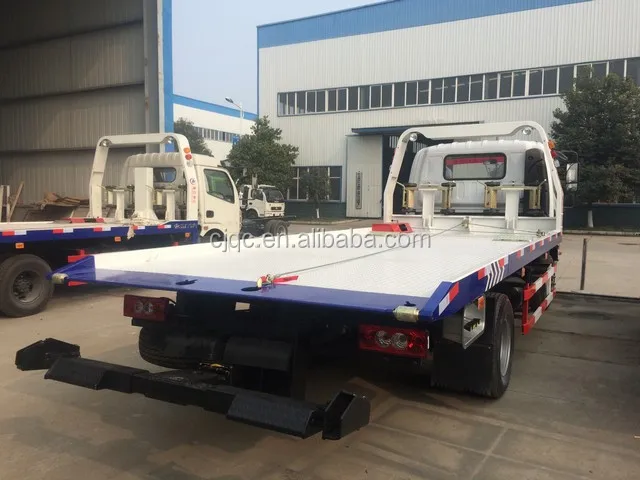

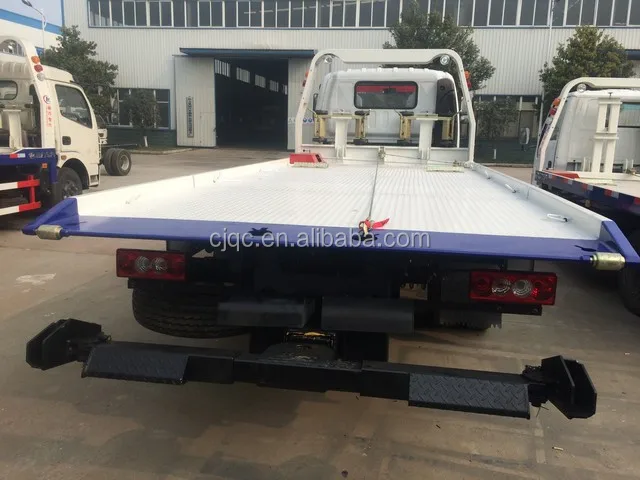

Product images

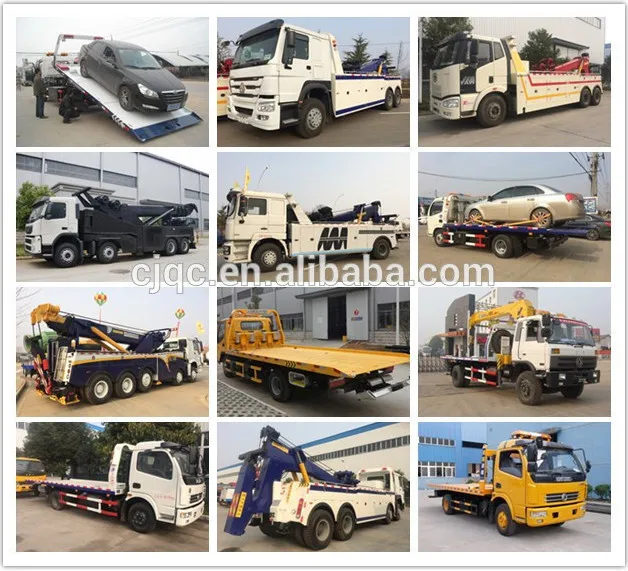

Wrecker truck series
Garbage truck have a wide range of models optional to meet customer demand.

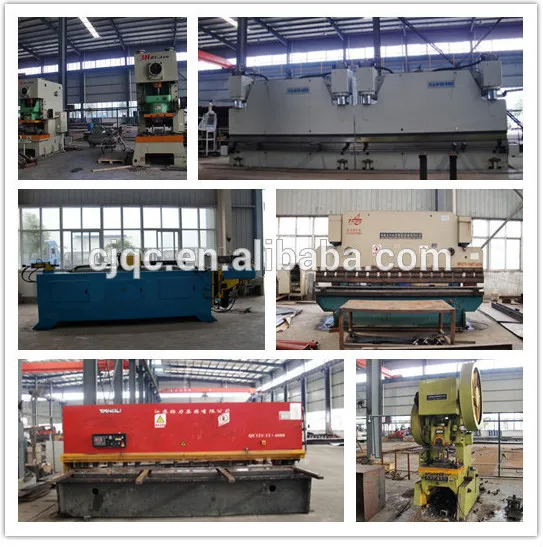

Equipments

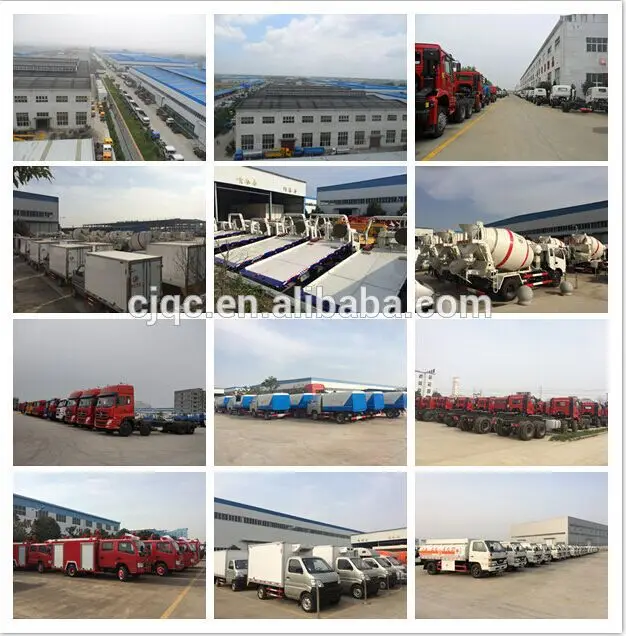

Our company
Our customers
Contact me
