JIS type turnbuckle eye & eye highly polished stainless steel AISI316, for assembly with wire rope

Supplier: Chonghong Industries Ltd.
Region: Chongqing, China
Contact: Mr jacky chen
Price:
Min. Order: 1 piece

Click here to contact

Product details

Product Description

JIS type turnbuckle eye & eye highly polished stainless steel AISI316, for assembly with wire rope

Place of Origin: China (Mainland)
Brand name: Chonghong
Product name: Wire rope flower orchid
Standard: JIS type
Material: stainless steel AISI 316
Size: M5-M20
Surface treatment: polished or as required
Color: silver

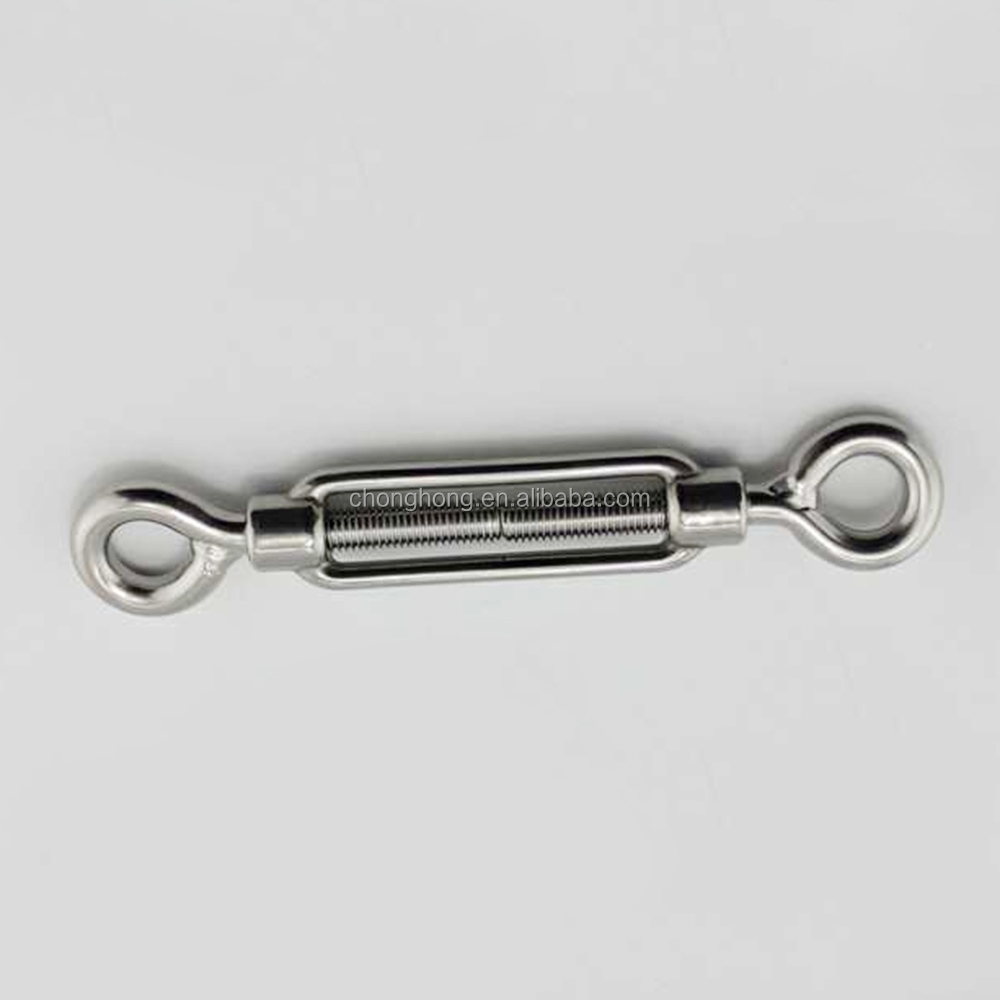

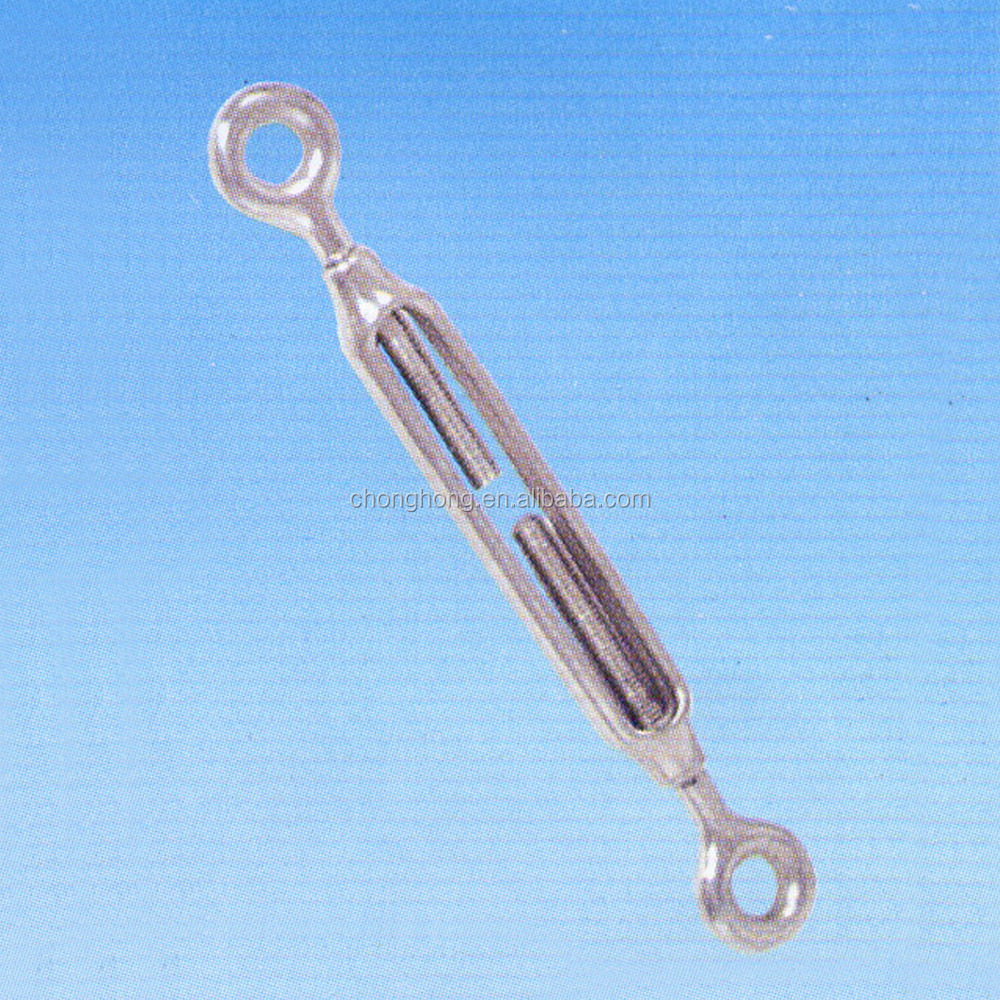

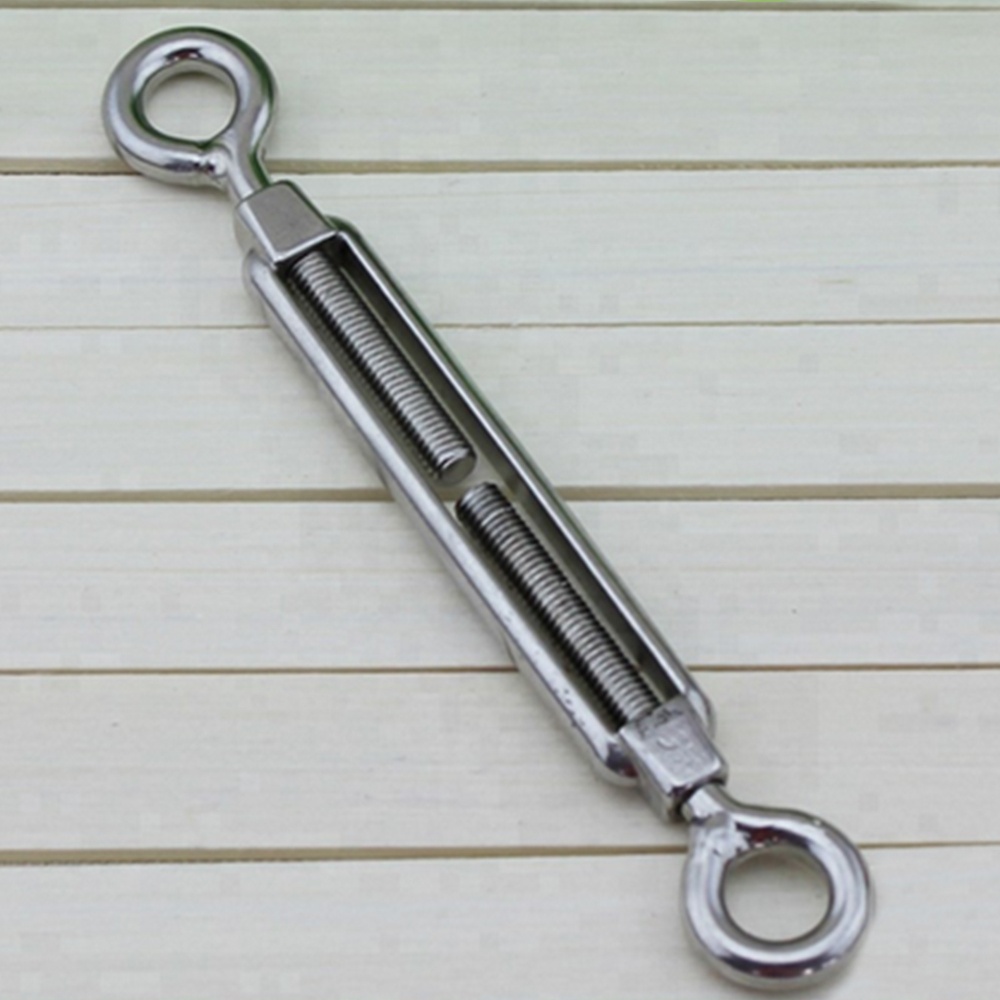

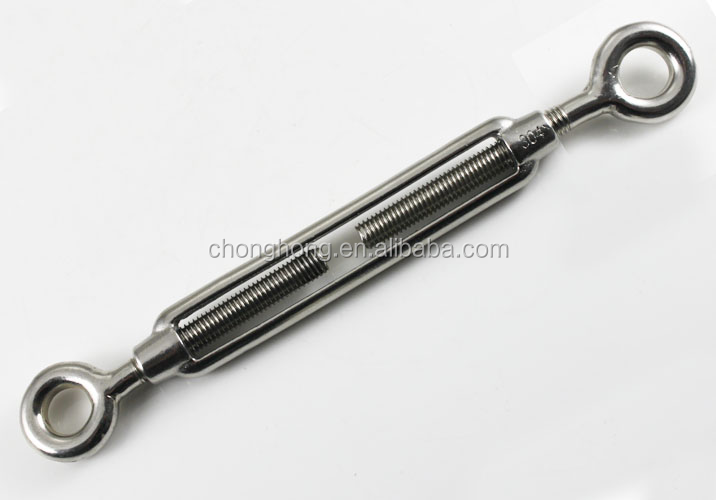

Type: Eye to Eye

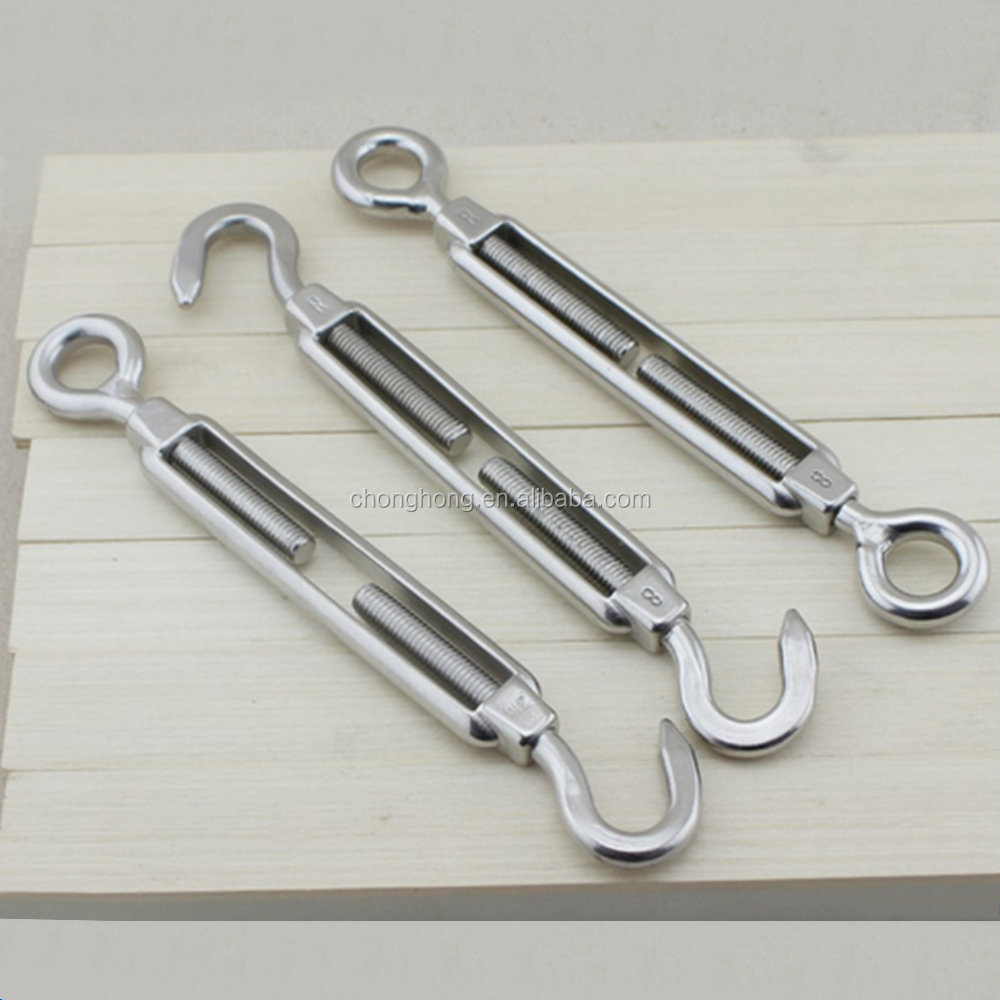

Can also do jaw/eye, hook/hook, jaw/jaw, eye/hook, short end, etc.
technology:Precision casting, stamping

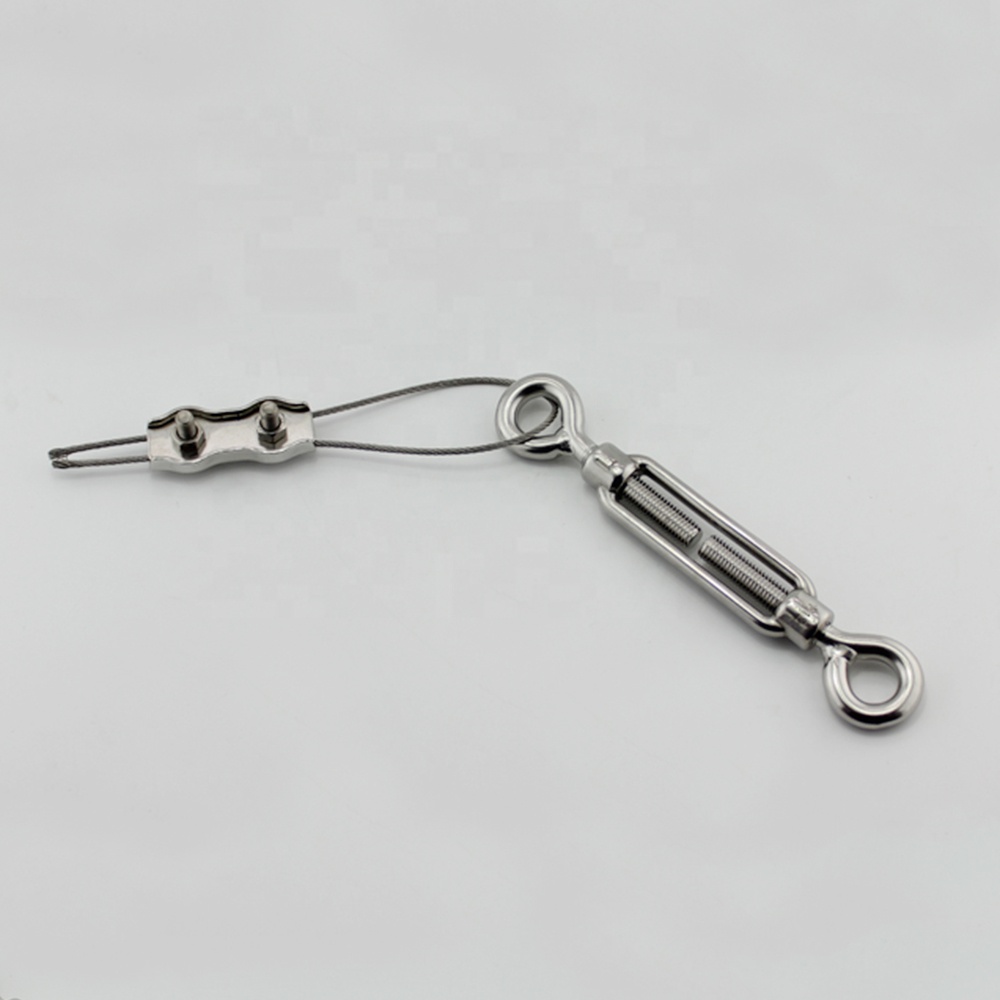

Usage: Assembled with wire rope
Packing: plastic bag, carton or according to customer requirements
Special specifications can also be produced according to drawings and samples.

Our advantages

We can guarantee the best materials based on relevant quotations.
Provide customized services
better product

Related types:DIN1478 type and DIN1480 type, European type, JIS type, Korean type, American type, commercial type, open and closed, standard or non-standard, etc.

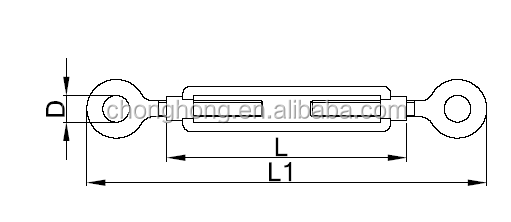

art number	size	Length(mm)	Length 1(mm)	Diameter(mm)	Weight limit (kg)
JW0101-1105	M5	70	120	8	170
JW0101-1106	M6	100	160	10	Chapter 375
JW0101-1108	M8	120	200	12	Chapter 575
JW0101-1110	M10	150	240	14	Chapter 775
JW0101-1112	M12	200	310	18	1100
JW0101-1116	M16	250	390	twenty two	2025
JW0101-1120	M20	300	Chapter 470	25	2750

More products

Minimum order quantity	100pcs
delivery time	10-20 days after order confirmation
notes	Special specifications and markings can be made according to customer requirements;
Other related products	Eyebolts, turnbuckles, wire rope clamps, shackles, chain fittings, load retainers, hooks, thimbles, connecting rods, master links, anchors, lashing accessories, swivels and many other rigging hardware.
