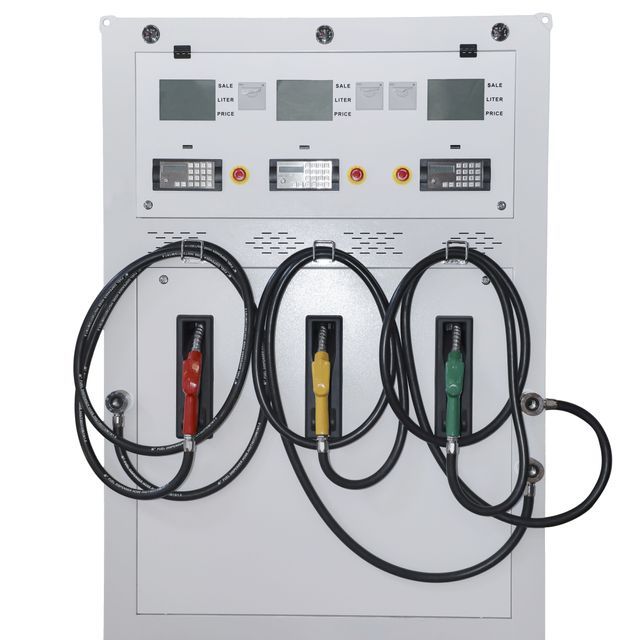

3000L 3-Hose Mini Mobile Fuel Portable Gas Station Dispenser for Philippines Diesel and Gasoline Micro Gas Station

Supplier: ZheJiang YiLuan Petroleum Machinery Co.,LTD.
Region: Zhejiang, China
Contact: Ms Candice Wang
Price:
Min. Order: 1 piece

Click here to contact

Product details

Product Description

^{Product application}

The machine has the advantages of high precision, easy operation, and convenient maintenance, and has foreign functions such as preset data refueling, data query, cumulative refueling volume, and sales amount. This machine is widely used in car gas stations.

Suitable for gasoline, diesel, kerosene and various light fuels. (Equipped with communication port to monitor and control the status of the tanker).

Specification

Main technical parameters
_engine	Voltage	10V/220V/380V (50/60Hz)
		noise	< 80dB (Class A)
		Explosion proof	ExdmbllAT3
_pump	Bennett type	Aluminum, 15 kg, 5-50 l/min
		Tatsuno type	Aluminum, 17.5 kg, 5-45 l/min
		Tokheim type	Cast iron, 37 kg, 5-40 l/min
		subordinate. type	External oil pump, parameters are based on customer temperature
ambient temperature	-25℃~+55℃
suction lift	6m (vertical), 50m (horizontal)
accuracy	0.30%
tolerant	0.15%
Unit price range	0.01~999.99
volume range	0.01-999999.99
total volume	0.01-9999999999.99
nozzle	Automatic cutting type
Machine appearance	Customization is acceptable (including logo)
Warranty period	One-year machine warranty and uninterrupted technical support

Configuration

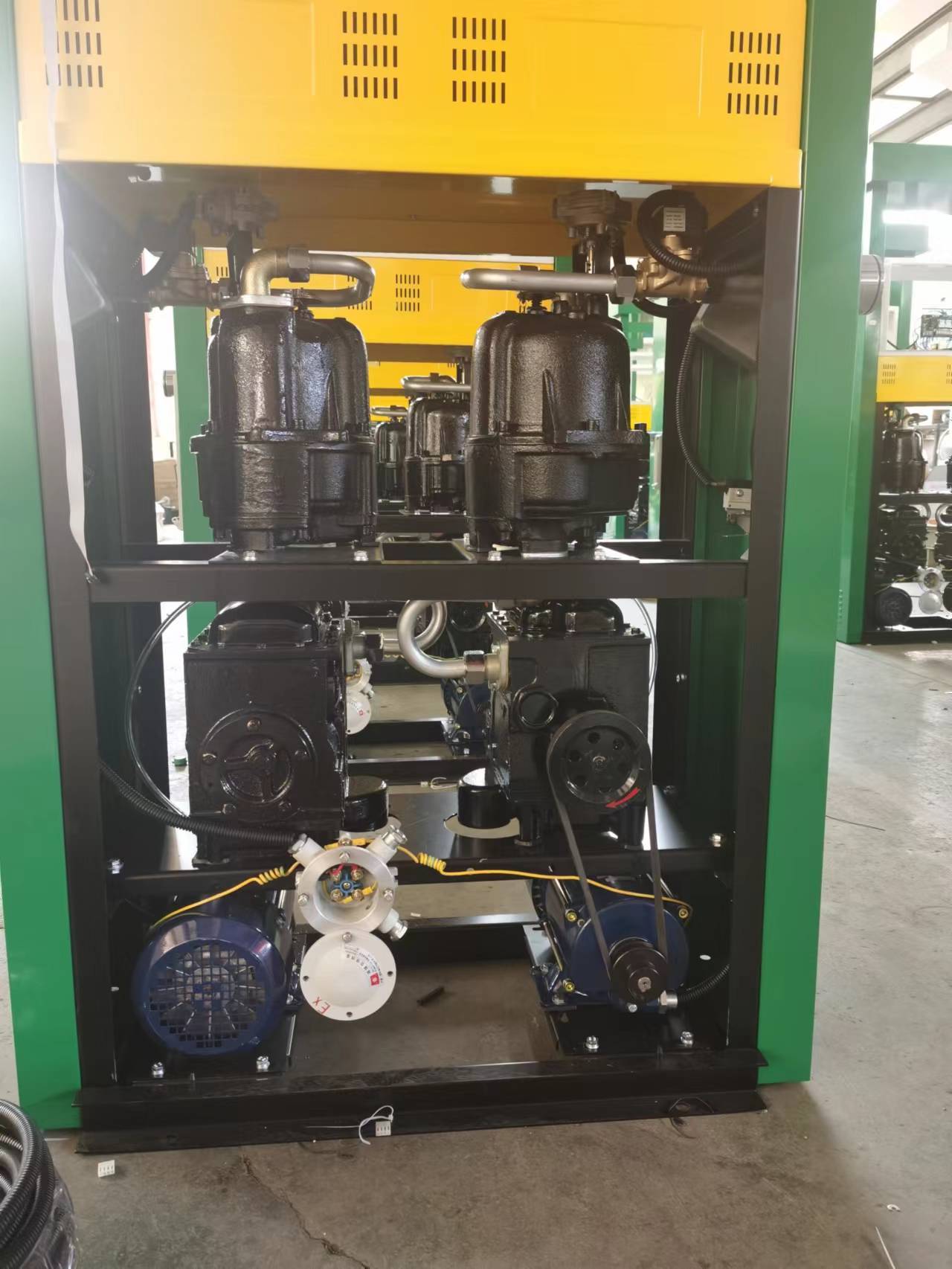

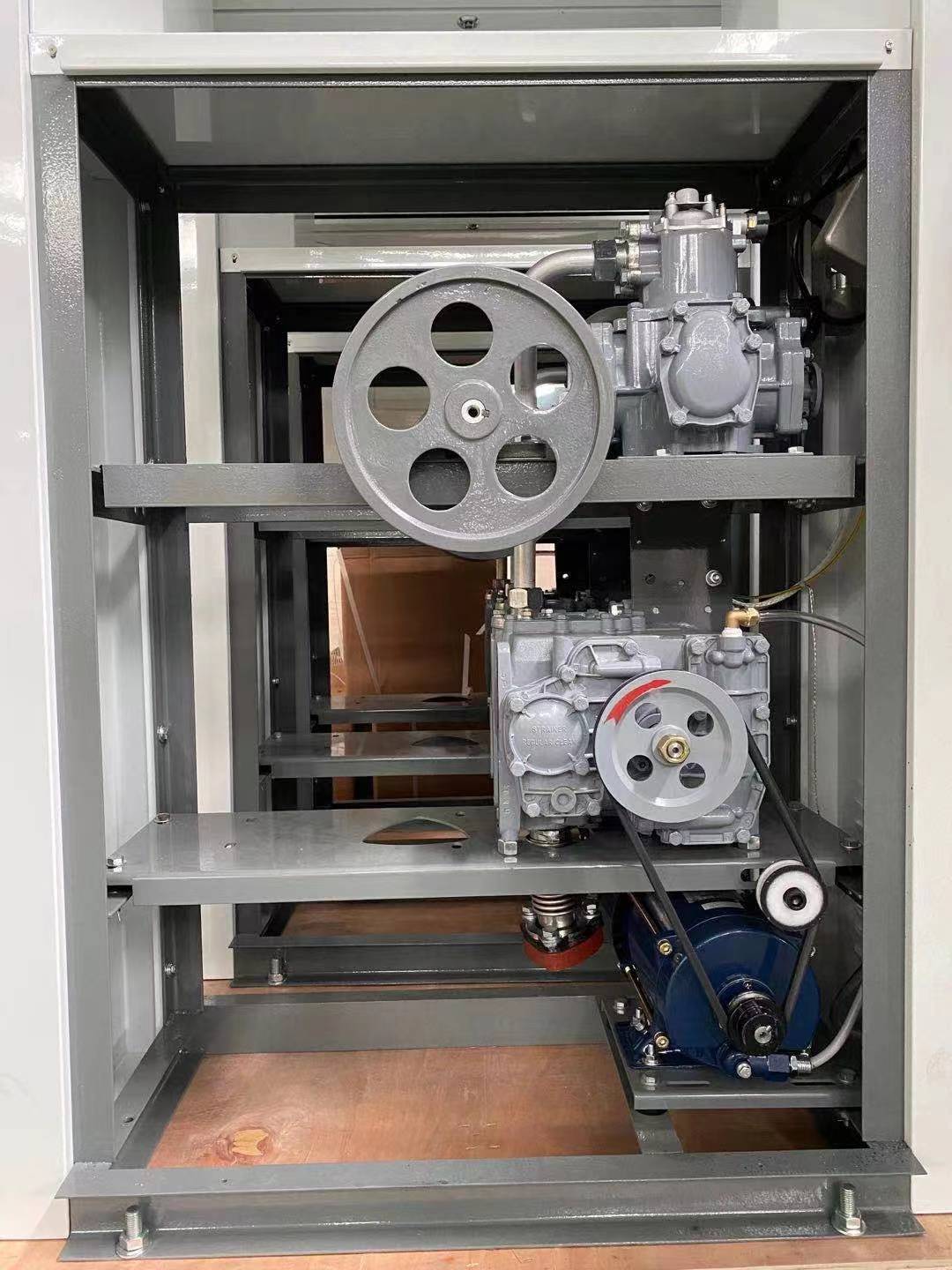

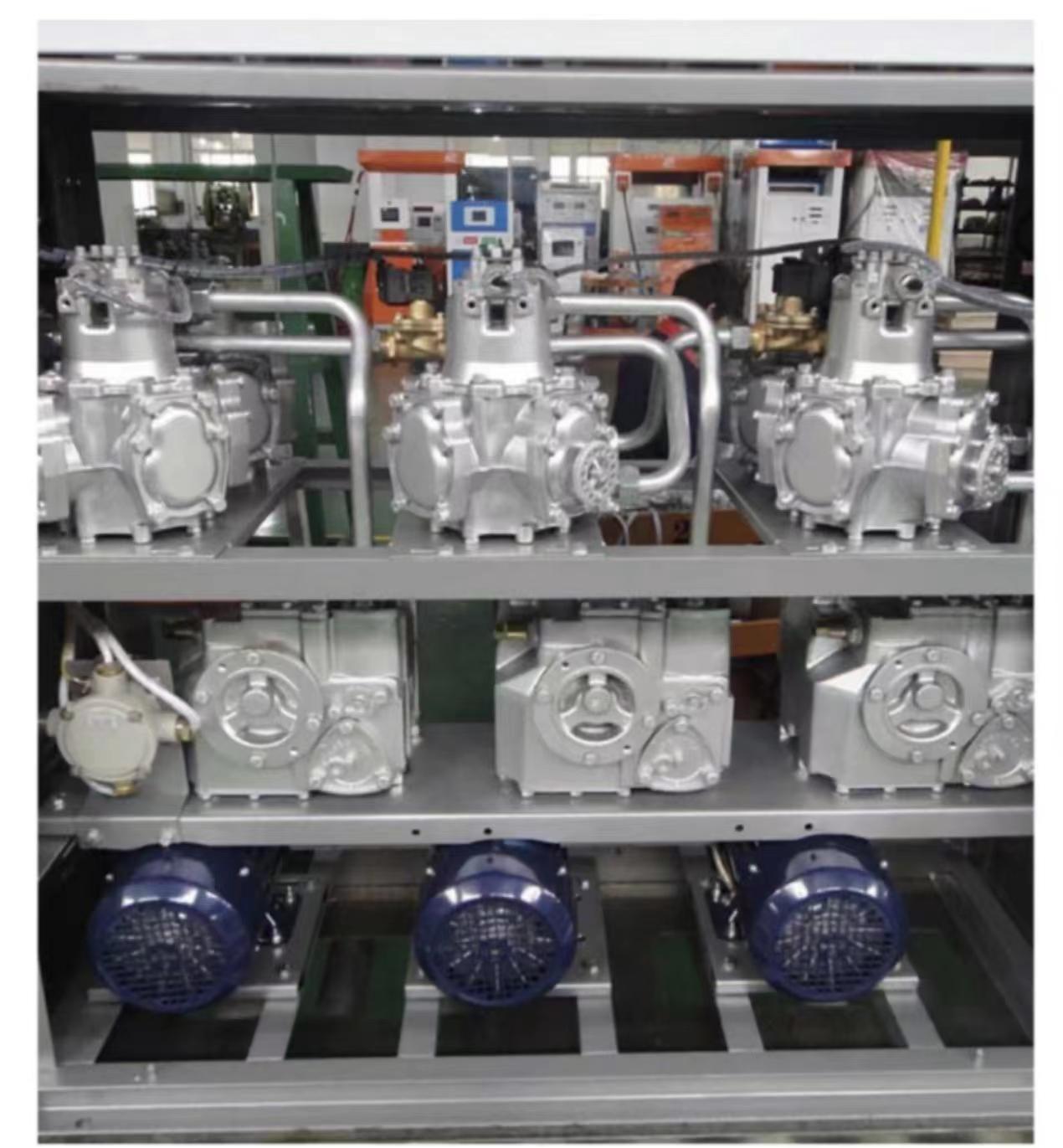

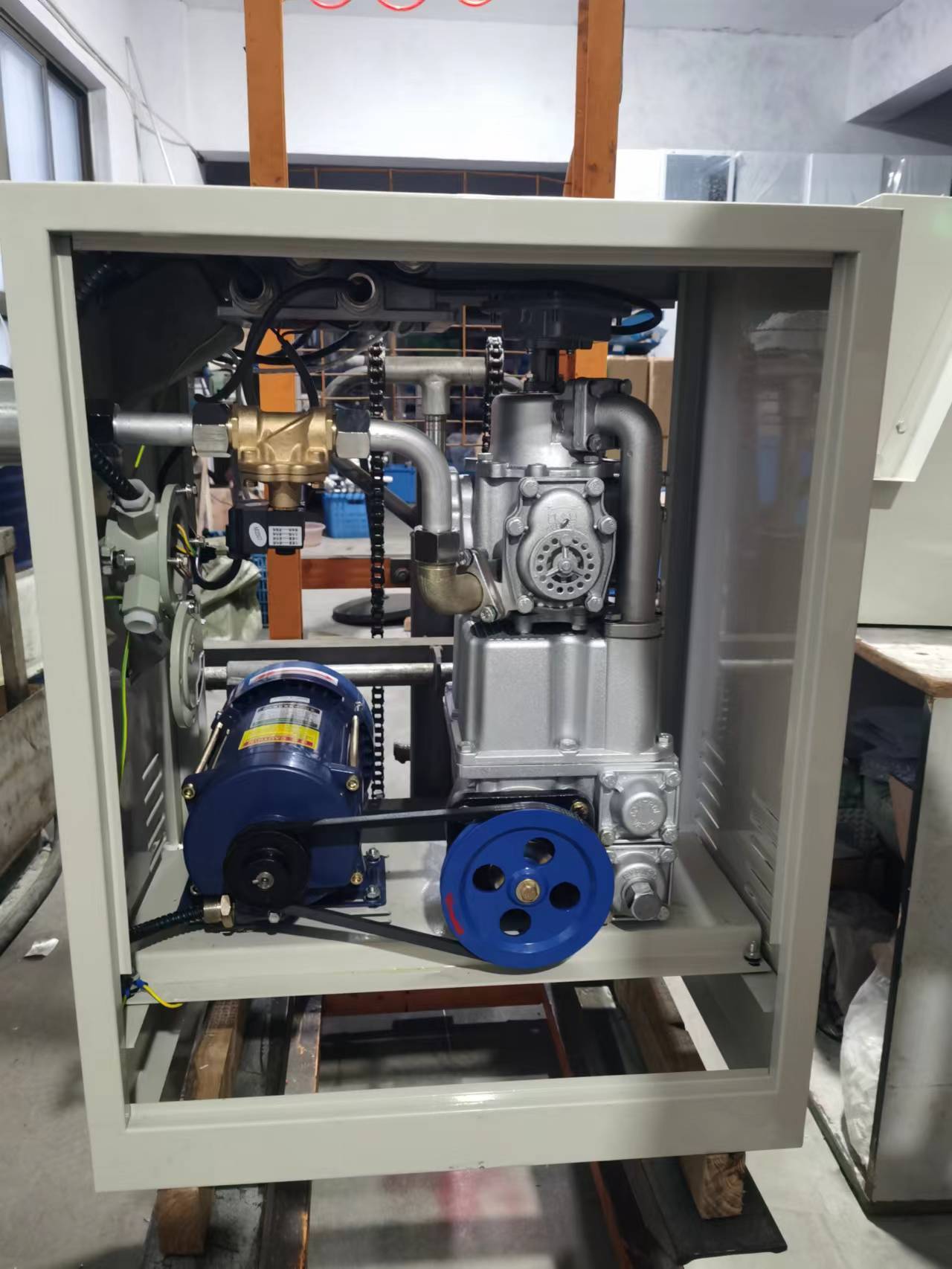

Pump selection

YL-50

Name: Bennett pump type Material: aluminum alloy Flow rate: 5~50 L/min Bennett pump is a vane pump. Gear pumps work longer than vane pumps, but vane pumps cost less and have higher flow rates

YL-90

Name: Tatsuno pump type

Material: Aluminum Flow rate: 5-45 L/min The Tatsuno model is lighter and has a smaller size, ideal for 6 and 8 nozzles.

YL-TK

Name: Torkheim pump material: cast iron Flow rate: 5-40 L/min The Torkheim pump is made of cast iron, is heavier and larger in size, and it is usually not recommended to use more than 4 nozzles.
