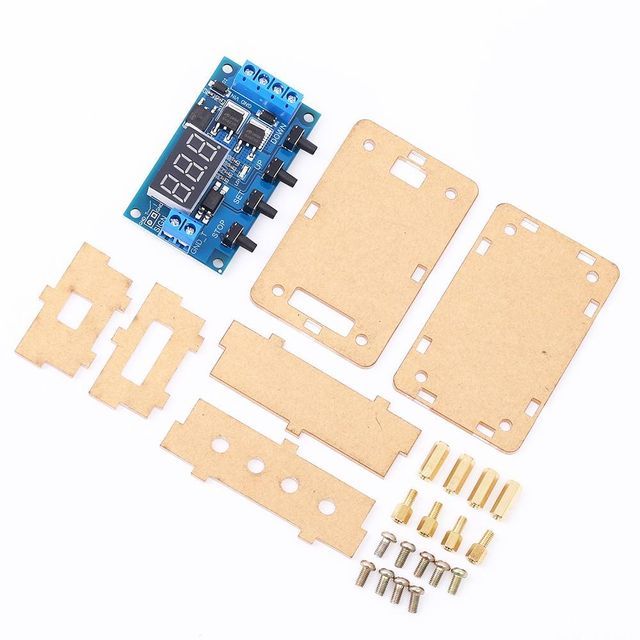

Timer DC 5V 12V 24V 36V cycle delay high level trigger module programmable digital switch board dual MOS pulse generator optocoupler

Click here to contact

Product details

Product Description

2. Features:

1>.Nigital tube display

2>.Support high level trigger

3>.Emergency stop function

4>.Sleep mode, Wonepress any button

5>.Automatically save parameters

6>.Dual MOS control supports 15A 400W or more

7>.Support reverse connection protection

8>.0.01 seconds to 9999 minutes continuously adjustable

9>. Optocoupler isolation to enhance anti-interference ability

3. Parameters:

1>. Product name: ZK-J06 delay relay module

2>.Product number: ZK-J06

3>. Working voltage: DC 5V-36V

4>.Control current: 30A (maximum and requires heat dissipation! 15A 400W at normal temperature)

5>.Static current: 15mA

6>.Working current: 50mA

7>.Trigger signal source: high level trigger (3.0V~24V)

8>.Reverse connection protection: yes

9>. Size: 60*39*14mm
