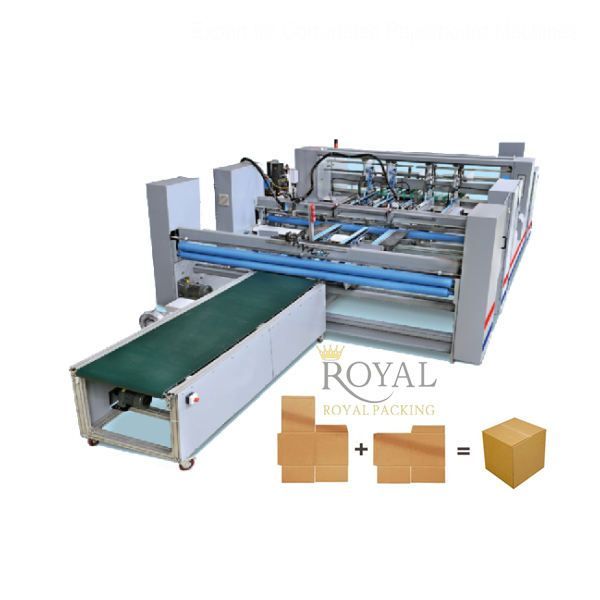

We carefully studied the two-piece connected color corrugated grip Gluer machines in the Chinese market. This machine not only uses a single piece feed, but also uses two-piece connected feed. To avoid limiting the pre-printing equipment process, the machine saves labor and material. The machine is a practical device that can increase the user's profits and accept orders because of its ease of operation, efficient production and reduce labor costs.
â–¡ Two-piece connected color corrugated folder Gluer machine, consisting of two-piece feeding system, servo positioning
Adjust the connection system, tap and press the conveying system. Whether it is a flat bottom box or an abnormal box, horizontally
Corrugated, vertical corrugated cardboard can be accurately glued and formed at high speed at a time.
â–¡Modulation structure design, which can upgrade the machine function accordion to customer requirements.

Model | RYJX1700 | RYJX 2000 | RYJX 2400 | RYJX 2800 | RYJX 3200 |
Max.Sheet size | 850*1100mm | 1000*1100mm | 1200*1100mm | 1400*1100mm | 1600*1100mm |
Minimum large size | 520*320mm | 520*320mm | 520*320mm | 520*320mm | 520*320mm |
Applicable papers | Corrugated paper e, b, caaaa ab | | | | |
Maximum belt speed | 120m/min | 120m/min | 120m/min | 120m/min | 120m/min |
Machine length | 6800mm | 6800mm | 6800mm | 6800mm | 6800mm |
Machine Width | 2800mm | 3000mm | 3600mm | 4000mm | 4400mm |
Machine height | 1450mm | 1450mm | 1450mm | 1450mm | 1450mm |
Total power | 21kW | 21kW | 21kW | 21kW | 21kW |
Max.Air displacement | 0.7m3/min | 0.7m3/min | 0.7m3/min | 0.7m3/min | 0.7m3/min |
gross weight | 5000kg | 5200 kg | 5600 kg | 5800 kg | 6200 kg |
Note: If you need other sizes, we can make it for you according to your requirements.
Due to technical upgrades, Royal reserves the right to modify relevant parameters and functions without prior notice.

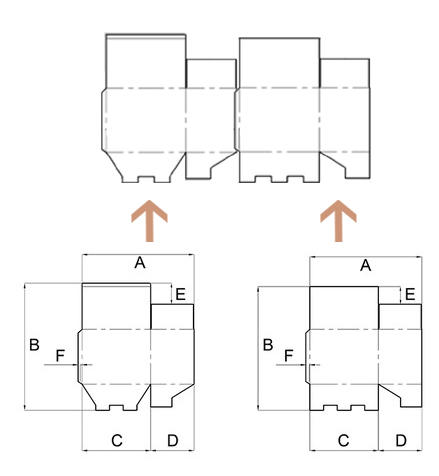

Two-piece RSC carton | | | | | | |
Model | RYJX1700 | | RYJX2000 | | RYJX2400 | |
| Maximum | Minimum | Maximum | Minimum | Maximum | Minimum |
one | | 150 | | 150 | | 150 |
b | 650 | 240 | 750 | 240 | 880 | 240 |
c | 50 | 30 | 50 | 30 | 50 | 30 |
d | 1100 | | 1100 | | 1100 | |
e | 1000 | 420 | 1000 | 420 | 1000 | 420 |
f | 1640 | | 1840 | | 2340 | |

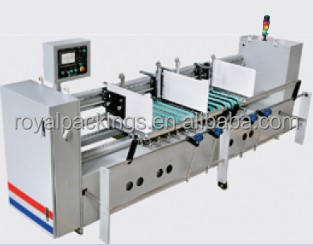

Feeder unit
It consists of a 10 60mm wide suction paper tape; horizontally adjusts the 10mm metal plate to set the width, and emboss the power guide wheel to output the paper tape.
Counting unitThe upper and lower gearboxes can be adjusted in length; and are equipped with calibration equipment to correct errors caused during the folding of the carton.
Folding unit
With independent upper and lower main transmission structures, the upper press belt can be moved forward and backward according to the length of the production carton.
