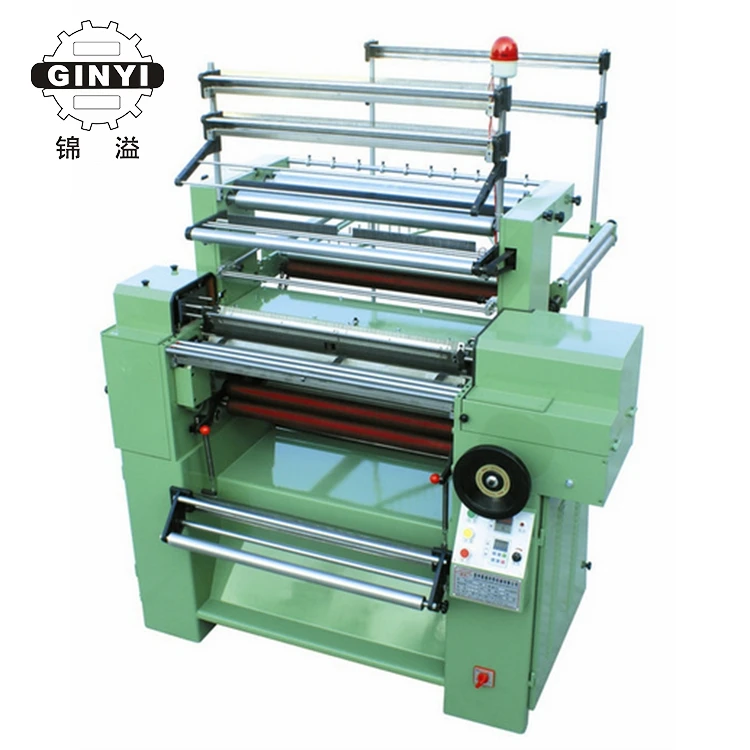

Automatic Lace Knitting Crochet Machine

Supplier: Xiamen Ginyi Textile Co., Ltd.
Region: Fujian, China
Contact: Mr Larry Lin
Price: $5800.00 /set
Min. Order: 1 set

Click here to contact

Product details

Weight:	500KG;	Knitting Method:	Single;
After-sales Service Provided:	Engineers available to service machinery overseas;	Place of Origin:	Fujian China (Mainland);
Supply Ability:	400 Set/Sets per Month;	Port:	Xiamen,Fujian,China;
Services:	Operation Instruction&Professional Training;	Production Capacity:	High Speed;
Product Type:	Elastic Band;	Knitting Style:	Warp;
Condition:	New;	Dimension(LWH):	1.1m1.5m2.8m;
Delivery Detail:	Usually 7-30 days.;	Packaging Detail:	Strong export wooden boxs.(waterproof).;
Computerized:	No;	Power(W):	1.5kw;
Payment Terms:	L/C,T/T;	Products:	Elastic Tape, Shoelace, Bandage;
Brand Name:	GinYi;	Type:	Crochet;

Automatic Lace Knitting Crochet Machine

Product Description

1.Specifications

Model	GNG-710/B8	GNG-762/B3
Weft Guide Bar	8 Pcs	3 Pcs
Circle	10,12,14,15,18,20	10,12,14,15,18,20
Tape Width	10mm(62pcs), 25mm(24pcs), 30mm(18pcs), 60mm(10pcs), 70mm(8pcs)	10mm(62pcs), 25mm(24pcs), 30mm(18pcs), 60mm(10pcs), 70mm(8pcs)
Motor	1.5kw	1.5kw
Speed	1500 rpm	1500 rpm
Creel Ends	200pcs (means can put 200pcs creel yarn)	200pcs (means can put 200pcs creel yarn)
Beam Creel	4pcs beam creel. (can put 4 pcs beam)	4pcs beam creel. (can put 4 pcs beam)

2.Features

GND knitting machine with precision construction, with drive bearing, synchronous belt imported from Japan and Germany, which drive accurately, low noise, low failure rate. It adopts auto brake system, to make more speedy and convenient when adjusting. High speed RPM bring on high output, supply customer high economic efficiency.

GND series crochet knitting machine can weave kinds of cotton and chemical fiber light or heavy lace, Like elastic tape, shoelace, bandage and so on.
