Package Preview: | https://sc02.alicdn.com/kf/HTB1lX_zbfvsK1RjSspdq6AZepXae.jpg_640x640.jpg; | Single package size: | 20X9X15 cm; |
printing thickness: | 5-80mm; | Package Type: | Film or wodden box for PUR hot melt glue laminating machine for PVC and MDF board; |
Usage: | High and low temperature heat transfer machine; | Warranty: | 1 Year; |
power: | 46kw; | cooling system: | water cooling; |
Capacity: | 0-25m/min; | Applicable Industries: | Manufacturing Plant,Printing Shops; |
After-sales Service Provided: | Engineers available to service machinery overseas; | Brand Name: | Anda; |
Dimension(L*W*H): | 13800*2135*1800 mm; | Name: | PUR hot melt glue laminating machine for PVC and MDF board; |
After-sales Service Provided: | Video technical support; | Max width: | 300mm; |
WEIGHT: | 2500kg; | Model: | PURFM300; |
Place of Origin: | Jiangsu China (Mainland); | Certification: | CE; |
Condition: | New; | Selling Units: | Single item; |
Single gross weight: | 25 KG; |

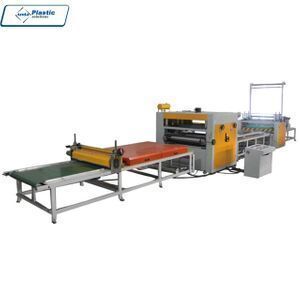

PUR hot melt glue laminating machine for PVC and MDF board

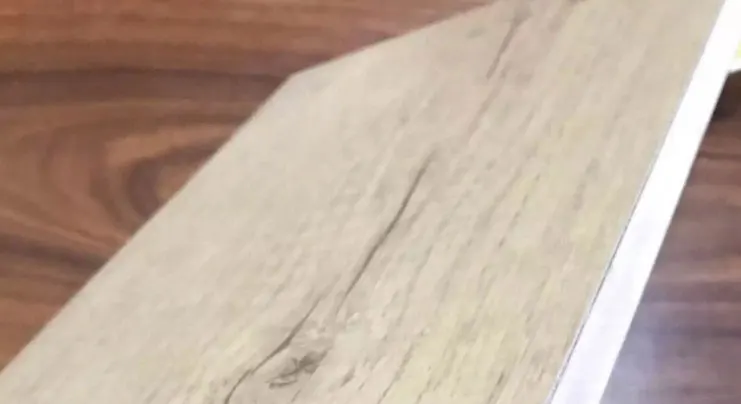

PUR hot melt glue laminating machine is designed by using PUR adhesive to laminate veneers,pvc film,melamine paper, painting paper onto profiles made from aluminum, medium density fiber board(MDF),PVC and so on, such as: PVC panel or profile, WPC profile. It is suitable for surface with different shapes and dimensions.
The panel or profile can be automatically fed, cleaned by roller brush and pre-heated; film can be unwinding and unrolling automatically and daubed with PUR glue.
Parameters for PUR hot melt glue laminating machine for PVC and MDF board
Max. working width | 300mm,600mm,1200mm,1300mm |
Working speed | 0-25m/min |
Thickness | 5-80mm |
Total power | 46kw |
Dimensions | 13800*2135*1800 mm |
Main Features for PUR hot melt glue laminating machine for PVC and MDF board
The panel or profile can be automatically fed. Cleaned by roller brush and pre-heated; and the films can be unwinding and unrolling automatically and daubed with PUR glue.
Parameter of PUR hot melt glue laminating machine for PVC and MDF board
Standard operation voltage | 380V\50hz |
Machine working pressure | 70bar |
Total power | 7000w |
Intelligent temperature control system | Temperature controller module or megmeet |
Temperature sensor | 2 core platinum thermal resistance or ni120 |
Operation temperature | Double Teflon treatment(can reach 280 degree high temperature resistance) |
Drum diameters | 5 galon 280mm or 286mm |
Standard plate power | 6000w |
motor | 1 |
Adjustable speed motor | 0-57 adjustable |
Motor control | Transducer speed promise |
Gear pump | 1pcs |
Displacement per revolution(gear pump) | 5.0cc/r |
Gear pump rste | 15L/hour |
Max. operation temperature | MAX 230 degree |
Standard output volume | 1( 2 can be supply or more) |
Pumping rate | By hand( adjustable) |
Pumping control | Automatic control, outside signal |
Intelligent insulation function |
|
Blank drum alarm | |
Motor overheat protection | |
Plate overheat protection | |
One-touch insulation | |
Sound and light alarm | |
Due to temperature start protection | |
External signal interface | Equip with input and output aviation plug |
Machine size | 1060*580*1560mm |
Weight | 300kg |
PUR drum 5G: Our PUR drum specialized for hot melt glue, aluminum plate dissolute PUR surface glue and use precise gear pump to squeeze glue, because of the pressure plate sealing design, PUR drum 5g is very suitable for PUR.
Anda operation principle: customer priority, anda company’s develop depend on customer’s success and develop.
Anda service philosophy: provide fast and compressive service by heart, exchange our sincerity with customer's loyalty.
Innovation is the permanent theme of the enterprise. for it, We are not content to stand still, Anda people always focus on customer's demand and expectation. keep improving, perfecting, continuously exceeding, devote ourself to bring more value to the plastic processing industries around the world!
Anda company was established by professional, passionate &responsible peoples who has more than 24 years experience in china plastic machines industry.Since inception, Anda company team always believes that excellent product quality, reasonable price and professional fast service is the basis for long term cooperation with our customers. Therefore, anda company apply very strict rule for quality, and make high standard level for product quality. At same time, we striving to reduce production cost to offer better price to our customers. And, we also pay much attention to service, we consider service as important as sales work, we continuously train our service stuff, improve their service ability and service attitude, so that this team can provide in time, most professional service to each of our customer around the world.
Anda Maxim: Survive by quality! Develop by credit!
Anda mission: endeavor to spread superior quality product made in china to the world, realize the mutual development with customer.
Anda machinery is a leading supplier of PVC ceiling panel machine with turnkey solution from A to Z. so far we have installed a numbers of PVC ceiling panel production line at many countries, such as:India, Pakistan,Uzbekistan,Algeria.

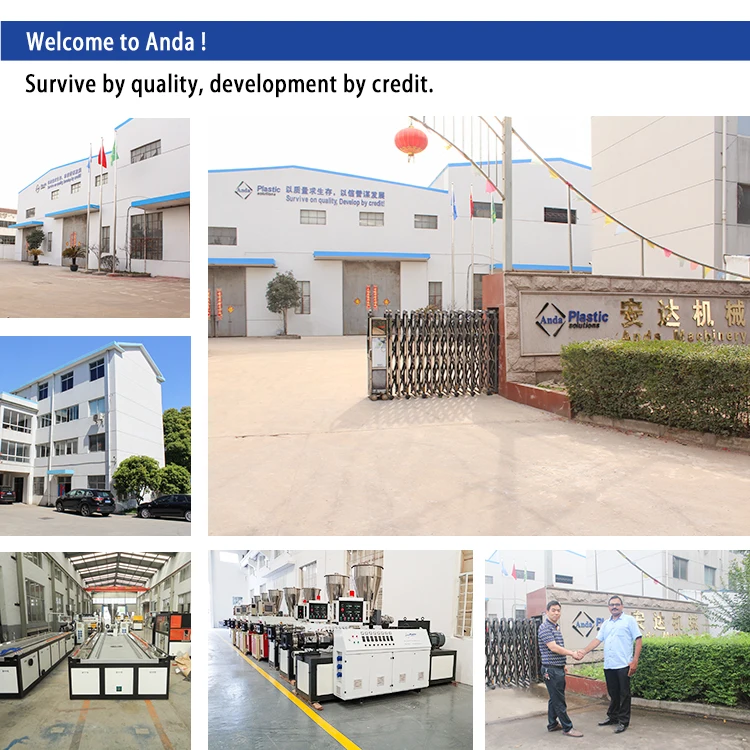

Anda machinery is located at wuxi city, Jiangsu province, it is 120km from shanghai. Factory occupied area is 12000sqm with total 50 employees and 30 experienced workers with more than 20 years experience.
We own advanced CNC machine and a lot of modern machining equipment. By cooperating with the global famous supplier of electrical and mechanical parts, the quality of our machines reaches the top level in the industry.
And, our experienced service team can give customer is fast, professional and full sided services to customers.
And, we also have some overseas service personals in some countries, which can provide fast and professional service to the customers there.
