Tire Changer for Motorcycle ,Cheap Motorcycle Tire Changer for Sales, Motorcycle Tire Changer WX-850M

Supplier: Zhengzhou Weiyuan Mechenical Equipment Co., Ltd.
Region: Henan, China
Contact: Mr Joy wang
Price: $100.00 /set
Min. Order: 1 set

Click here to contact

Product details

Place of Origin:	Henan China (Mainland);	Item Name:	Hydraulic Tire Changer;
Max. Rim Diameter:	960mm;	Product name:	Automatic Car Tire Changer Machine;
Name:	Tyre changing swing arm;	Brand Name:	WX;
Delivery Detail:	Shipped in 10 days after payment;	Warranty:	1 Years;
Packaging Detail:	Wooden Case;	Max. Rim Width:	3"-15";
Package Request:	Wooden Case;	Color:	Customized;
Weight:	156kgs;	Operating Pressure:	8-10bar;
Port:	QINGDAO DALIAN SHANGHAI OR OTHERS;	Certification:	CE / ISO9001;
Delivery time:	10 days;	Model Number:	WX-850M;
Supply Ability:	5000 Set/Sets per Month;	Price:	Factroy;
BEAD BREAKER FORCE:	2500kgs;	Payment Terms:	L/C,D/P,T/T,Western Union;
Power Supply:	110V/220V/380V;	Motor Power:	0.75/1.1kw;

Tire Changer for Motorcycle ,Cheap Motorcycle Tire Changer for Sales, Tyre changing swing arm WX-850M

Product Description

Tire Changer WX-850M Details Features:

Model	WX-850M
Power supply	110V/220V/380V
Motor power	0.75/1.1kW
Max rotation torque of turntable	1100N,m
Rim clamping from outside	8"-17"
Rim clamping from inside	9"-18"
Maximum wheel diameter	960mm
Maximum wheel width	3"-15"
Operating pressure	8-10bar
Net weight	156kg
Gross weight	145kg
Package Size	1000mmX755mmX920mm
20FT Container can be lading Quantity	28 pcs
40HQ Container Can be Lading Quantity	60 Pcs

Application range:

Applicable for changing and inflating car tyres whose rim diameter is between 8”-18”.

Product features:

Adopting semi-automatic lateral swinging arm to change tyres.
Machine functions:

1.Tyre changer just for motorcycle tyres.

2.Adjusting mobile slider to be suitable for different rim ranges.

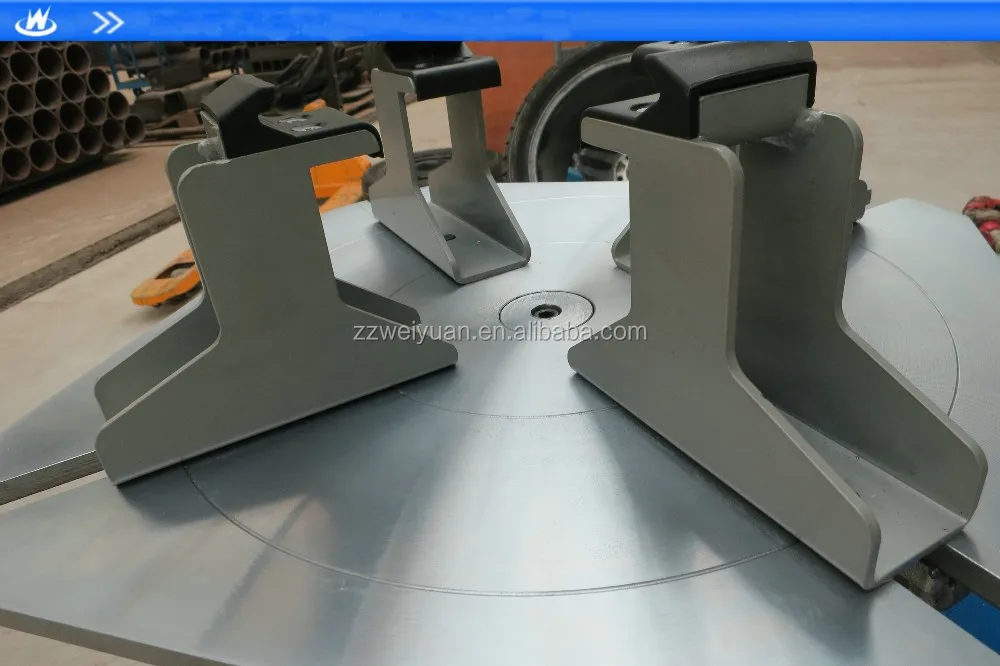

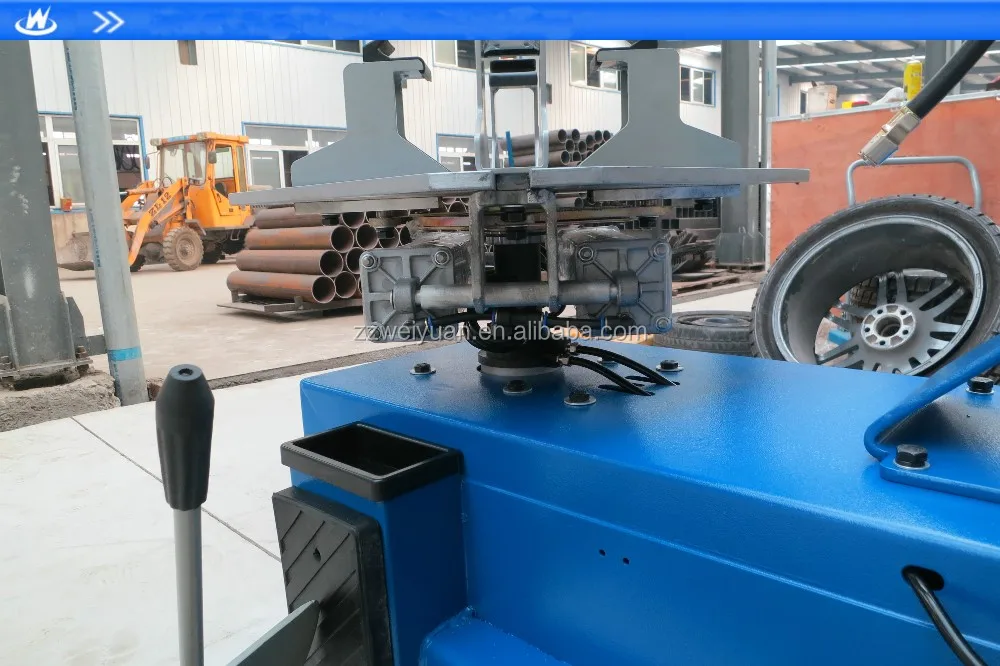

3.The motion structure of the four automatic alignment gripping jaws on the turnplate is link mechanism, which has synchronizing function and fix center automatically when gripping from outside to inside.

4.The once forming mobile slider and the design of processing machinery structure made it not easy to deformation.

5.The working head is plated hard chrome on the surface through high frequency sudden fire, this kind of treating processes insure the intensity, toughness and abrasive resistance.

6.the round working turnplate has synchronous centering and fine adjustment function which make the operating of tyre changer more easy and smooth.

7.The tools touching rim directly like changing working head,jaws,crwobar and spade are all equipped with protector,these protectors ensure no hurt to the rim.

8.It has good personal presentation,thick steel plate and super strong rigidness.
Machine quality:

This product gained Europe CE certification.

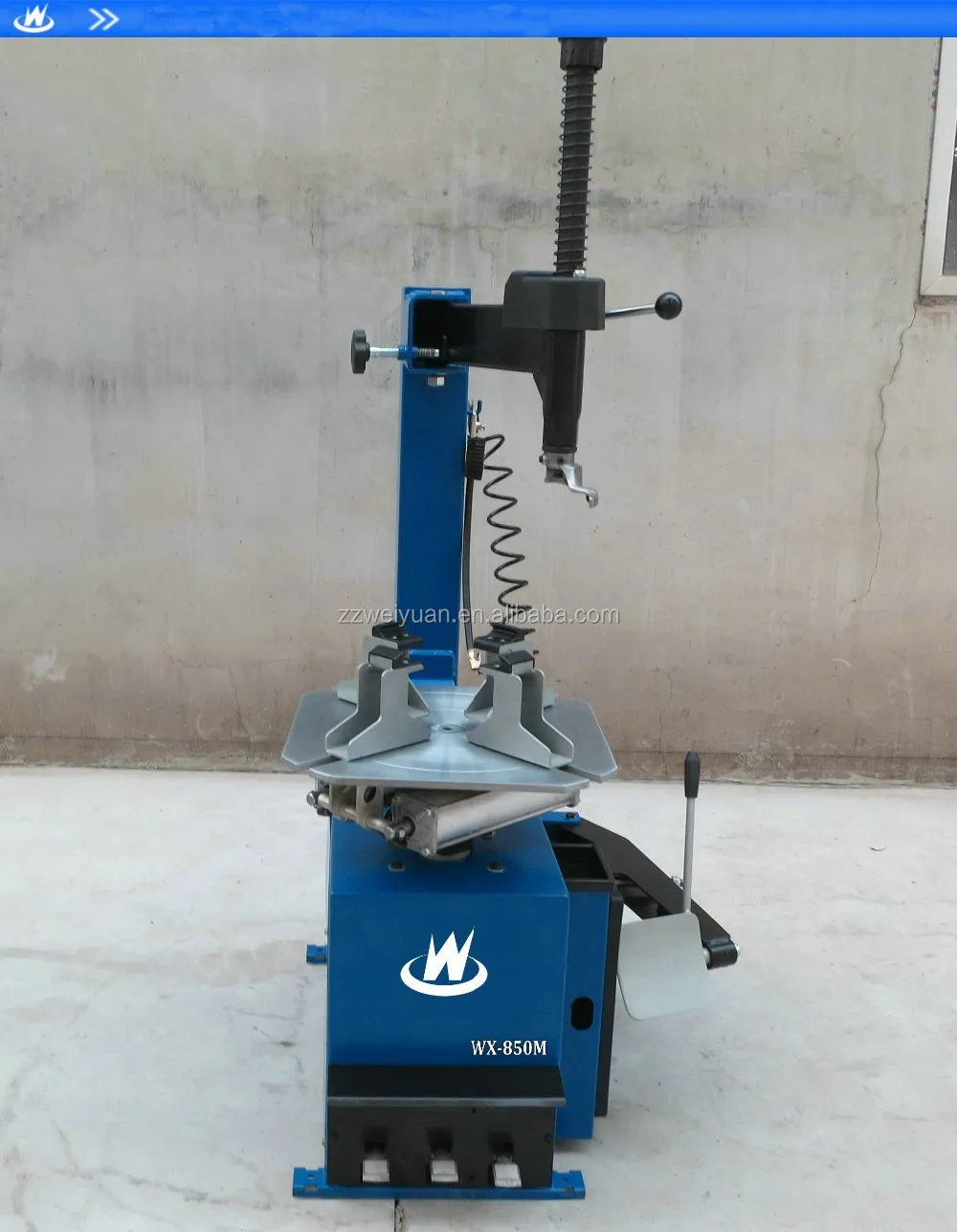

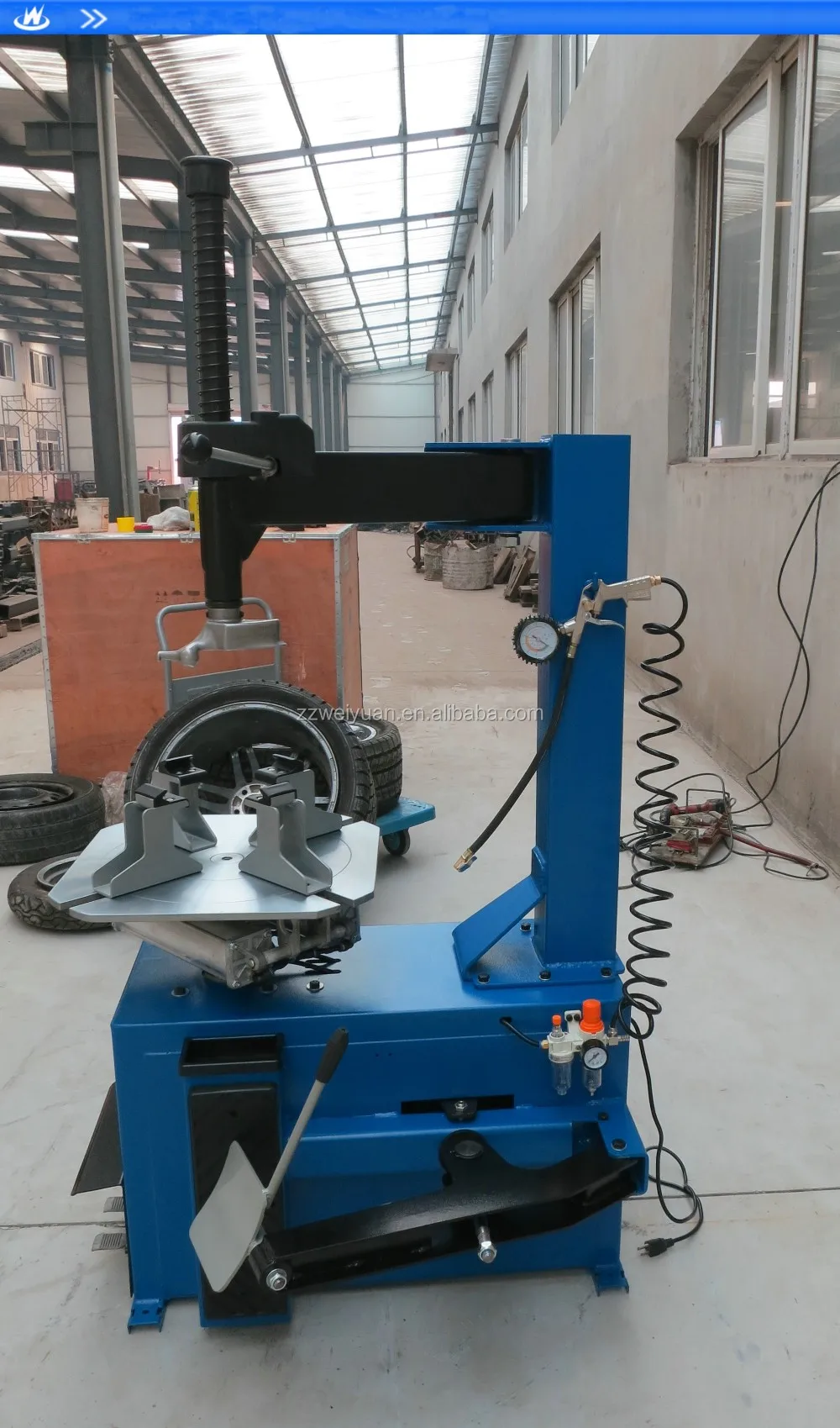

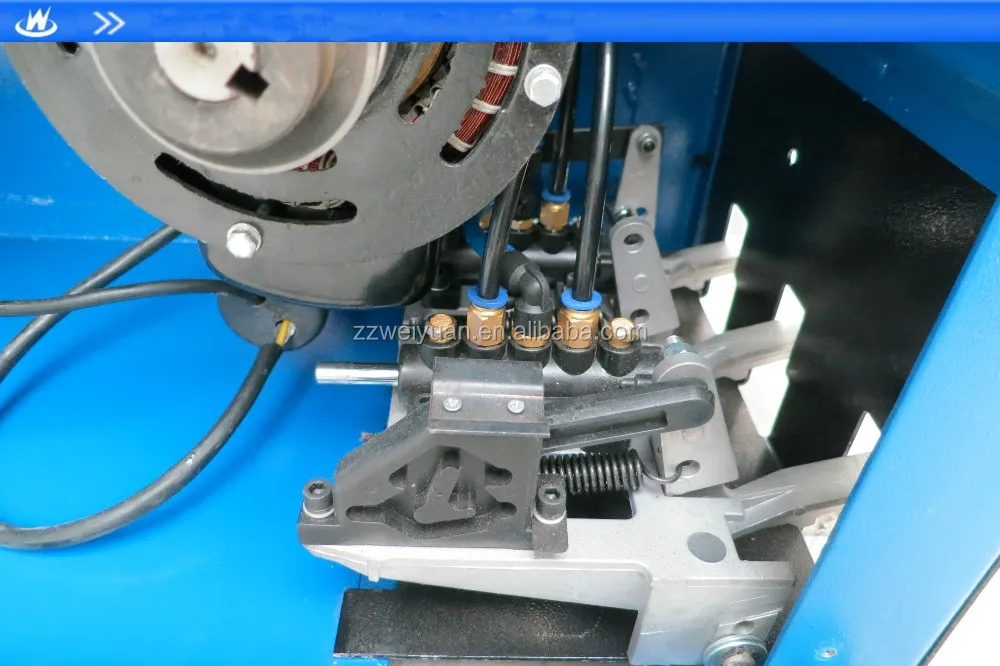

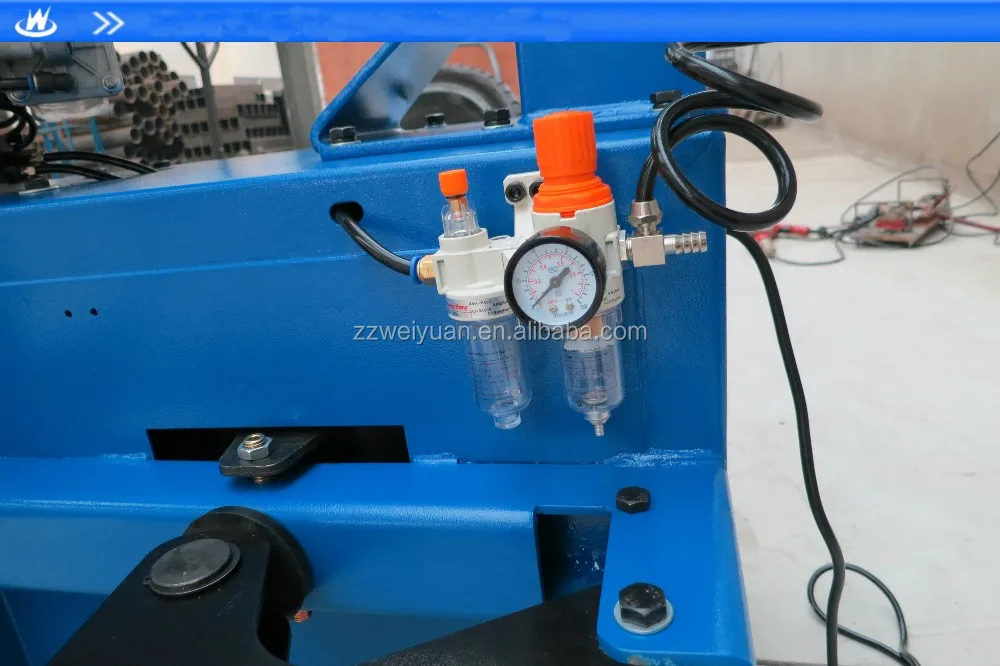

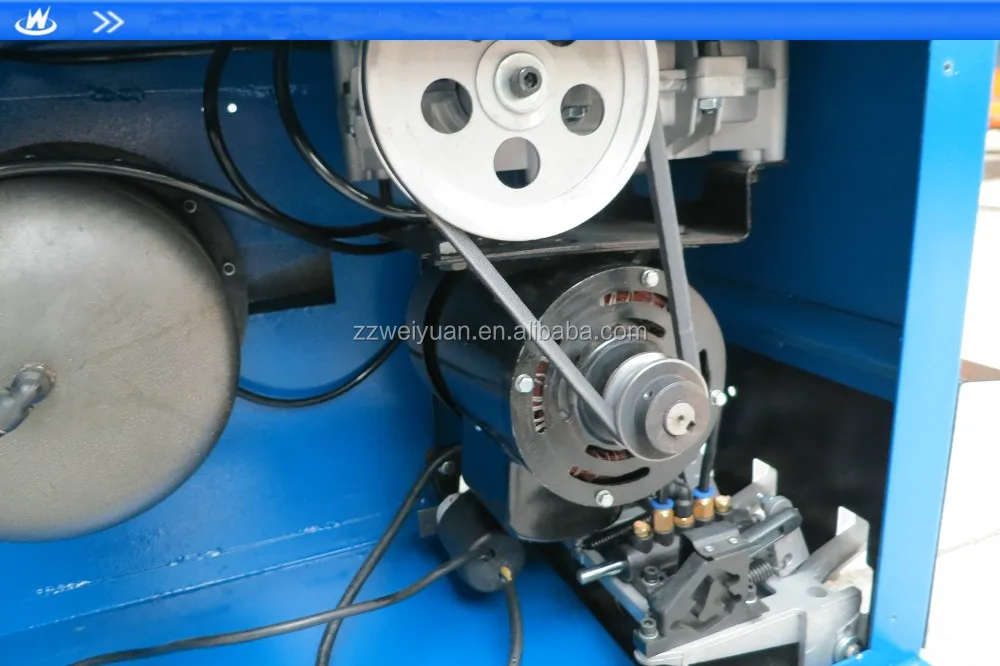

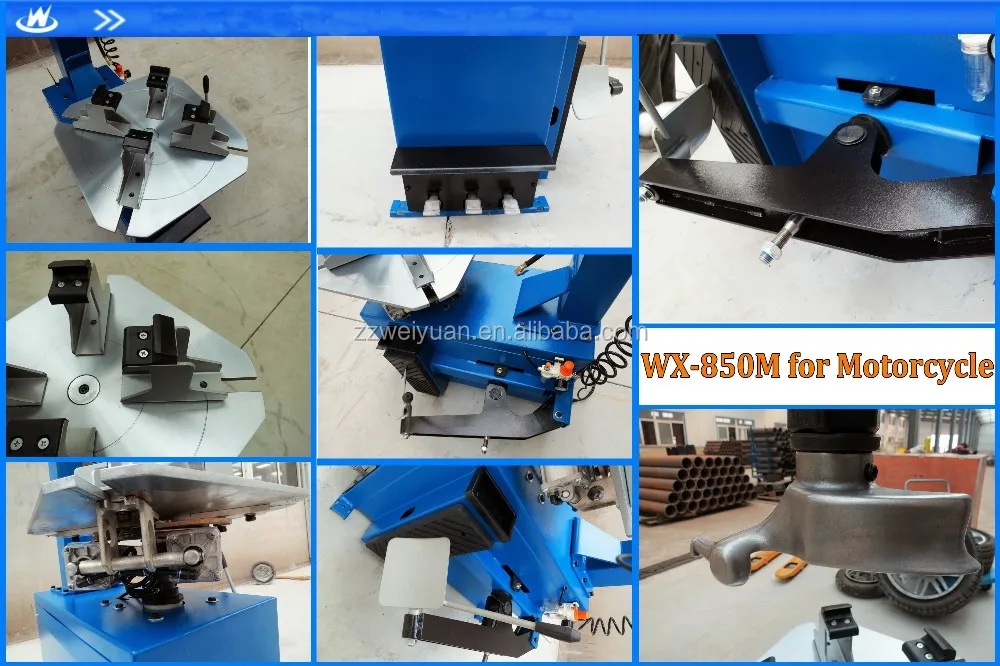

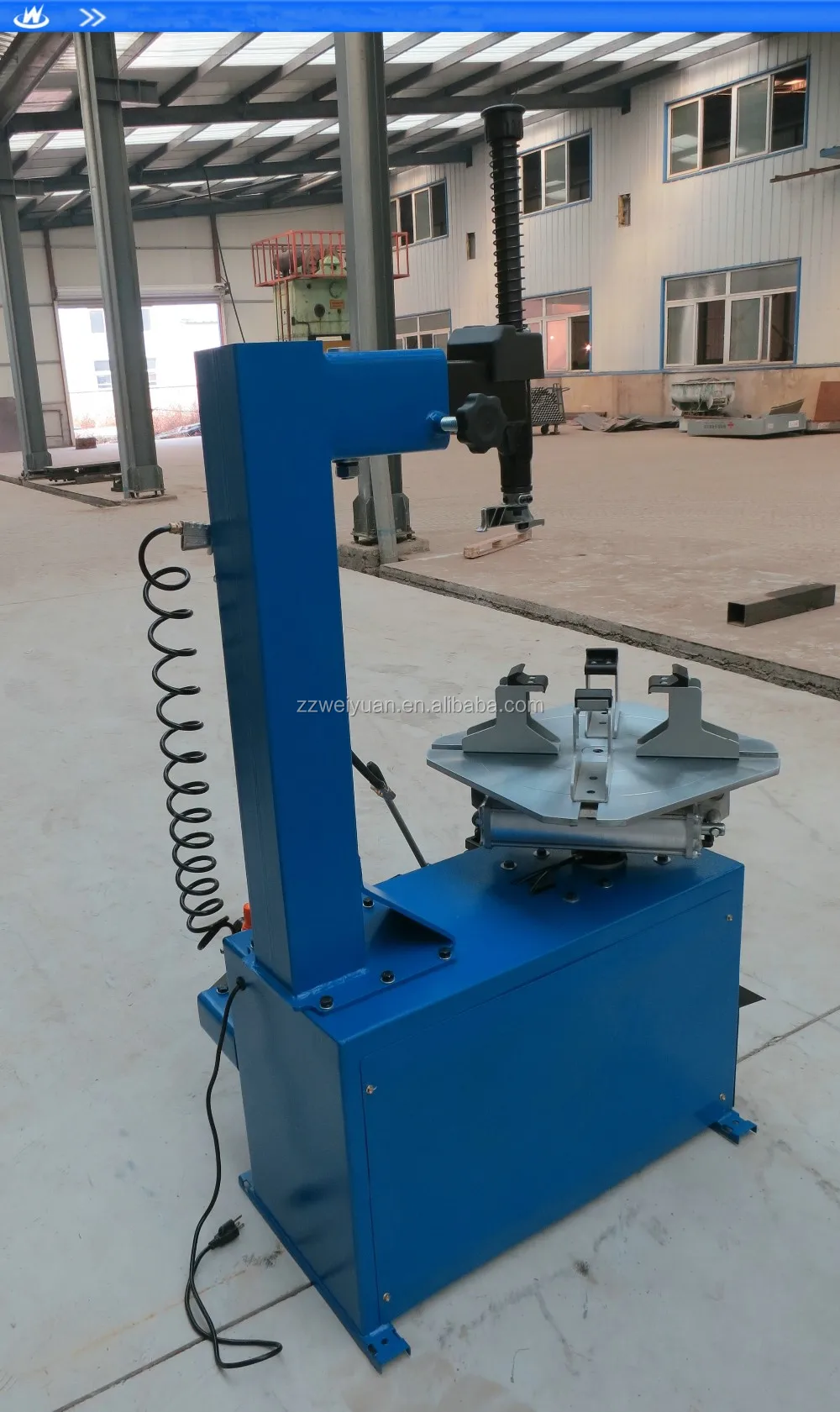

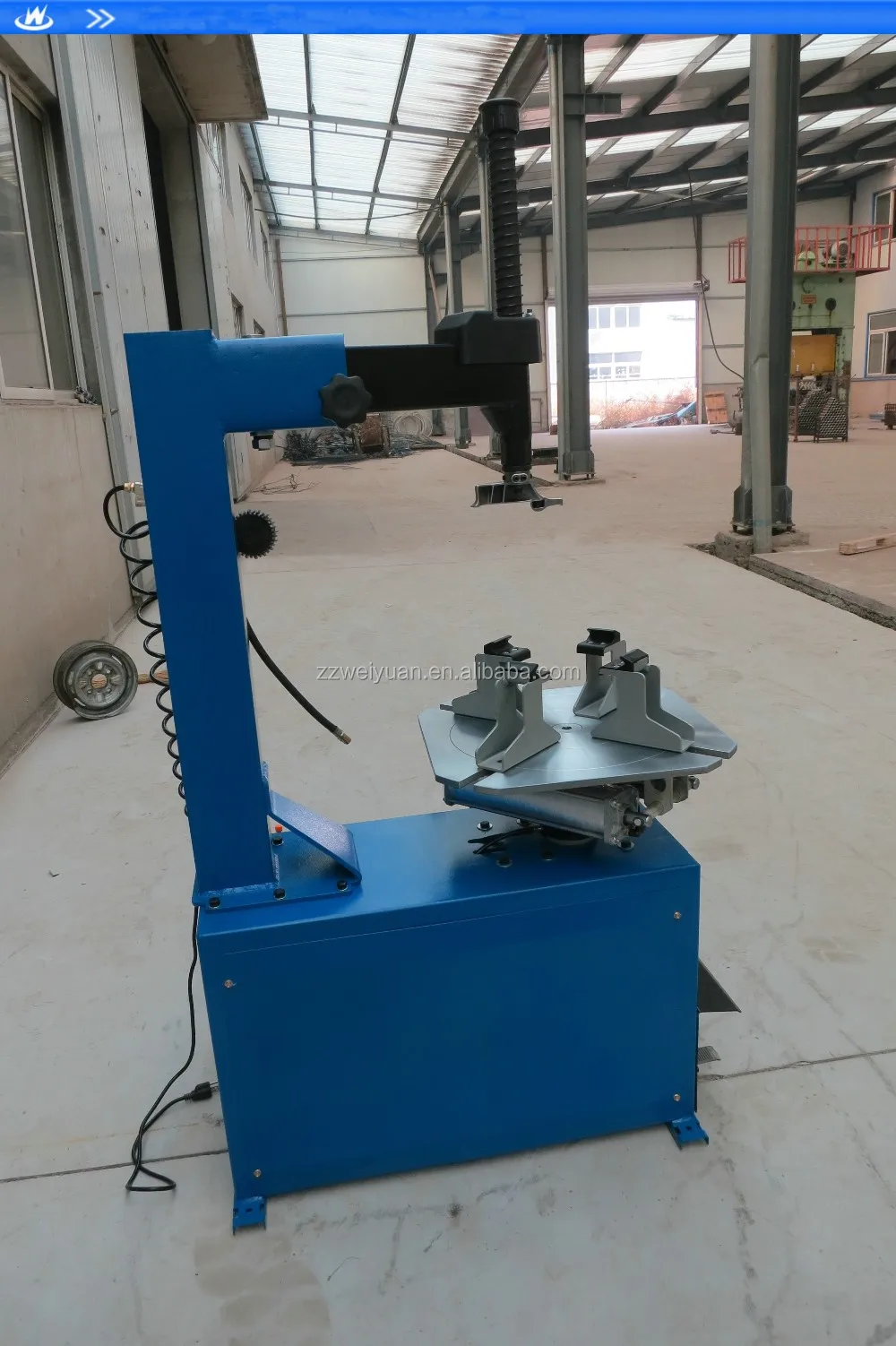

Machine pictures
