After-sales Service Provided: | Engineers available to service machinery overseas; | Certification: | CE; |
Supply Ability: | 100 Set/Sets per Month; | Power(W): | 14.5kw; |
working table: | 350*350mm; | Port: | Guangzou/Shenzhen; |
Condition: | New; | Place of Origin: | Guangdong China (Mainland); |
Voltage: | AC/380V; | motor power: | 3.7kw; |
Brand Name: | JINYU; | total power: | 14.5kw; |
MOQ: | 1 set; | Processing Type: | Plastic Thermoforming Machine; |
Heating Power: | 10.8kw; | Payment Terms: | L/C,T/T,Western Union; |
Product Type: | silicone bracelet; | Packaging Detail: | seaworthy wooden case; |
delivery: | 20 working days; | product type: | baller band making machine; |
Weight: | 1500kg; | Dimension(L*W*H): | 1200*1600*1300mm; |
machine size: | 1200*1600*1300mm; | weight: | 1500kg; |

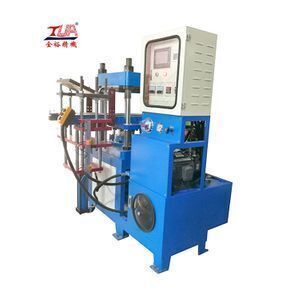

silicon baller band making machine
Brief Description of baller band making machine:
baller band making machine is a device through a dedicated hydraulic oil as the working medium, the
hydraulic oil in the tank to complete a certain mechanical action as the productivity of a mechanical cycle cylinder / piston cycle acting through the one-way valve.
Technical Parameters about baller band making machine:
Type | 30T | 50T | 63T |
Worktable (mm) | 350*350 | 350*400 | 400*400 |
Power specification | 3 phase 4 wire, 380V | 3 phase 4 wire, 380V | 3 phase 4 wire , 380v |
Total power (kw) | 14.5 | 16.3 | 16.3 |
Electrical power (kw) | 3.7 | 5.5 | 5.5 |
Heating power (kw) | 10.8 | 10.8 | 10.8 |
Piston diameter (mm) | Φ150 | Φ180 | Φ200 |
Weight (kw) | 1500 | 2500 | 3500 |
Size (mm) | 1200*1600*1300 | 1300*1700*1350 | 1360*1610*1400 |
Features of baller band making machine:
1.Adopt the world advanced SOLIDEWORK3D software and finite element analysis of mechanical design,
the optimum design is integrally molded high rigidity, precise structure, long service life.
2.Heating plate adopt deep hole processing, and after carburizing,after grinding nitriding,using the principle
of heat, get the high precision, and the temperature of the optimal average design, HRC50-55 hardness,long time wear-resisting,Not easy to deformation and high plane precision.
3.Using the technology of planar pressure correction, the maximum pressure (200KG) nut leveling device,
the highest plane precision can reach 0.05MM accuracy.
4.Unique oil circuit design, the oil circuit non impact and low noise in operation,increase the effectiveness,reduce the energy consumption.
5.Using circulation radiation cooling device,to ensure good heat exchange,low oil temperature,long life hydraulic parts, stability forming.
6.Intelligent PID control output,the set temperature and actual temperature difference of ± 1 °C,Economic
and power saving.
7.Importing the latest digital prototype testing technology,higher thermal performance, better stability than
the traditional design.
8.Adopt imported famous brand digital temperature control, temperature control in +-2 degrees, the program has a week preheating function.
Details description:
simple wristband production line:
Application about baller band making machine:
This baller band making machine is applied for sampling various mobile phone case, shoes material, trademark gifts, coaster, U-disk case and various silicon material products.
