Turn off delay time: | 3.0 us; | Ic: | 280-1200 A; |
Supply Ability: | 50 Piece/Pieces per Month; | Package Type: | Surface Mount; |
Brand Name: | Cenexe; | Model Number: | CGF6500; |
Turn on delay time: | 2.5 us; | Vce: | 1700-6500 V; |
Port: | TIANJIN; | Packaging Detail: | CARTON; |
Package: | Disc capsule; | Vf: | 3.5 us; |
Place of Origin: | Tianjin China (Mainland); | Trr: | 1 us; |
Payment Terms: | L/C,T/T; | Type: | Bipolar Junction Transistor; |
Application: | high voltage power regulator; |

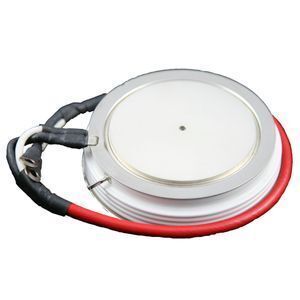

The flexible DC transmission system converter use welded IGBT modules.
1. The module package is single side heat dissipation. The power of the device is limited and not easy to be connected in series, bad in salt spray, vibration shock or thermal fatigue.
2. The new disc type fully crimped high-power IGBT device not only completely solves the problem of welded device is easy to generate voids, the thermal fatigue of the welding material and the low efficiency of single-sided heat dissipation but also eliminate the thermal resistance caused by various components.
3. The size and weight are reduced. And greatly improve the working efficiency and reliability of IGBT device.
4. It's suitable for the high-power, high-voltage, high-reliability requirements of the flexible DC transmission system of the converter device.

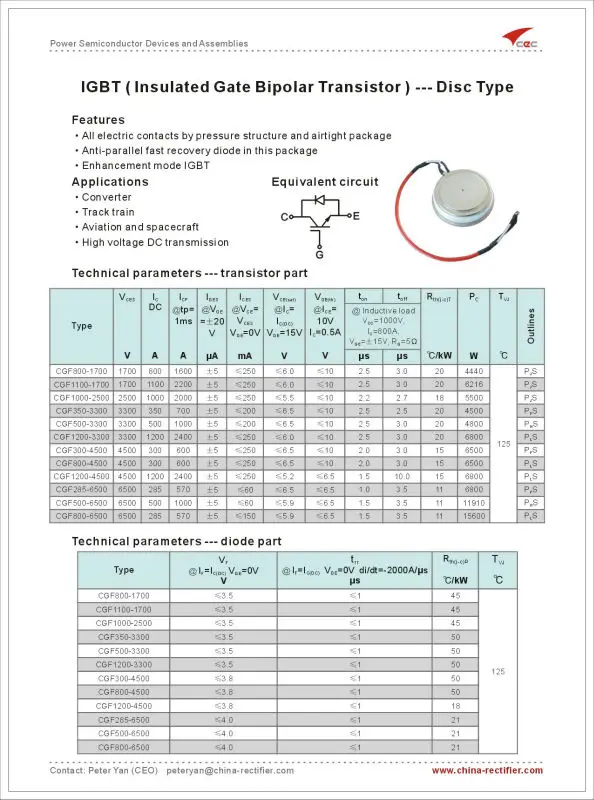

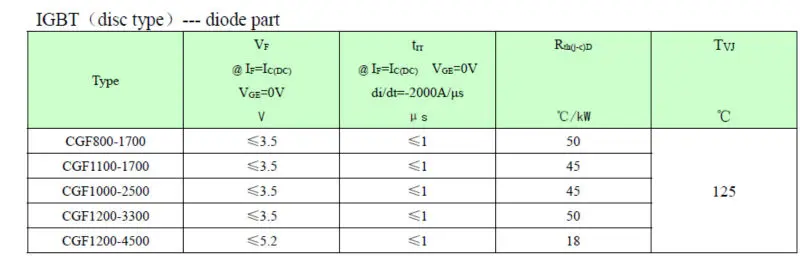

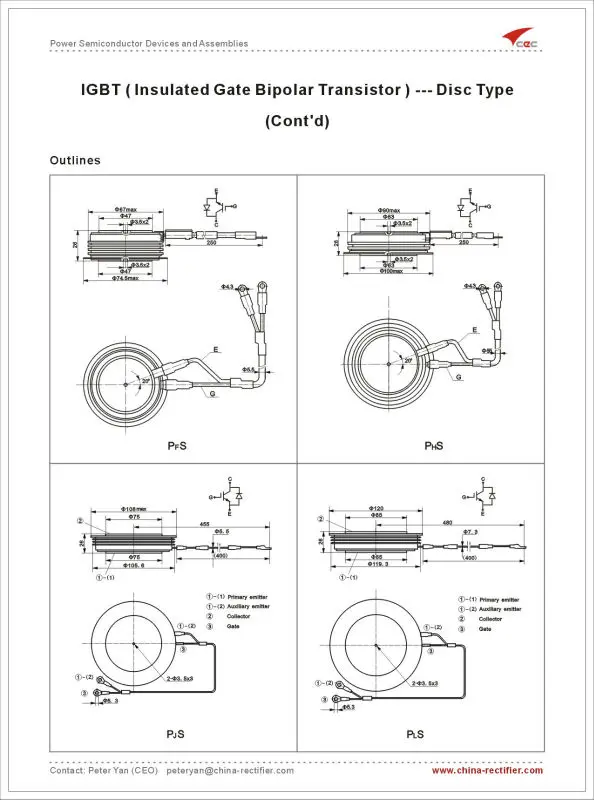

Data sheet of disc type IGBT
Tianjin Century Electronics Company was established in 1997 and located in Tianjin Port Free Trade Zone as a China leading total solution supplier of

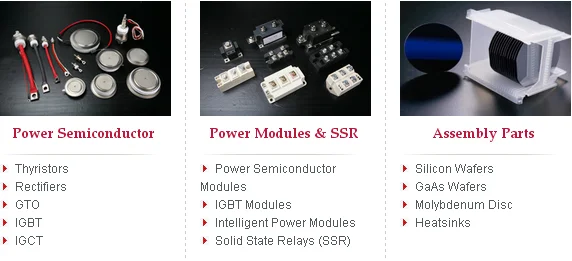

1. Power semiconductor devices: Thyristor, Diode, IGBT, GTO and component
2. Power equipment of rectification and inversion
3. Power semiconductor assemblies: rotating excitation, power factor reactive, pulse power supply.
4. MF/HF induction heating application and foundry casting plant.
The company has established a wide range of business relations with many famous multinational corporations from more than 50 countries and areas and nearly twenty distributors and agents all around the world. The company's top motto and mission is, with improving ability and quality, providing the best service to worldwide clients.
OEM manufacturing with neutral or customized package
We aim to create customer value with swift delivery of various transport solution by air, marine or multi-transport
