M240 series support TCP/IP transparent data transmission Serial port RS485 RS232 3G modem

Supplier: Xiamen Yifan Communication Technology Co., Ltd.
Region: Fujian, China
Contact: Mr Mark YU
Price: $1.00 /piece
Min. Order: 1 piece

Click here to contact

Product details

Color:	Black;	Delivery Detail:	Shipped in 7 days after payment;
Port:	Xiamen;	Protocol:	TCP/IP, UDP;
Supply Ability:	50000 Unit/Units per Month;	Place of Origin:	Fujian China (Mainland);
Antenna:	External 5DB;	Function:	remote data transmission;
Products Status:	Stock;	Style:	External;
Payment Terms:	L/C,D/A,D/P,T/T,Western Union,MoneyGram,Paypal;	Brand Name:	Yifan;
Transmission Rate:	7.2Mbps;	Size:	91x58.5x22 mm;
Certification:	CE ROHS;	Type:	Wireless;
Model Number:	M240-H;	Interface Type:	RS232/RS485;
CPU:	Industrial 32 bits CPU;	Packaging Detail:	standard export carton package;

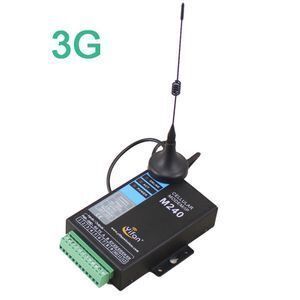

M240 series 2g/3g RS232 RS485 modem

Product Description

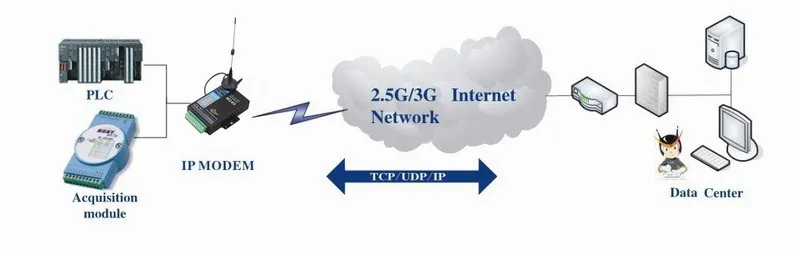

M240 Series 2g/3g Cellular IP MODEM is a kind of cellular terminal device that provides data transfer function by public cellular network.

It adopts high-powered industrial 32 bits CPU and embedded real time operating system. It supports RS232 and RS485 (or RS422) port that can conveniently and transparently connect one device to a cellular network, allowing you to connect to your existing serial devices with only basic configuration. It has low power consumption states in which the power consumption could be 1ower than 1mA@12VDC. It has compatible digital I/O channel, ADC, input pulse counter and pulse wave output function.

It has been widely used on M2M fields, such as intelligent transportation, smart grid, industrial automation, telemetry, finance, POS, water supply, environment protection, post, weather, and so on.

Design for Industrial Application

High-powered industrial cellular module

High-powered industrial 32 bits CPU

Low power consumption design, support multi-sleep and trigger modes to reduce the power dissipation farthest

Embedded Real Time Clock(RTC) circuit which can realize timing online/offline function

Housing: iron, providing IP30 protection

Power range: DC 5~35V

Stability and Reliability

Support hardware and software WDT

Support auto recovery mechanism, including online detect, auto redial when offline to make it always online

RS232/RS485/RS422 ports:15KV ESD protection

SIM/UIM port: 15KV ESD protection

Power port: reverse-voltage and overvoltage protection

Antenna port: lightning protection(optional)

Standard and Convenience

Adopt terminal block interface, convenient for industrial application

Support standard RS232/RS485 ports that can connect to serial devices directly

TTL logic level RS232 interface can be customized

Support intellectual mode, enter into communication state automatically when powered

Provide management software for remote management

Support several work modes

Convenient configuration and maintenance interface

High-performance

1. Support TCP server and support multi TCP client connection(optional)

2. Support double data centers, one main and another backup

3. Convenient configuration and maintenance interface

4. Supply 5 I/O channels, compatible 2 pulse wave output channels, 2 analog inputs and one pulse input counters.

5. Support multi data centers and it can support 5 data centers at the same time

6. Support multi online trigger ways, including SMS, ring and data. Support link disconnection when timeout

7. Support dynamic domain name(DDNS) and IP access to data center

8. Design with standard TCP/IP protocol stack

9. Support APN/VPDN

Product Specification

Cellular Specification

Item	Content
Cellular Module	Industrial cellular module
Standard and Band	UMTS/WCDMA/HSDPA/HSUPA/HSPA+ 900/2100MHz, 850/900/1900/2100MHz(optional) GSM850/900/1800/1900MHz GPRS/EDGE CLASS 12
Bandwidth	HSPA+: 21Mbps(Download speed) 5.76Mbps(Upload speed) HSUPA:5.76Mbps(Upload speed) HSDPA:7.2Mbps(Download speed) UMTS:384Kbps (DL/UL) EDGE: 236.8Kbps(DL/UL) GPRS: 85.6Kbps
TX power	GSM850/900: <33dBm GSM1800/1900: <30dBm UMTS/WCDMA/HSDPA/HSUPA/HSPA+ <24dBm
RX sensitivity	<-107dBm

Hardware System

Item	Content
CPU	Industrial 32 bits CPU
FLASH	512KB (Extendable)
SRAM	256KB(Extendable)

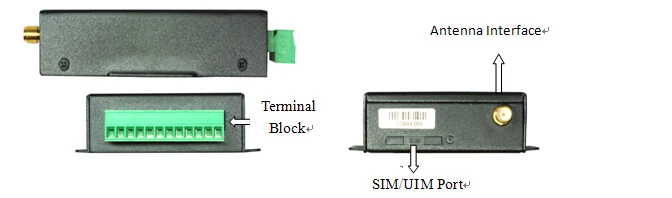

Interface Type

Item	Content
Serial	1 RS232 port and 1 RS485(orRS422) port, 15KV ESD protection Data bits: 5, 6 ,7, 8 Stop bits: 1, 1.5, 2 Parity: none, even, odd, space, mark Baud rate: 110~230400 bps
Indicator	"Power", "ACT", "Online"
Antenna	Standard SMA female interface, 50 ohm, lighting protection(optional)
SIM/UIM	Standard 3V/1.8V user card interface, 15KV ESD protection
Power	Terminal block interface, reverse-voltage and overvoltage protection

Power Input

Item	Content
Standard Power	DC 12V/0.5A
Power Range	DC 5~35V

Power Consumption

Working States	Power Consumption
Communication	50-80mA@12VDC;115-150mA@5VDC
Standby	20mA@12VDC;35mA@5VDC
Sleep	8mA@12VDC;18mA@5VDC
Timing Power Off	0.6mA@12VDC;1mA@5VDC

Physical Characteristics

Item	Content
Housing	Iron, providing IP30 protection
Dimensions	91x58.5x22 mm
Weight	205g

Environmental Limits

Item	Content
Operating Temperature	-25~+65ºC (-13~+149℉)
Extended Operating Temperature	-35~+75ºC (-31~+167℉)
Storage Temperature	-40~+85ºC (-40~+185℉)
Operating Humidity	95% ( unfreezing)
