0086-13580429073 Guangzhou fekon 2014 hot sale three wheels tricycle

Product details
Fuel:Gas / Diesel;NET WEIGHT:370KG;
Payment Terms:L/C,T/T,Western Union,O/A;DISPLACEMENT:150,175,200,250CC;
Supply Ability:20000 Unit/Units per Month;TYPE:tricycle;
Engine Type:4-Stroke;TRANSMISSION:5 GEAR, HAND CLUTCH;
Brand Name:FEKON;IGNITION MODLE:CDI;
Displacement:151 - 200cc;Port:GUANGZHOU OR SHENZHEN;
Delivery Detail:deliver within 25~30 days after receive down payment;Driving Type:Motorized;
Use For:Cargo;Packaging Detail:0086-13580429073 Guangzhou fekon 2014 hot sale three wheels tricycle CKD:42--52UNITS/40'HQ; 20 UNITS/20'GP;
Certification:CCC;CERTIFICATION:CCC, ISO9001:2008, ISO14001:2008;
Body Type:Open;Model Number:FK150-ZH;
Size:1.7*1.25M;COLOR:RED,BLACK, BULE;
Place of Origin:Guangdong China (Mainland);Brake(F/R):DRUM / DRUM;

0086-13580429073 Guangzhou fekon 2014 hot sale three wheels tricycle

The tricycle from Guangzhou Fekon can be used for daily transportation, easy to drive and low fuel consumption.

Company Information

A. Factory is located in Guangzhou; professional three wheels motorcycle tricycle manufacturer. 120,000 Square Meter plant area with 800 workers. Welcome all of the potential customers to visit;

B. Company honor:

    (a) ISO 9001 Quality Management system certification and ISO 14001 Environment Management System certification;

    (b) National compulsive 3C certificate motorcycle production admission;

    (c) CHN Ⅲ Emission standard;

    (d) All the 21 compulsory test items required by the State;

C. Fekon patent engine: GP Supercharged Engine;

D. The five advantages of GP Supercharged Engine: Small Noise; Small vibration; Low fuel consumption; Big Horsepower; Fast start speed; Long warranty life;

E. OEM and small quantity allowed. The capacity can be designed and produced according to customer's request;

F. Fekon motorcycle overseas department sales person: Ms.Christine Xu

     Freely contact : Ms.Christine

     Skype:christine200998;Mobile: (0086)13580429073

     Mail: fekonmotor(at)foxmail.com;QQ: 1959997924;Wechat: xufang8504



We will deliver what we promise.

We will be accountable for our performance.

We will work as a team to deliver the best possible results.

We will treat our customers and distributors with respect, honesty and professionalism.

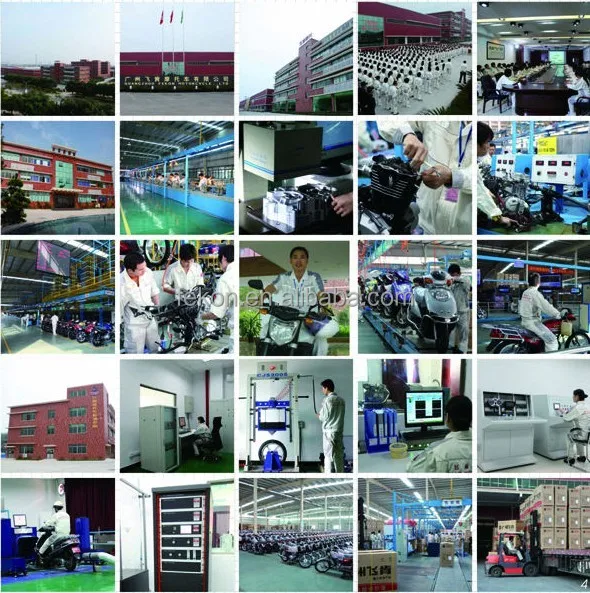

Company Picture



This is our motorcycle and tricycle assembling production line,we totally have two production lines for SKD. one production line for CKD. one plant for engine production line.

Technical team

FEKON motorcycle and tricycle owns excellent R&D team who developed many unique and popular models, Through our efforts, we have expended lots of export business and lots of distributor all over the world. welcome customer to be our fekon motorcycle distributor, good friend long time together.





 Product Description



Engine model number

 163ML tricycle

Engine type

1 cylinder,4stroke,air or water-cooled

Bore*Stroke(mm)

 63.5*62.2

Compression Ratio

 9.2:1

Rated .power & rotating speed(r/min)

 10.6/7500Km/(r/min)

Max.Torgue/Rotating Speed(r/min)

 13.5/6500N.m/(r/min)

lowest no-load speed stability

 1400 ±140r/min

displacement(cc)

150cc/175cc/200cc/210CC/250cc

Ignition System

CDI

Fuel Type:

Gasoline

Fuel Tank:

12L

Power(kw)

10.0

Min.fuel consumption:g(kw.h)

354g(kw.h)

Net weight(Kg)

395

Clutch Method

manual-hand

Transmission system

shaft drive

Brake Mode(F/R)

drum

Brake operate Mode(F/R)

 F:manual-hand   R:foot

Starting system

electric/kick

Design Max speed

>=60km/h

Load capacity

500kg

Dimension(mm)(L*W*H)

3460*1300*1400

Wheel Span(mm)

 1120

Wheel Base(mm)

 2270

Ground clearance(mm)

 160

Color

 white/yellow/red/bright red/blue/green/dark green

40HQ (CKD) LOADING QTY

42--52 SETS/40HQ

20HQ (CKD) LOADING QTY

20 SETS/20GP



+

Article No.

three wheels motorcycle

200CC,EURO 1 EMISSION STANDARD, TIRE SIZE:5.0-12, CARGO BOX SIZE:1.8*1.25M,WITH ONE COOLING FAN



Perfomance —

1. OUR TRICYCLE USE LIFAN OR ZONGSHEN ENGINE, FAMOUS ENGINE BRAND IN TRICYCLE FIELD.STABLE QUALITY LEVEL.

2. DIFFERENT QUALITY LEVEL REAR AXLE. DIFFERENT TYPE HAVE DIFFERENT COST. The technology is the same as car rear axle, very stronger and durable

3. CARGO BOX CAN DO 1.6M,1.7M,1.8M,2.0M,2.2M.

4. DOUBLE REAR WHEEL IS ACCEPTABLE.

5. CUSTOMER USE THIS TRICYCLE TO CARRY THE CARGO,PASSENGER AND SO ON.

6.Carry box: 3.00mm cold-rolled sheet with one-step molding technology ,good overall performance ,run with no bumpy sound , can carry heavy goods;

7. high quality material, tube wall thickness is 3.5mm , high accuracy WEDM technology no offset, no distorted;

8. Brake: customize the famous brand brake , frond 220mm drum, rear double oil brake system, special brake line to achieve 5-star safes standard;

9. Front fork: spiral spring with telescopic shock absorber;

10. Paint: body and frame processed with pickling phosphating,electrophoresis, spraying primers and coating,brake oil,protect from rusty

Guangzhou fekon hot sale 200cc 250cc three wheel tricycle . Our tricycle makes good shape, every parts is full of our worker's attitude, Our motor tricycle (three wheel motorcycle) is design for delivering the goods.Best for village people and farm place. this motorcycle can do 150cc, 200cc,250cc engine.









Tricycle Optional item

1.MP3 (1G memory card) with sound box is optional

2.Front bumper is optional; different fron shock absorber can be choosed;rear axle can be choosed;

3.Remote control and alarm is optional

4. Displacement such as 150cc 200cc 250cc can be choosed.

5.Tire size and cargo box is optional

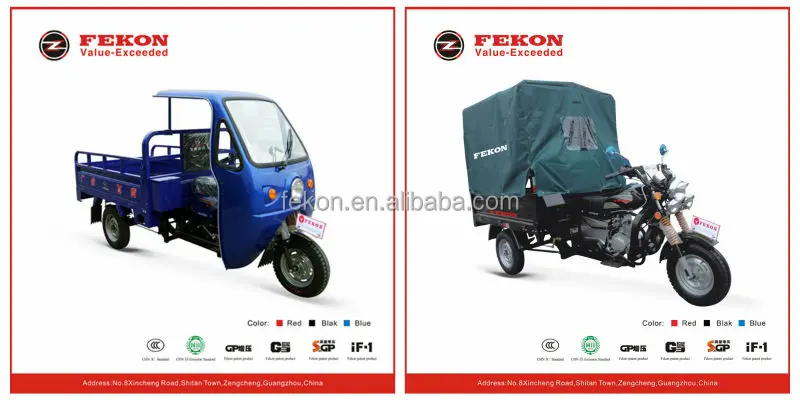

MORE OTHER STYLE TRICYCLE

1. TRICYCLE WITH TWO DECORATIVE LIGHT

2. TRICYCLE WITH DRIVING CABINET AND REAR RAIN CANOPY




Packaging & Shipping

USUALY, TRICYCLE USE THE CKD PACKING.CUSTOMER HAVE TO ASSEMBLE THE TRICYCLE SPARE PARTS BY THEMSELF
