Full range of insulation piercing connector cable clamp for ABC Accessories

Supplier: Yueqing Crop Trading Co., Ltd.
Region: Zhejiang, China
Contact: Ms Tracy Wu
Price: $0.99 / >=500 pieces
Min. Order: 500 pieces

Click here to contact

Product details

Color:	black;	Product name:	insulation piercing connector;
Application:	used for branch connection of building distridution system;	Model Number:	Main model display;
OEM:	Accpet;	Brand Name:	CROP;
Payment Terms:	L/C,D/A,T/T,Western Union;	Place of Origin:	Zhejiang China (Mainland);
Port:	Ningbo, Shanghai;	Material:	strength insulation material;
Type:	Clamp;	Packaging Detail:	Carton;
Type:	Piercing connector;	Supply Ability:	200000 Piece/Pieces per Month;
Material:	Plastic;

Full range of insulation piercing connector cable clamp for ABC Accessories

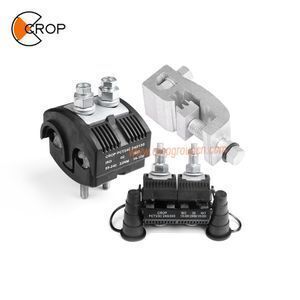

INSULATION PIERCING CONNECTOR

Description

The waterproof insulation piercing connectors are suitable for majority types of LV ABC conductors as well as connections to service and lighting cable cores. When tightening the bolts, the teeth of the contact plates penetrate the insulation and establish a perfect contact. The bolts are tightened until the heads shear off. Tightening torque guaranteed(fuse nut). Stripping of insulation is avoided.
Service condition: <1kV, 50/60Hz, -10°C to 55°C
Standard: IEC 61284, EN 50483, IRAM2435, NFC33 020.

Models	PCT13C 120/10	PCT13CB 120/10
Main Line(mm²)	6-120	6-120
Service Line (mm²)	1.5-10	(B) 1.5-10
Bolt No.	1	1
Torque (Nm)	10NM	10NM
Remarks	ISO to ISO	ISO to Bare

Models	PCT13C 70/35	PCT13C 95/50	PCT13C 120/25	PCT13C 150/50	PCT13C 185/35	PCT13CB 70/35	PCT13CB 95/50
Main Line(mm²)	16-70	16-95	25-120	50-150	50-185	16-70	16-95
Service Line (mm²)	4-35	4-50	42911	4-50	6-35	(B)4-35	(B)4-50
Bolt No.	1	1	1	1	1	1	1
Torque (Nm)	15NM	17NM	17NM	17NM	17NM	15NM	17NM
Remarks	ISO to ISO	ISO to ISO	ISO to ISO	ISO to ISO	ISO to ISO	ISO to Bare	ISO to Bare

Models	PCT13C 95/95	PCT13C 150/150	PCT13CB 95/95	PCT13CB 150/150
Main Line(mm²)	16-95	16-150	16-95	16-150
Service Line (mm²)	16-95	16-150	(B)16-95	(B)16-150
Bolt No.	1	1	1	1
Torque (Nm)	17-23NM	23NM	23NM	23NM
Remarks	ISO to ISO	ISO to ISO	ISO to Bare	ISO to Bare

Models	PCT24C 120/120	PCT24CB 120/120	PCT24C 240/150	PCT24CB 240/150
Main Line(mm²)	16-120	16-120	95-240	95-240
Service Line (mm²)	16-120	(B)16-120	16-150	(B)16-150
Bolt No.	2	2	2	2
Torque (Nm)	22NM	22NM	30NM	30NM
Remarks	ISO to ISO	ISO to Bare	ISO to ISO	ISO to Bare

...Contact us, we provide you more product information.

FAQ

Q1: Why choose CROP?
*1. CROP is a professional manfacture-Exporter of wide range of accessories used in power line installation and equipment building industries.
*2. CROP has certification, such asCE, ISO, ROHS and so on.
*3. We always follow the principle of the supremacy of customers, providing customers with high-quality products and great service.

Q2: How will you do OEM?
We support customized. If you want to customized,pls supply the Drawing or Photo or Samples.

Q3: What's the MOQ for CROP product?
There is no MOQ, we deal with any quantity of your order.

Q4: Can I have a sample order?
Yes, we can provide you sample for free.

Q5: What's the payment term?
T/T, L/C, Western Union and paypal.
