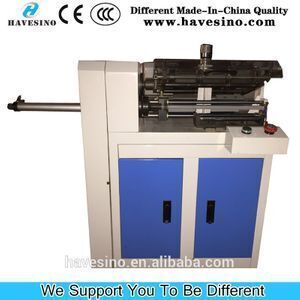

ttr professional paper core cutting machine half inch 1 inch

Product details
Cutting core Inner DI:13-25.4mm;Package Type:The product is anti-rust treatment, and it is used to wrap the fumigated wooden case or the three-plywood packing. Wood case diemension:120CM*70CM*120CM;
Delivery Detail:18 days after payment;Core cutting machine power:220v 50HZ;
Selling Units:Single item;Cutting core thickness:1-5 mm;
Core cutting machine dimension:1000*500*1000mm;Model Number:CC300AN;
Core cutting machine MAX Cutting length:300mm;Place of Origin:Zhejiang China;
Core cutting machine width:1000mm;Single package size:100X50X100 cm;
Core cutting machine application:TTR core;Core cutting machine Min cutting width:10mm;
Single gross weight:125 KG;Core cutting machine N.W:100kg;
Brand Name:HAVESINO;
Product Description
+

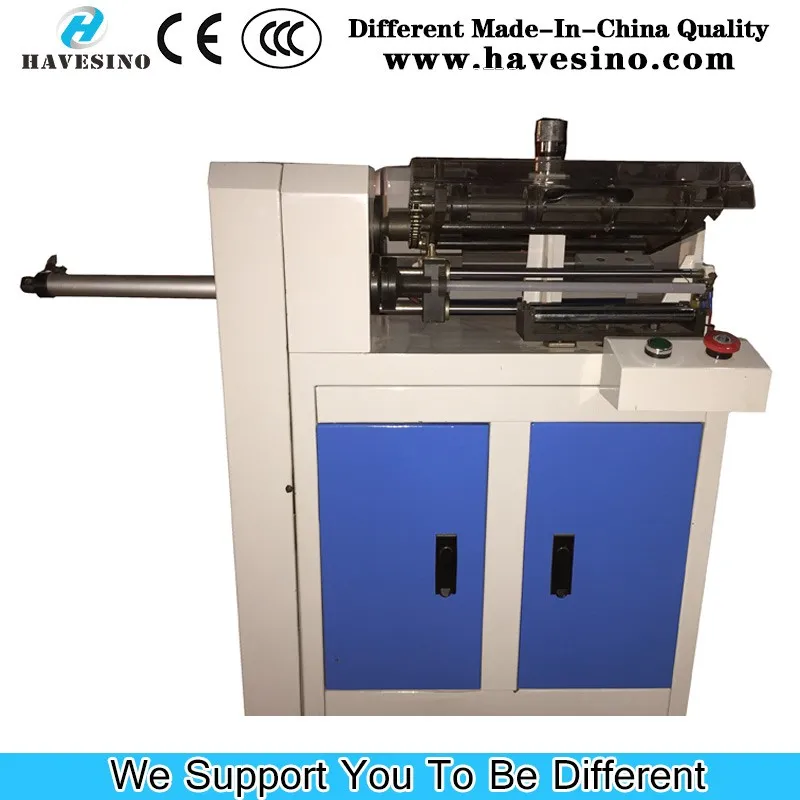

High speed automatic half inch and 1 inch kraft paper core cutting machine is made to cut the small size paper core inner diameter from 12 to 25.4mm, half inch from 1 inch. It is a very popular kraft paper core cutting machine used in ttr slitting field.

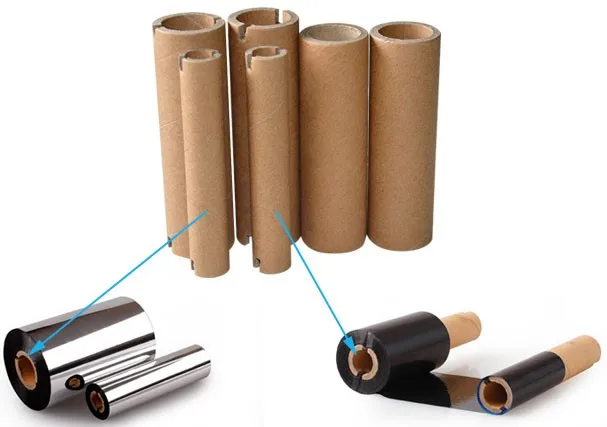

Application
+
Specification

1 Model                                               CC300AN
2 Max Cutting Width                          300 MM
3 Mini Cutting Width                          10MM
4 Blade Type                                      Circle Blade
5 Cutting Inner Diameter                   1/2 Inch To 1 Inch
6 Cutting Thickness                           Max 5MM
7 Air Supply                                        0.6 MPA
8 Power Supply                                  220V,50HZ,1PHASES
9 Machine Dimension                       1000MM×500MM×1000MM
10 N.W                                                100KGS


STANDARD ACCESSORIES
1. 1" Shaft                                           1 PC
2. 1/2" Shaft                                        1 PC
3. 1" Plastic Core                               1 PC
4. 1/2" Plastic Core                           1 PC
5. Blade                                               8 PCS
6. Belt                                                  1 PC
7. Chain                                              1 PC
8. Motor                                              1 PC

CC300AN FEATURES:
A. Professional designed to cut 1 inch and 1/2 inch paper cores.
B. Easy to operate and safety.
C. Perfect cutting result.
D. High efficiency.
E. Automatic upload.

We guarantee full test and check before shipment to ensure the quality. Meanwhile, we have policy and guarantee are as following:
A. Guarantee key parts of the machine over one year.
B. Tech support for free during lifetime.
C. Info consulting for free.
D. Material support with good quality and price .

Recommend Product:

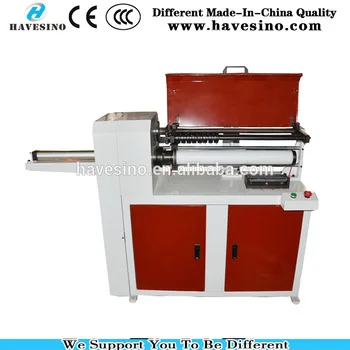

CC600A,25.4-76mm( 1inch to 3 inch) cardboard paper tube cutting machine

+
