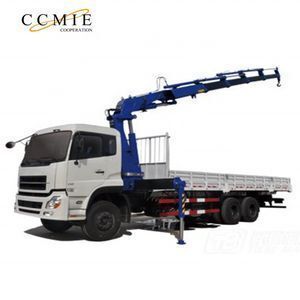

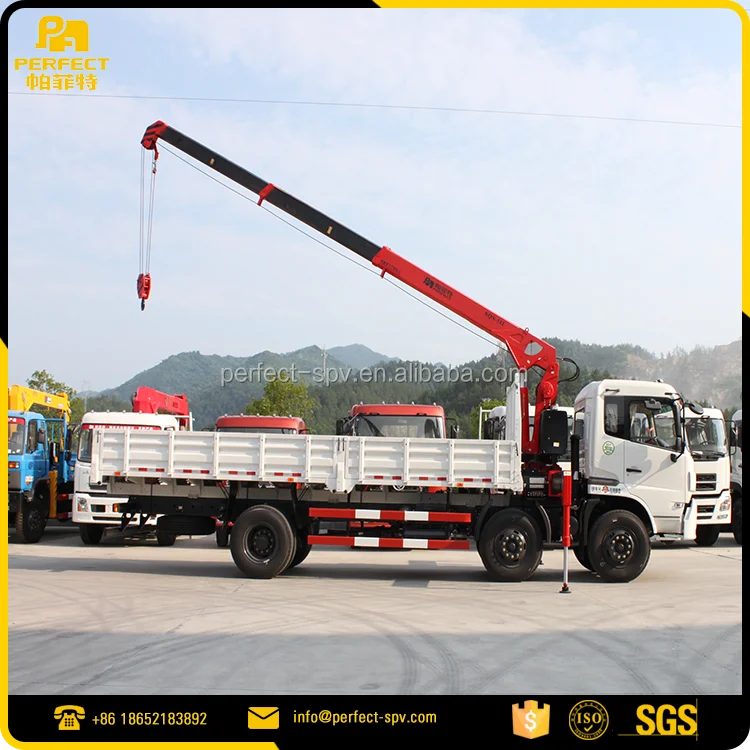

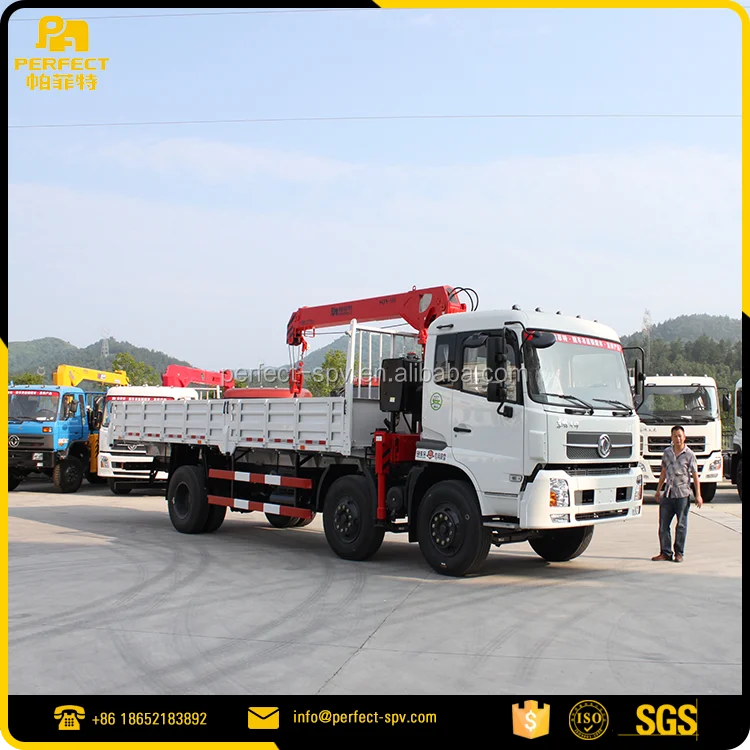

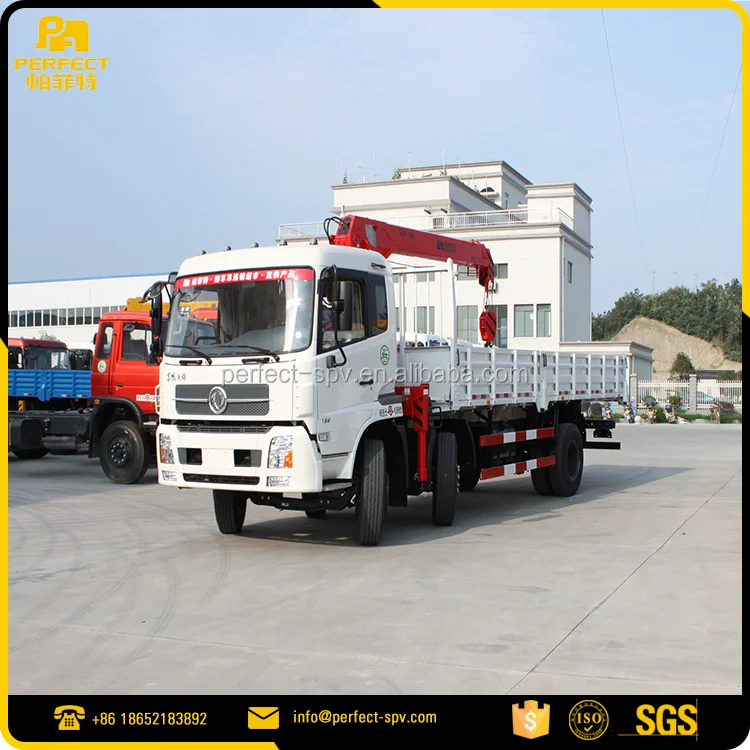

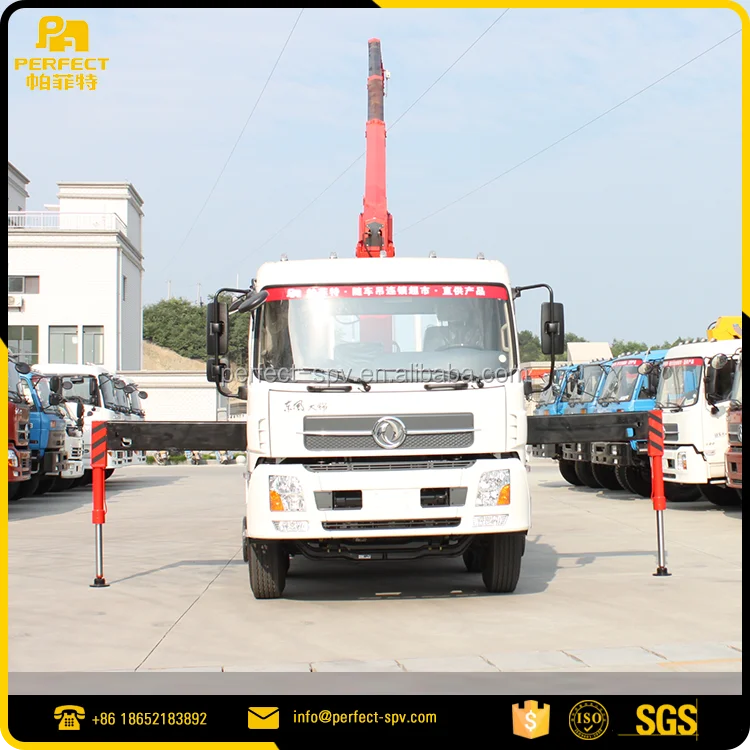

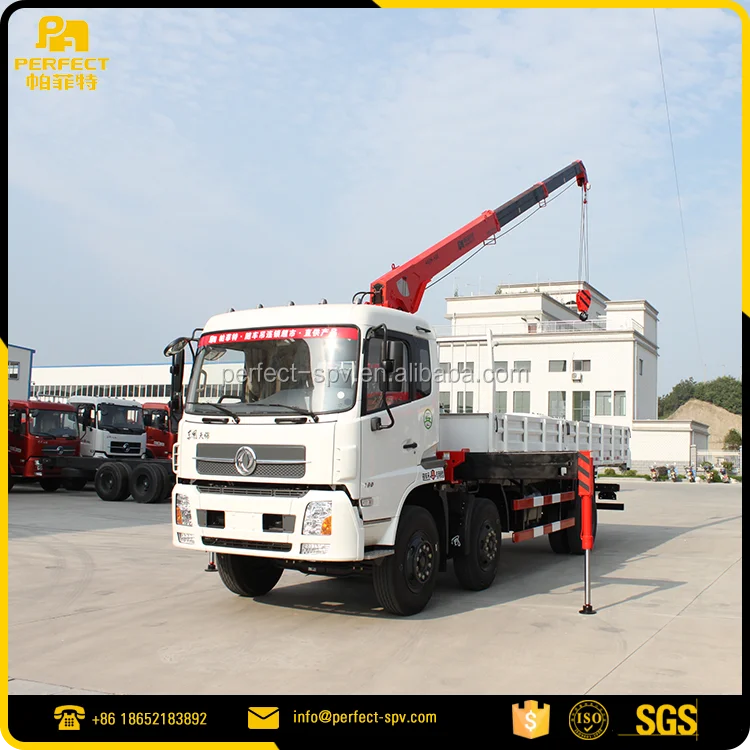

5 Ton Mini SQ-5II 6x2 Pickup Truck Boom Lift Truck Mounted Crane

Supplier: Xuzhou Heavy Construction Machinery Co., Ltd.
Region: Jiangsu, China
Contact: Ms. Deborah Hu
Price: $10000.00 /unit
Min. Order: 1 unit

Click here to contact

Product details

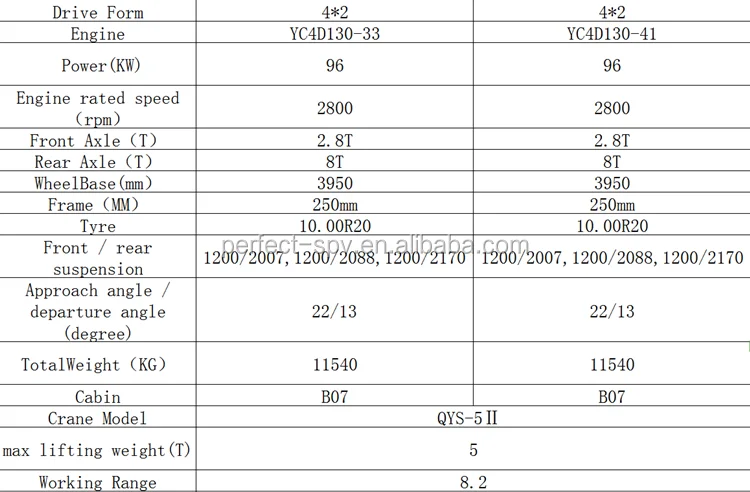

Brand Name:	PERFEC;	Container Size (MM):	4500x2300x600;
Engine Brand:	WEICHAI;	Overall Size(MM):	7320X2480X3560;
Packaging Detail:	Comply with export packaging requirements (5 ton mini SQ-5II 6x2 pickup truck boom lift Truck mounted Crane);	Warranty:	1 Year;
Port:	Shanghai /Lianyungang port;	Hydraulic Valve Brand:	KYB;
Hydraulic Pump Brand:	HYDAC;	Hydraulic Cylinder Brand:	TOSHIBA;
Power(KW):	96kW;	Place of Origin:	Hubei China;
Feature:	Truck Crane;	Approach / departure angle (degree):	22/13;

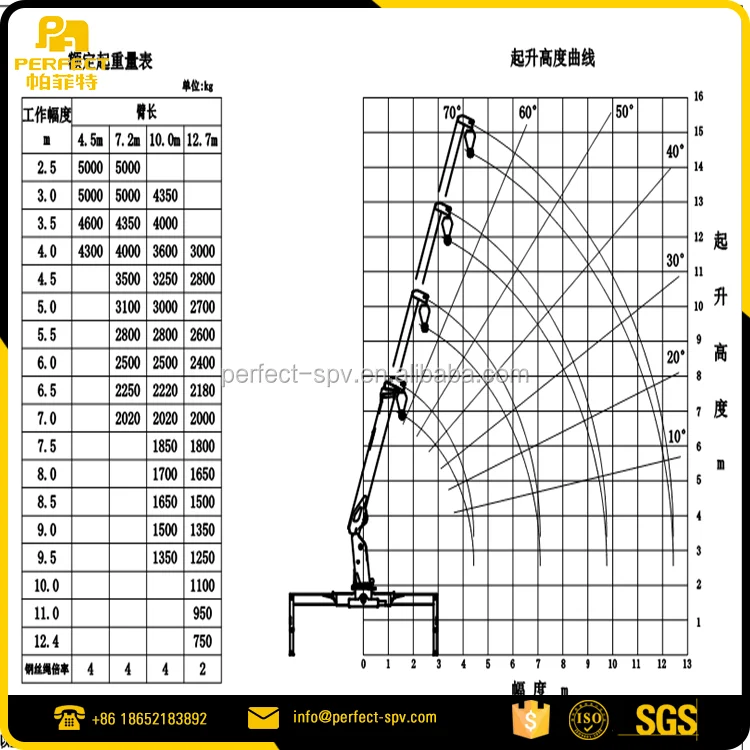

After-sales Service Provided:	Field maintenance and repair service;	Rated Lifting Moment:	12.5T/M;
Applicable Industries:	Construction works ;	Max. Lifting Height:	14.2m;
Payment Terms:	L/C,T/T;	WheelBase(mm):	3950;
Certification:	CE/ISO9001;	Engine rated speed (rpm):	2800;
TotalWeight(KG):	11540;	Rated Loading Capacity:	2800kg;
Product name:	5 ton mini pickup truck boom lift Truck mounted Crane;	Span:	5.76m;
Engine:	YC4D130-33;YC4D130-41;	Supply Ability:	1000 Unit/Units per Year;
Drive Form:	4*2;	Condition:	New;
Application:	Construction;

5 Ton Mini SQ-5II 6x2 Pickup Truck Boom Lift Truck Mounted Crane

At present, the power of my company's straight-arm crane is entirely from the hydraulic oil pressure, that is, through the high-pressure hydraulic oil to promote the cylinder piston reciprocating motion, or drive the hydraulic motor rotation makes the hydraulic winch and rotary mechanism rotation.

So, how do high-pressure hydraulic oil get? Each truck crane is equipped with a hydraulic pump when the vehicle chassis is matched, and the engine provides power for it. The chemical energy of the fuel can be converted into the crankshaft of the engine to rotate the mechanical energy, and then the gearbox gear is rotated, and then the power is transmitted to the hydraulic pump through the power transmission of the gearbox. Therefore, the hydraulic pump can continuously pressurize the hydraulic oil For the high-pressure hydraulic oil, so as to provide power for the crane to achieve the lifting of the goods.
